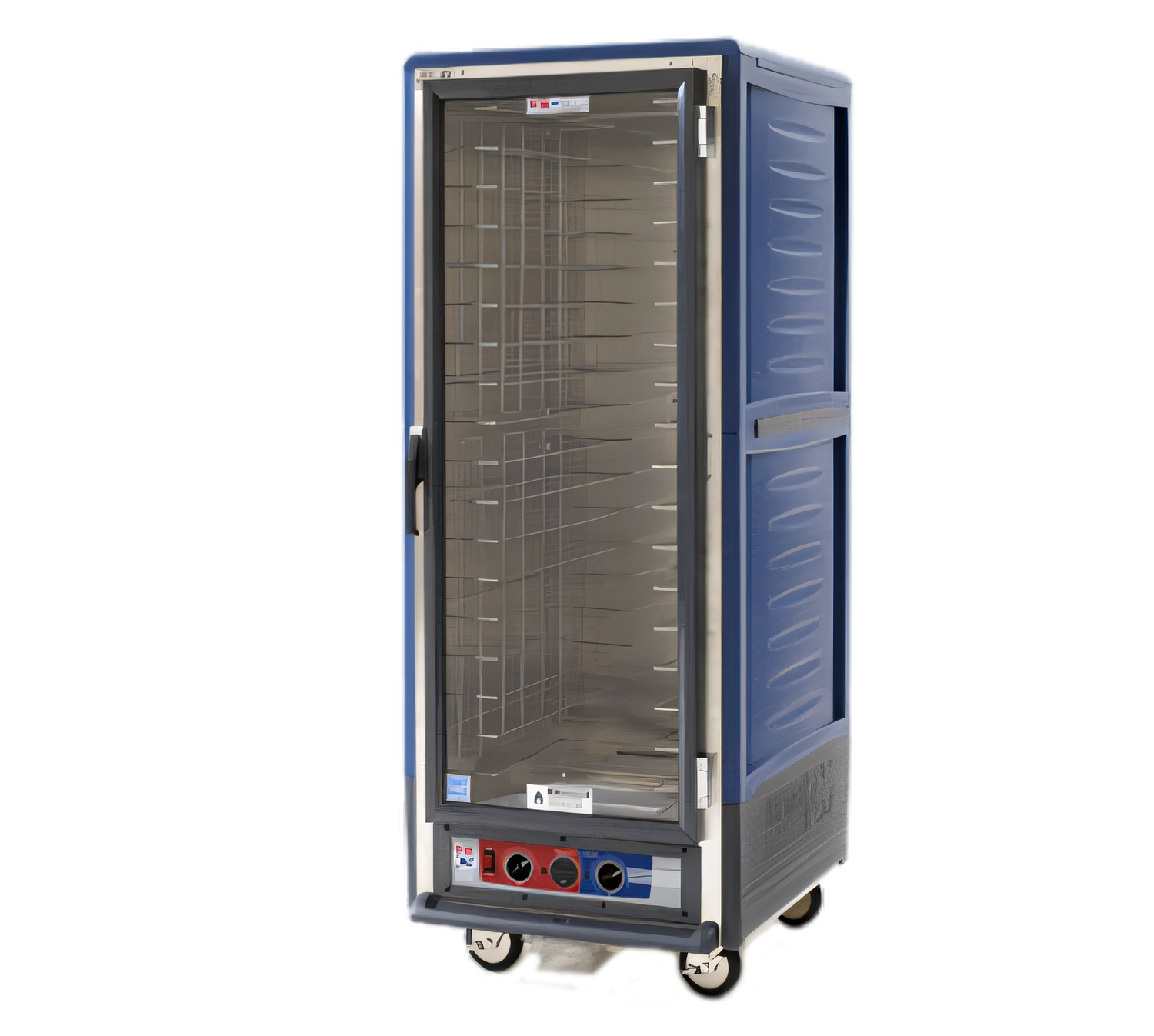

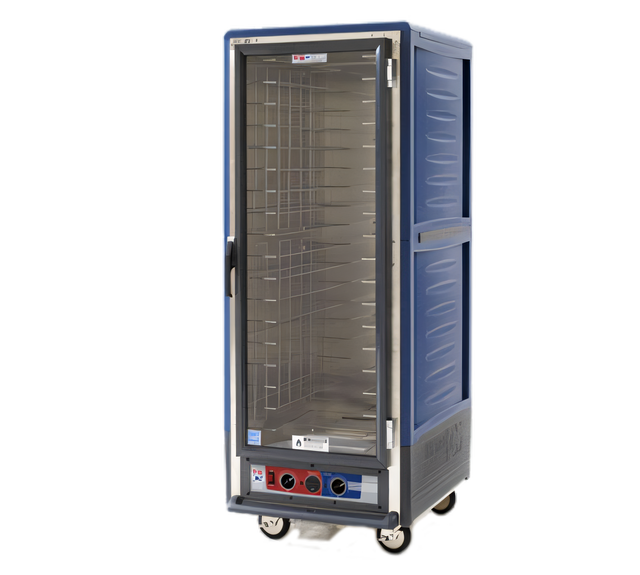

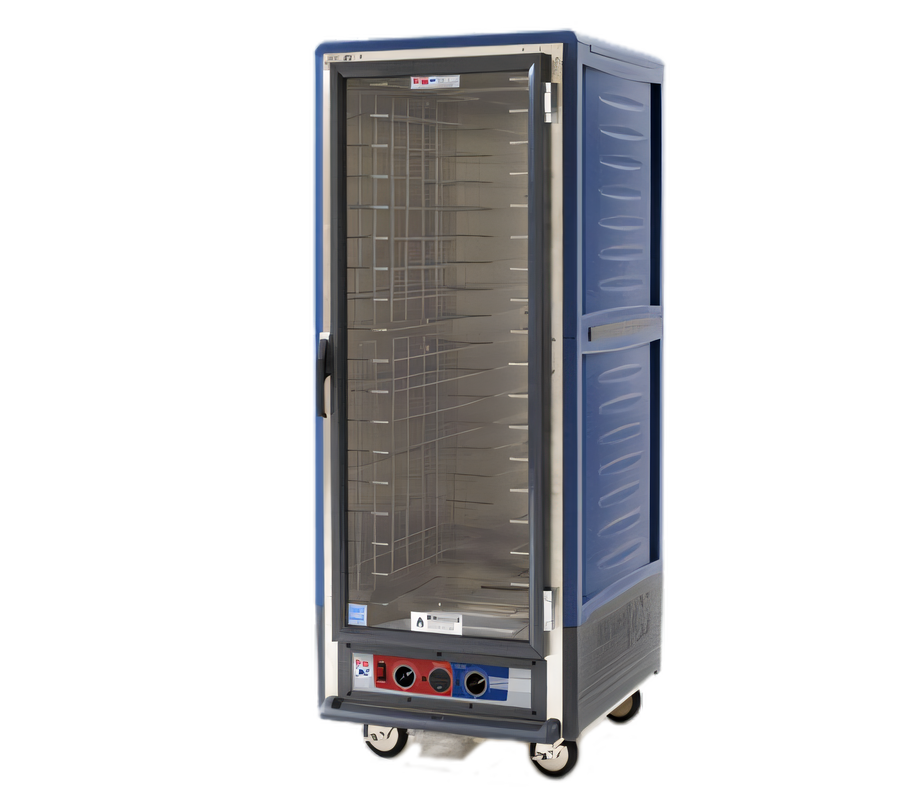

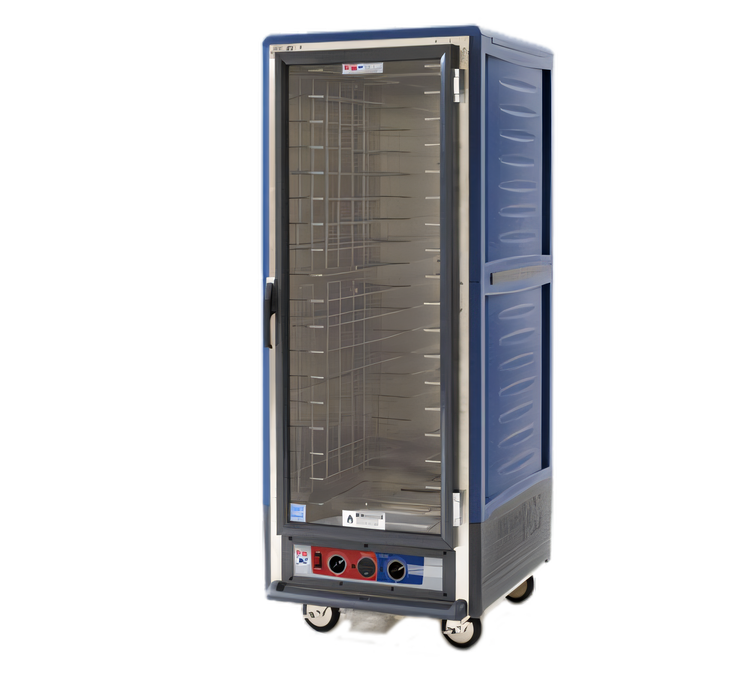

Metro C5 3 Series Blue Insulation Armour Mobile Full-Height Moisture Heated Holding and Proofing Cabinet with Lip Load Slides, 35-Pan, 120V

SKU: C539-MFS-L-BU
GTIN: 0-41105-45605-7
$3,893.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Food Holding & Warming Equipment Food Warmers & Holding Equipment Heated Cabinet Holding Cabinets Holding Cabinets Metro New Arrivals Proofing Cabinets Proofing Cabinets Restaurant Equipment

Metro C5 3 Series Blue Insulation Armour Mobile Full-Height Moisture Heated Holding and Proofing Cabinet with Lip Load Slides, 35-Pan, 120V

Removable control module, 1-1/2-inch slide centers, and 5-inch casters

Keep foods hot and ready while adding moisture for proofing in a cool-to-touch, mobile cabinet built for everyday kitchen use.

  • Blue Insulation Armour helps keep exterior surfaces cool to the touch while resisting dents, impact, and stains.
  • Moisture module provides hot holding with moisture control and proofing up to 200°F.
  • Holds up to 35 full-size 18 x 26-inch pans on fixed 1-1/2-inch lip-load centers.
  • Removable bottom-mounted control module simplifies cleaning and servicing without tools.
  • Mobile full-height design includes 5-inch casters, with two brakes for stability.
  • 120V single-phase power with 2000W output and a NEMA 5-20P plug.

Overall Dimensions:

27.63"W x 31.5"D x 71.0"H

Product Weight:

277.0 lb

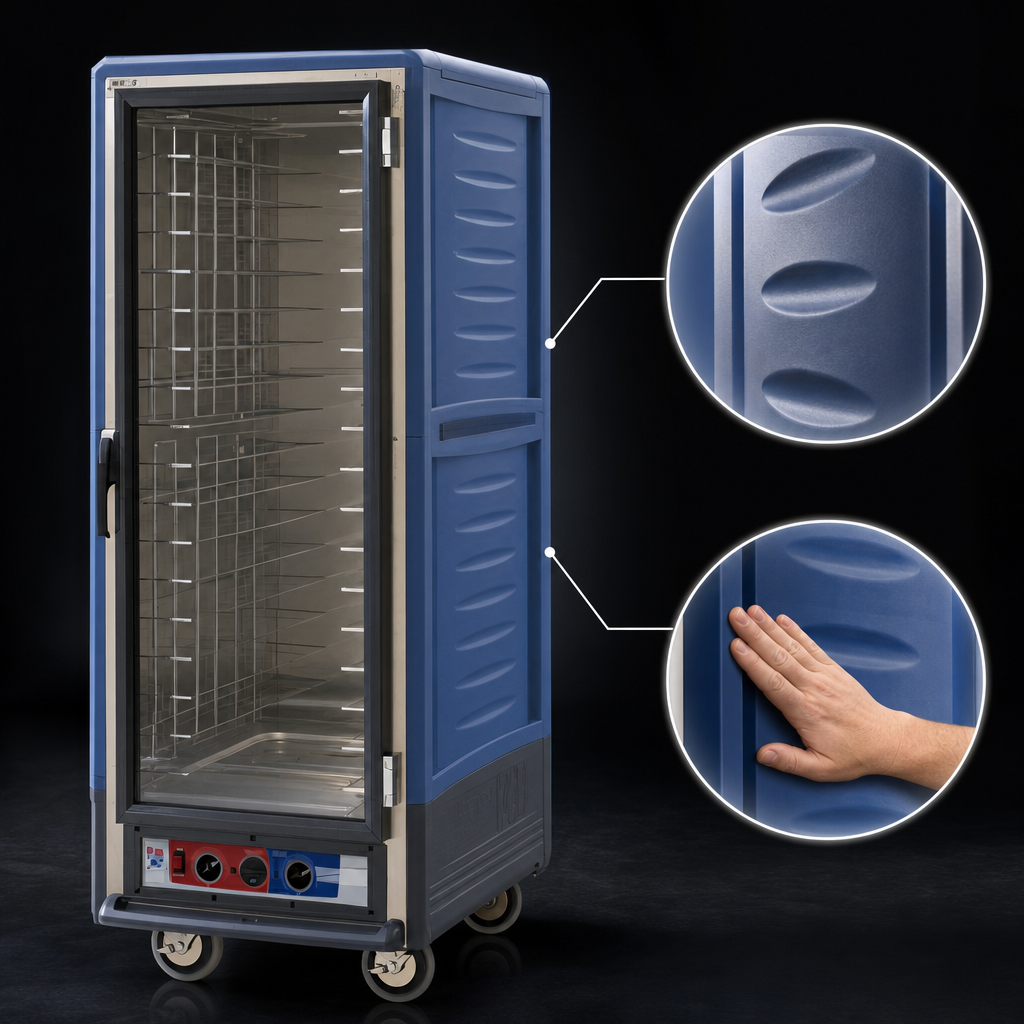

Insulation Armour Exterior

Patented HDPE insulation technology retains heat, improves energy efficiency, and provides a cool-to-touch exterior.

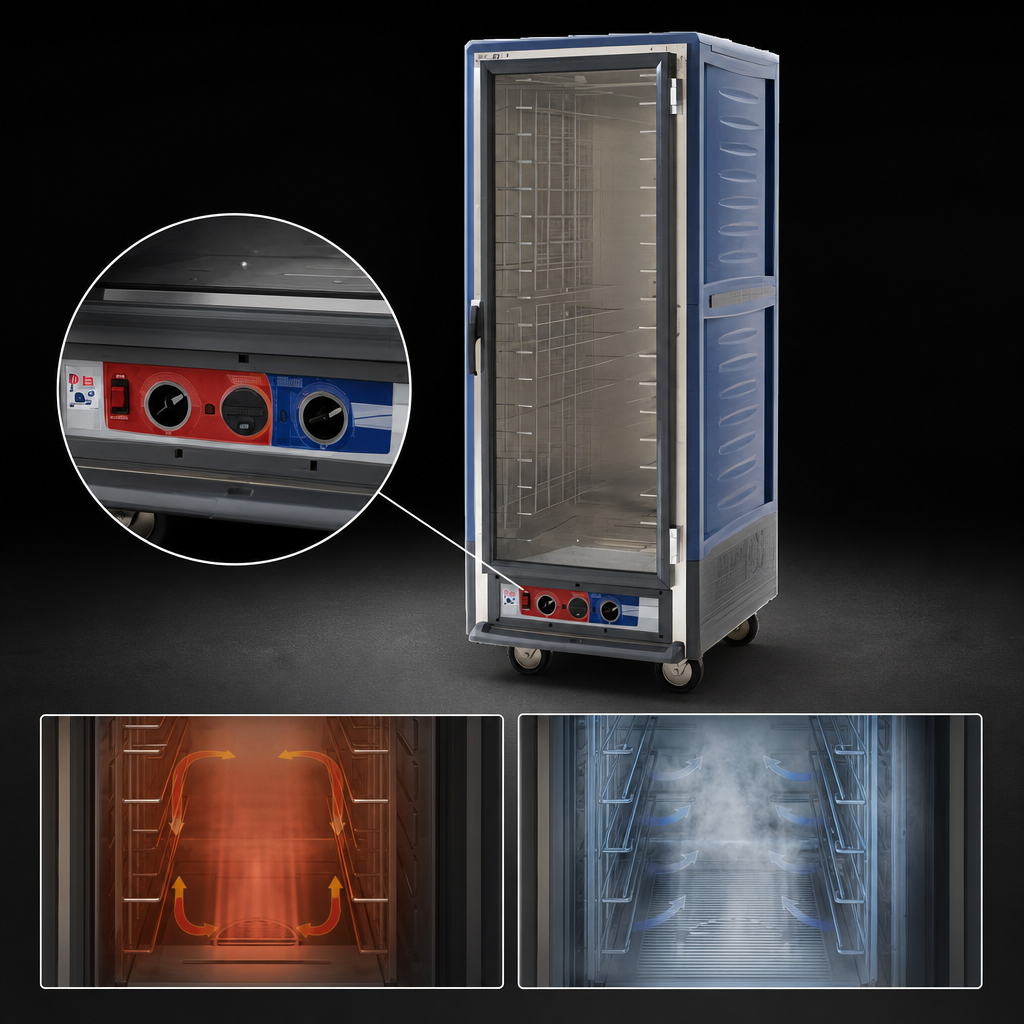

Moisture Control Module

Provides hot holding with moisture control and proofing, with a thermostatically controlled forced convection system for fast heat-up and recovery.

Removable Control Module

Bottom-mounted control module removes without tools for easier cleaning, servicing, and future upgrades.

35-Pan Lip Load Capacity

Fixed 1-1/2-inch slide centers support up to 35 full-size 18 x 26-inch pans.

Mobile Full-Height Design

Full-height cabinet rides on 5-inch casters and includes molded-in hand holds for easier mobility; two casters have brakes.

Aluminum Cabinet Construction

Aluminum cabinet construction with insulated cabinet and door design for durability and heat retention.

Door Hardware

Field-reversible, double-hinged doors with 180° swing, high-temperature gaskets, and a magnetic pull latch.

Electrical Setup

120V, 60Hz, single-phase operation with 2000 watts, 16.7 amps, and a NEMA 5-20P plug.

Type Heated Holding and Proofing Cabinet
Style Full Height
Installation Type Floor Model
Controls Thermostatic
Temperature Range 80°F to 200°F
Compartments 1
Pan Capacity 35 18 x 26 Inch Pans
Pan Size 18 x 26 Inches
Material Aluminum
Interior Finish Aluminum
Color Blue
Finish Blue Insulation Armour
Voltage 120 Volts
Amps 16.7 Amps
Watts 2 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-20P
Shipping Width 28 Inches
Shipping Depth 32 Inches
Shipping Height 71 Inches
Shipping Weight 277 lb.
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Instructions PDF Download PDF Brochure PDF Download

Frequently Asked Questions

The cabinet operates from 80°F to 200°F.
It holds up to 35 full-size 18 x 26-inch pans on 1-1/2-inch lip-load centers.
Yes. The bottom-mounted control module removes without tools for cleaning and servicing.
Yes. The moisture module provides hot holding with moisture control and proofing capability.
It uses 120V, 60Hz, single-phase power, draws 16.7 amps, and requires a NEMA 5-20P plug.
