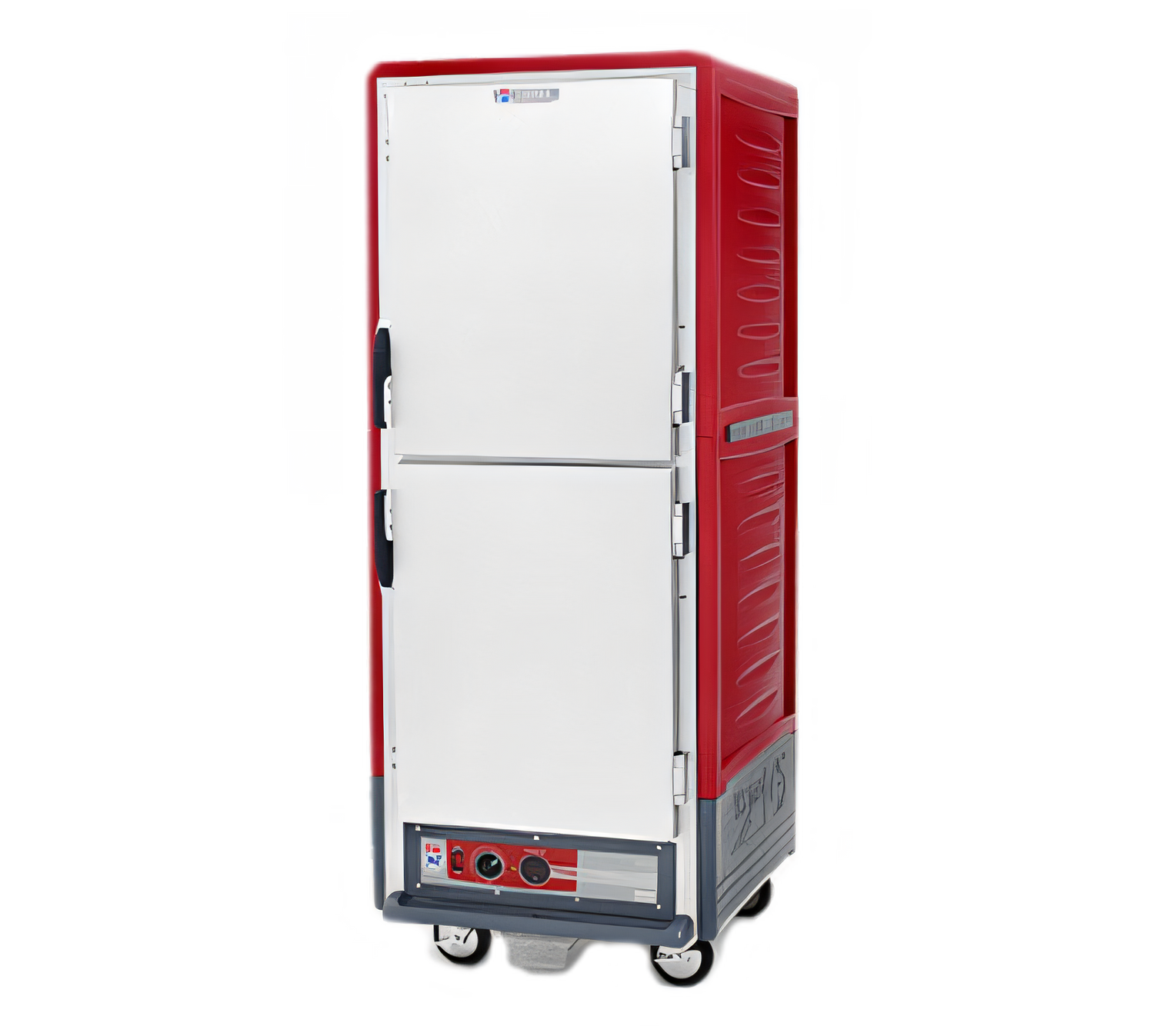

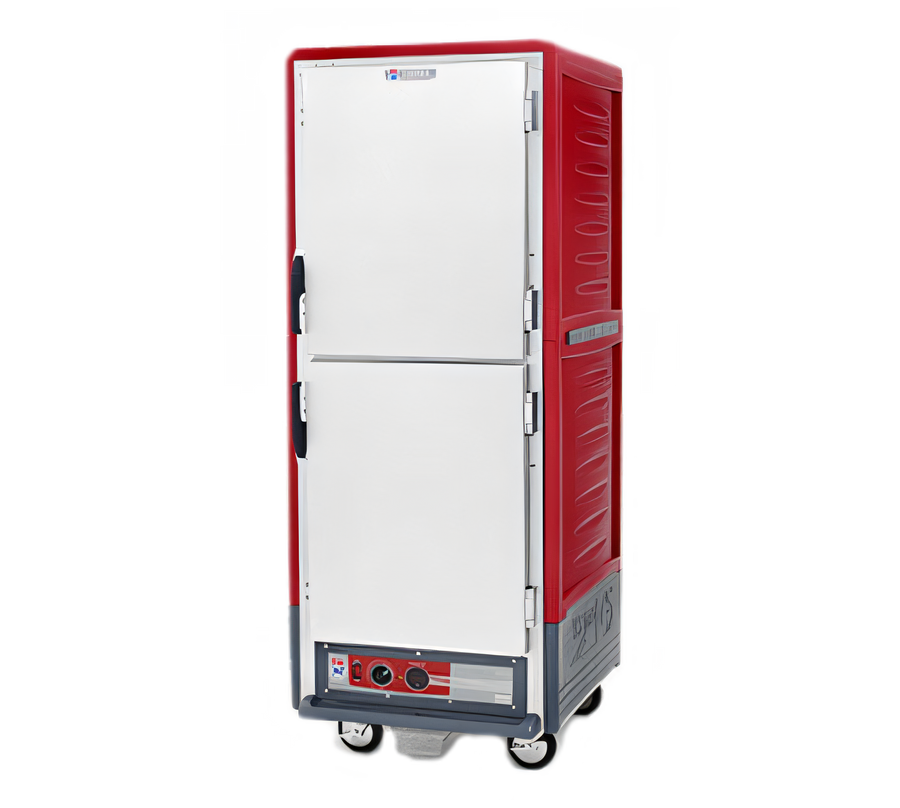

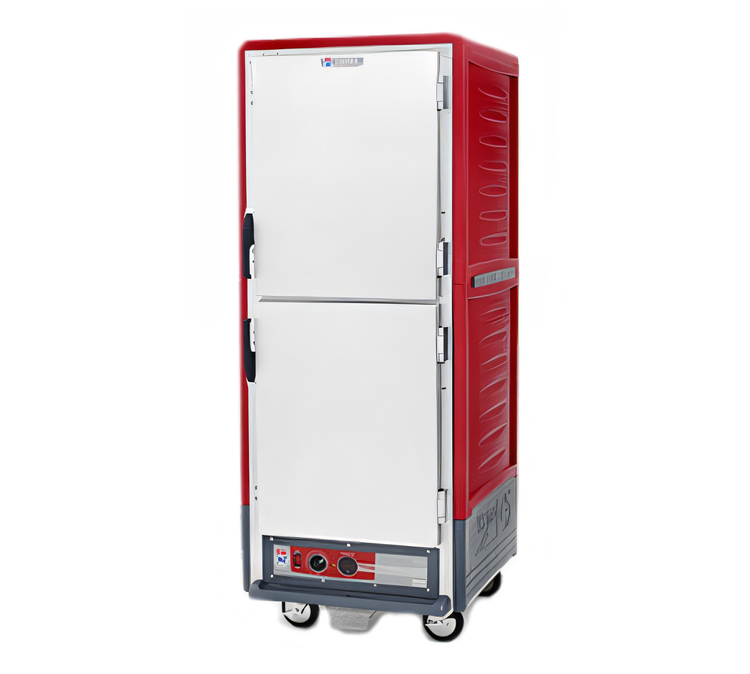

Metro C5 Insulation Armour C539-MDS-L Mobile Moisture Heated Holding & Proofing Cabinet, Dutch Doors, 35-Pan Capacity

SKU: C539-MDS-L GTIN: 0-41105-45566-1
$4,232.00
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

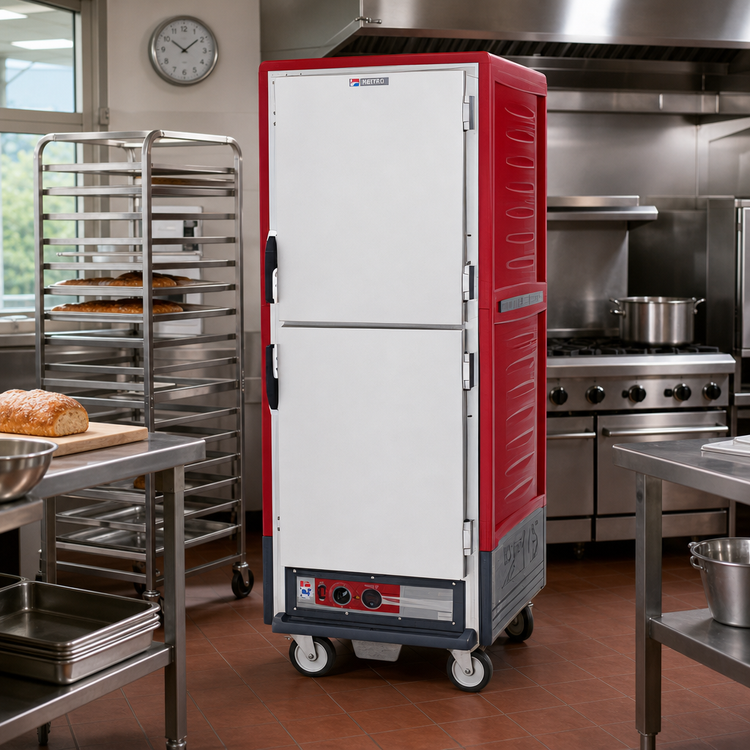

Metro C5 3 Series Full-Height Moisture Heated Holding and Proofing Cabinet with Dutch Insulated Aluminum Doors

Mobile, Red Insulation Armour, Lip Load Slides, 35-Pan Capacity, 120V

Keep food hot, moist, and ready to serve in a cool-to-touch cabinet built for mobile commercial kitchens.

  • Moisture heated holding and proofing cabinet with thermostat control up to 200°F.
  • Full-height, mobile design with red Insulation Armour™ exterior for a cool-to-touch surface.
  • Dutch insulated aluminum doors and lip load aluminum slides help maximize access and storage.
  • Holds up to 35 full-size 18" x 26" pans on 1 1/2-inch centers.
  • 5-inch casters make the cabinet easy to move; two casters include brakes.
  • 120V, 60 Hz, single-phase operation with 2 kW heating and NEMA 5-20P plug.

Overall Dimensions:

27.63"W x 31.5"D x 71.0"H

Product Weight:

222.96 lb

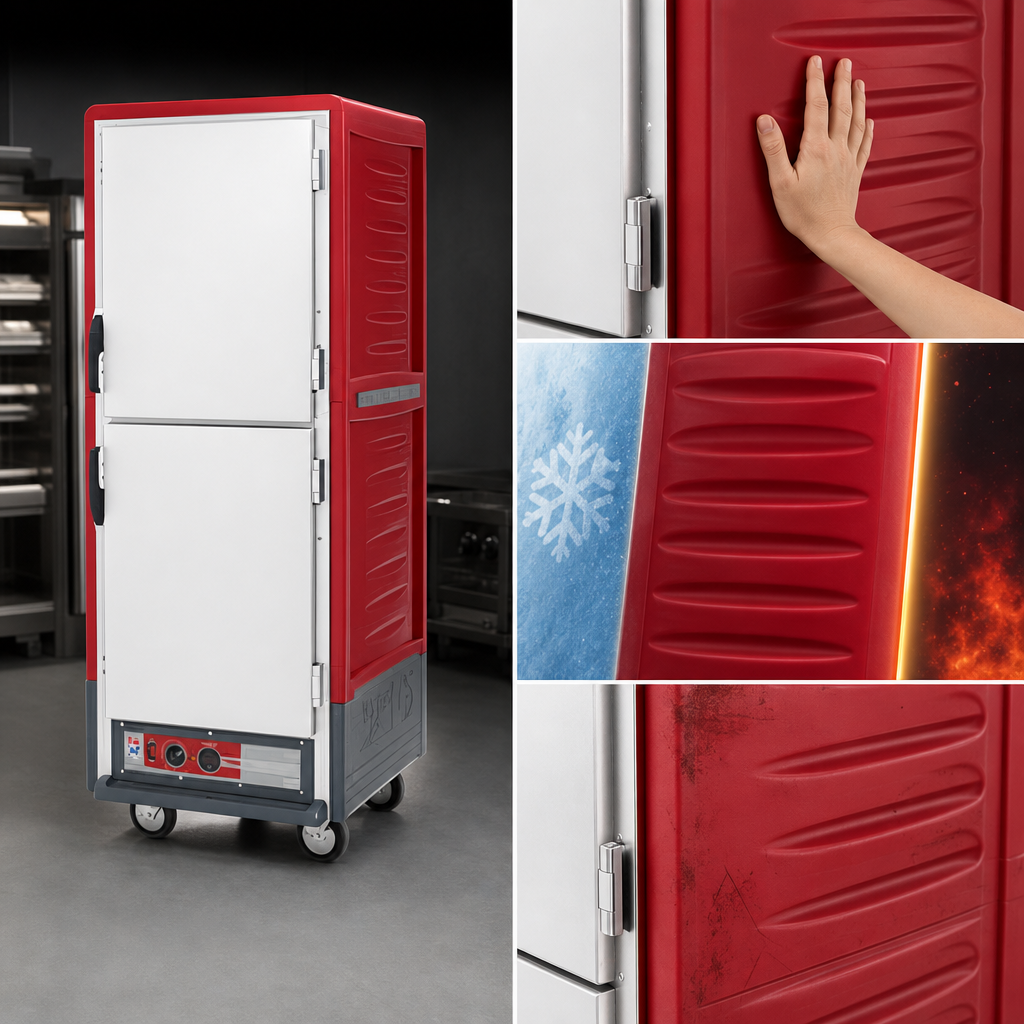

Cool-To-Touch Insulation Armour™

Red HDPE exterior retains heat, provides a cool-to-touch surface, and resists dents, impacts, and stains.

Cool-To-Touch Insulation Armour™

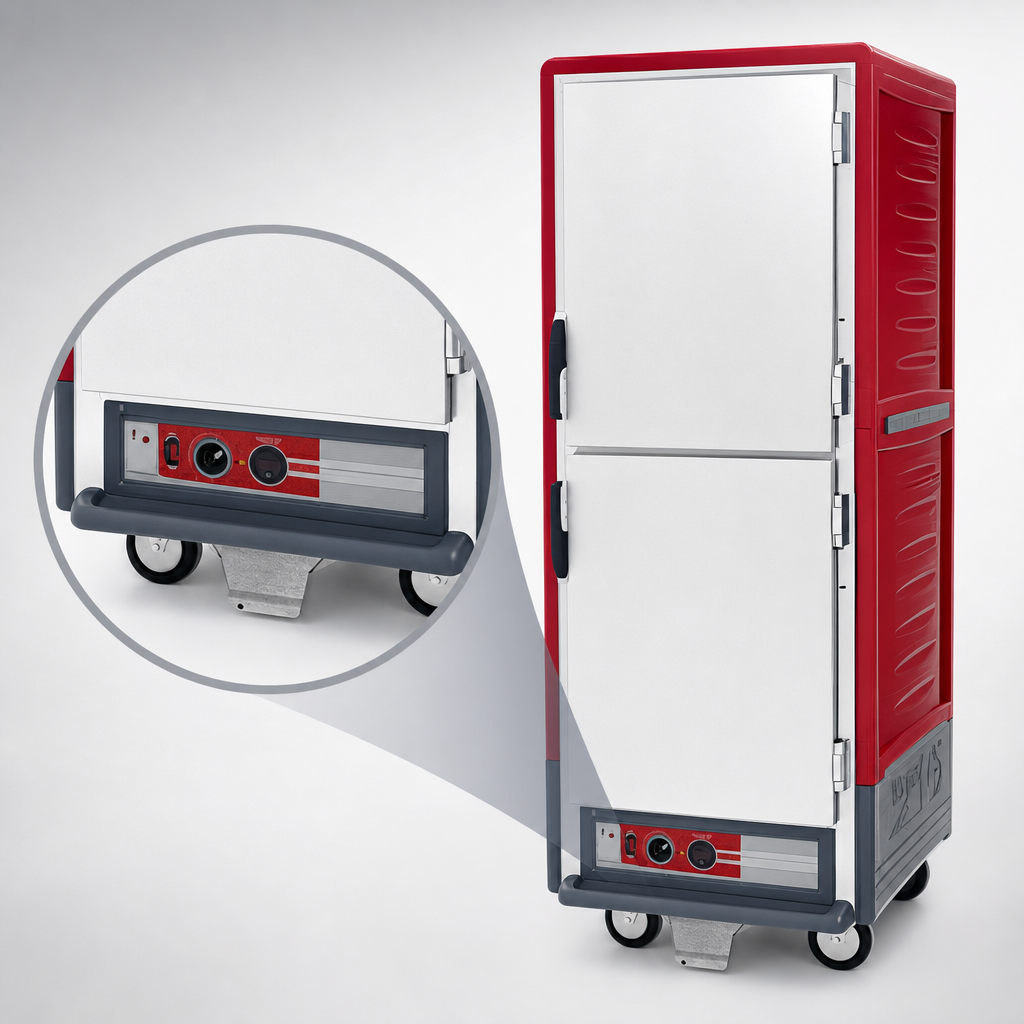

Moisture Control Module

Removable bottom-mounted module provides heated holding and proofing with moisture control and thermostatic operation up to 200°F.

Moisture Control Module

Bottom-Mounted Heat System

Thermostatically controlled forced-convection heat is mounted low in the cabinet for fast heat-up and recovery.

Dutch Insulated Aluminum Doors

Full-height Dutch doors improve access while helping reduce heat loss.

Lip Load Slide Capacity

Lip load aluminum slides on 1 1/2-inch centers hold 35 full-size 18" x 26" pans.

Mobile Caster Base

5-inch casters make the cabinet easy to move, and two casters are equipped with brakes.

Tool-Free Serviceability

The removable control module comes out without tools for easier cleaning and servicing.

Related Searches

Best Sellers Equipment Equipment Food Holding & Warming Equipment Food Holding & Warming Equipment Food Holding & Warming Equipment Food Warmers & Holding Equipment Heated Cabinet Holding Cabinets Holding Cabinets Metro New Arrivals Proofing & Retarding Cabinets Proofing Cabinets Proofing Cabinets Restaurant Equipment
Type Heated Holding and Proofing Cabinet
Style Moisture
Installation Type Floor Model (Mobile)
Color Red
Material Aluminum
Interior Finish Aluminum
Pan Capacity 35 18" x 26" Pans
Compartments 1
Slide Centers 1 1/2 Inches Fixed
Controls Thermostatic
Temperature Range 80°F to 200°F
Voltage 120 Volts
Amps 16.7 Amps
Watts 2 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-20P
Country of Origin USA
Width 28 Inches
Depth 32 Inches
Height 71 Inches
Weight 278 lb.
Selling Unit Each
Units Per Case 1

Documents

PDF Cutsheet PDF Download PDF Instructions PDF Download PDF Brochure PDF Download

Frequently Asked Questions

The moisture and holding modules operate from 80°F to 200°F.
It holds up to 35 full-size 18" x 26" pans on lip load slides.
Yes. The moisture module is designed for heated holding and proofing with moisture control at any temperature.
Yes. It includes 5-inch casters, with two casters fitted with brakes.
It operates on 120V, 60 Hz, single-phase power and uses a NEMA 5-20P plug.
Yes. The control module is removable without tools for easier cleaning and servicing.
