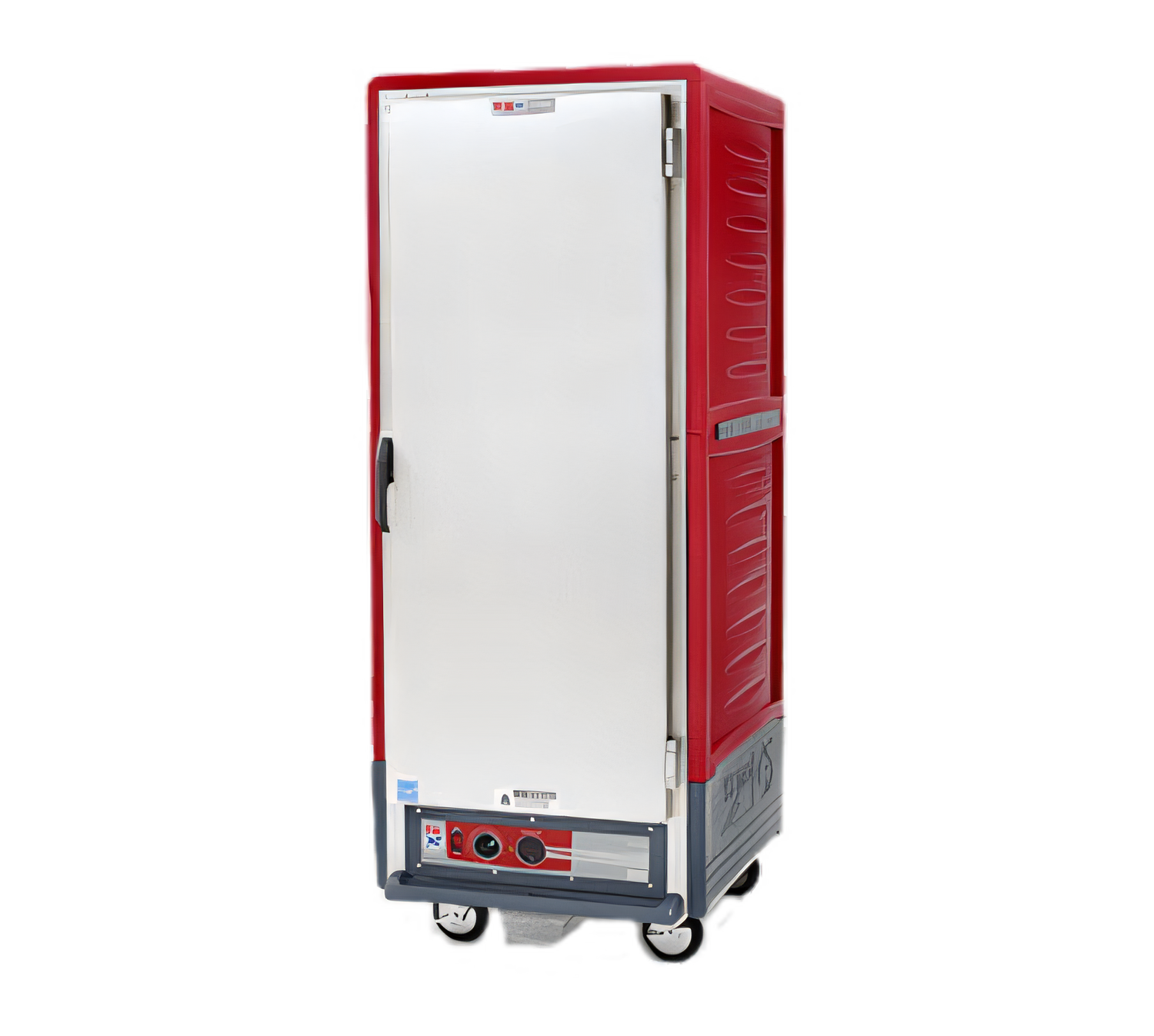

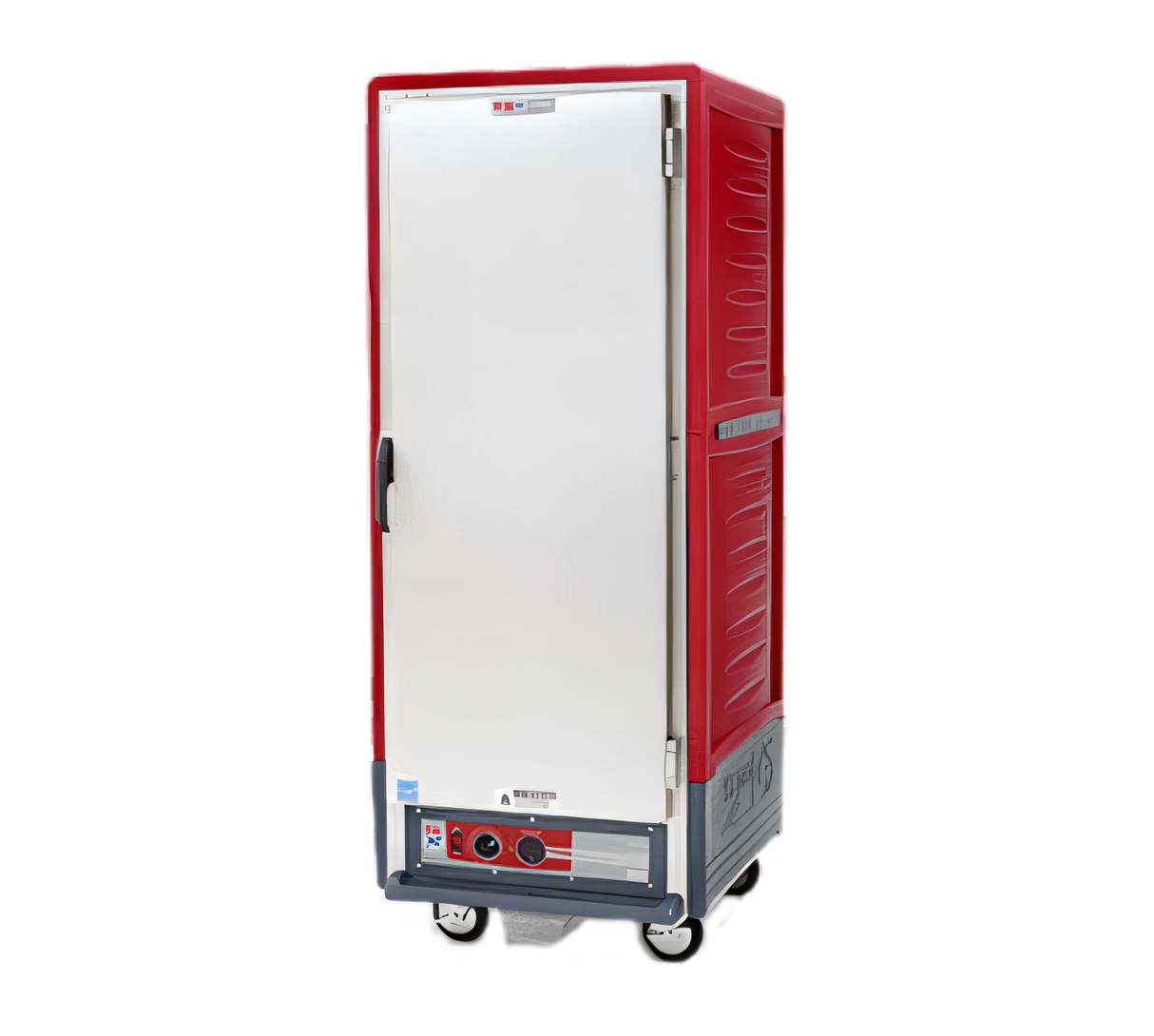

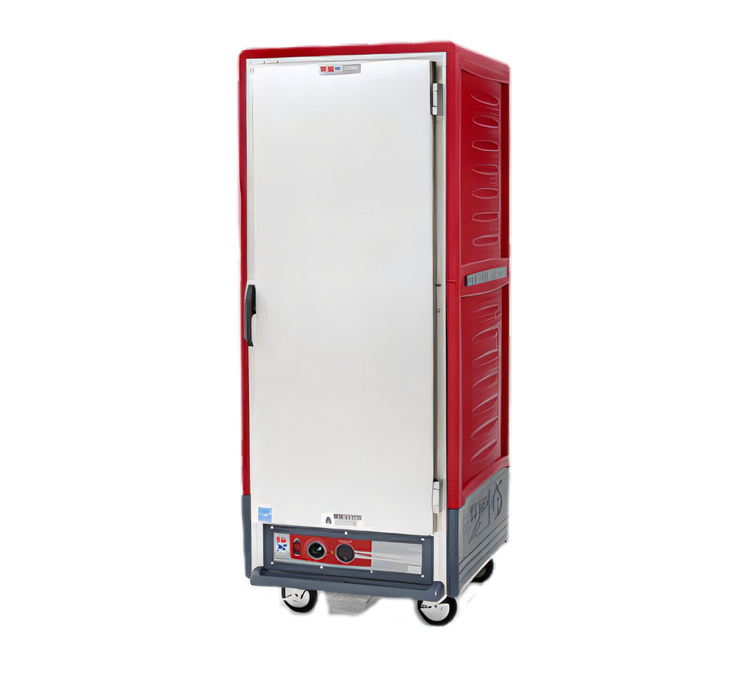

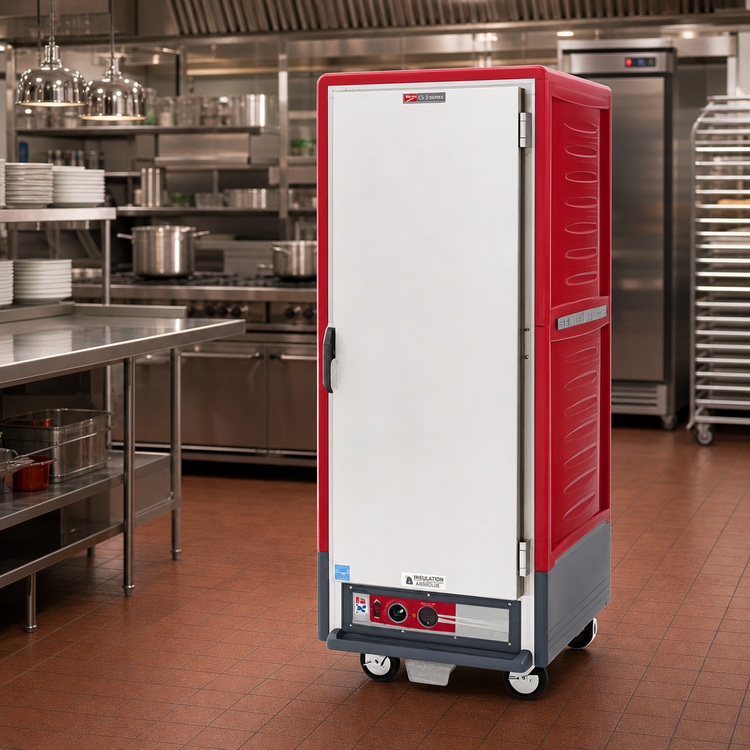

Metro C5 3 Series Insulation Armour Full-Height Heated Holding Cabinet with Solid Door and Universal Slides

Low wattage, mobile, 18 sheet pan / 34 hotel pan capacity, 120V

A cool-to-touch, energy-efficient holding cabinet that keeps hot food ready at up to 200°F while rolling easily on 5-inch casters.

  • Full-height heated holding cabinet designed for hot food holding applications only.
  • Patented Insulation Armour exterior helps retain heat while providing a cool-to-touch surface.
  • Universal wire slides adjust on 1-1/2-inch increments for flexible loading.
  • Holds 18 full-size sheet pans or 34 hotel pans on the universal slide setup.
  • Removable bottom-mounted control module simplifies cleaning, servicing, and future upgrades.
  • Mobile base includes four 5-inch casters with two brakes for stable positioning.
  • Low-watt 120V electrical setup uses a NEMA 5-15P plug for straightforward connection.

Overall Dimensions:

27.63"W x 31.5"D x 71.0"H

Product Weight:

282.0 lb

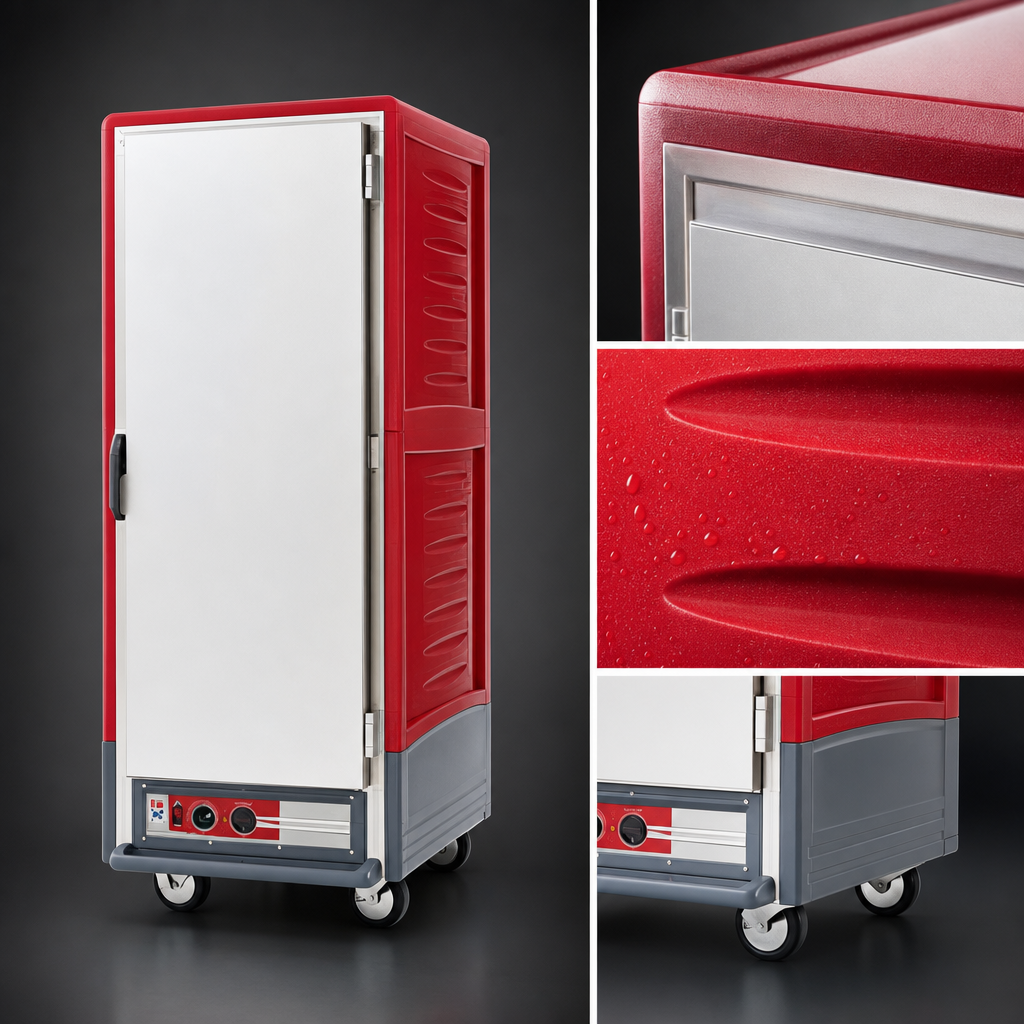

Insulation Armour Exterior

Durable HDPE polymer exterior helps retain heat, stays cool to the touch, and resists dents, impact, and stains.

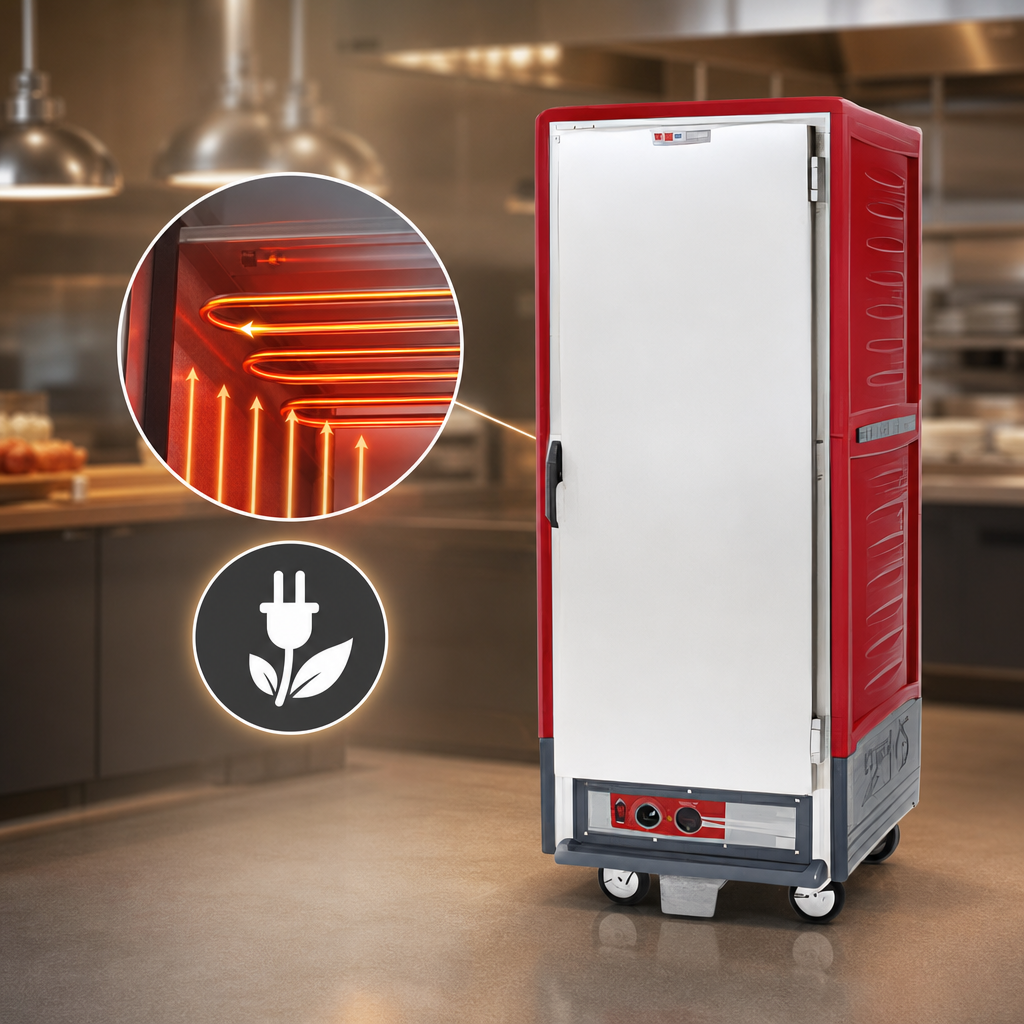

Low-Watt Heating System

120V, 60Hz, single-phase operation at 12 amps and 1.44 kW for lower-power holding applications.

Removable Control Module

Control module removes without tools for easier cleaning, servicing, and future upgrades.

Thermostatic Temperature Control

Holding temperature adjusts up to 200°F for hot food service.

Universal Wire Slides

Universal wire slides adjust on 1-1/2-inch increments to maximize load flexibility.

High Capacity Interior

Configured to hold 18 full-size sheet pans or 34 hotel pans with the universal slide system.

Solid Insulated Door

Full-length solid insulated door helps retain heat and support efficient holding performance.

Mobile Casters

Four 5-inch casters make the cabinet easy to move; two casters include brakes.

Type Heated Holding Cabinet
Style Full Height
Installation Type Floor Model
Compartments 1
Pan Capacity 18 18 x 26 Inch Sheet Pans or 34 12 x 20 x 2.5 Inch Hotel Pans
Slide Type Universal Wire
Slide Centers Adjustable on 1.5 Inch Increments
Controls Thermostatic
Temperature Range 80°F to 200°F
Material Aluminum
Interior Finish Aluminum
Finish Aluminum and Polymer
Color Red
Casters 4 Casters, 5 Inches, 2 with Brakes
Voltage 120 Volts
Amps 12 Amps
Watts 1.44 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 7.5 Feet
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Documents

PDF Cutsheet PDF Download PDF Brochure PDF Download PDF Instructions PDF Download

Frequently Asked Questions

The holding module operates from 80°F to 200°F.
With universal wire slides, it holds 18 full-size 18 x 26 inch sheet pans or 34 12 x 20 x 2.5 inch hotel pans.
Yes. The control module removes without tools for cleaning and servicing.
No. This is a heated holding model only; moisture control and the water pan are part of other module types.
It uses 120V, 60Hz, single-phase power at 12 amps with a NEMA 5-15P plug and a 7.5-foot cord.
Yes. Solid doors are field reversible and double hinged with a 180° swing.
