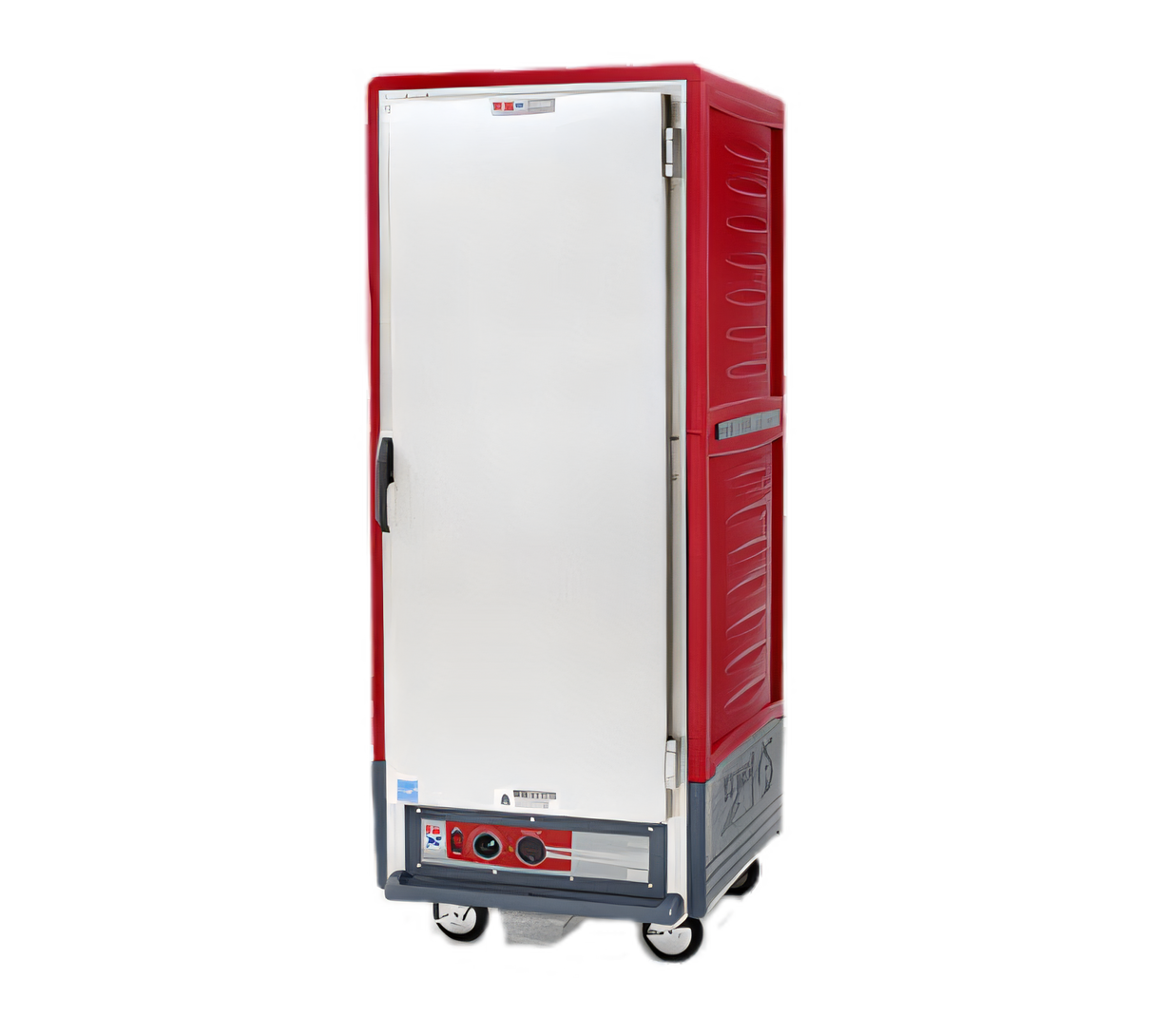

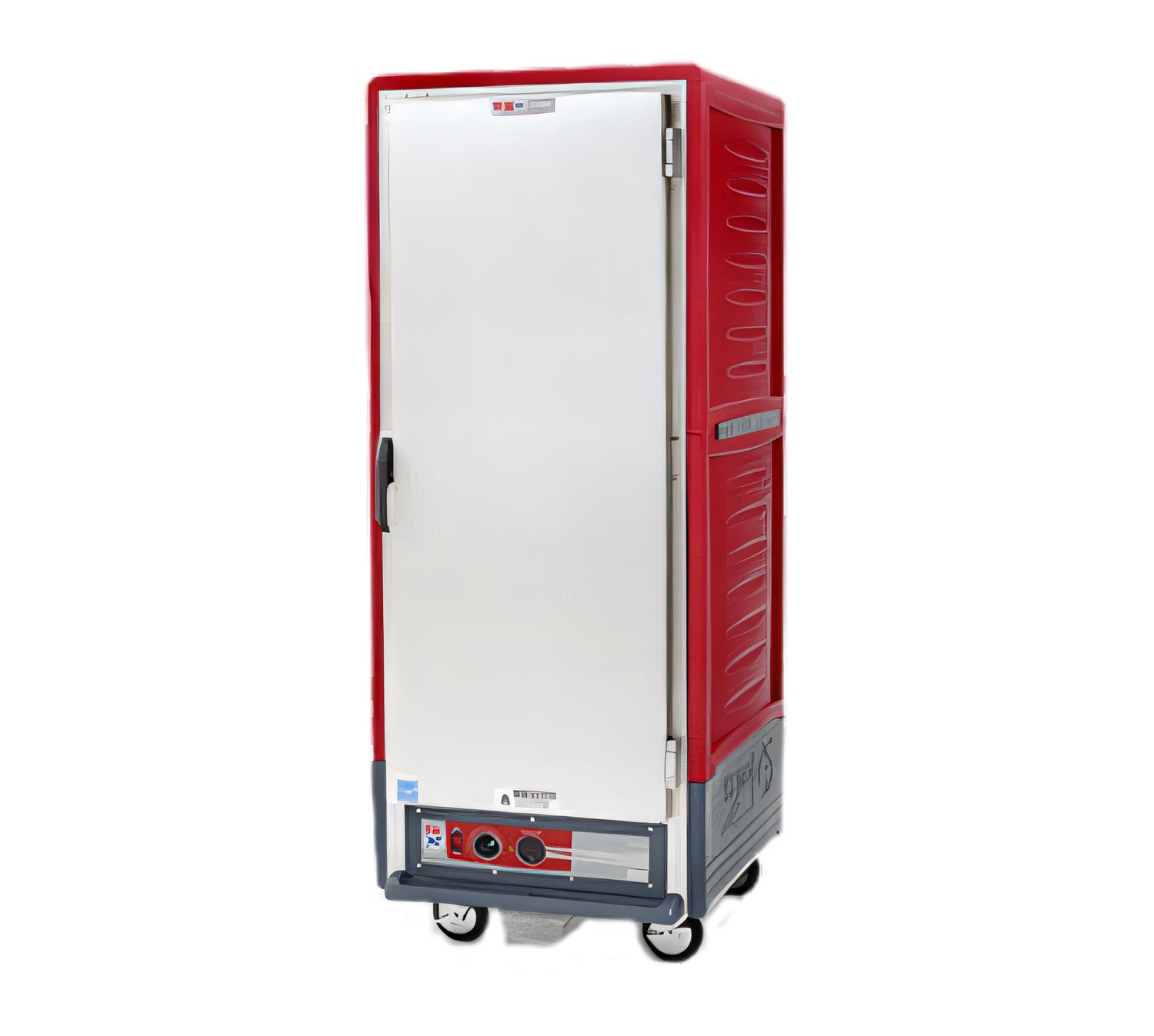

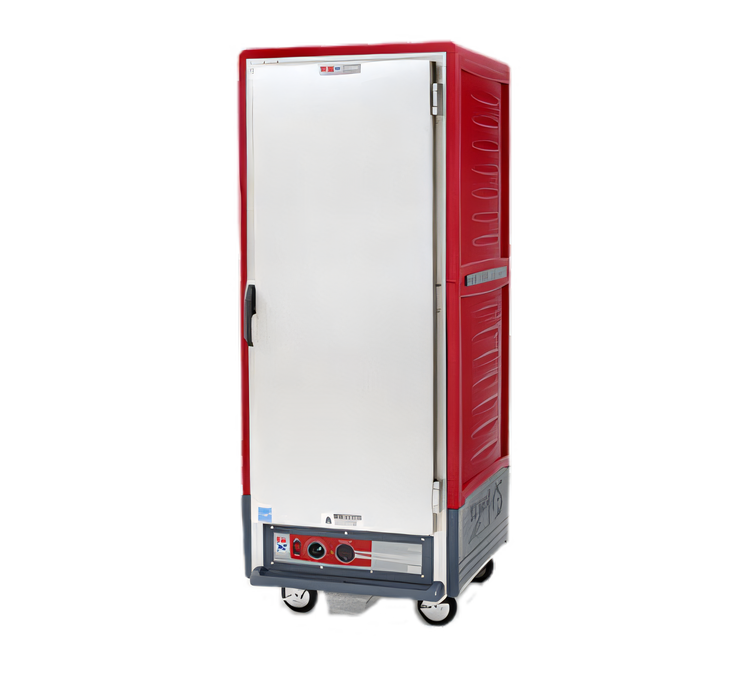

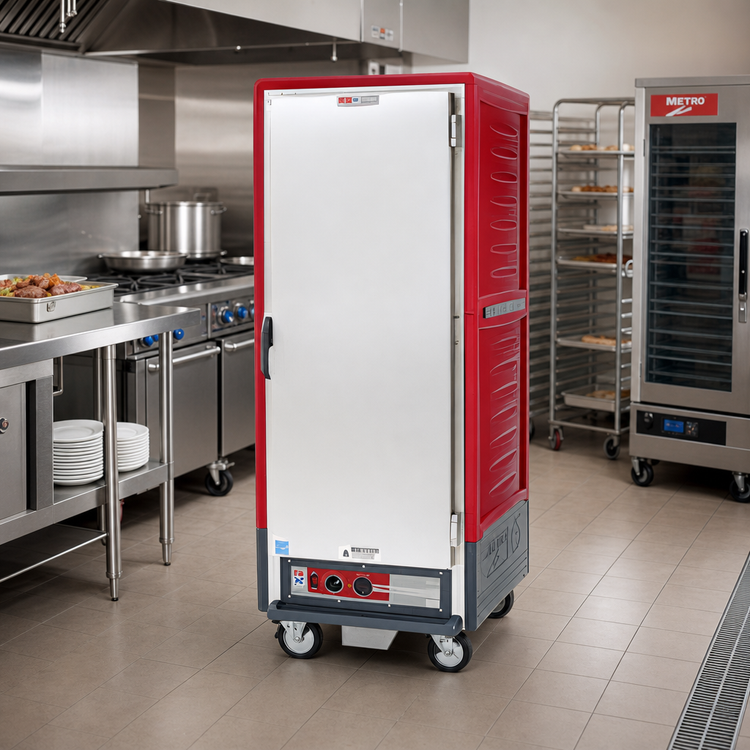

Metro C5 Insulation Armour C539-HLFS-L Mobile Full-Height Heated Holding Cabinet, Solid Door, 35-Pan Capacity, Red Exterior

SKU: C539-HLFS-L GTIN: 0-41105-45483-1
$3,455.00
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Metro C5 3 Series Mobile Full Height Heated Holding Cabinet with Solid Door, Low Watt, Red Insulation Armour, Lip Load Slides

120V, 1.44 kW, 35 Full-Size Sheet Pan Capacity, 5-Inch Casters

This low-watt, mobile full-height cabinet combines cool-to-touch Insulation Armour, 35-pan capacity, and reliable hot holding up to 200°F.

  • Low-watt 120V design helps reduce power draw while delivering dependable hot holding.
  • Full-height red Insulation Armour exterior stays cool to the touch and resists dents, impacts, and stains.
  • Holds up to 35 full-size 18" x 26" pans on lip load slides with fixed 1-1/2" centers.
  • Removable bottom-mounted control module simplifies cleaning, service, and future upgrades.
  • 5" casters with 2 brakes make the cabinet easy to move and secure in place.
  • Solid insulated aluminum door and insulated cabinet construction help retain heat efficiently.

Overall Dimensions:

27.63"W x 31.5"D x 71.0"H

Product Weight:

215.39 lb

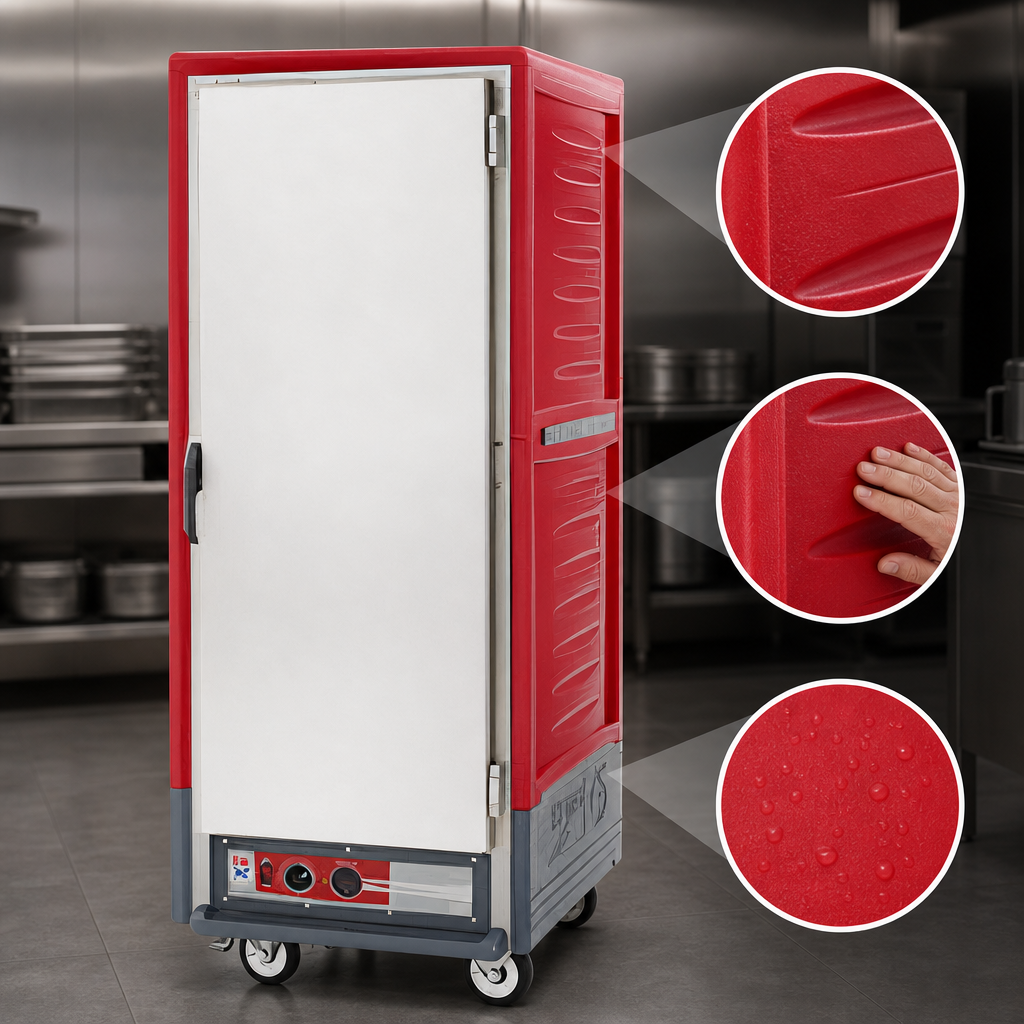

Insulation Armour Exterior

Durable red HDPE polymer exterior provides a cool-to-touch surface and helps resist dents, impacts, and stains.

Insulation Armour Exterior

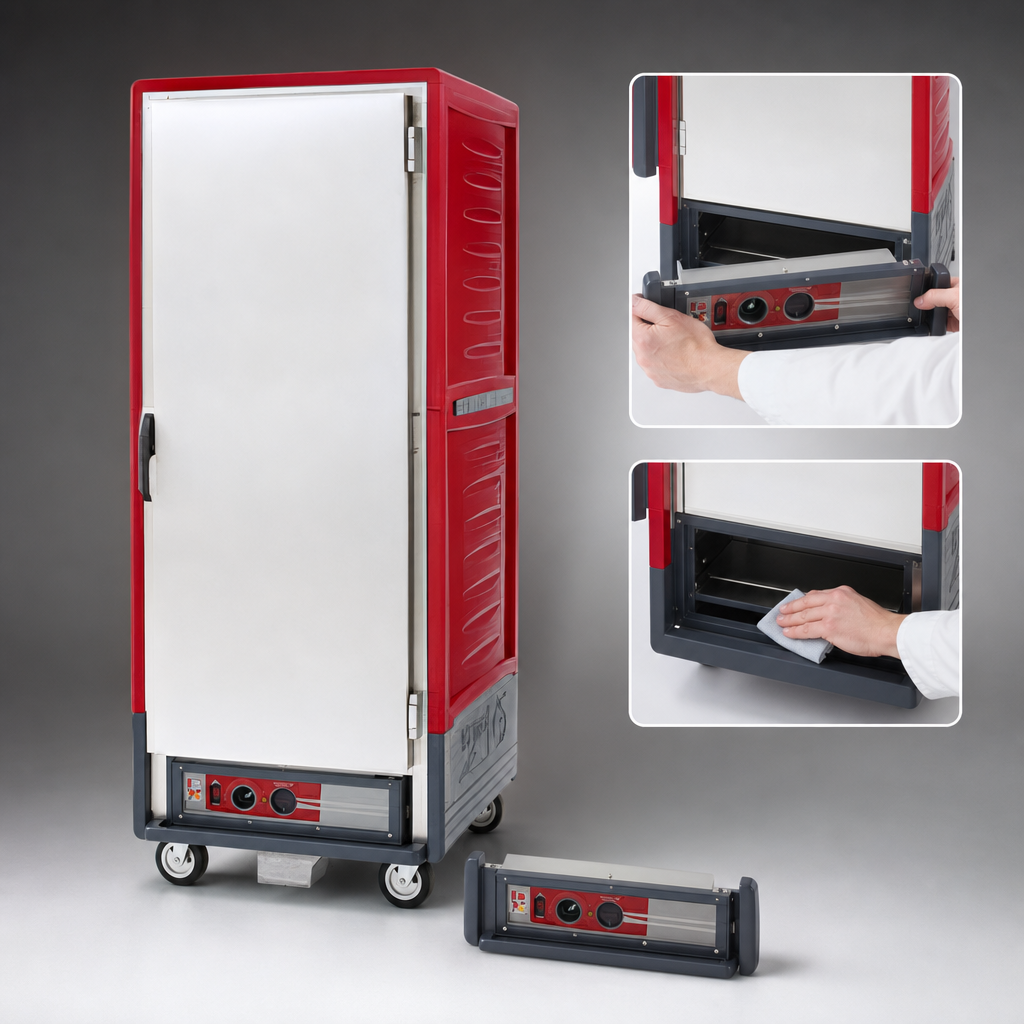

Removable Control Module

Bottom-mounted module removes without tools for easy cleaning, service, and future upgrades.

Removable Control Module

Thermostatic Holding Control

Holding module maintains temperatures up to 200°F and includes a digital thermometer, recessed control dials, a master on/off switch, and a power indicator light.

Lip Load Slide System

Fixed 1-1/2" centers and extruded aluminum channel slides support up to 35 full-size 18" x 26" pans.

Mobile Caster Base

5" donut neoprene casters with 2 brakes make the cabinet easy to move and hold securely in place.

Solid Insulated Door

Full-length solid insulated aluminum door helps retain heat and reduce energy loss.

Field-Reversible Hinges

Double-hinged 180° swing door design can be reversed to suit the installation.

Related Searches

Best Sellers Equipment Equipment Food Holding & Warming Equipment Food Holding & Warming Equipment Food Holding & Warming Equipment Food Warmers & Holding Equipment Heated Cabinet Heated Cabinets & Holding Shelves Heated Holding Cabinets Holding Cabinets Holding Cabinets Metro New Arrivals Restaurant Equipment
Type Heated Holding Cabinet
Style Full Height
Installation Type Floor Model
Compartments 1
Pan Capacity 35 Full-Size Sheet Pans
Pan Size 18 Inches x 26 Inches
Controls Thermostatic
Temperature Range 80°F to 200°F
Material Aluminum
Color Red
Voltage 120 Volts
Amps 12 Amps
Watts 1.44 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 7.5 Feet
Country of Origin USA
Selling Unit Each
Units Per Case 1

Documents

PDF Cutsheet PDF Download PDF Instructions PDF Download PDF Brochure PDF Download

Frequently Asked Questions

It holds up to 35 full-size 18" x 26" pans on lip load slides.
It requires 120 Volts, 60 Hz, single-phase power, draws 12 amps, uses 1.44 kW, and comes with a NEMA 5-15P plug.
Yes, the bottom-mounted control module is removable without tools for cleaning and servicing.
The holding module operates from 80°F to 200°F.
Yes, it includes 5" casters with 2 brakes.
This model has a full-length solid insulated aluminum door.
