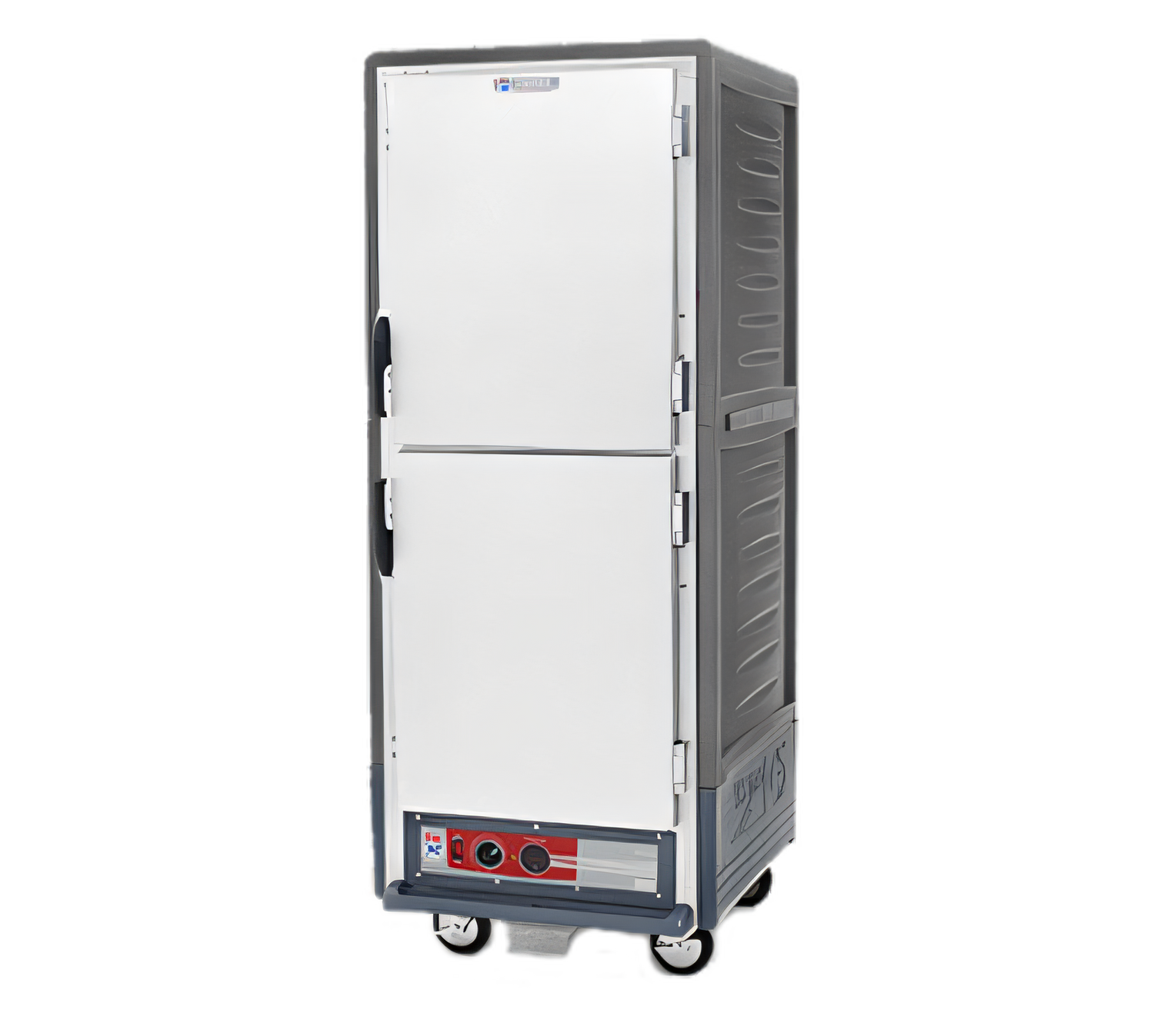

Metro C5 3 Series Insulation Armour Full Height Mobile Heated Holding Cabinet, Low Watt, Dutch Solid Doors, Gray

120V, 1440W, 1-Phase, Universal Wire Slides, 18 Sheet Pan Capacity

A cool-to-touch, mobile full-height holding cabinet that keeps food hot efficiently while making cleaning and service easier with a removable control module.

  • Lower-watt 120V design delivers efficient hot holding at 1.44 kW and 12 amps.
  • Full-height, mobile cabinet rides on 5-inch casters, including two brakes, for easy positioning.
  • Gray Insulation Armour™ exterior helps keep surfaces cooler to the touch and resists dents and stains.
  • Insulated Dutch solid aluminum doors help retain heat while giving convenient split access to the cabinet.
  • Universal wire slides adjust on 1-1/2-inch increments to handle a variety of pan layouts.
  • Holds up to 18 full-size sheet pans or 34 hotel pans, with a removable bottom-mounted control module for easy cleaning.

Overall Dimensions:

27.63"W x 31.5"D x 71.0"H

Product Weight:

191.0 lb

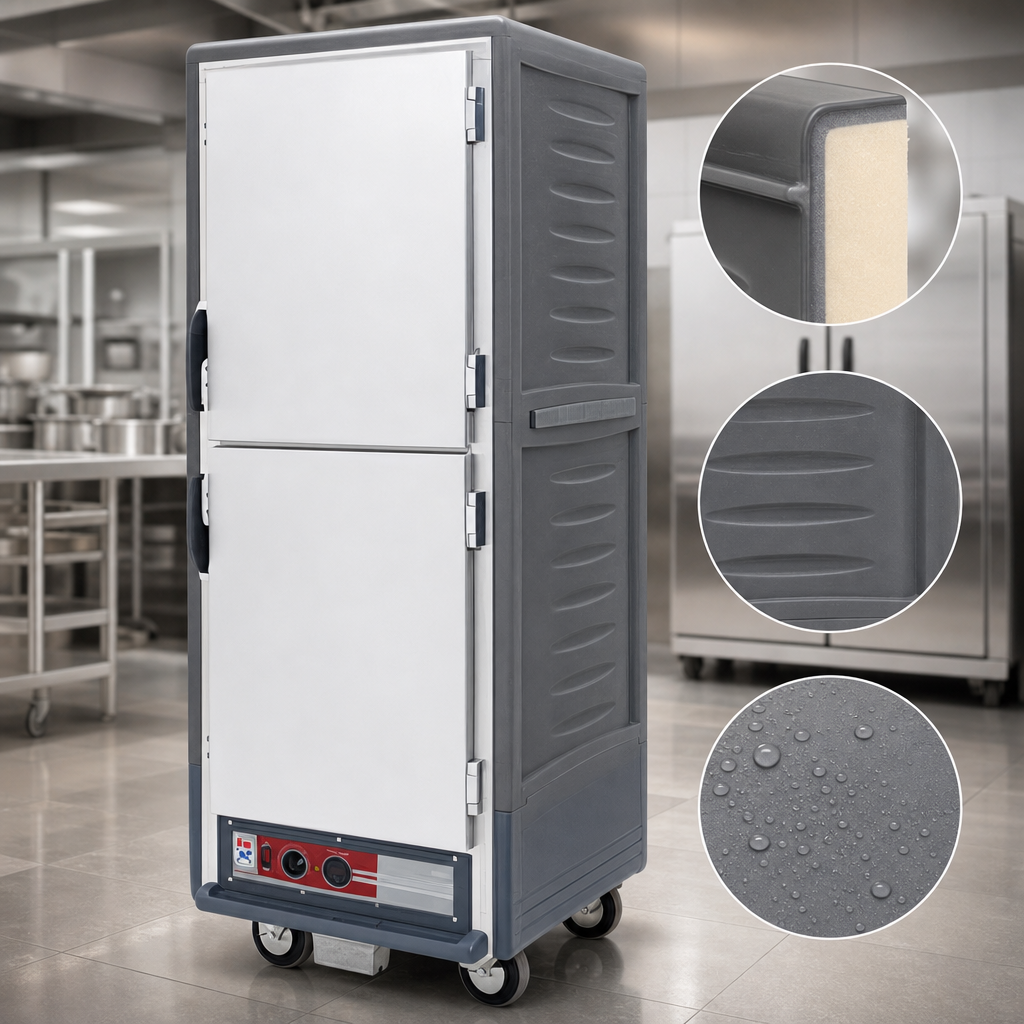

Insulation Armour™ Exterior

Patented HDPE insulation helps retain heat, reduces exterior surface temperature, and provides a durable, dent- and stain-resistant shell.

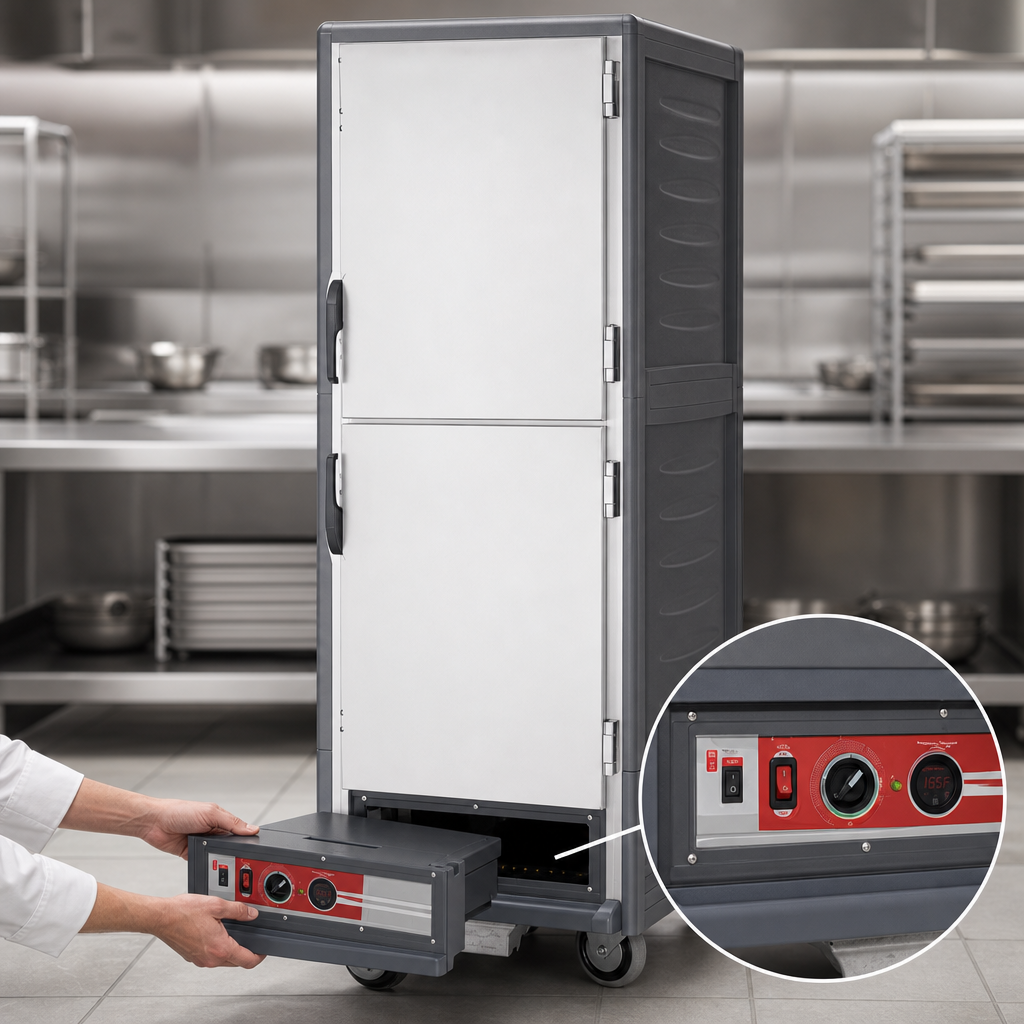

Removable Bottom-Mount Control Module

Tool-free removable module simplifies cleaning and service and includes a digital thermometer, recessed control dials, a master on/off switch, and indicator lights.

Thermostatic Hot Holding

Designed for hot holding only, with thermostatic control up to 200°F and forced-convection heat recovery.

Dutch Solid Insulated Doors

Full-height Dutch-style insulated aluminum doors help retain heat while providing split-door access; hinges are field reversible and double hinged for 180° swing.

Adjustable Universal Wire Slides

Universal wire slides adjust on 1-1/2-inch increments to accommodate multiple pan sizes and storage configurations.

Mobile Base With Brakes

Five-inch swivel casters, including two with brakes, and molded-in hand holds make the cabinet easier to move and position.

High Holding Capacity

Configured for large-volume service with capacity for 18 full-size sheet pans or 34 hotel pans.

Type Heated Holding Cabinet
Style Full Height
Installation Type Floor Model (Mobile)
Compartments 1
Controls Thermostatic
Temperature Range 80°F to 200°F
Pan Capacity 18 Full-Size Sheet Pans or 34 Hotel Pans
Pan Size 18 Inch x 26 Inch Pans or 12 Inch x 20 Inch x 2.5 Inch Pans
Material Aluminum
Interior Finish Natural Aluminum
Color Gray
Finish Polymer
Voltage 120 Volts
Amps 12 Amps
Watts 1.44 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 28 Inches
Shipping Depth 32 Inches
Shipping Height 71 Inches
Shipping Weight 191 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Frequently Asked Questions

The holding module operates from 80°F to 200°F with thermostatic control.
It accommodates up to 18 full-size 18 inch x 26 inch sheet pans or 34 hotel pans sized 12 inch x 20 inch x 2.5 inch.
Yes. The bottom-mounted control module removes without tools for easy cleaning and service.
No. This model is a heated holding cabinet for hot holding only; the catalog notes that holding modules do not include a water pan.
It requires 120V, 60Hz, single-phase power and uses a NEMA 5-15P plug.
