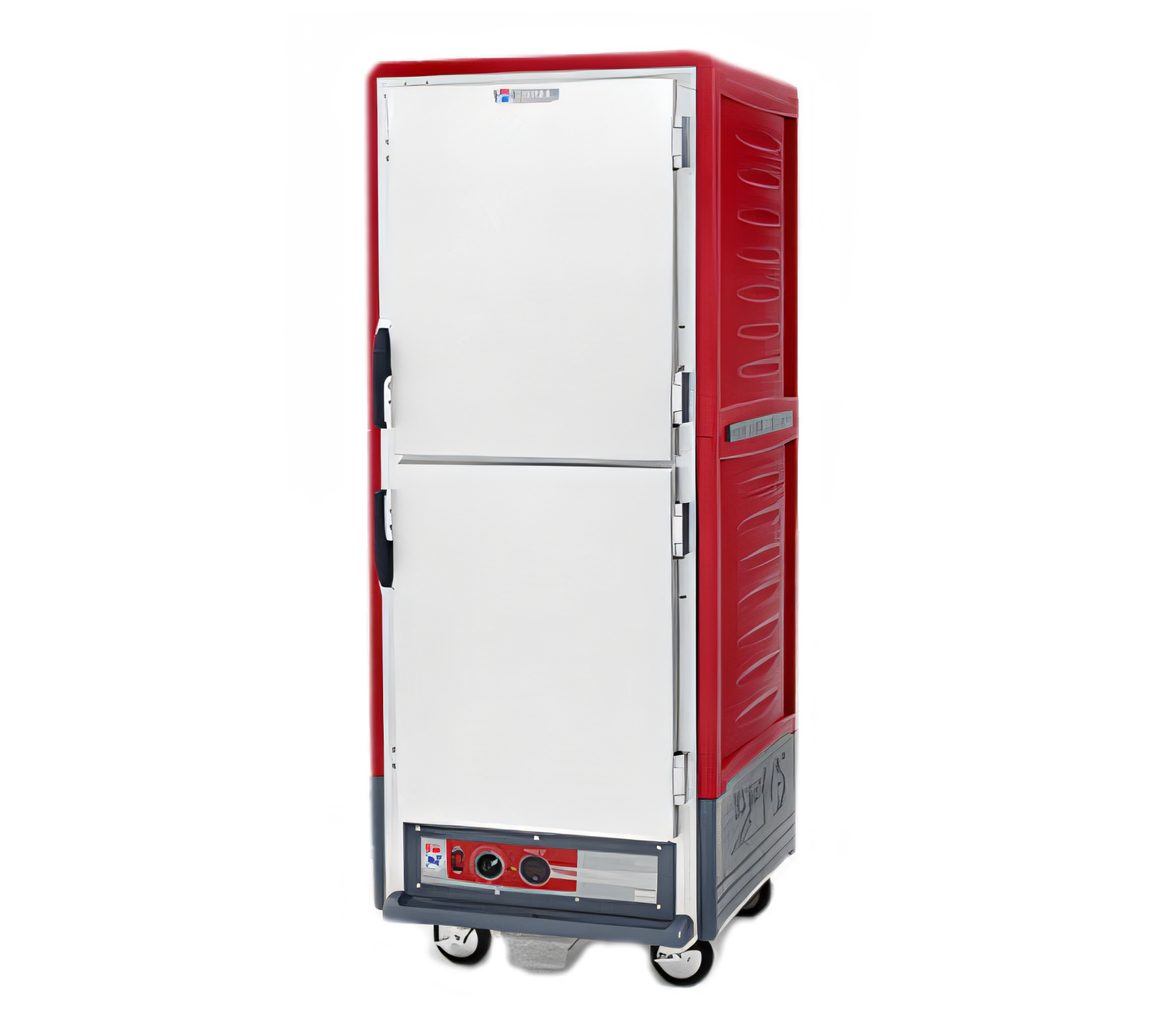

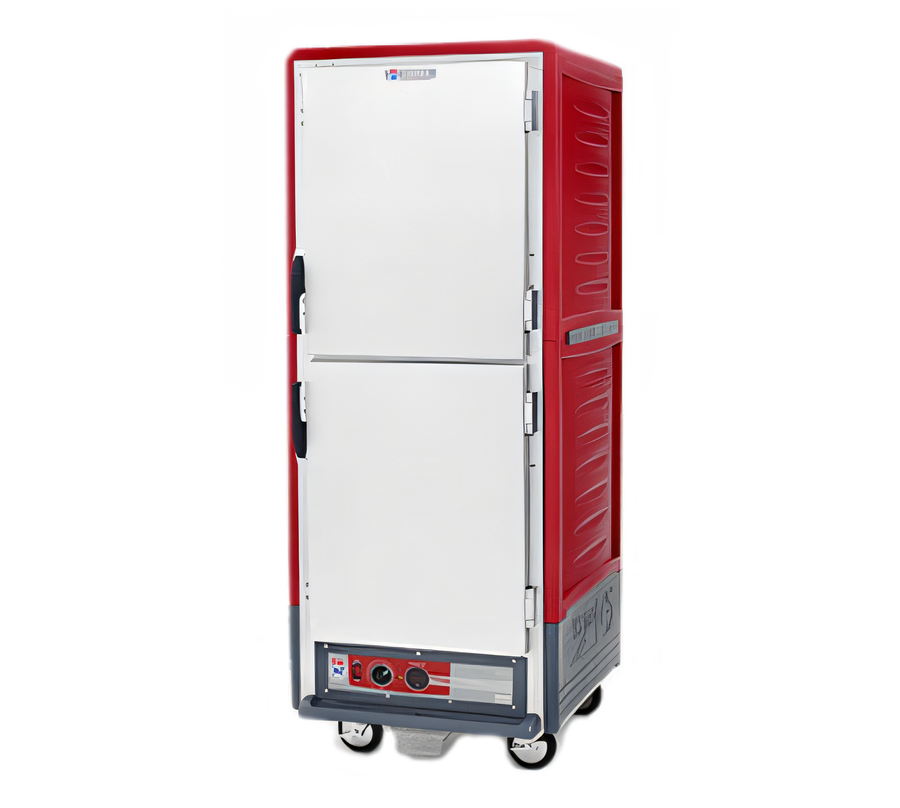

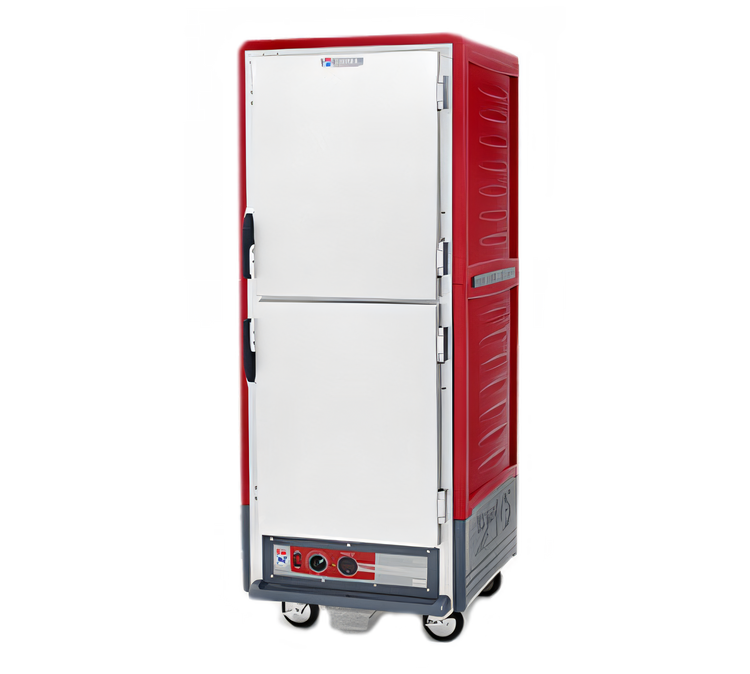

Metro C5 Insulation Armour C539-HLDS-U Full-Height Mobile Heated Holding Cabinet, Dutch Solid Doors, 18 Sheet Pan/34 Hotel Pan Capacity

SKU: C539-HLDS-U GTIN: 0-41105-45453-4
$3,523.00
/each Configurable
Enter ZIP for a shipping estimate

Want to speak to an expert?

Metro C5 3 Series Full-Height Mobile Heated Holding Cabinet with Dutch Insulated Aluminum Doors and Red Insulation Armour, Low Watt

120V, 60Hz, 1-Phase, 1440W, 12 Amps, NEMA 5-15P, 18 Sheet Pan / 34 Hotel Pan Capacity

A cool-to-touch, low-watt holding cabinet that combines full-height capacity, easy mobility, and easy-clean removable controls.

  • Full-height, low-watt heated holding cabinet for hot food holding applications.
  • Red Insulation Armour exterior helps retain heat and stays cool to the touch.
  • Dutch insulated aluminum doors and a removable bottom-mount control module simplify use and cleaning.
  • Universal wire slides adjust on 1 1/2-inch centers for flexible pan loading.
  • Holds 18 full-size sheet pans or 34 half-size hotel pans.
  • 5-inch casters with two brakes make it easy to move and secure in place.
  • Runs on 120V, 60Hz, single-phase power with a NEMA 5-15P plug.

Overall Dimensions:

27.63"W x 31.5"D x 71.0"H

Product Weight:

234.89 lb

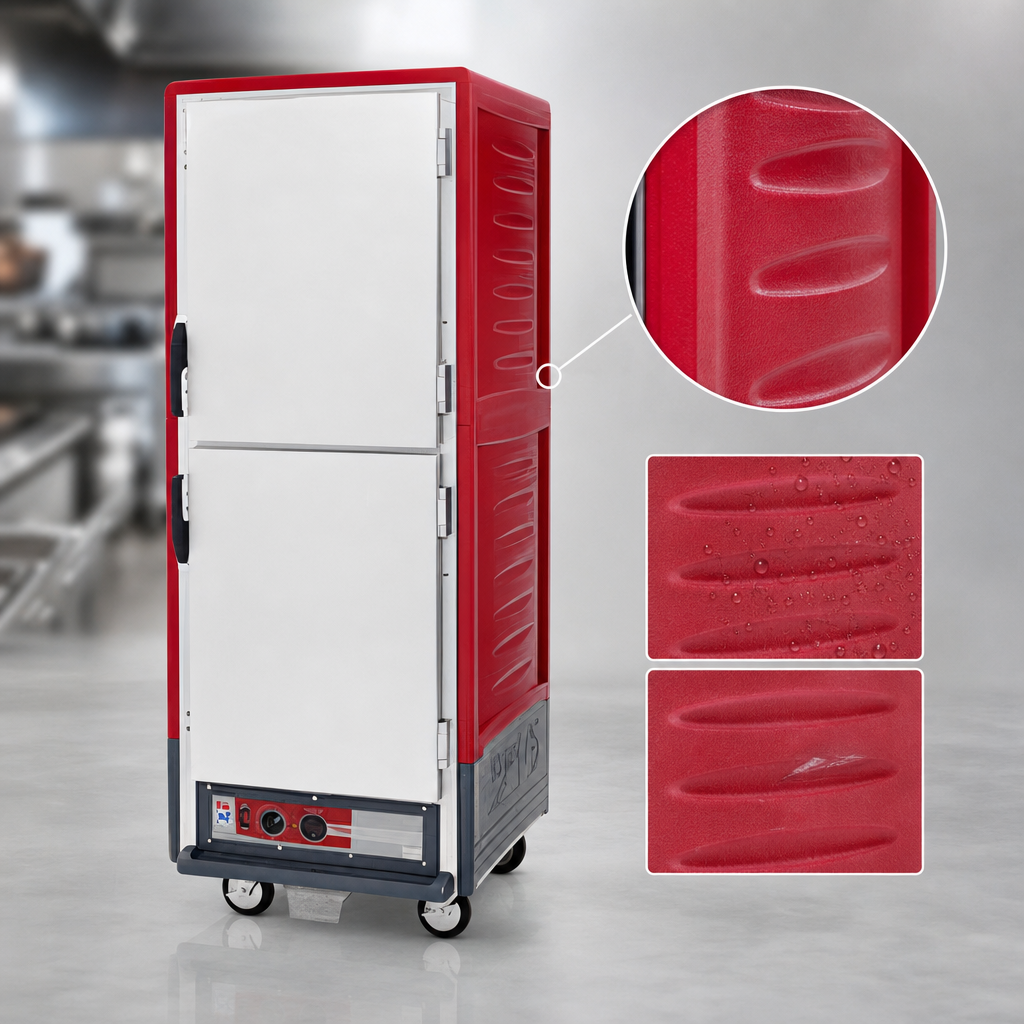

Insulation Armour Exterior

Durable red polymer insulation helps retain heat, reduces exterior heat, and resists dents, impacts, and stains.

Insulation Armour Exterior

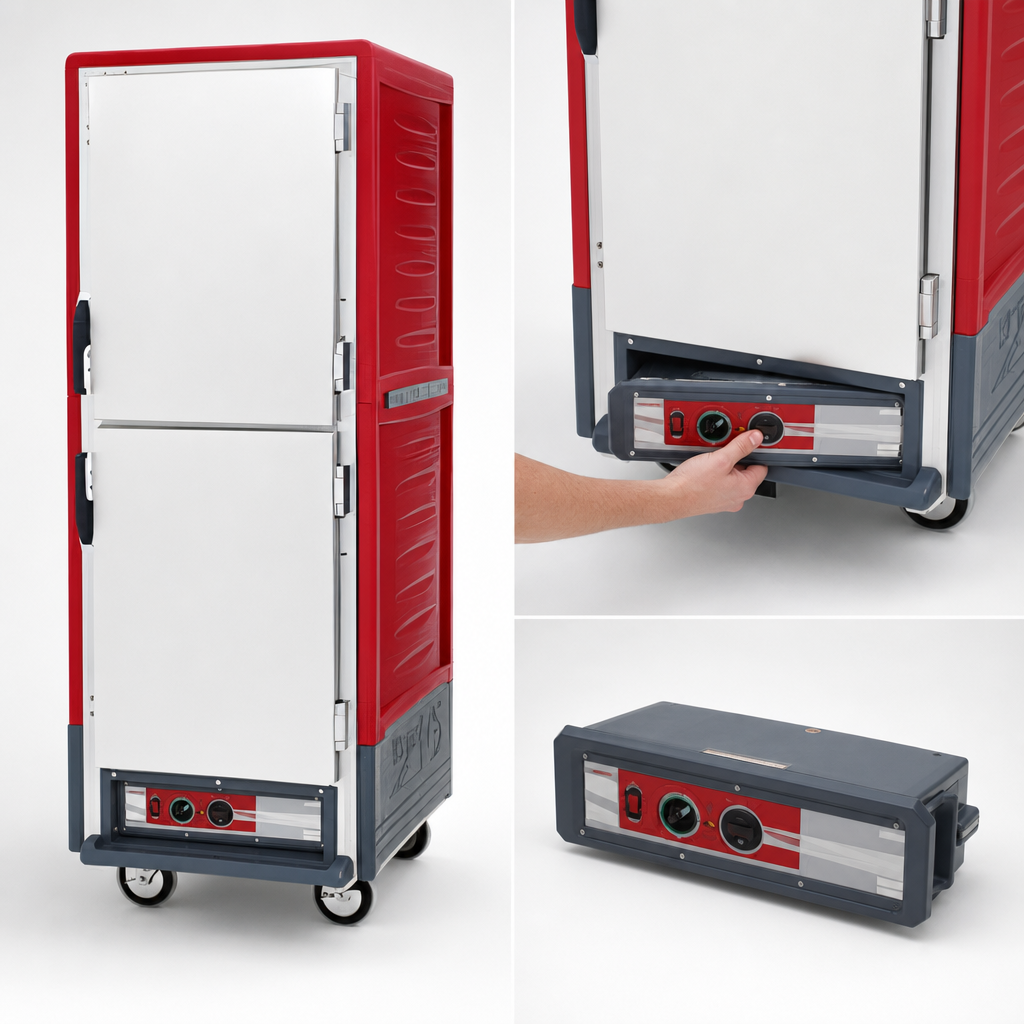

Tool-Free Removable Control Module

The bottom-mounted control module removes without tools for easier cleaning and service.

Tool-Free Removable Control Module

Thermostatic Holding Up to 200°F

Thermostat-controlled heat provides reliable hot food holding up to 200°F.

Forced Convection Heating

Thermostatically controlled forced convection helps deliver fast heat-up and recovery.

Dutch Insulated Aluminum Doors

Full-height Dutch-style solid insulated aluminum doors help maintain temperature while allowing access.

Universal Wire Slides

Universal wire slides adjust on 1 1/2-inch increments for flexible pan spacing.

Mobile Caster Base

5-inch casters, with two brakes, support easy movement and stable placement.

Full-Height Holding Capacity

Configured to hold 18 full-size 18" x 26" pans or 34 half-size 12" x 20" x 2 1/2" pans.

Made in USA

U.S.-made construction designed for commercial kitchen durability.

Type Heated Holding Cabinet
Style Full Height
Installation Type Floor Model (Mobile)
Compartments 1
Controls Thermostatic
Slide Type Universal Wire
Slide Centers 1 1/2-Inch Increments
Pan Capacity 18 Full-Size 18" x 26" Sheet Pans or 34 Half-Size 12" x 20" x 2 1/2" Pans
Pan Size 18" x 26" or 12" x 20" x 2 1/2"
Material Aluminum
Interior Finish Natural Aluminum
Color Red
Voltage 120 Volts
Amps 12 Amps
Watts 1.44 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Country of Origin USA
Selling Unit Each
Units Per Case 1
Width 28 Inches
Depth 32 Inches
Height 71 Inches
Weight 283 lb.

Frequently Asked Questions

It is designed for hot food holding applications only.
It holds 18 full-size 18" x 26" sheet pans or 34 half-size 12" x 20" x 2 1/2" pans.
The thermostat is adjustable up to 200°F.
Yes. The bottom-mounted control module removes without tools for easier cleaning and servicing.
It uses 120V, 60Hz, single-phase power at 12 amps with a NEMA 5-15P plug.
Yes. It includes 5-inch casters, with two casters equipped with brakes.

Need Help Deciding?

Our equipment specialists can help you match specs to your kitchen layout, electrical capacity, and menu requirements.
