Metro

Metro C5 3 Series Red Insulation Armour Full-Height Heated Holding Cabinet, Lower Wattage, Dutch Clear Doors

SKU: C539-HLDC-L
GTIN: 0-41105-45432-9
$3,689.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

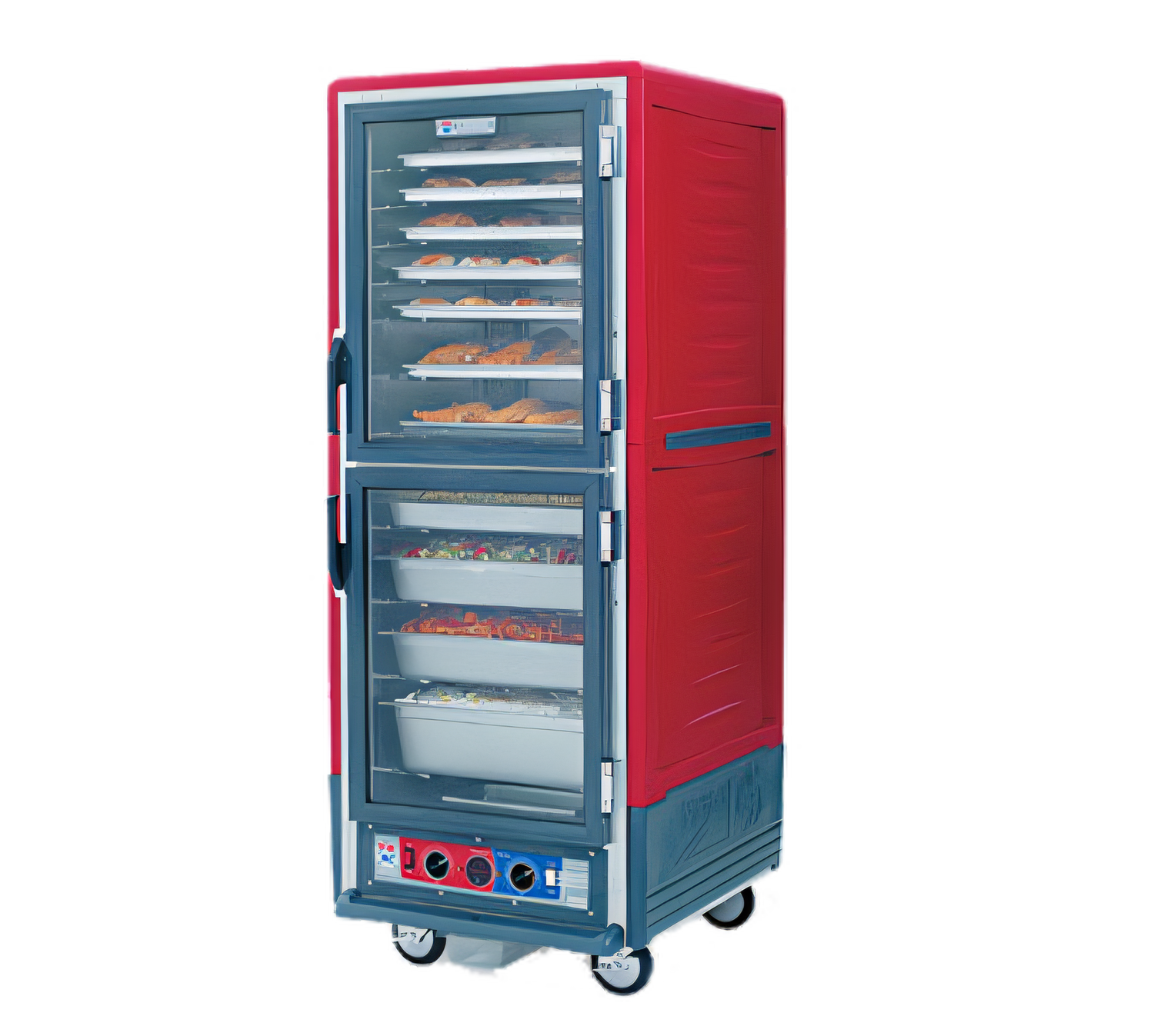

Metro C5 3 Series Red Insulation Armour Full-Height Heated Holding Cabinet, Lower Wattage, Dutch Clear Doors

Mobile, 120V, 1440W, 34 Pan Capacity

A cool-to-touch, lower-watt holding cabinet that keeps 34 full-size pans hot and visible while rolling easily on 5-inch casters.

  • Full-height heated holding cabinet designed for hot food staging and service.
  • Insulation Armour™ exterior helps retain heat while staying cool to the touch.
  • Dutch-style clear polycarbonate doors let staff see contents without opening the cabinet.
  • Holds up to 34 18" x 26" pans on lip-load slides with 1 1/2" centers.
  • 120V, 1440W, 12A operation with a NEMA 5-15P plug works in standard wall outlets.
  • Removable bottom-mounted control module simplifies cleaning and service.
  • 5" casters with two brakes make the cabinet easy to move and secure in place.

Overall Dimensions:

27.63"W x 31.5"D x 71.0"H

Product Weight:

259.0 lb

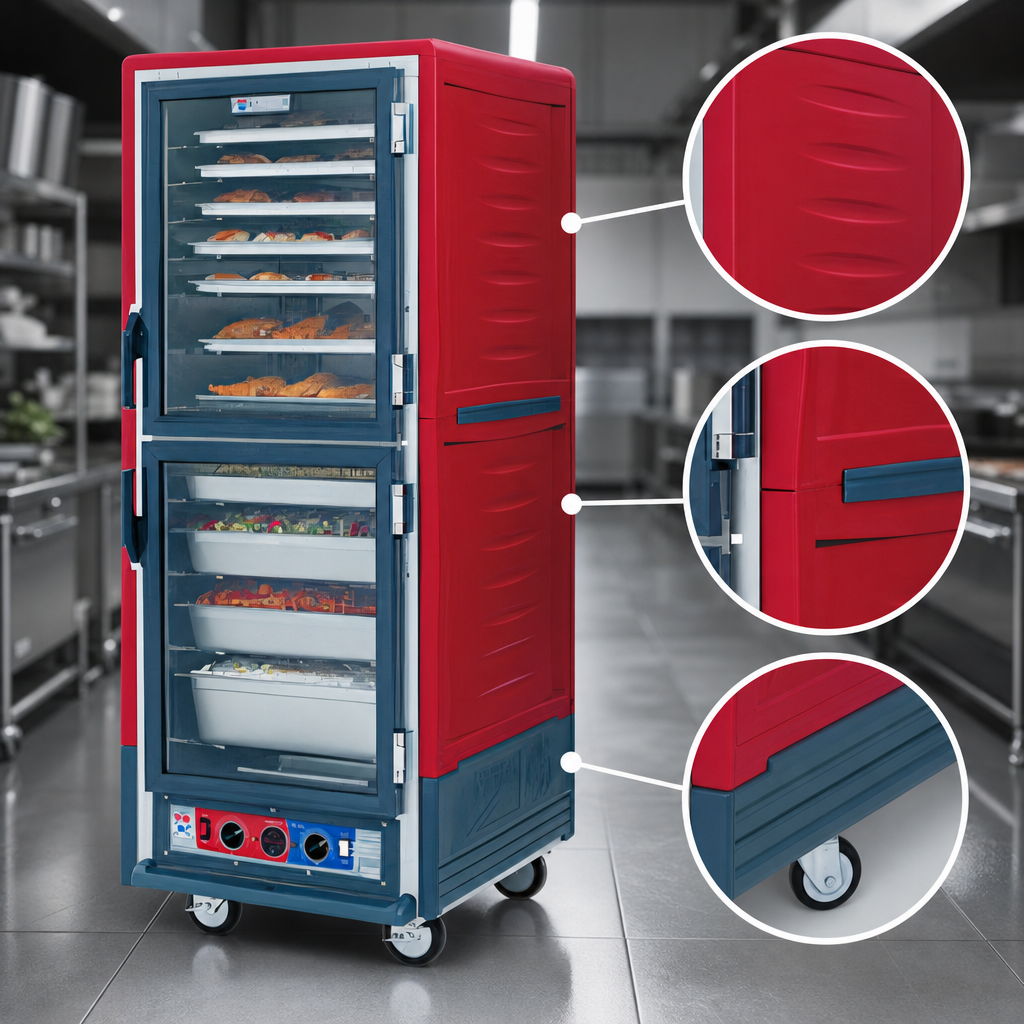

Insulation Armour™ Exterior

Patented HDPE Insulation Armour™ helps keep the cabinet cool to the touch while resisting dents, impacts, and stains.

Insulation Armour™ Exterior

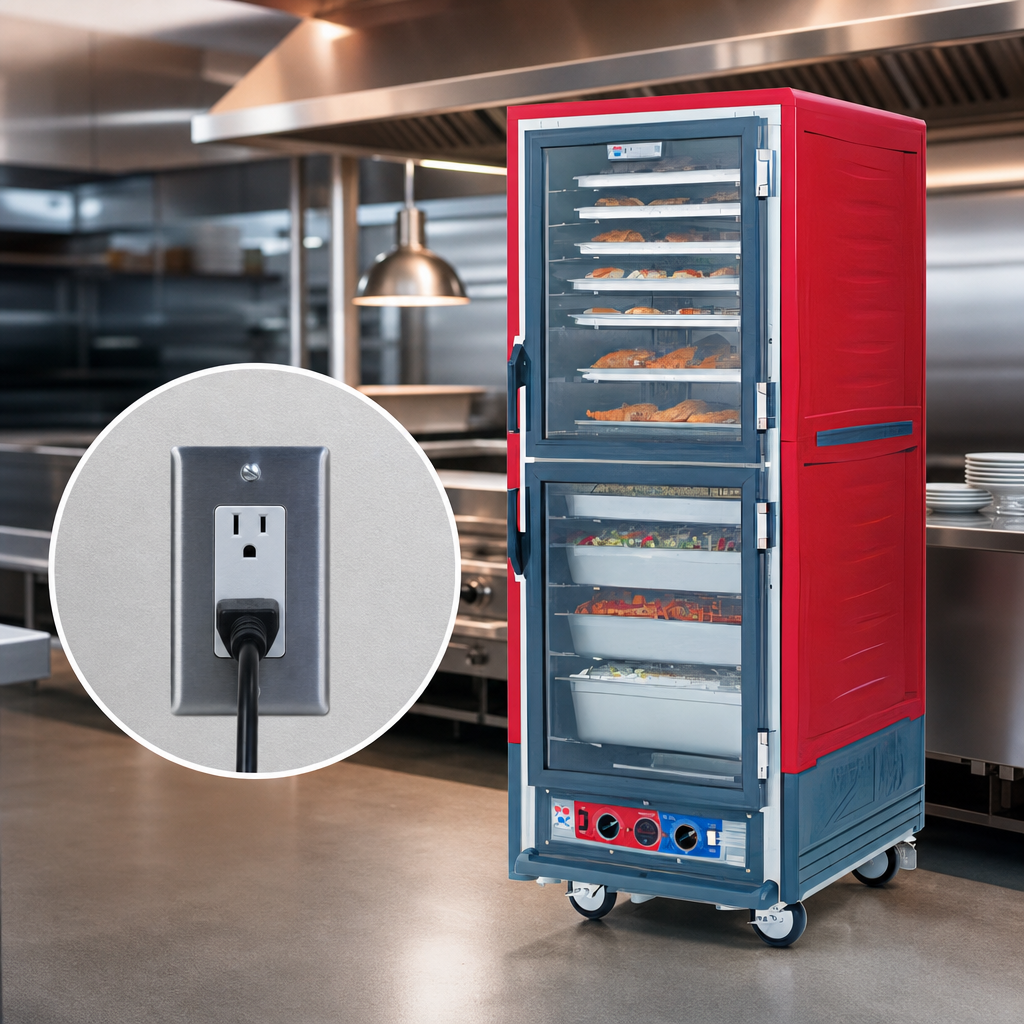

Lower Wattage Operation

The 120V, 1440W heating package is designed for lower initial investment and standard outlet use.

Lower Wattage Operation

Removable Control Module

The bottom-mounted control module removes without tools for easier cleaning, servicing, and future upgrades.

Dutch Clear Doors

Clear polycarbonate Dutch-style doors provide visibility of cabinet contents without opening the doors and losing heat.

High-Capacity Slide System

Lip-load slides on 1 1/2-inch centers support 34 full-size 18-inch x 26-inch pans.

Mobile Caster Base

Five-inch casters, including two with brakes, make the cabinet easier to move and stabilize during use.

Thermostatic Holding Control

Thermostatically controlled holding performance reaches up to 200°F for food holding applications.

Forced Convection Heat

Forced convection heating helps deliver fast heat-up and recovery for consistent holding results.

Type Heated Holding Cabinet
Style Full Height
Installation Type Floor Model
Compartments 1
Material Aluminum
Color Red
Controls Digital Thermostat
Temperature Range 80°F to 200°F
Pan Capacity 34
Pan Size 18" x 26"
Voltage 120 Volts
Amps 12 Amps
Watts 1.44 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 7.5 Feet
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 28 Inches
Shipping Depth 32 Inches
Shipping Height 71 Inches
Shipping Weight 259 lb.

Frequently Asked Questions

The holding module operates from 80°F to 200°F and is thermostatically controlled up to 200°F.
It holds up to 34 full-size 18" x 26" pans on lip-load slides.
Yes. It includes 5-inch casters, with two brakes for stability.
It has Dutch-style clear polycarbonate doors for visibility without opening the cabinet.
Yes. The bottom-mounted control module is removable without tools for cleaning and service.
It uses 120V, 60Hz, single-phase power, draws 12 amps, and comes with a NEMA 5-15P plug.
