Metro

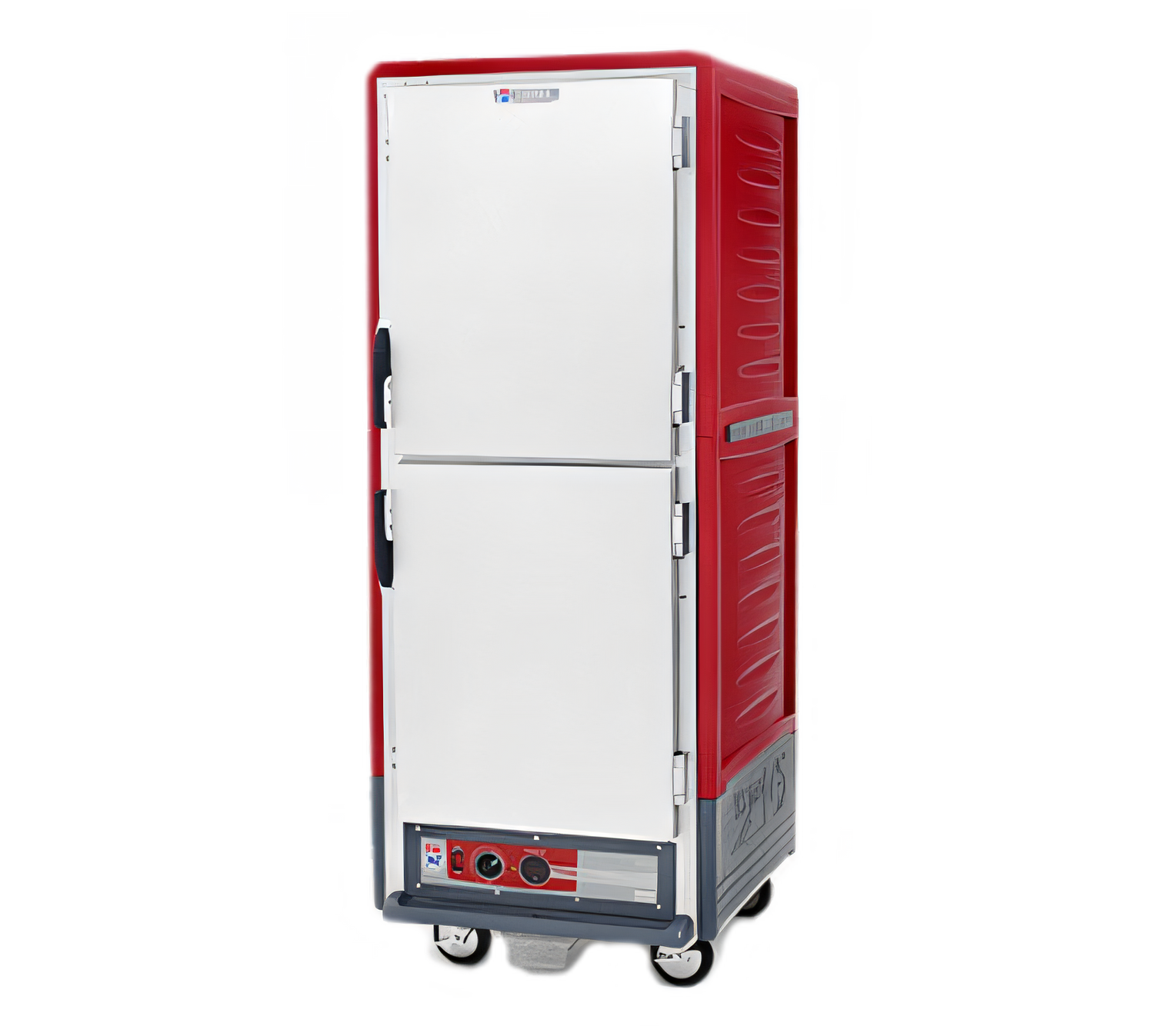

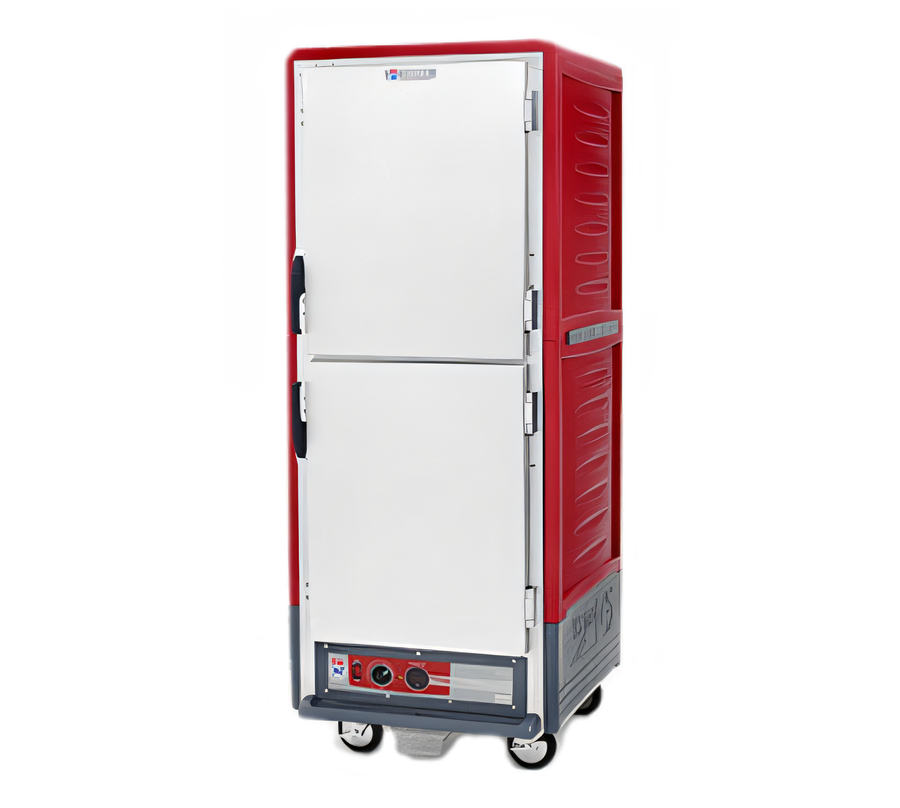

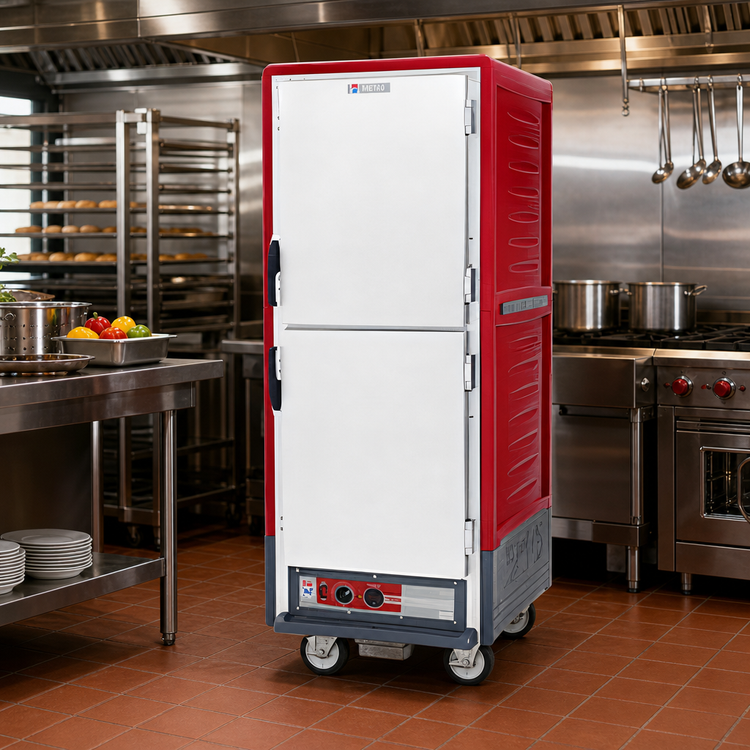

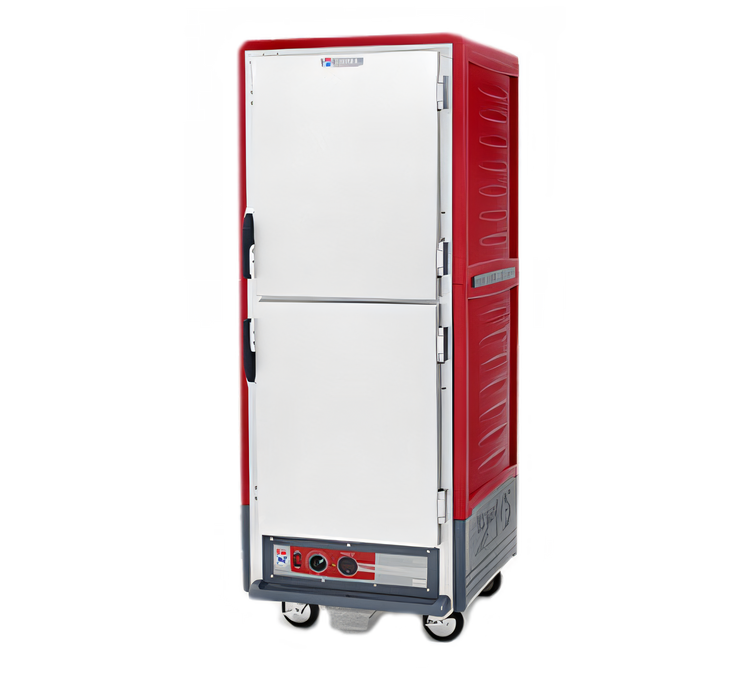

Metro C5 3 Series Full-Height Heated Holding Cabinet with Red Insulation Armour, Dutch Insulated Aluminum Doors, and Universal Wire Slides

SKU: C539-HDS-U
GTIN: 0-41105-45378-0
$3,404.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Food Holding & Warming Equipment Food Warmers & Holding Equipment Heated Cabinet Heated Cabinets & Holding Shelves Holding Cabinets Holding Cabinets Metro New Arrivals Restaurant Equipment

Metro C5 3 Series Full-Height Heated Holding Cabinet with Red Insulation Armour, Dutch Insulated Aluminum Doors, and Universal Wire Slides

Mobile, 120V, 1-Phase, 2 kW

A cool-to-touch, mobile heated holding cabinet that keeps hot food ready to serve while delivering flexible pan capacity and easy-clean access.

  • Full-height heated holding cabinet designed for hot-food holding applications.
  • Red Insulation Armour exterior helps protect staff with a cool-to-touch, durable polymer surface.
  • Dutch insulated aluminum doors and a removable bottom-mount control module simplify loading, cleaning, and service.
  • Universal wire slides adjust on 1-1/2" increments for flexible pan spacing.
  • Holds up to 17 full-size sheet pans or 32 full-size hotel pans.
  • 5" casters with two brakes make it easy to move and secure in place.
  • Standard 120V, 1-phase power with NEMA 5-20P plug.

Overall Dimensions:

27.63"W x 31.5"D x 71.0"H

Product Weight:

283.0 lb

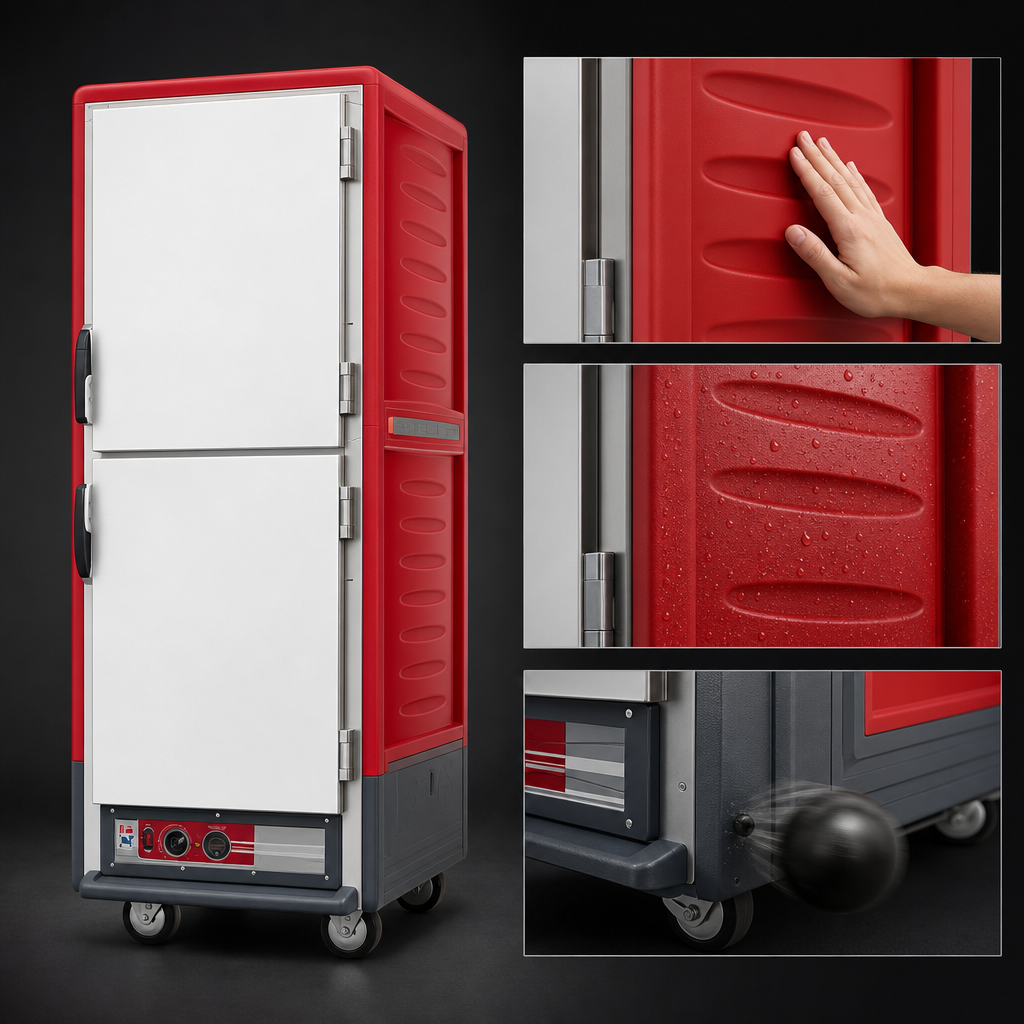

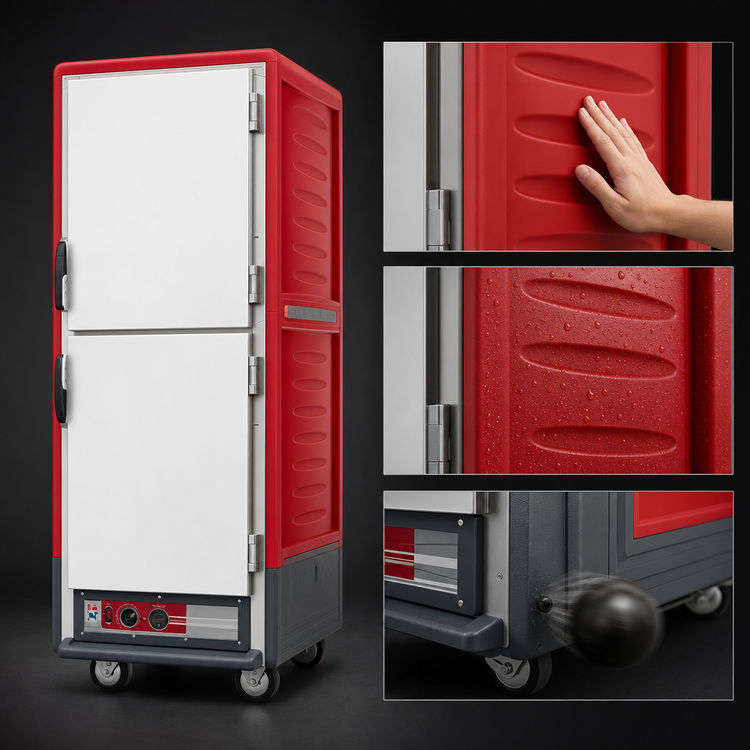

Insulation Armour Exterior

Patented HDPE polymer exterior retains heat, helps keep surfaces cool to the touch, and resists dents, impact, and stains.

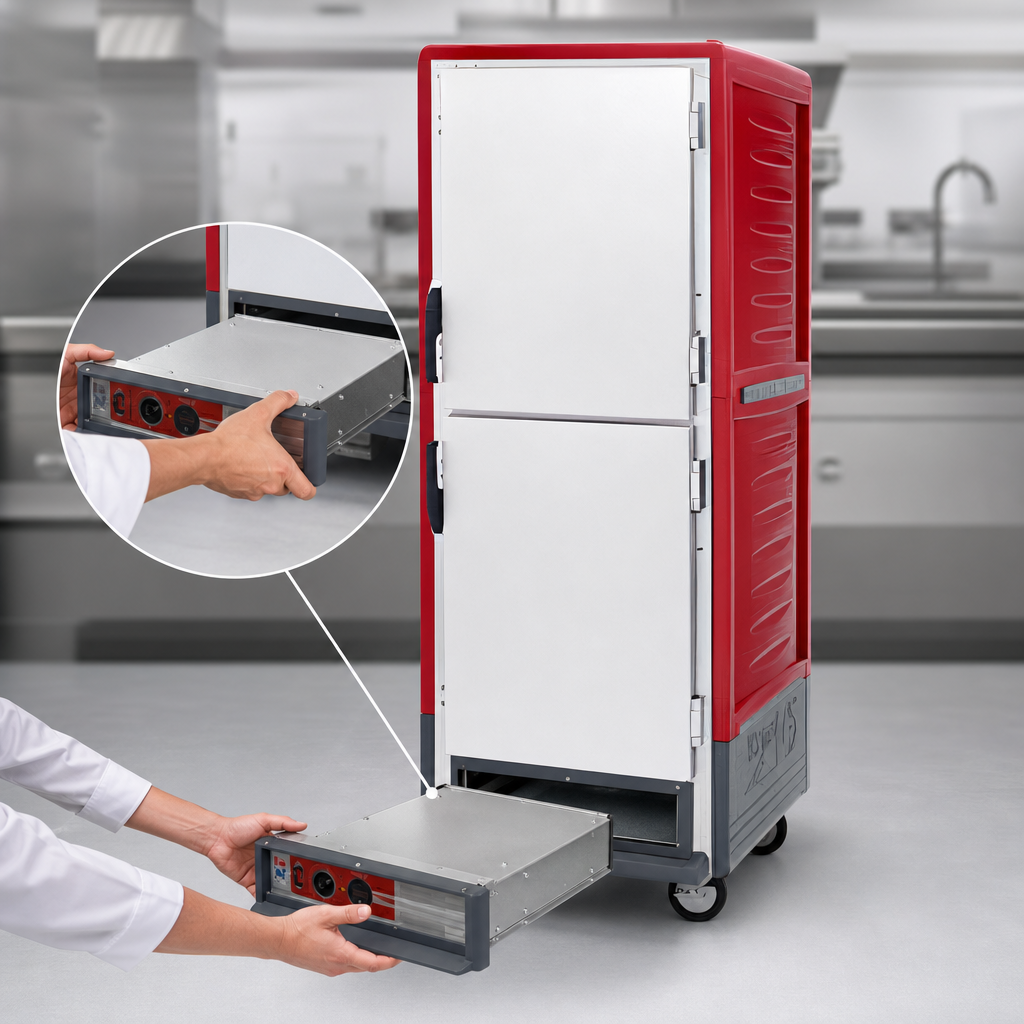

Removable Control Module

Bottom-mounted control module removes without tools for easier cleaning, service, and future upgrades.

Thermostatic Holding Control

Thermostat controls the cabinet up to 200°F for dependable hot holding.

Dutch Insulated Aluminum Doors

Full-height Dutch doors improve access while helping reduce heat loss during loading and service.

Universal Wire Slides

Adjustable universal wire slides on 1-1/2" increments provide flexible pan placement.

Mobile Base

5" casters with two brakes support easy movement and secure positioning.

High-Capacity Interior

Configured to hold either 17 18" x 26" sheet pans or 32 12" x 20" x 2-1/2" hotel pans.

Bottom-Mounted Heating System

Thermostatically controlled forced-convection heat is delivered from the bottom-mounted module for even holding performance.

Type Heated Holding Cabinet
Style Dutch Door
Installation Type Floor Model
Compartments 1
Controls Thermostatic
Temperature Range 80°F to 200°F
Pan Capacity (17) 18" x 26" Sheet Pans or (32) 12" x 20" x 2-1/2" Hotel Pans
Material Aluminum
Color Red
Finish Insulation Armour
Voltage 120 Volts
Amps 16.7 Amps
Watts 2 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-20P
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 28 Inches
Shipping Depth 32 Inches
Shipping Height 71 Inches
Shipping Weight 283 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Brochure PDF Download PDF Instructions PDF Download

Frequently Asked Questions

This cabinet is designed for hot food holding applications only.
It holds up to 17 18" x 26" sheet pans or 32 12" x 20" x 2-1/2" hotel pans.
The cabinet is thermostatically controlled from 80°F to 200°F.
Yes, the control module removes without tools for easier cleaning and servicing.
No, holding module cabinets do not include the water pan.
It operates on 120V, 60Hz, 1-phase power and uses a NEMA 5-20P plug.
