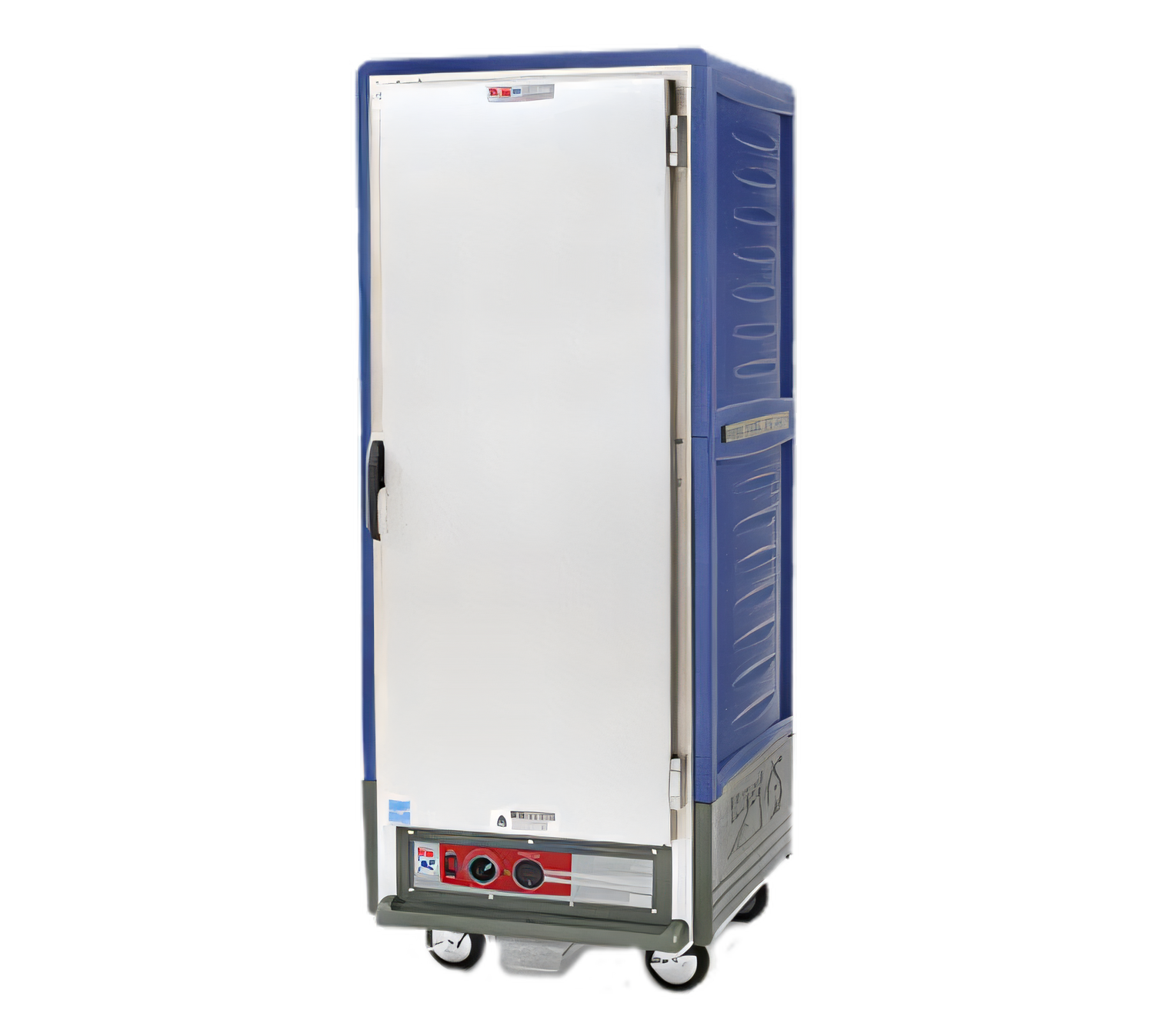

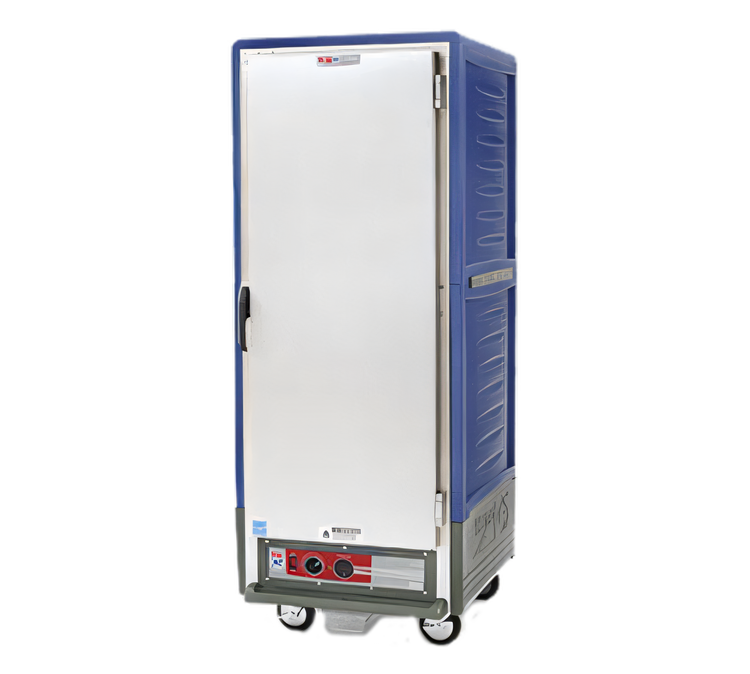

Metro C5 3 Series Full Height Mobile Heated Holding and Proofing Cabinet with Full-Length Solid Door, Blue Insulation Armour

Lip-Load Slides, 35 Pan Capacity, 120V/60/1 Phase

A cool-to-touch, full-height cabinet that combines holding and proofing in one mobile, energy-efficient design.

  • Full-height mobile cabinet with a full-length solid insulated door for dependable heat retention.
  • Blue Insulation Armour helps retain heat, save energy, and stay cool to the touch.
  • Holds 35 full-size 18 x 26-inch pans on lip-load slides with 1-1/2-inch spacing.
  • Removable bottom-mounted control module simplifies cleaning, service, and future upgrades.
  • Thermostatically controlled to 200°F with 120V, 2000W, 16.7A, 1-phase power and a NEMA 5-20P plug.
  • 5-inch casters, including 2 with brakes, make the cabinet easy to move and secure.

Overall Dimensions:

27.63"W x 31.5"D x 71.0"H

Product Weight:

277.0 lb

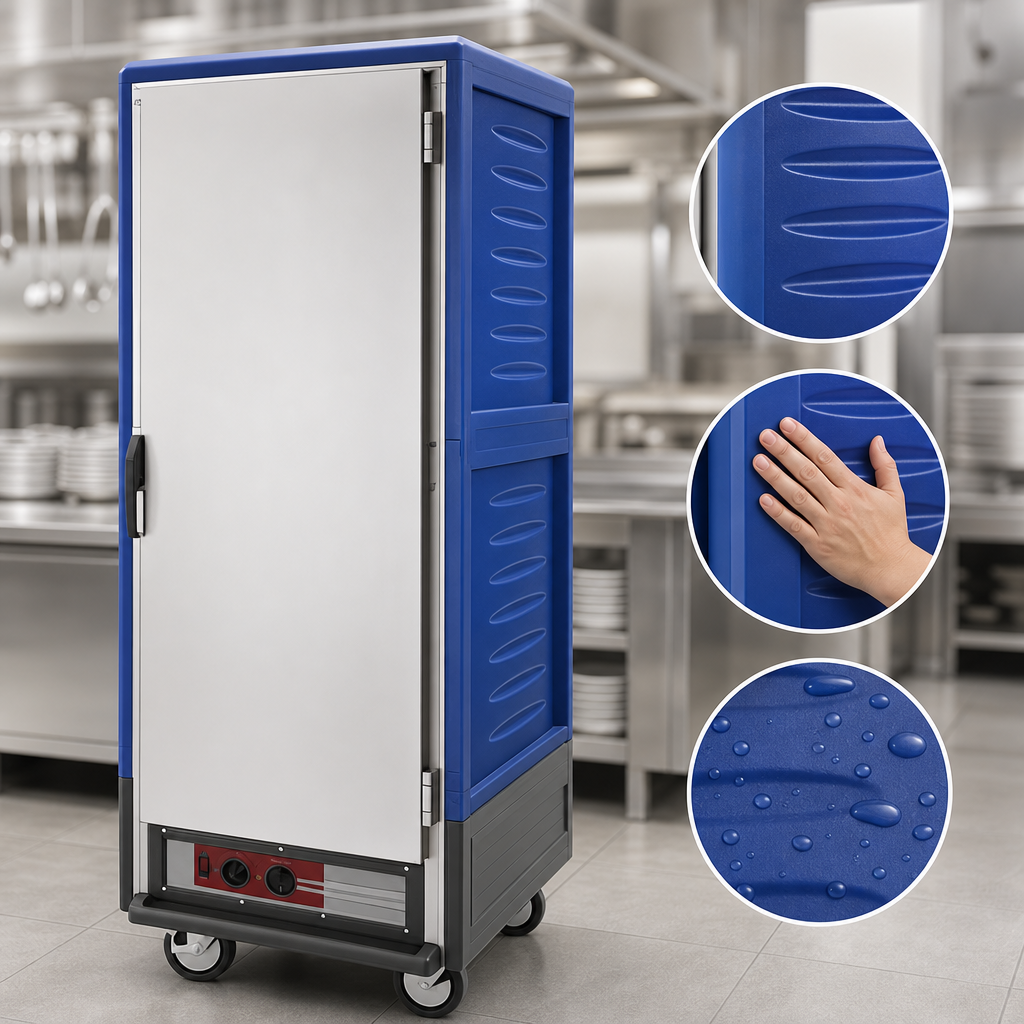

Patented Insulation Armour Exterior

Blue HDPE exterior retains heat, helps save energy, and stays cool to the touch while resisting dents, impacts, and stains.

Patented Insulation Armour Exterior

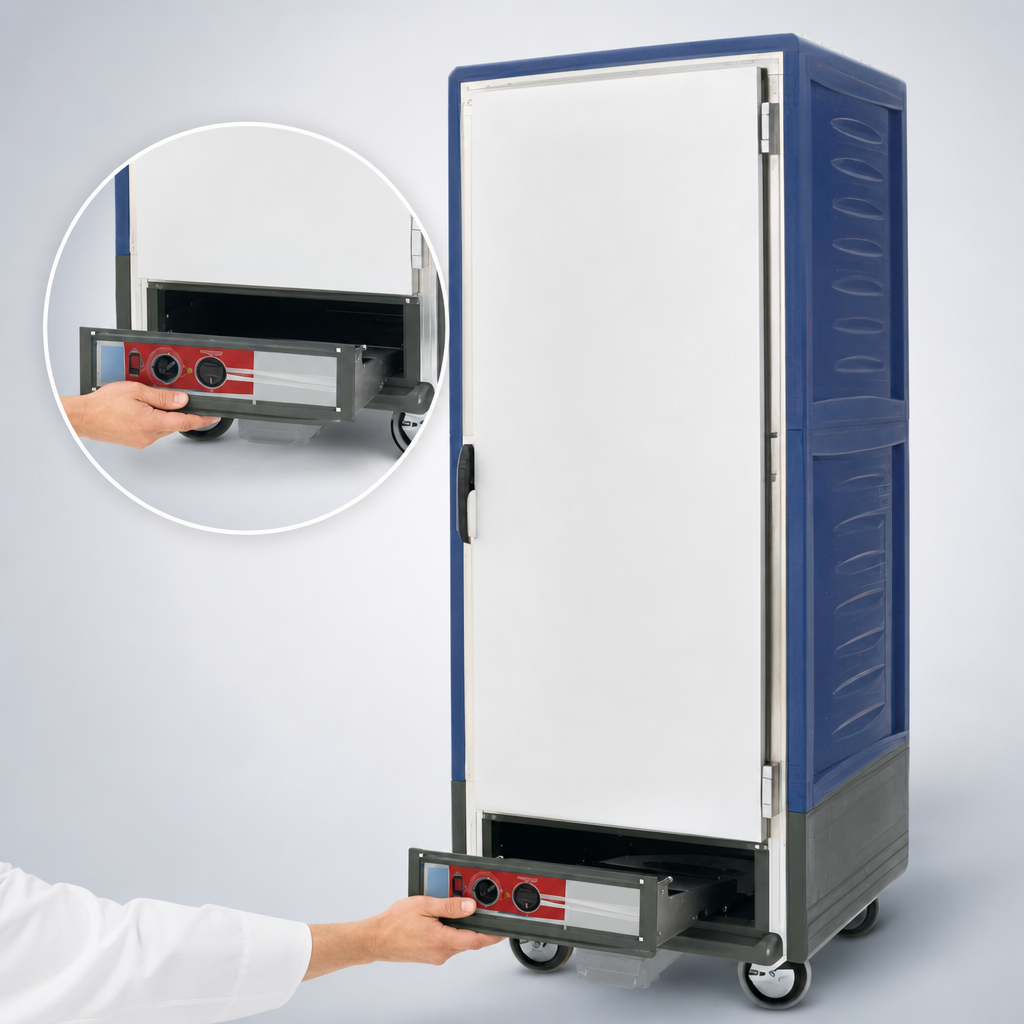

Removable Bottom-Mount Control Module

The control module removes without tools for easier cleaning, servicing, and future upgrades.

Removable Bottom-Mount Control Module

Combination Proof and Hold Operation

Supports heated holding and proofing with thermostatic control up to 200°F.

Lip-Load Slide System

Fixed 1-1/2-inch centers support 35 full-size 18 x 26-inch pans.

Full-Length Solid Insulated Door

Solid insulated aluminum door and cabinet construction help lock in heat and improve durability.

Mobile Caster Base

5-inch casters, including 2 with brakes, make the cabinet easy to move and position.

120V Electrical Setup

Factory configured for 120V, 60Hz, 1-phase power with a 2000W load and NEMA 5-20P plug.

Durable Aluminum Construction

Aluminum cabinet and interior provide a sturdy, easy-to-clean build.

Type Heated Holding and Proofing Cabinet
Style Full Height
Installation Type Floor Model
Material Aluminum
Interior Finish Aluminum
Color Blue
Controls Thermostatic
Temperature Range 80°F to 200°F
Compartments 1
Pan Capacity 35 Pans
Pan Size 18 x 26 Inches
Voltage 120 Volts
Amps 16.7 Amps
Watts 2 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-20P
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Instructions PDF Download PDF Brochure PDF Download

Frequently Asked Questions

It uses a patented HDPE exterior to retain heat, reduce energy use, stay cool to the touch, and resist dents, impacts, and stains.
The combination module operates from 80°F to 200°F and is thermostatically controlled to 200°F.
It holds 35 full-size 18 x 26-inch pans on lip-load slides.
Yes. The bottom-mounted control module removes without tools for easier cleaning, servicing, and future upgrades.
It requires 120V, 60Hz, 1-phase power, draws 16.7 amps, and uses a NEMA 5-20P plug.
Yes. It is mounted on 5-inch casters, including 2 with brakes for secure positioning.
