Customize Metro Model no. C539-CDS-L

Configuration
Accessories
Review
0 selected · total
$4,030.00
Metro

Metro C5 Insulation Armour C539-CDS-L Full-Height Mobile Heated Holding & Proofing Cabinet, 35-Pan, Dutch Doors, 120V

SKU: C539-CDS-L GTIN: 0-41105-45185-4
$4,030.00
/each Configurable
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Equipment Equipment Food Holding & Warming Equipment Food Holding & Warming Equipment Food Holding & Warming Equipment Food Warmers & Holding Equipment Heated Cabinet Holding Cabinets Holding Cabinets Metro New Arrivals Proofing & Retarding Cabinets Proofing Cabinets Proofing Cabinets Restaurant Equipment

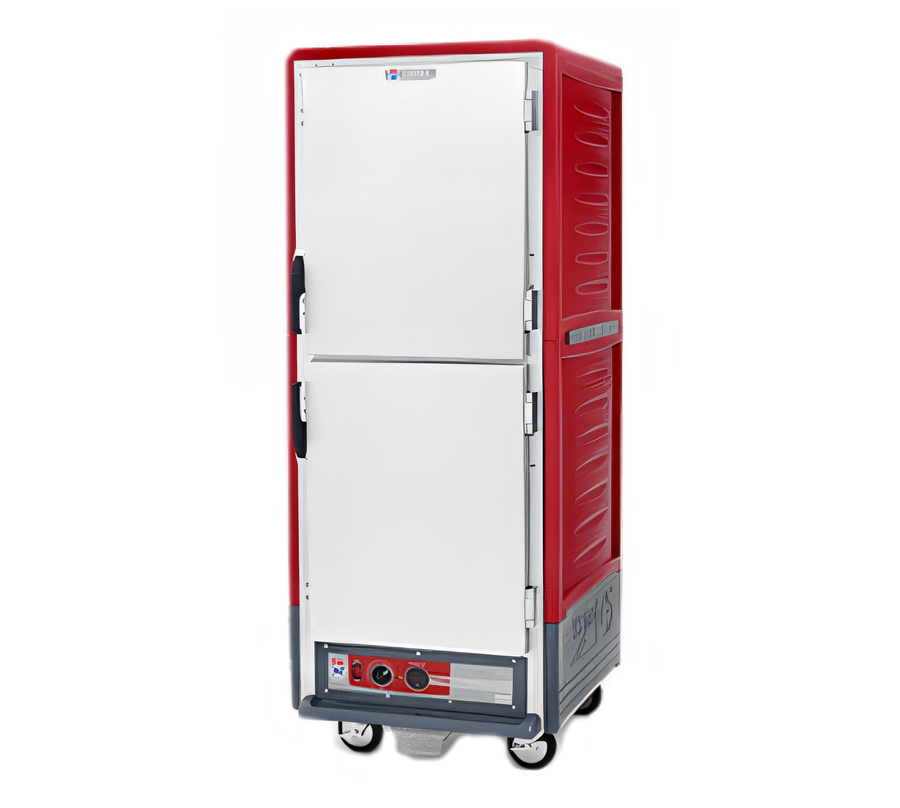

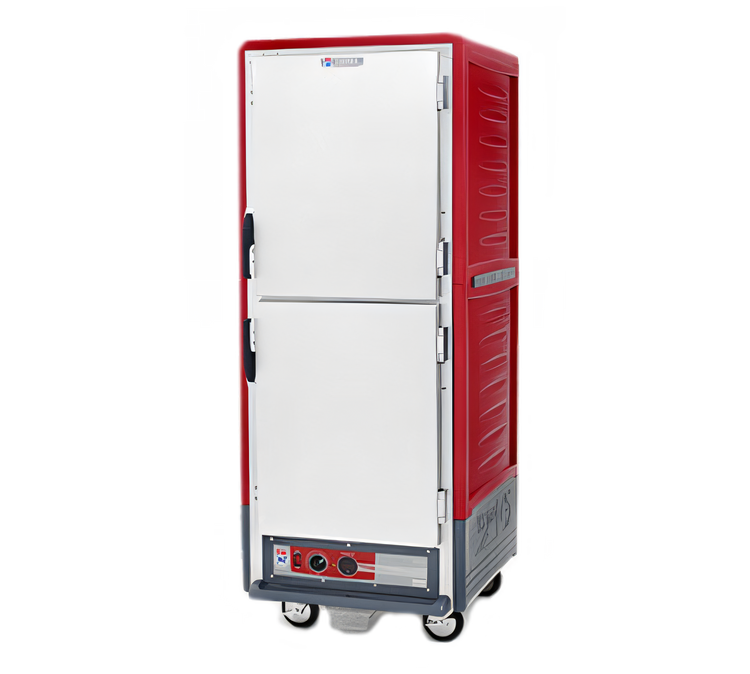

Metro C5 3 Series Insulation Armour Full Height Mobile Combination Heated Holding and Proofing Cabinet with Dutch Solid Doors and Lip Load Slides

Red Insulation Armour, 35 Pan Capacity, 120V

A cool-to-touch, full-height cabinet that keeps food hot and proofed while offering 35-pan capacity and easy mobility.

  • Full-height combination cabinet for heated holding and proofing applications.
  • Red Insulation Armour exterior helps retain heat and stays cool to the touch.
  • Dutch insulated aluminum doors and a removable bottom-mount control module simplify daily use and cleaning.
  • Lip load slides on 1-1/2-inch centers hold 35 full-size 18 inch x 26 inch pans.
  • 5-inch casters, including two with brakes, make the cabinet easy to move and position.
  • 120V, 60 Hz, single-phase, 2000W power with a NEMA 5-20P plug.

Overall Dimensions:

27.63"W x 31.5"D x 71.0"H

Product Weight:

222.98 lb

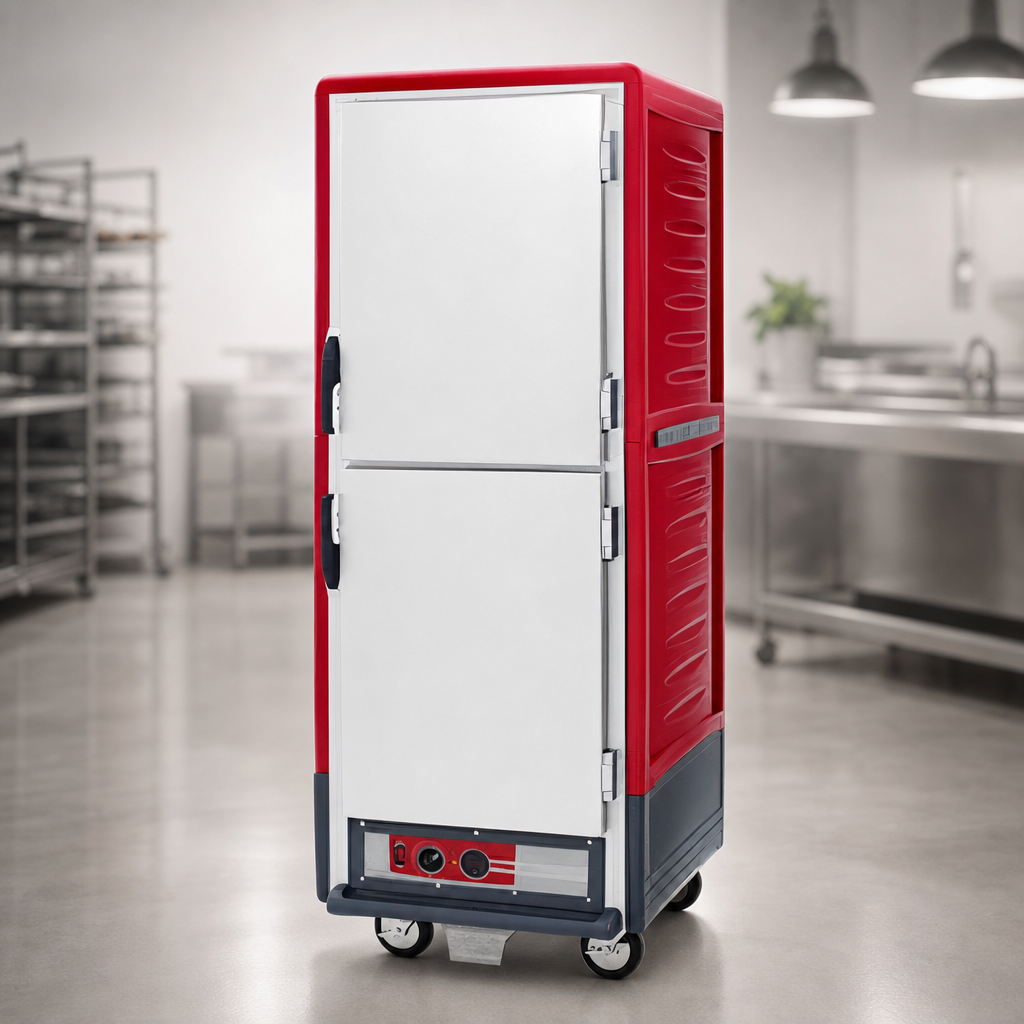

Insulation Armour Exterior

Patented red polymer Insulation Armour helps retain heat, improves energy efficiency, and resists dents, impacts, and stains.

Insulation Armour Exterior

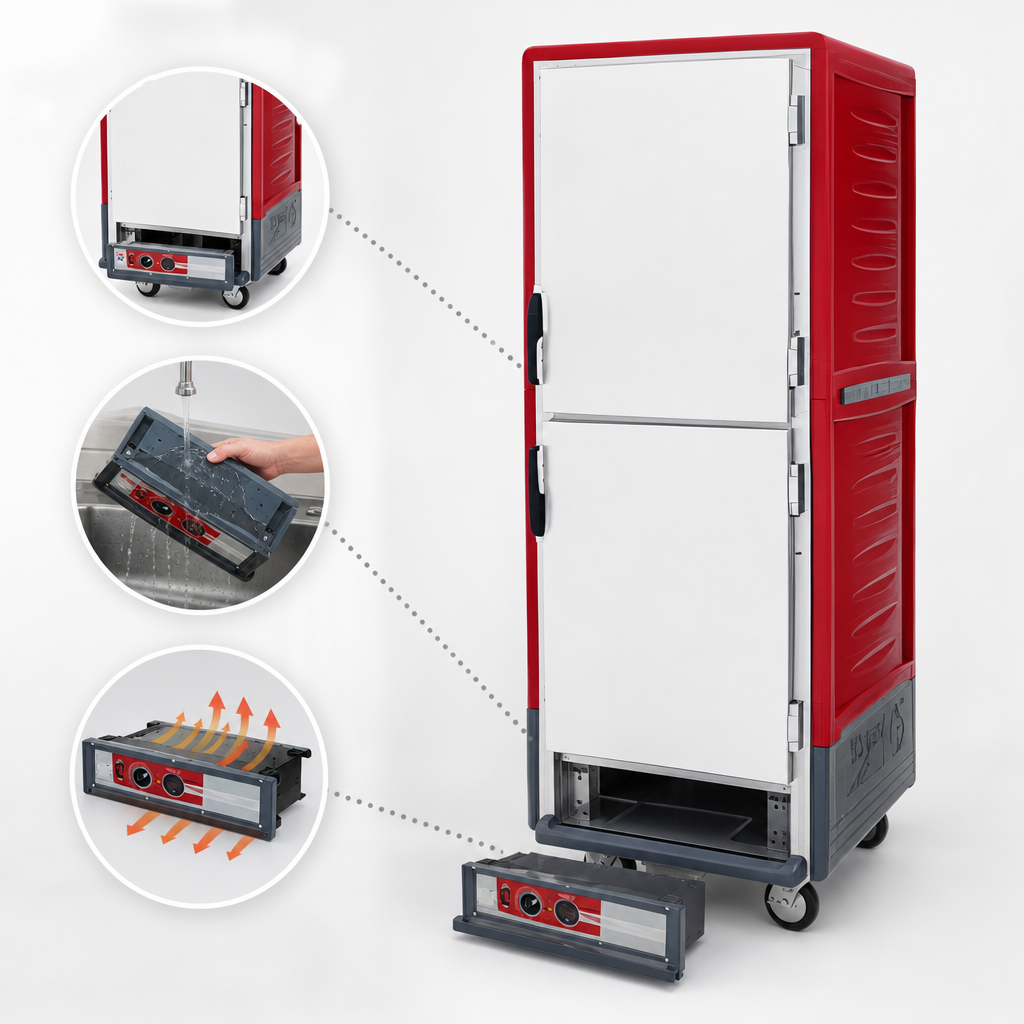

Removable Combination Module

The bottom-mounted control module removes without tools for cleaning and service and supports heated holding plus proofing.

Removable Combination Module

Dutch Solid Doors

Full-height Dutch insulated aluminum doors provide easy access while helping maintain cabinet temperature; the doors are field reversible and double hinged.

Lip Load Slide System

Fixed 1-1/2-inch slide spacing supports a high-capacity pan load with 35 full-size 18 inch x 26 inch pans.

Mobile Caster Base

Five-inch casters with two brakes and molded-in hand holds make the cabinet easy to maneuver.

Thermostatic Forced Convection Heat

Thermostatically controlled forced convection heating delivers fast heat-up and recovery.

All-Aluminum Construction

The cabinet uses an aluminum body with an aluminum interior for durability and easy cleaning.

Type Heated Holding and Proofing Cabinet
Style Combination
Installation Type Floor Model
Compartments 1
Pan Capacity 35 Full-Size 18 Inches x 26 Inches Pans
Pan Size 18 Inches x 26 Inches
Controls Thermostatic
Temperature Range 80°F to 200°F
Material Aluminum
Interior Finish Aluminum
Color Red
Voltage 120 Volts
Amps 16.7 Amps
Watts 2 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-20P
Country of Origin USA
Selling Unit Each
Units Per Case 1
Width 28 Inches
Depth 32 Inches
Height 71 Inches
Weight 278 lb.

Documents

PDF Cutsheet PDF Download PDF Instructions PDF Download PDF Brochure PDF Download

Frequently Asked Questions

It is a full-height combination heated holding and proofing cabinet.
It holds 35 full-size 18 inch x 26 inch pans on lip load slides.
The cabinet operates from 80°F to 200°F.
Yes. The control module removes without tools for cleaning, servicing, and future upgrades.
Yes. It includes 5-inch casters with two brakes and molded-in hand holds.
It requires 120V, 60 Hz, single-phase power and uses a NEMA 5-20P plug.
