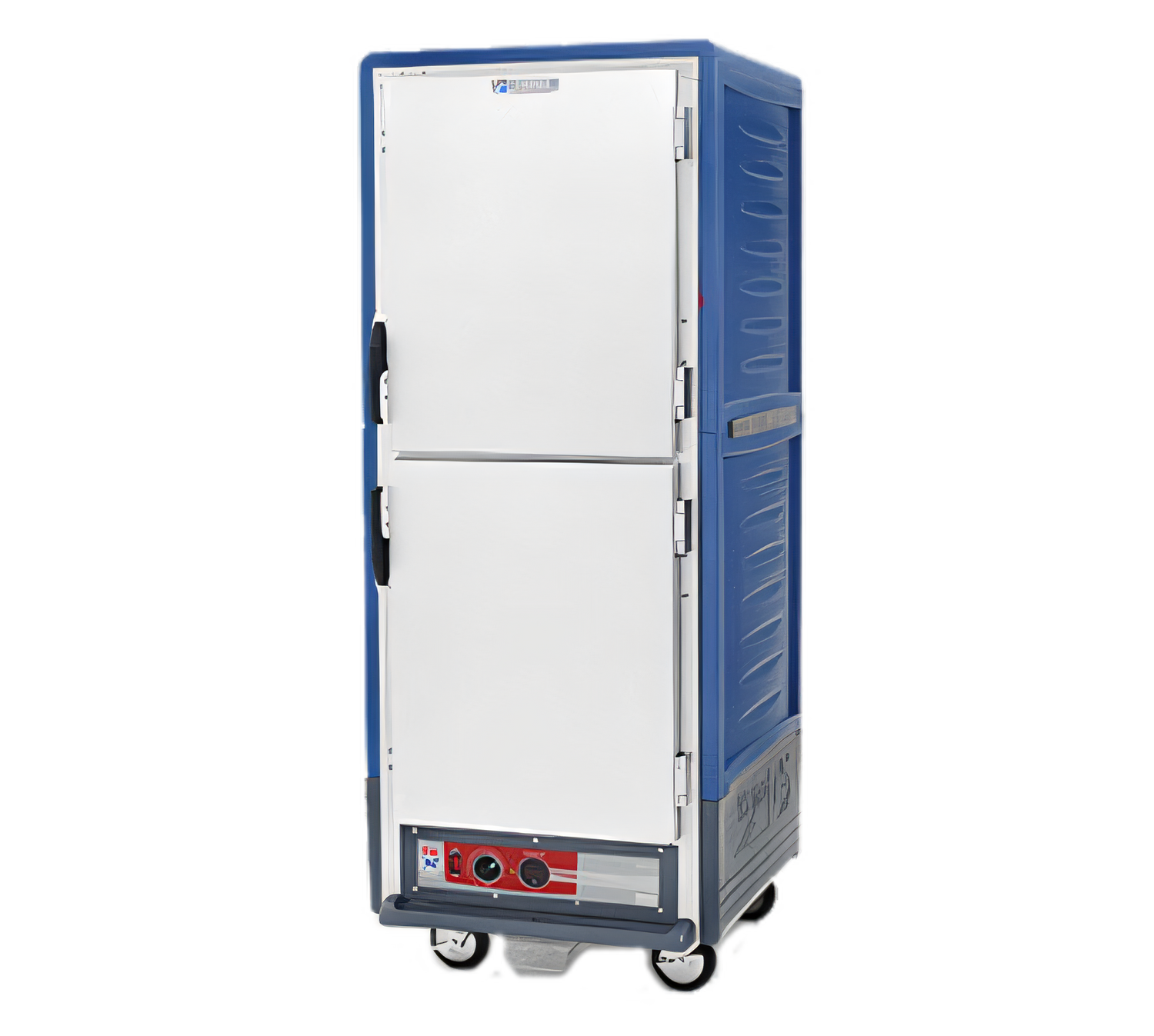

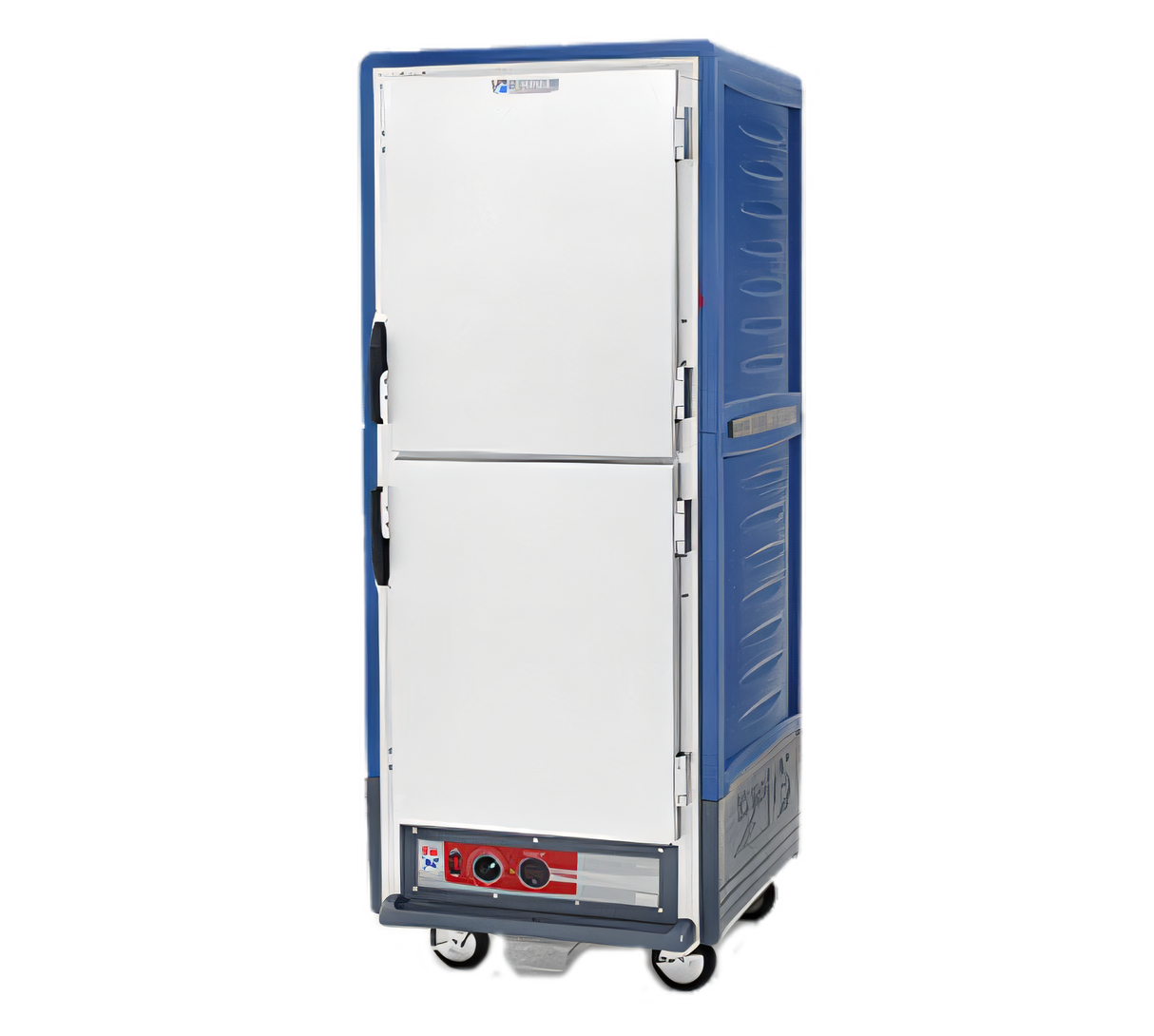

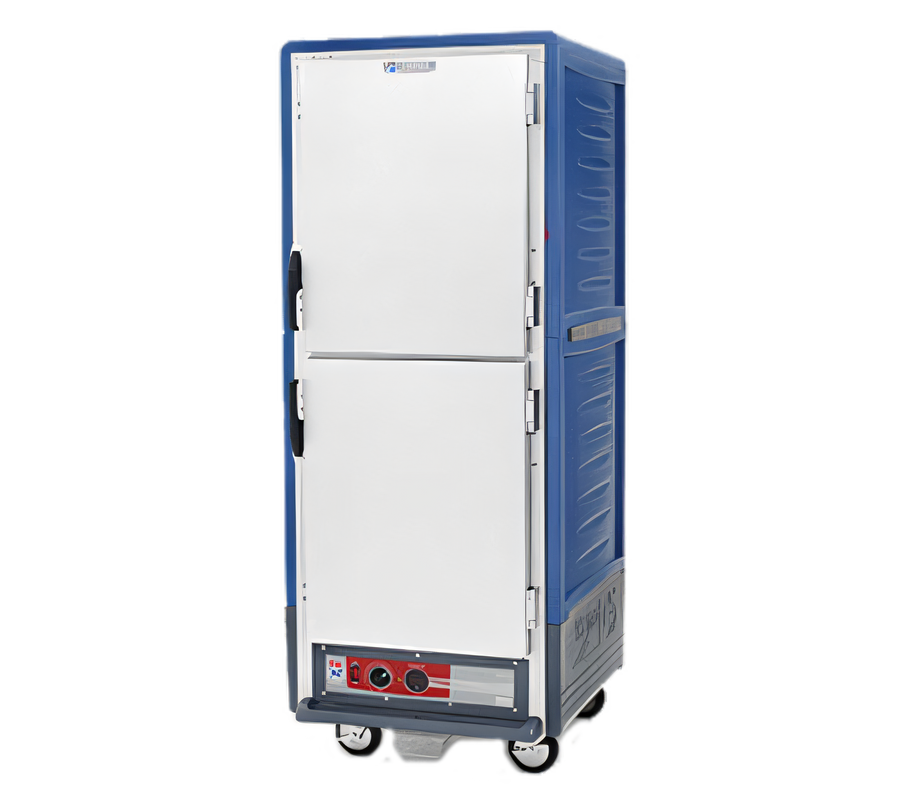

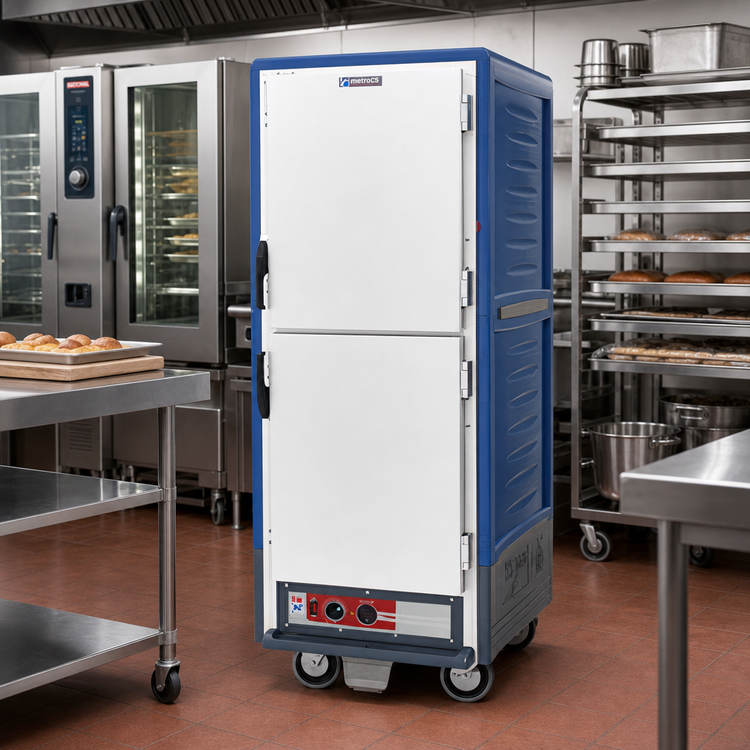

Metro C5 3 Series Full-Height Mobile Heated Holding & Proofing Cabinet with Blue Insulation Armour, Dutch Solid Insulated Aluminum Doors and Lip Load Slides

SKU: C539-CDS-L-BU
GTIN: 0-41105-45186-1
$3,894.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Food Holding & Warming Equipment Food Warmers & Holding Equipment Heated Cabinet Holding Cabinets Holding Cabinets Metro New Arrivals Proofing Cabinets Proofing Cabinets Restaurant Equipment

Metro C5 3 Series Full-Height Mobile Heated Holding & Proofing Cabinet with Blue Insulation Armour, Dutch Solid Insulated Aluminum Doors and Lip Load Slides

35 Full-Size Pan Capacity, 120V, 1-Phase

Built for hot holding and proofing, this cool-to-touch mobile cabinet keeps service moving with 35 full-size pan capacity and easy-clean removable controls.

  • Combination proof-and-hold cabinet supports both hot holding and proofing in one unit.
  • Blue Insulation Armour™ exterior helps keep surfaces cool to the touch while improving energy efficiency.
  • Full-height cabinet with dutch solid insulated aluminum doors for convenient access and heat retention.
  • Lip load slides on 1-1/2-inch centers hold up to 35 full-size 18 x 26 pans.
  • Removable bottom-mount control module simplifies cleaning and future servicing.
  • Mobile base includes 5-inch casters with two brakes for easy movement and stable placement.
  • 120V, 60 Hz, 1-phase electrical service with 2 kW draw and NEMA 5-20P plug.

Overall Dimensions:

27.63"W x 31.5"D x 71.0"H

Product Weight:

278.0 lb

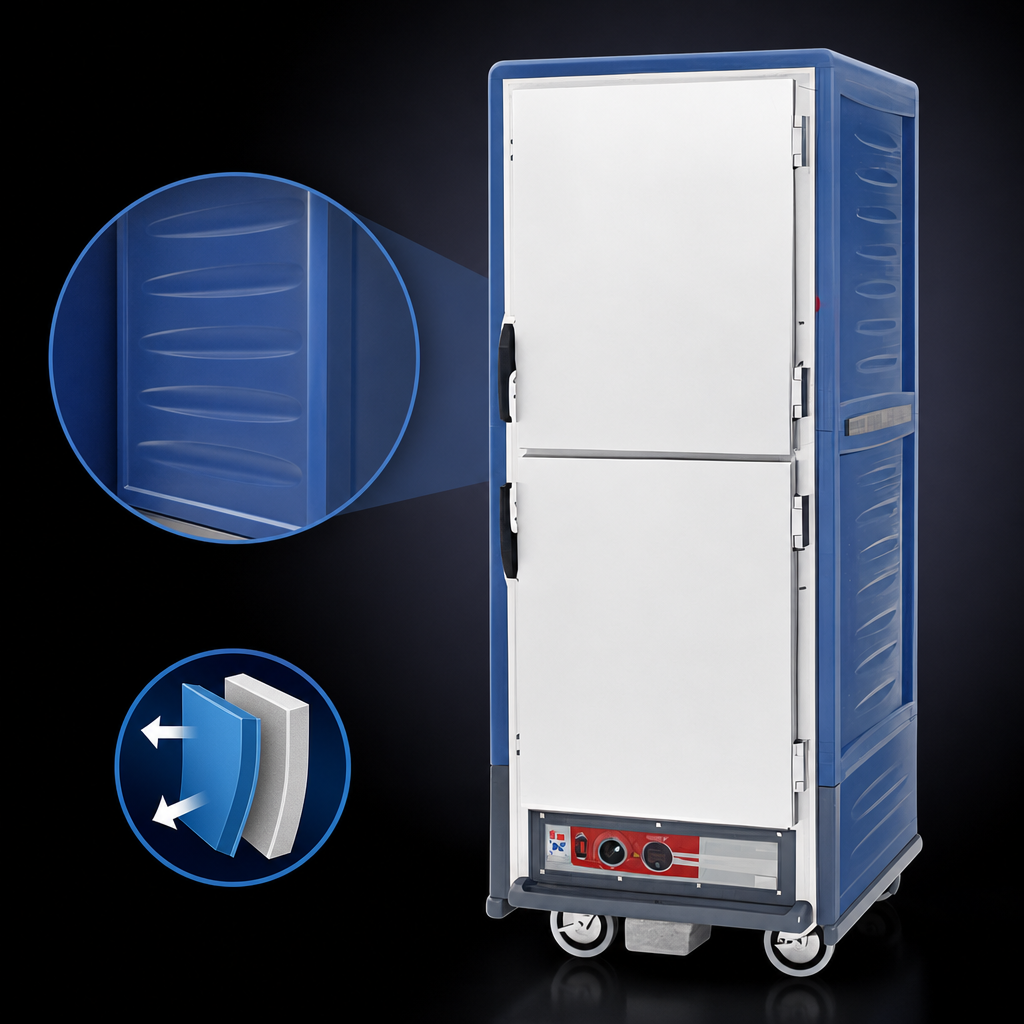

Blue Insulation Armour Exterior

Patented insulation technology provides a cool-to-touch, dent- and stain-resistant exterior that helps retain heat and improve energy efficiency.

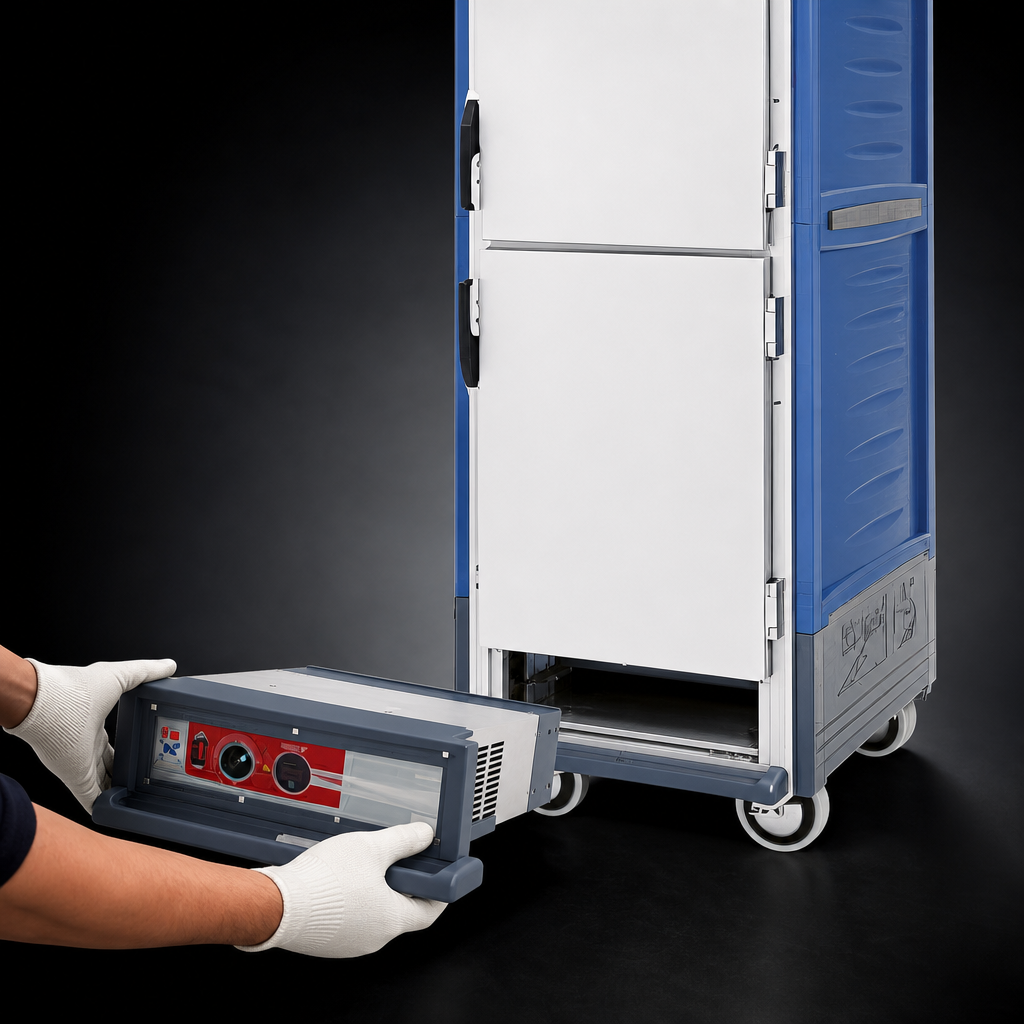

Removable Combination Control Module

Bottom-mounted module removes without tools for cleaning and service and supports hot holding plus proofing with moisture control.

Dutch Solid Insulated Doors

Full-height dutch-style insulated aluminum doors help reduce heat loss while making the cabinet easier to access in busy kitchens.

Lip Load Slide Capacity

Fixed 1-1/2-inch slide centers support up to 35 full-size 18 x 26 pans.

Thermostatically Controlled Heating

Forced convection heating provides fast heat-up and recovery with an operating range up to 200°F.

Mobile Caster Base

Five-inch casters with two brakes make the cabinet easier to reposition and secure in place.

Electric Service

Requires 120 volts, 60 Hz, single-phase power with a 2 kW draw and NEMA 5-20P plug.

Type Heated Holding And Proofing Cabinet
Style Full Height
Installation Type Floor Model (Mobile)
Compartments 1
Pan Capacity 35 18 x 26 Inch Pans
Pan Size 18 x 26 Inches
Controls Thermostatic
Temperature Range 80°F to 200°F
Material Aluminum
Interior Finish Aluminum
Color Blue
Voltage 120 Volts
Amps 16.7 Amps
Watts 2 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-20P
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 28 Inches
Shipping Depth 32 Inches
Shipping Height 71 Inches
Shipping Weight 278 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Brochure PDF Download PDF Instructions PDF Download

Frequently Asked Questions

It operates from 80°F to 200°F.
It has capacity for 35 full-size 18 x 26 pans on lip load slides.
Yes. The bottom-mount control module removes without tools for easier cleaning and service.
Yes. It includes five-inch casters with two brakes for mobility and stability.
It requires 120V, 60 Hz, single-phase power, draws 16.7 amps, and uses a NEMA 5-20P plug.
