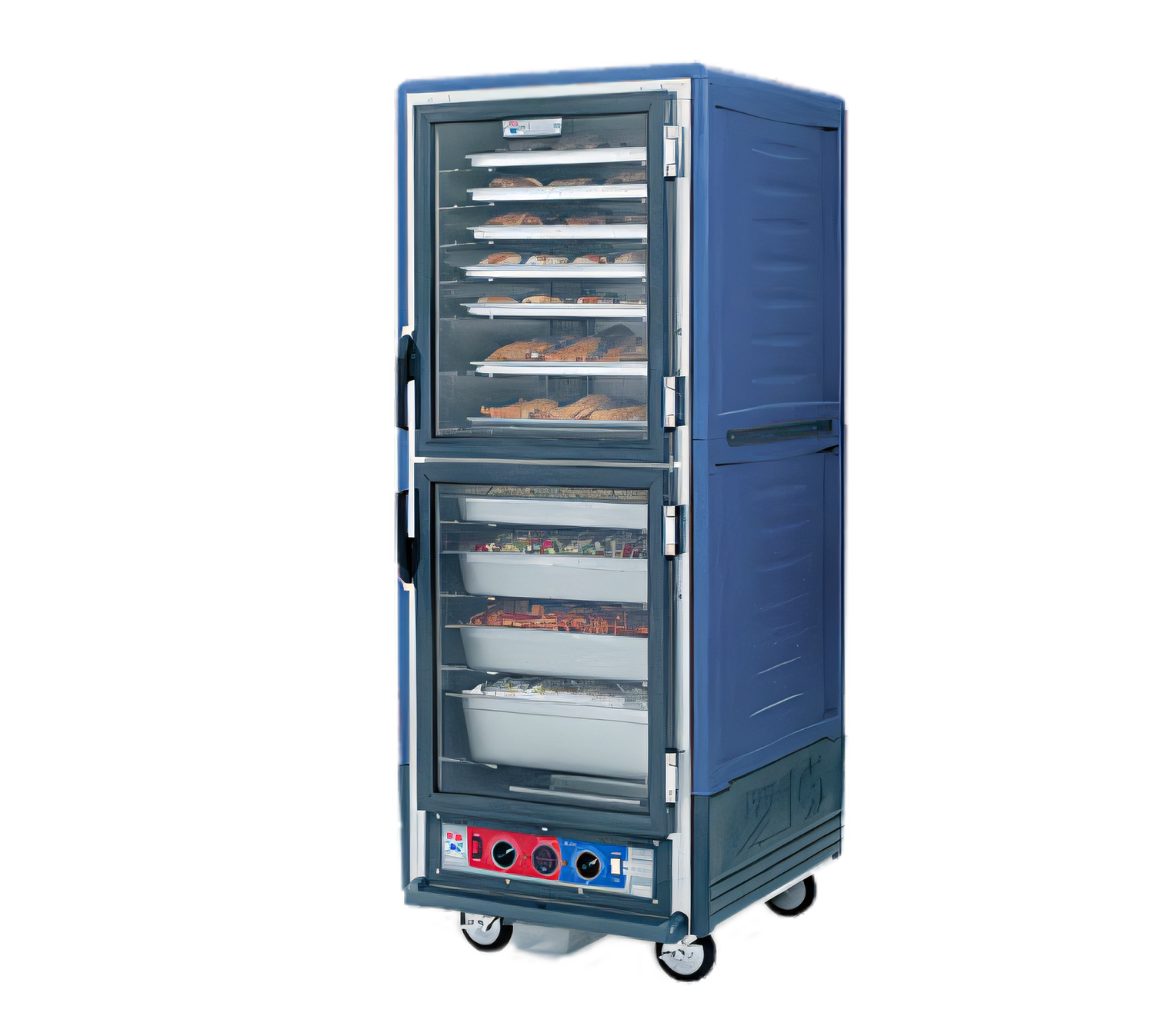

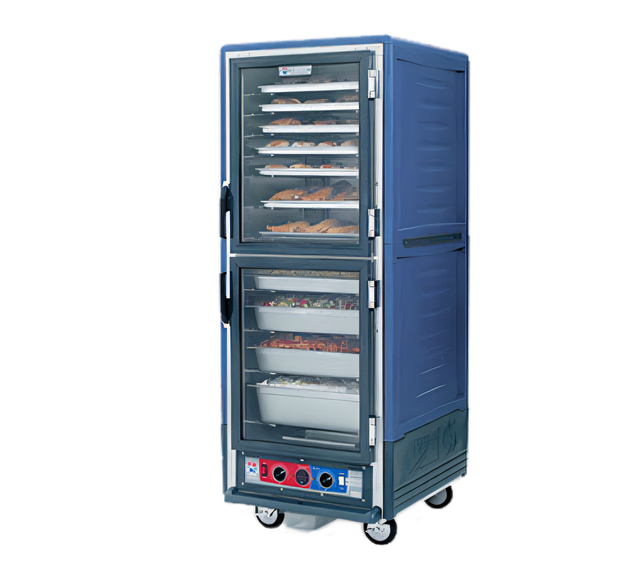

Metro C5 3 Series Full-Height Heated Holding and Proofing Cabinet with Blue Insulation Armour, Dutch Clear Doors and Universal Wire Slides

SKU: C539-CDC-U-BU
GTIN: 0-41105-45174-8
$3,978.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

Metro C5 3 Series Full-Height Heated Holding and Proofing Cabinet with Blue Insulation Armour, Dutch Clear Doors and Universal Wire Slides

Combination Module, Mobile, 120V, 34-Pan Capacity

This cool-to-touch, full-height combination cabinet offers moisture-controlled proofing, Dutch clear doors, and high-capacity pan storage in a mobile 120V package.

  • Full-height heated holding and proofing cabinet designed for hot food holding and proofing applications.
  • Blue Insulation Armour helps provide a cool-to-touch exterior and added durability for mobile use.
  • Removable combination control module supports holding and proofing with moisture control up to 200°F.
  • Universal wire slides adjust on 1.5-inch increments and maximize pan flexibility.
  • Dutch clear polycarbonate doors let staff see contents without opening the cabinet.
  • 5-inch casters with two brakes make the cabinet easy to move and secure in place.

Overall Dimensions:

27.63"W x 31.5"D x 71.0"H

Product Weight:

264.0 lb

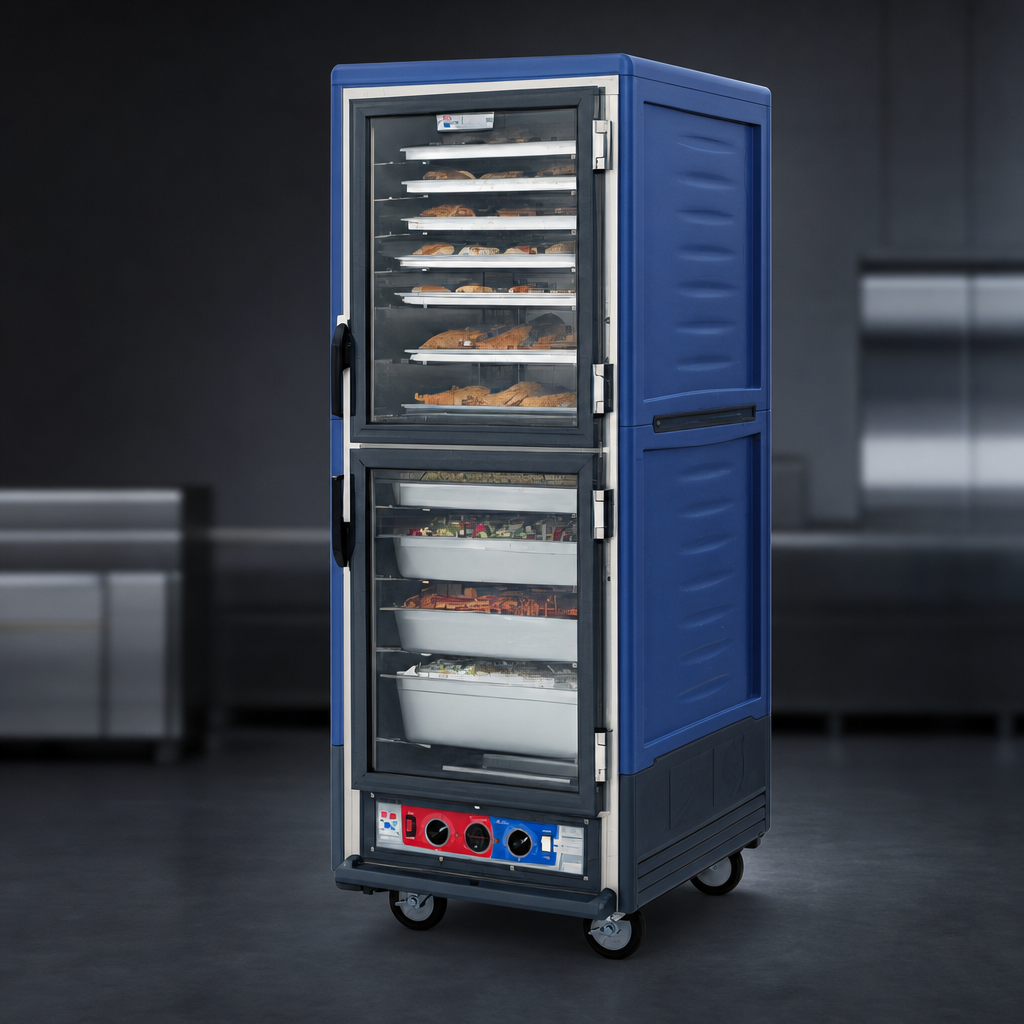

Blue Insulation Armour Exterior

Durable HDPE Insulation Armour helps retain heat, protects employees from hot surfaces, and stands up to dents, impacts, and stains.

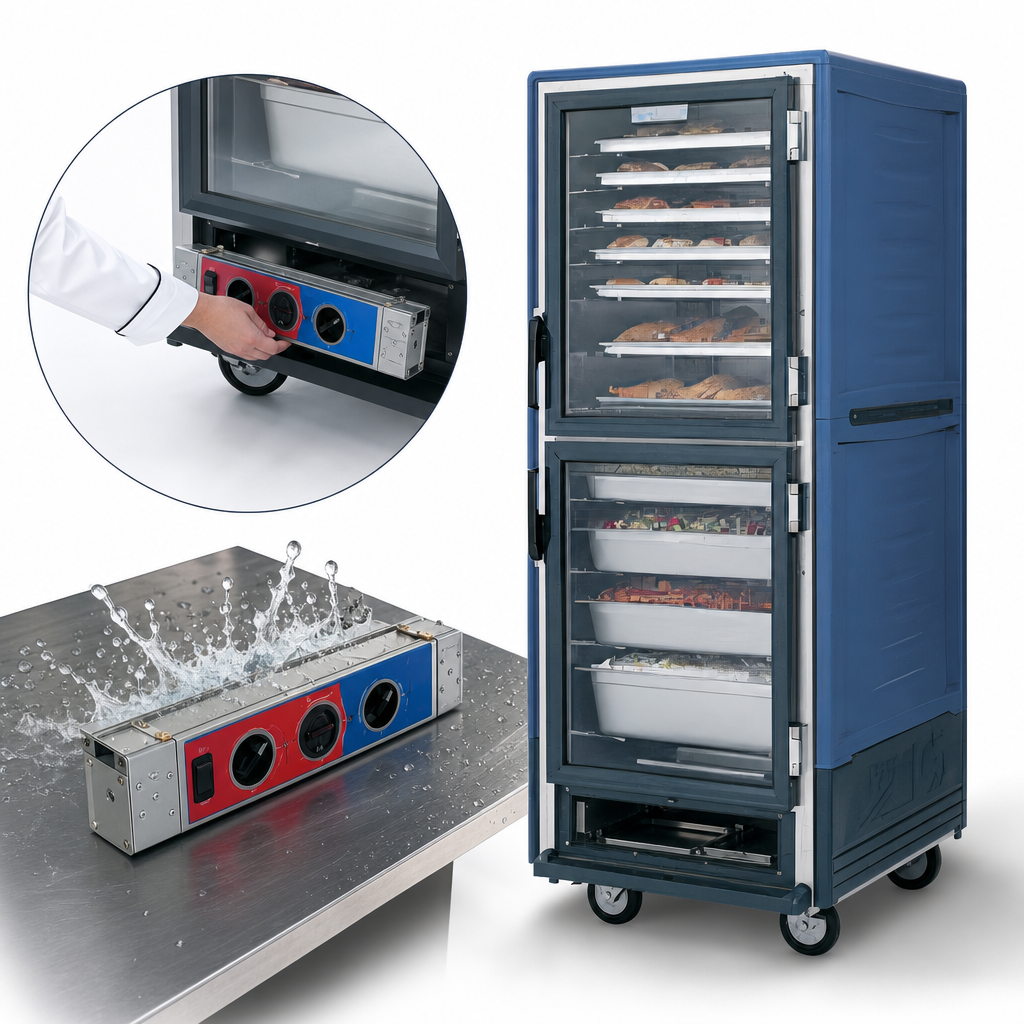

Removable Combination Module

The control module is removable without tools for cleaning and service, and provides hot holding plus proofing with moisture control.

Dutch Clear Polycarbonate Doors

Clear Dutch-style doors improve product visibility while helping reduce heat loss from frequent door openings.

Universal Wire Slides

Universal wire slides are adjustable on 1.5-inch increments for flexible pan loading and efficient space use.

High-Capacity Pan Storage

Designed to hold up to 34 full-size 12 x 20 x 2 1/2 pans or 18 full-size 18 x 26 sheet pans.

Bottom-Mounted Forced Convection Heating

A thermostatically controlled forced convection system delivers fast heat-up and recovery.

Mobile Caster Base

Five-inch casters, including two with brakes, make the cabinet easy to reposition and lock in place.

Field-Reversible Hinges

Double-hinged doors with 180-degree swing and long-life nylon bearings support flexible installation and easy access.

Type Heated Holding and Proofing Cabinet
Style Combination
Installation Type Floor Model
Material Aluminum
Interior Finish Aluminum
Color Blue
Controls Digital
Temperature Range 80°F to 200°F
Compartments 1
Pan Capacity (34) 12 x 20 x 2 1/2 Pans or (18) 18 x 26 Pans
Slide Centers Adjustable on 3 Inches Centers
Voltage 120 Volts
Amps 16.7 Amps
Watts 2 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-20P
Country of Origin USA
Shipping Width 28 Inches
Shipping Depth 32 Inches
Shipping Height 71 Inches
Shipping Weight 264 lb.
Selling Unit Each
Units Per Case 1

Frequently Asked Questions

It is a full-height heated holding and proofing cabinet with a combination module for both hot holding and proofing.
It holds up to (34) 12 x 20 x 2 1/2 pans or (18) 18 x 26 sheet pans on universal wire slides.
Yes. The combination module supports proofing and moisture control along with heated holding.
This model operates on 120V, 60Hz, single-phase power and draws 16.7 amps with a 2 kW load.
Yes. This model uses Dutch clear polycarbonate doors for visibility into the cabinet.
Yes. It comes with 5-inch casters, including two casters with brakes.
