Key specifications

Amps
16.7 Amps
Phase
1-Phase
Dimensions
25.13"W × 30.25"D × 42.75"H
Type
Heated Holding Cabinet
Style
Mobile
Installation Type
Floor Model
Spec sheet
Metro SKU: C515-CFC-L GTIN: 0-41105-44517-4

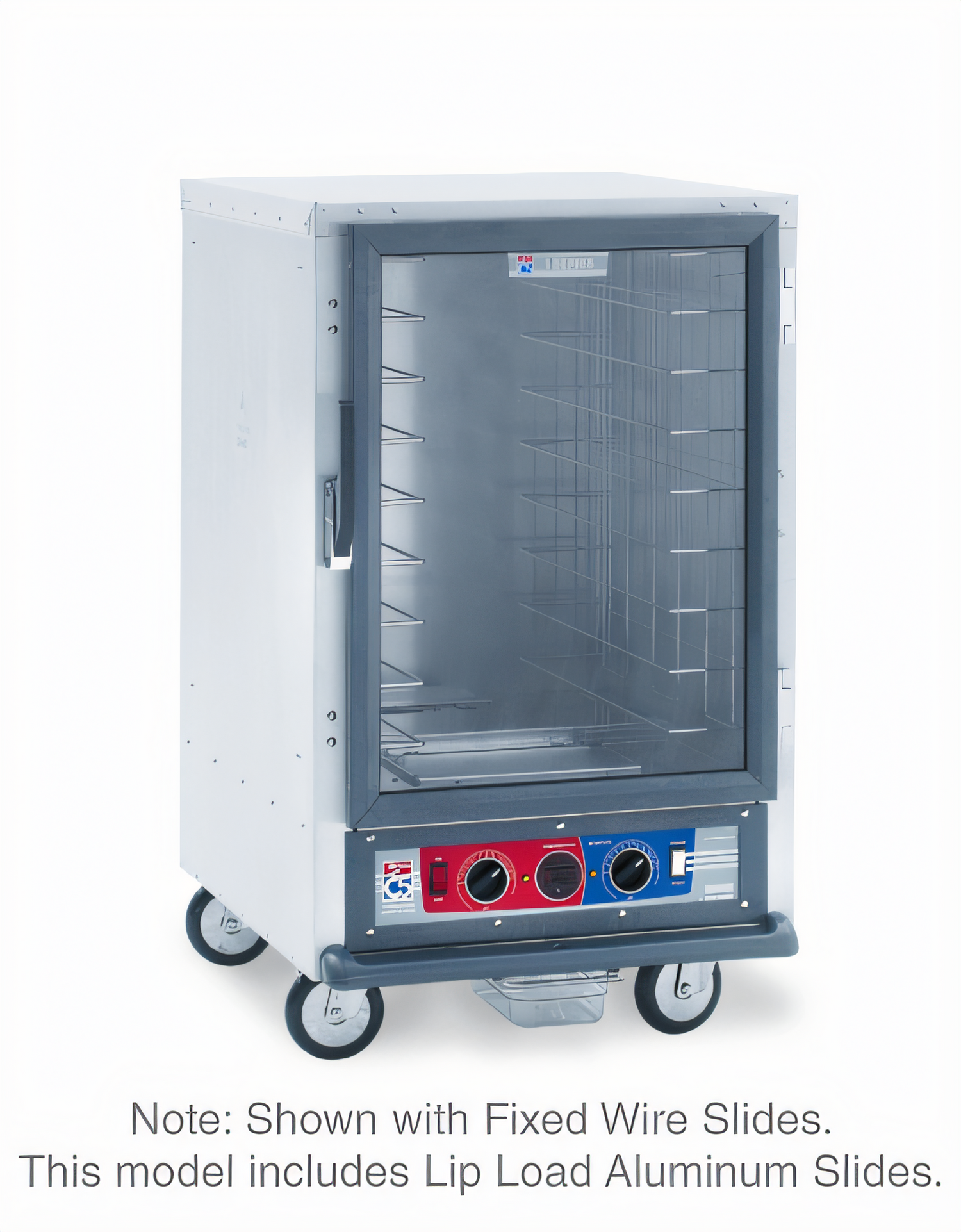

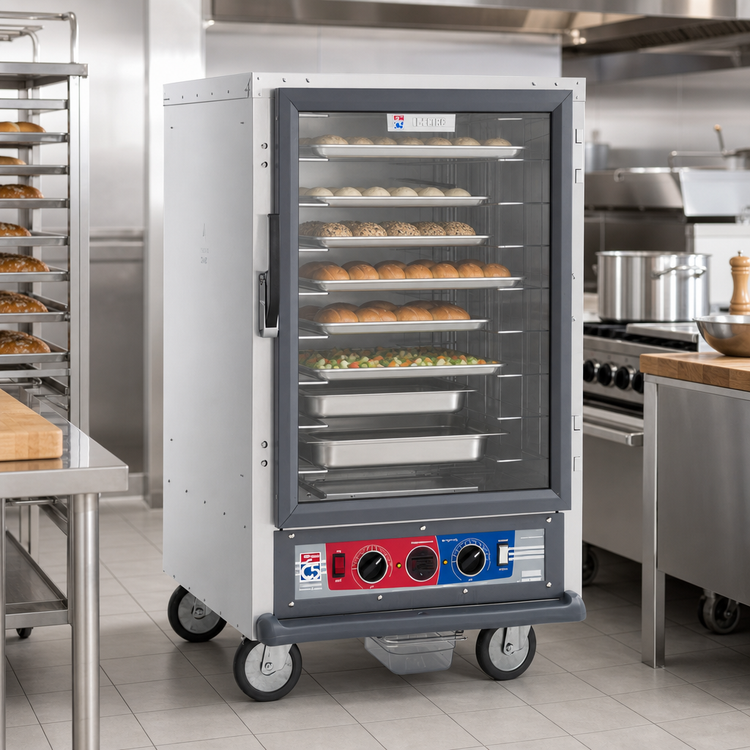

Metro C5 C515-CFC-L Mobile 17-Pan Holding & Proofing Cabinet

$2,744.00
/each
Estimated to ship in 9–12 business days
Slide type
Door hinge
Shelves
Included: Metro warranty One-year warranty from the date of shipment from the seller's warehouse or factory

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $254/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Heated Holding Cabinet
Style Mobile
Installation Type Floor Model
Material Aluminum
Finish Brushed
Interior Finish Aluminum
Door Type Clear Polycarbonate
Insulation Non-Insulated
Capacity 17 Full-Size Pans
Pan Size 18 x 26 in
Slide Type Lip Load
Slide Spacing 1.5 in
Heater Bottom Mounted
Caster Size 5 in
Brake Casters 2
Controls Combination Hold/Proof
Temperature Range 80°F to 190°F
Voltage 120 Volts
Amps 16.7 Amps
Watts 2 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-20P

Description

Heated holding and proofing: The Metro C5 1 Series combination cabinet supports heated holding and proofing in a mobile, half-height format.

The non-insulated aluminum cabinet has a clear polycarbonate door, a removable bottom-mounted control module, and fixed lip-load slides for 17 full-size 18 x 26 in pans.

  • Combination operation for holding and proofing
  • Thermostat adjustable up to 190°F
  • Bottom-mounted forced-air heater
  • Five-inch casters, with two casters fitted with brakes
  • 120V electrical service with 2 kW output

Overall Dimensions:

25.13"W x 30.25"D x 42.75"H

Product Weight:

127.66 lb

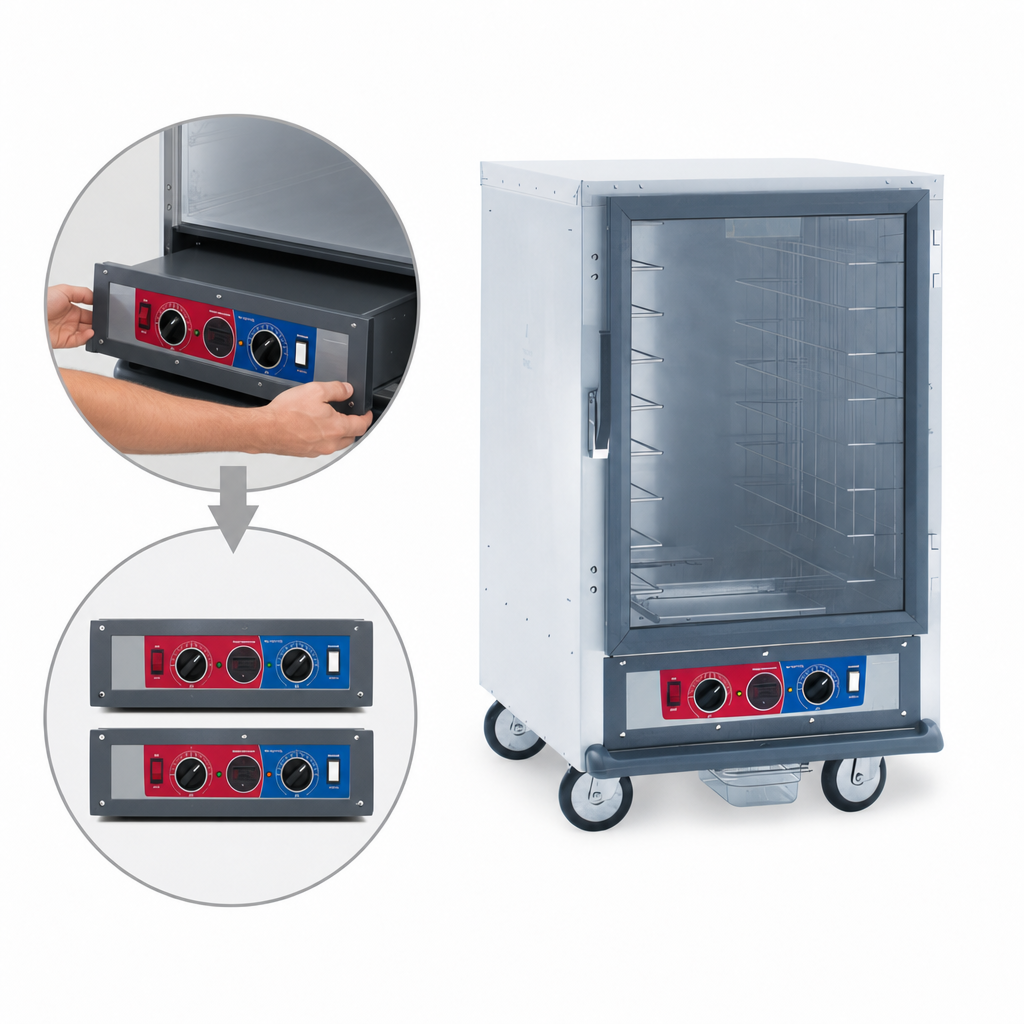

Combination Holding and Proofing

The combination module supports both heated holding and proofing operation.

Full-Size Pan Capacity

Fixed lip-load slides accommodate 17 pans measuring 18 x 26 in.

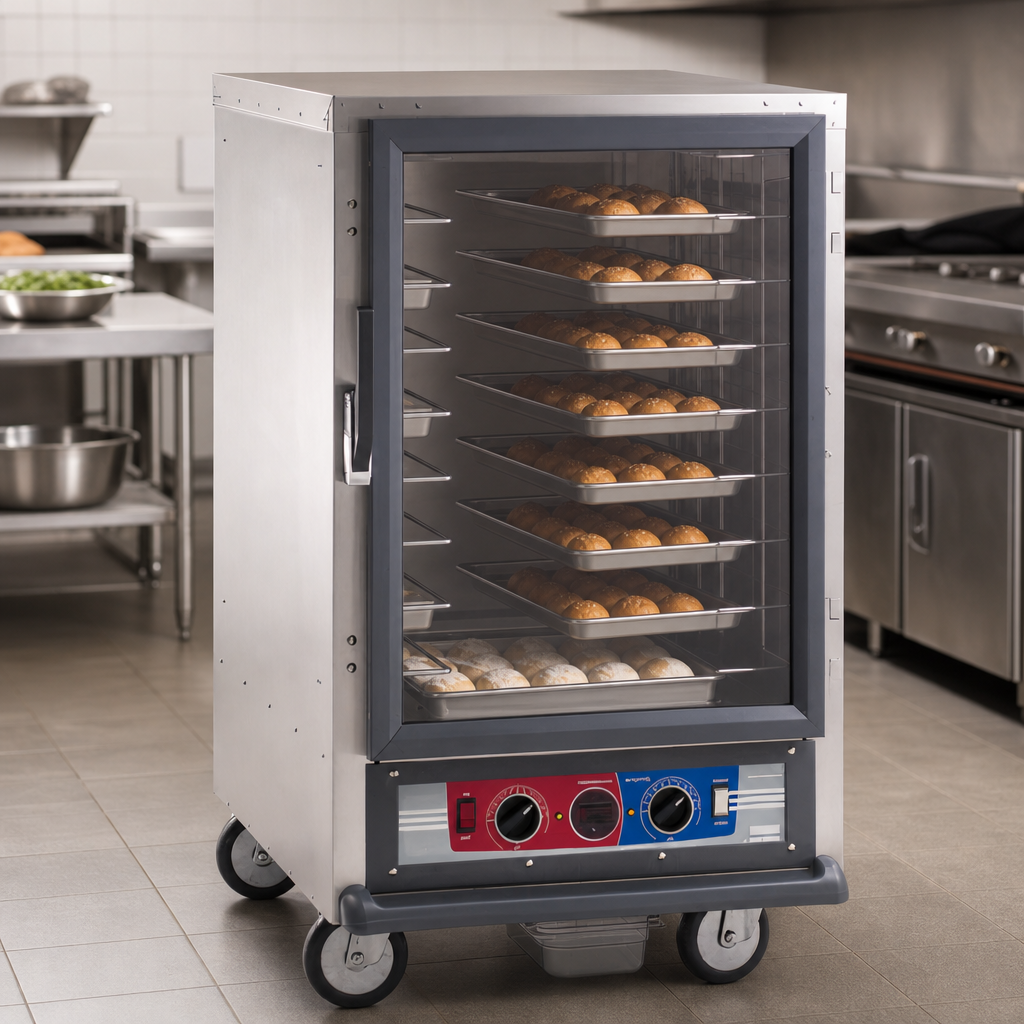

Clear Polycarbonate Door

The clear door provides visibility of the cabinet contents.

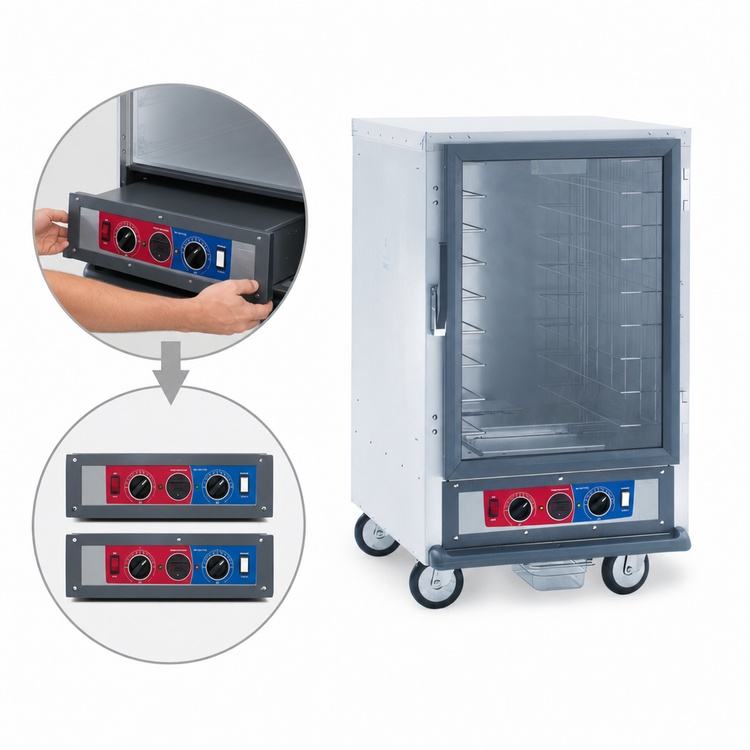

Removable Control Module

The bottom-mounted control module is removable.

Temperature Control

The thermostat adjusts up to 190°F.

Forced-Air Heating

A bottom-mounted, thermostatically controlled forced-air heating system circulates heated air.

Mobile Base

Five-inch casters support mobile use, with two casters equipped with brakes.

Aluminum Construction

The cabinet is constructed from aluminum and is non-insulated.

Frequently Asked Questions

The cabinet holds 17 full-size pans measuring 18 x 26 in on fixed lip-load slides.
Yes. Its combination module supports both heated holding and proofing operation.
It has a clear polycarbonate door.
The combination module has an operating range of 80°F to 190°F.
The cabinet requires 120 volts, 60 Hz, single-phase power and is rated at 2 kW and 16.7 amps with a NEMA 5-20P plug.
