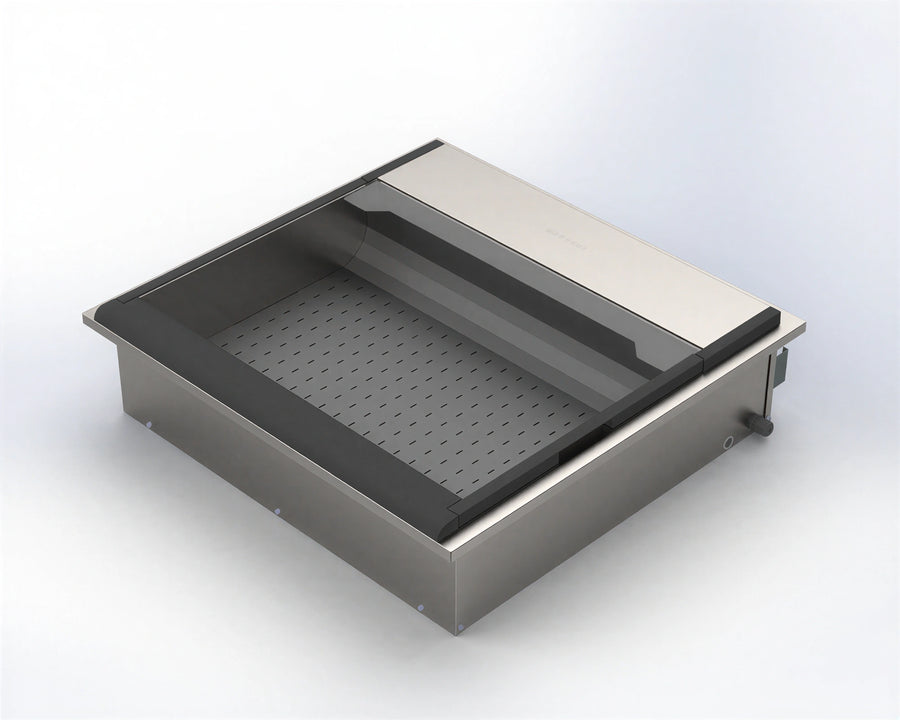

Merco CrispyMax™ MCD2928NNN Heated Drop-In Triple-Lane Fry Dump Station, Stainless Steel

SKU: MCD2928NNN
$6,117.00

Want to speak to an expert?

The Merco CrispyMax™ MCD2928NNN is a triple-lane, drop-in convection heated serving station with Therma-Lock™ airflow.

  • Stainless steel construction
  • Removable food tray and crumb tray
  • Includes two dividers
  • On/off switch with LED indicator
  • NEMA 6-20P plug

The low-profile design uses heated airflow over and through food and requires no overhead heating elements.

Product Weight:

90.0 lb

Triple-lane configuration

Designed as a triple-lane drop-in serving station.

Therma-Lock convective airflow

Circulates heated air over and through food to control moisture and support crispness.

Removable trays

Includes a removable food tray and removable crumb tray for cleanup.

Divider system

Includes two removable and adjustable dividers.

Controls and software updates

Features an on/off switch with LED indicator and a USB port for software updates.

Stainless steel construction

The cutsheet identifies heavy-duty 20-gauge 304 stainless steel components above the counter and in food zones.

Low-profile design

The drop-in design provides a low profile and requires no overhead heating elements.

Installation Drop-in
Number of lanes 3 lanes
Base Heated
Type Bin style (no heat lamp)
Design Complete station
Construction Stainless steel
Heating and airflow Therma-Lock heated convective airflow
Included dividers 2
Controls On/off switch with LED indicator
Plug type NEMA 6-20P
Voltage 208-230 V
Frequency 60 Hz
Power 2,995-3,650 W
Current 14.4-15.9 A
Cutout dimensions 27.5 x 26.0 in (699 x 660 mm)
Country of origin Made in USA

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

One year parts and labor.

Frequently Asked Questions

The MCD2928NNN has three lanes.
Yes. It is a convection heated serving station using Therma-Lock airflow.
It uses a NEMA 6-20P plug.
The station includes a removable food tray, removable crumb tray, and two dividers.
The cutsheet lists 29.0 in (737 mm) width, 27.9 in (709 mm) depth, and 7.8 in (198 mm) height above the counter.
The listed warranty is one year for parts and labor.
