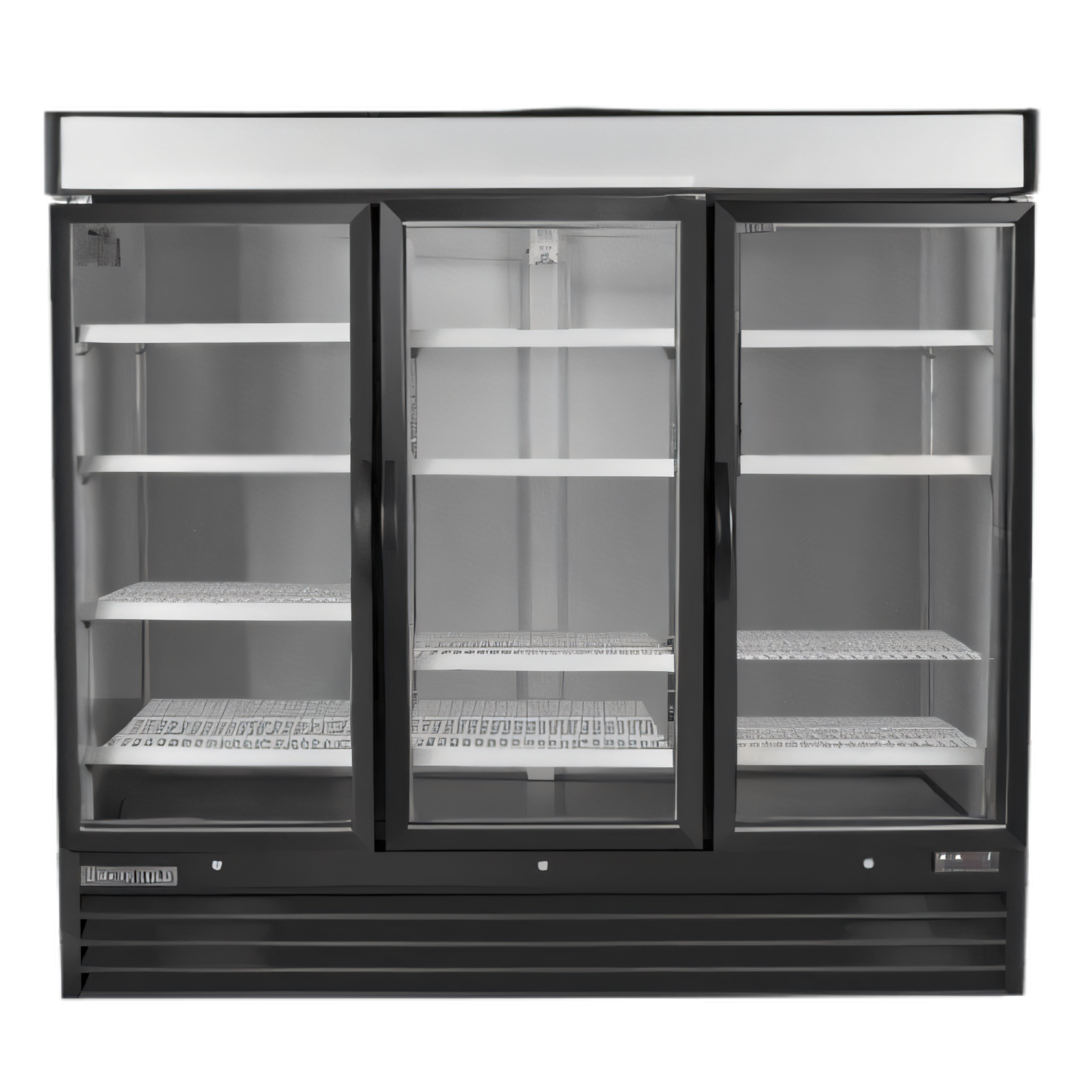

Maxx Cold X-Series 72 Cu. Ft. Three-Section Glass Door Merchandiser Freezer — Triple-Pane Heated Glass Doors, Bottom-Mount Compressor
Maxx Cold X-Series 72 Cu. Ft. Three-Section Glass Door Merchandiser Freezer — Triple-Pane Heated Glass Doors, Bottom-Mount Compressor
High-capacity, LED-lit merchandiser with digital controls and 12 adjustable PE-coated wire shelves
Large-capacity 72 cu. ft. merchandiser freezer built for high-visibility display — triple-pane heated glass doors, rapid-recovery bottom-mounted compressor, and programmable digital controls.
- 72 Cu. Ft. (2039 L) nominal capacity for high-volume refrigerated display and storage
- Triple-pane heated, insulated self-closing glass doors reduce condensation and protect product integrity
- 1-1/4 HP bottom-mounted compressor with R-290A refrigerant for efficient cooling and fast temperature recovery
- Digital solid-state controls with LED temperature display, automatic defrost, and interior LED lighting
- Includes twelve (12) adjustable heavy-duty PE-coated wire shelves, lock and key, and illuminated top advertising panel; optional swivel casters available
Overall Dimensions:
81.0"W x 32.0"D x 79.5"HProduct Weight:

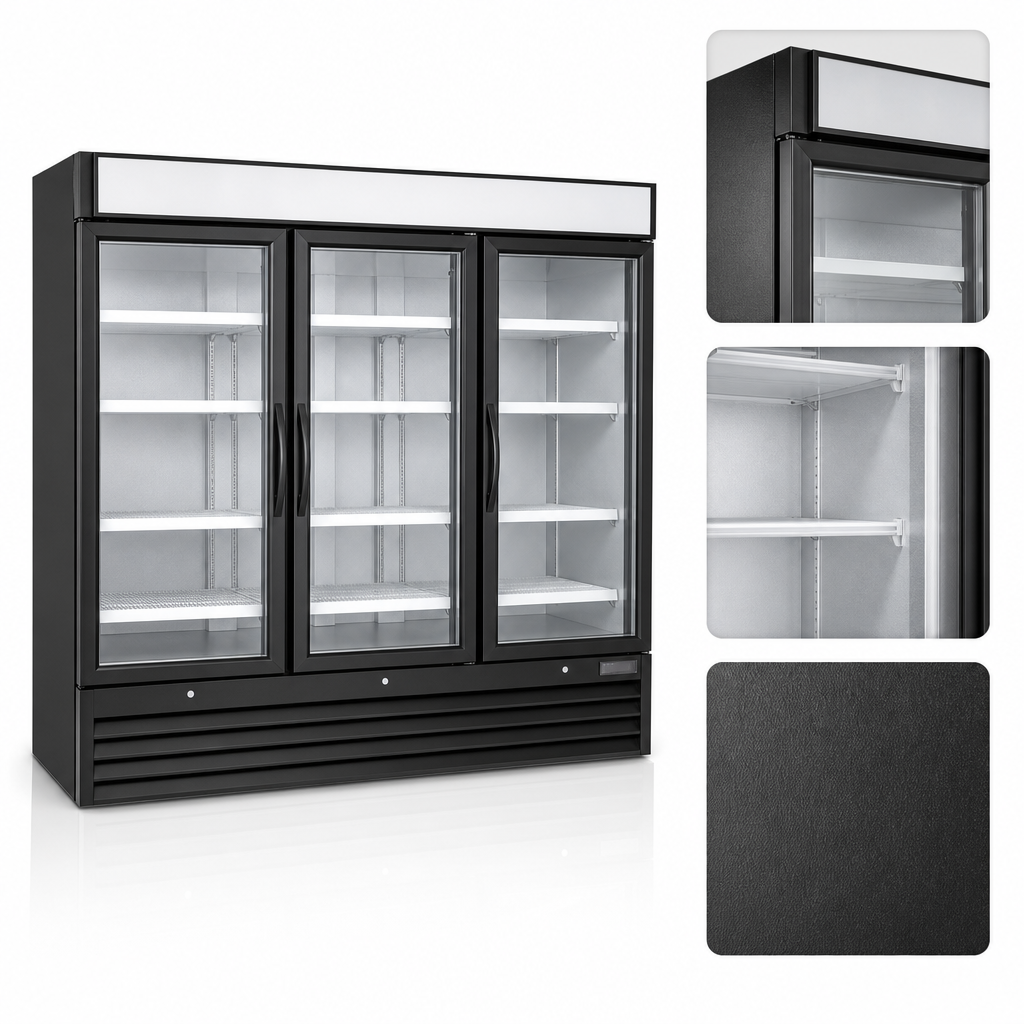

618.0 lbConstruction
Durable black powder-coated steel exterior with powder-coated aluminum interior for easy cleaning and corrosion resistance.

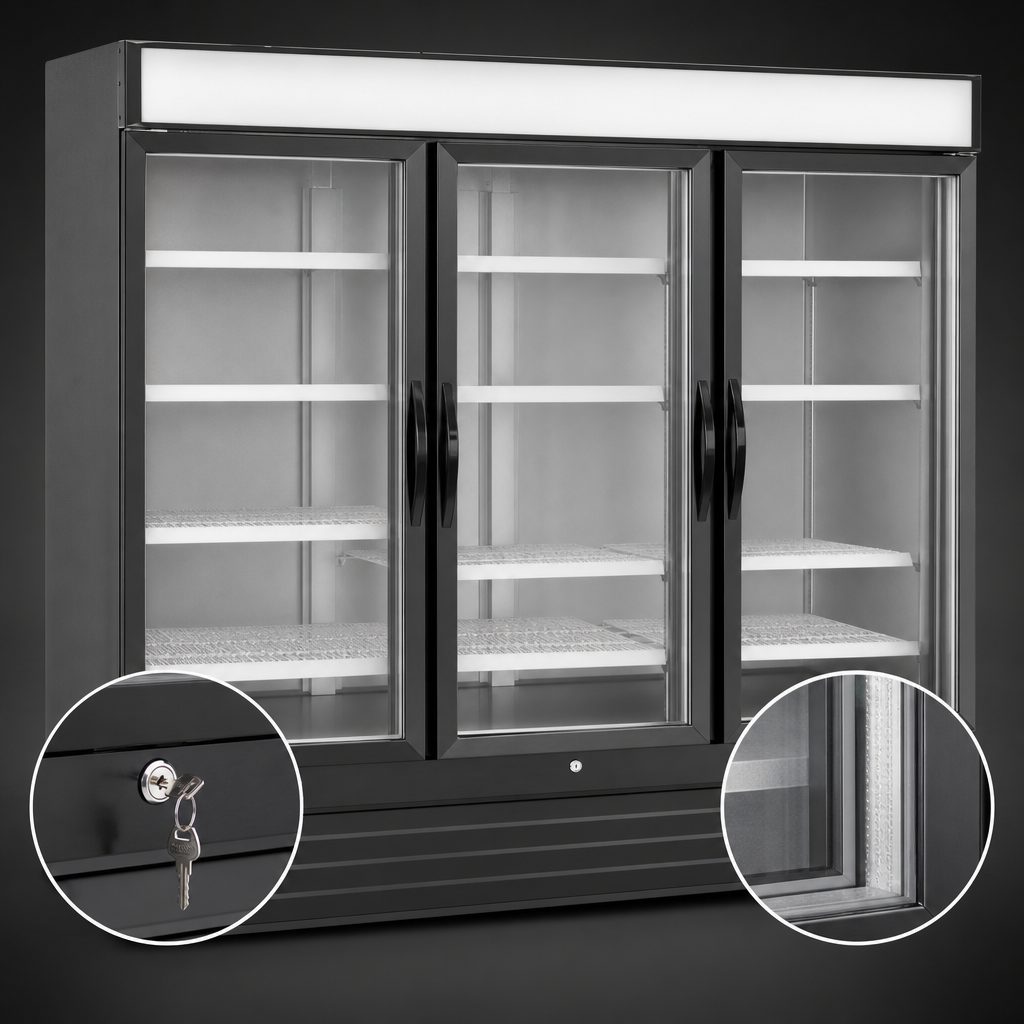

Doors
Triple-pane, heated, insulated self-closing glass doors to minimize condensation and maintain holding temperature; doors supplied with lock and key set.
Shelving
Twelve (12) adjustable heavy-duty PE-coated wire shelves for flexible product organization.
Lighting
Interior LED lighting plus an illuminated top panel for merchandising and improved product visibility.
Refrigeration System
Bottom-mounted refrigeration using R-290A refrigerant (5.29 oz / 150 g) with an oversized system for rapid temperature recovery.
Compressor
1-1/4 HP bottom-mounted compressor designed for reliable, energy-efficient operation.
Controls
Programmable solid-state digital controls with LED temperature display for accurate regulation.
Defrost & Condensate
Automatic defrost and integrated condensate evaporator — no external drain line connection required.
Mobility
Equipped with six (6) rollers (three with leveling feet); swivel caster wheels are available as an option for increased mobility.
Electrical
208-230V / 60 Hz / 1-Phase electrical configuration. 6' (2 m) NEMA L14-20 cord set included.
Certifications
cETLus and ETL-Sanitation listings.
Advertising Panel
Backlit top panel for signage and product promotion.
Certifications & Compliance
Warranty & Protection
Contact Maxx Cold for warranty statement (USA / Canada).
