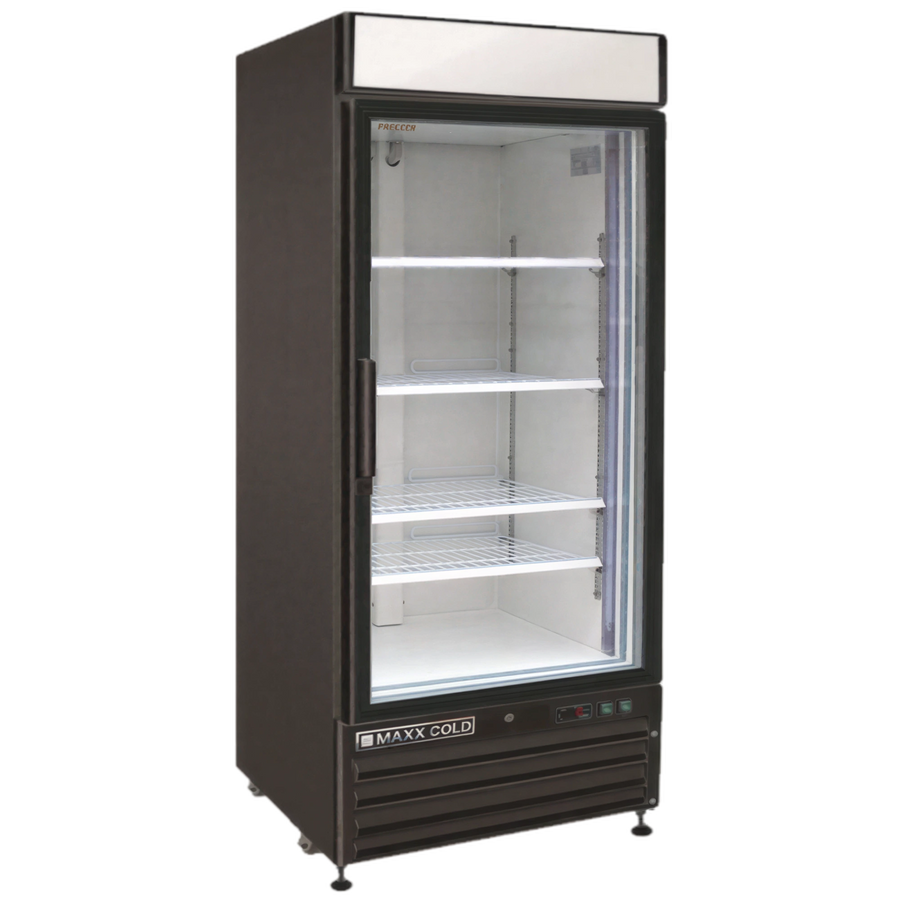

Maxximum Maxx Cold MXM1-12RBHC 1-Section Glass Door Refrigerated Merchandiser, 12 cu. ft., Black, Bottom-Mounted Compressor

SKU: MXM1-12RBHC
$1,999.99

Want to speak to an expert?

The Maxx Cold X-Series MXM1-12RBHC is a one-section refrigerated merchandiser with a double-pane self-closing glass door and 12 cu. ft. of storage capacity.

  • Includes three adjustable PE-coated wire shelves and LED interior lighting.
  • Features a black powder-coated steel exterior, powder-coated aluminum interior, electronic thermostat, and digital LED temperature display.
  • Uses a self-contained 3/8 HP bottom-mounted compressor with automatic defrost.
  • Includes an integrated condensate evaporator, so no drain line connection is needed.

Overall Dimensions:

25.0"W x 26.0"D x 62.0"H

Product Weight:

221.0 lb

Self-closing glass door

The one-section merchandiser has a double-pane insulated glass self-closing door.

Adjustable shelving

Three adjustable heavy-duty PE-coated wire shelves are included.

LED interior lighting

LED lighting illuminates the refrigerated interior.

Digital temperature control

An electronic thermostat and digital LED temperature display provide temperature control and monitoring.

Bottom-mounted refrigeration

The unit uses a self-contained 3/8 HP bottom-mounted compressor.

Automatic defrost

The refrigeration system includes automatic defrost.

Condensate management

An integrated condensate evaporator eliminates the need for a drain line connection.

Mobility and security

The unit includes four rollers, two with leveling feet, plus a lock and key set.

Capacity 12 cu. ft. (340 L)
Sections 1
Door type Double-pane insulated glass, self-closing
Shelves 3 adjustable PE-coated wire shelves
Exterior material and finish Black powder-coated steel
Interior material Powder-coated aluminum
Interior lighting LED
Controls Electronic thermostat with digital LED temperature display
Compressor 3/8 HP, bottom-mounted
Refrigeration Self-contained, bottom-mounted
Holding temperature 33°F to 41°F (1°C to 5°C)
Defrost Automatic
Electrical 115V / 60Hz / 1Ph
Amp draw 3.0A
Refrigerant R-290A, 3.0 oz (85 g)
Condensate management Integrated condensate evaporator; no drain line connection needed
Power cord 6 ft NEMA 5-15P cord set included

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed
Certified badge of UL Certified
UL Certified

Frequently Asked Questions

The nominal storage capacity is 12 cu. ft. (340 L).
The external dimensions are 25 in. wide by 26 in. deep by 62 in. high.
The holding temperature range is 33°F to 41°F (1°C to 5°C).
It is specified for 115V / 60Hz / 1Ph electrical service and has a 3.0A amp draw.
Three adjustable PE-coated wire shelves are included.
No. It has an integrated condensate evaporator, so no drain line connection is needed.
