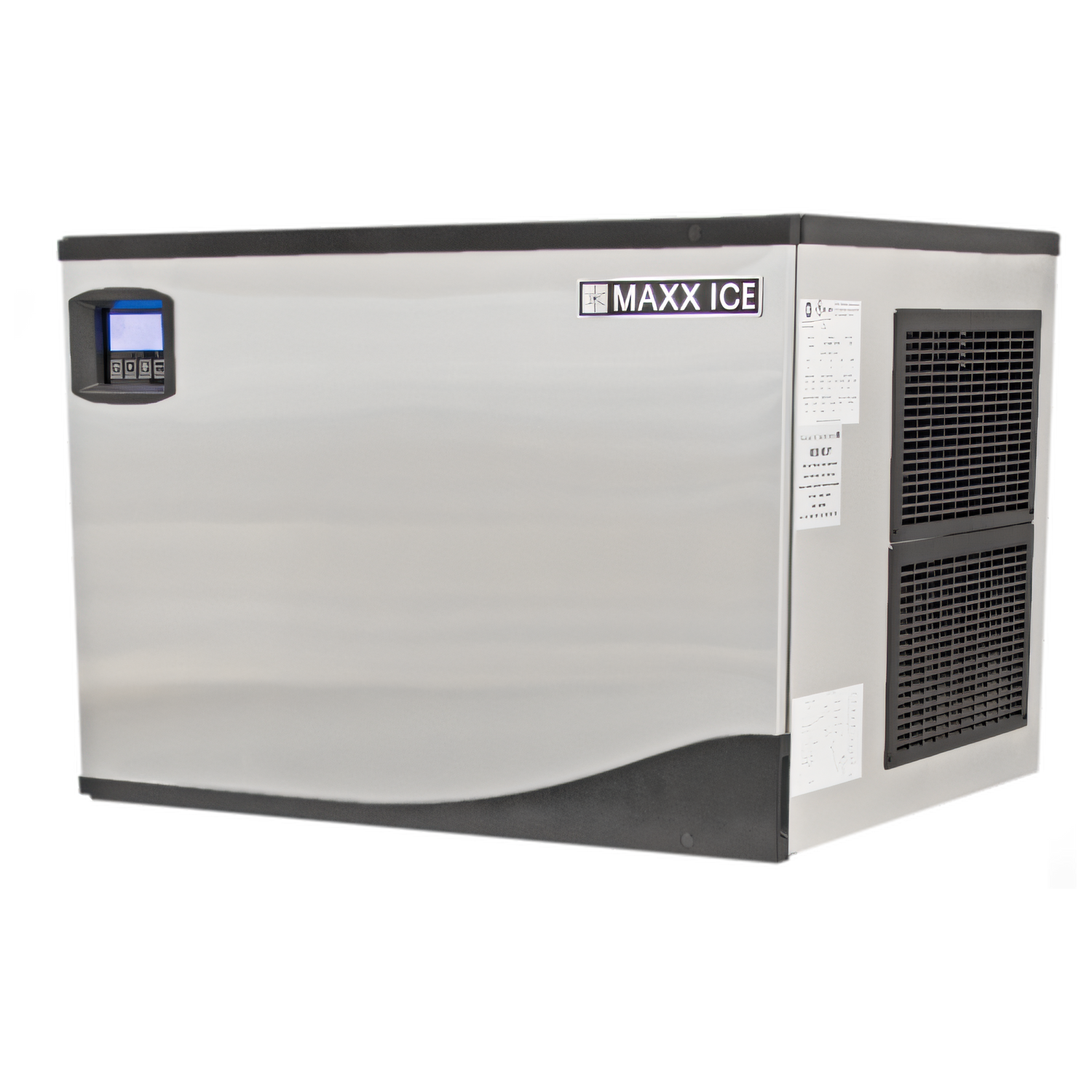

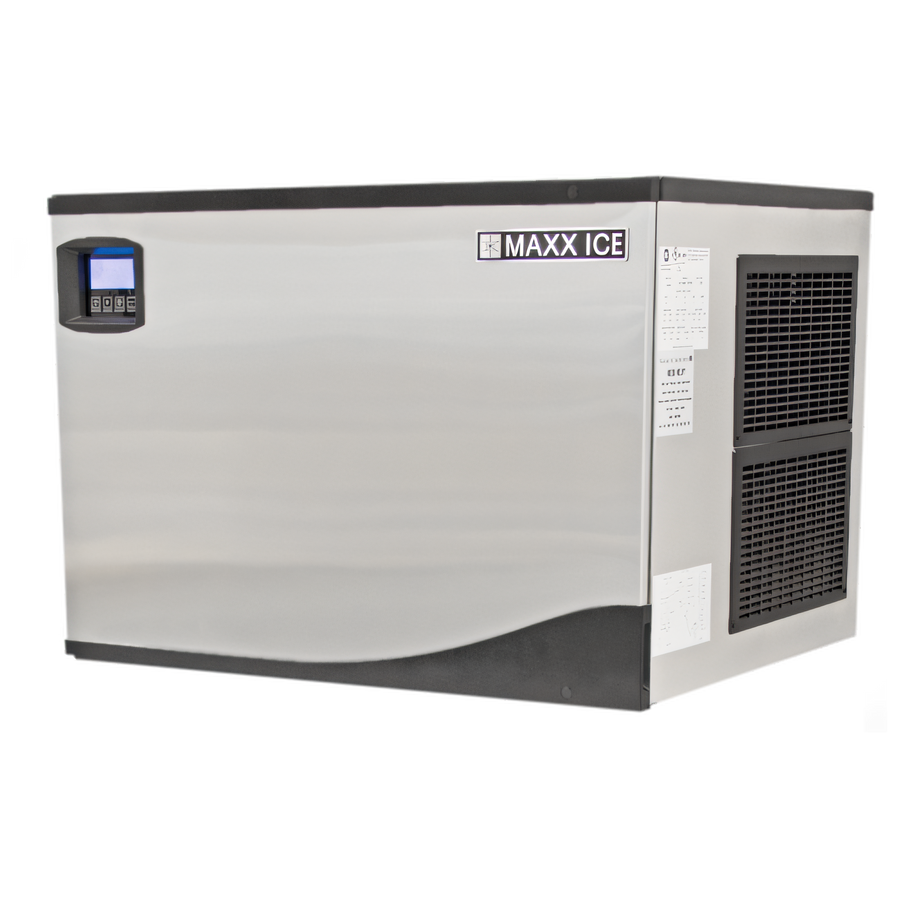

Maxx Ice MIM650NH 30-Inch Modular Half Dice Cube Ice Maker, Air-Cooled, Self-Contained

SKU: MIM650NH
$4,799.99
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Ice Makers Ice Machines Ice Makers & Bins Maxximum New Arrivals Restaurant Equipment

Maxx Ice MIM650NH 30-Inch Modular Half Dice Cube Ice Maker, Air-Cooled, Self-Contained

645 lb/Day, 230V, Hard-Wired

A high-volume modular ice machine that produces half-dice cubes with programmable digital control, automatic cleaning, and easy-service stainless steel construction.

  • Produces approximately 645 lb. of half-dice ice per day under standard test conditions.
  • Air-cooled, self-contained design is built for straightforward modular installation.
  • Programmable digital controls, status display, and automatic cleaning cycle simplify operation.
  • Overflow prevention and a hinged front panel help reduce maintenance time.
  • Stainless steel exterior with black trim delivers a clean, durable commercial look.
  • Compatible with select Maxx Ice storage bins and stackable with an optional adapter.

Overall Dimensions:

30.0"W x 24.6"D x 21.0"H

Product Weight:

165.0 lb

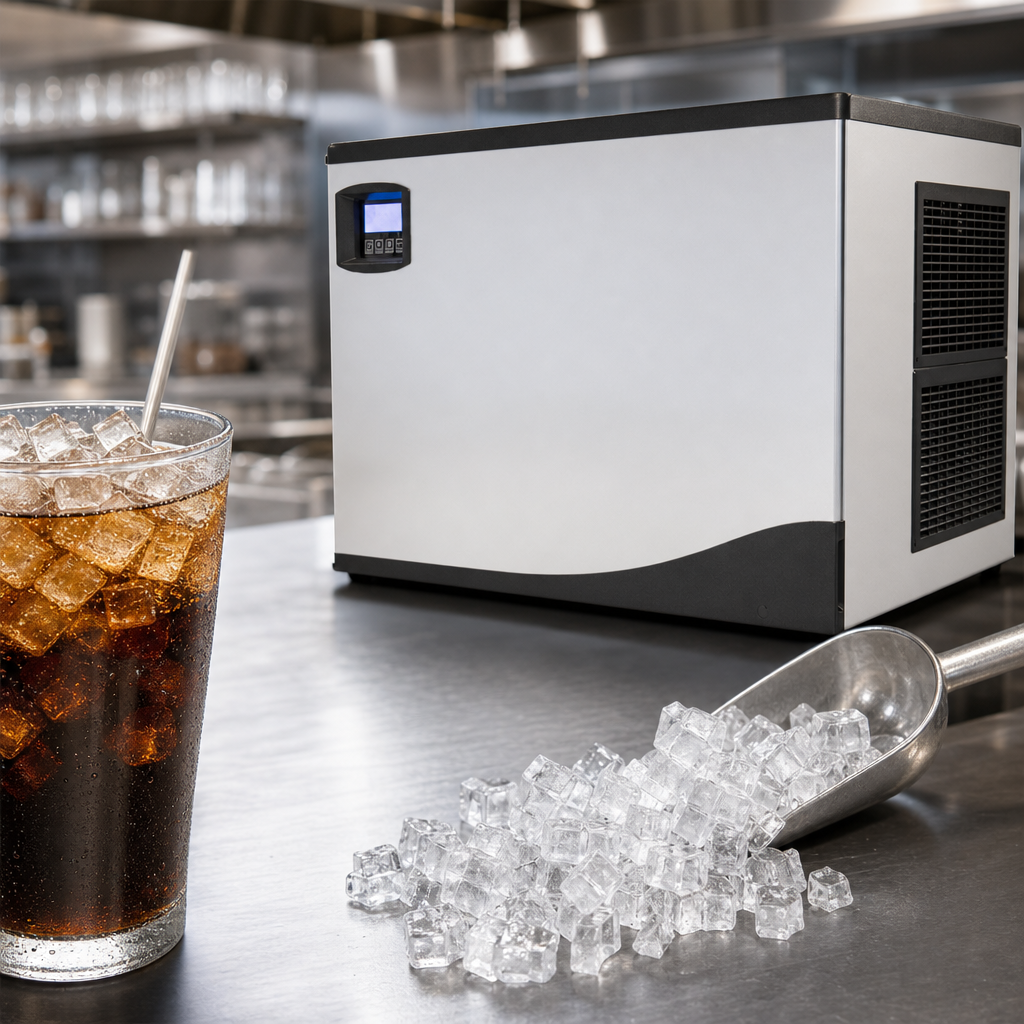

Half Dice Cube Production

Makes half-dice cubes for beverage service and high-volume ice applications.

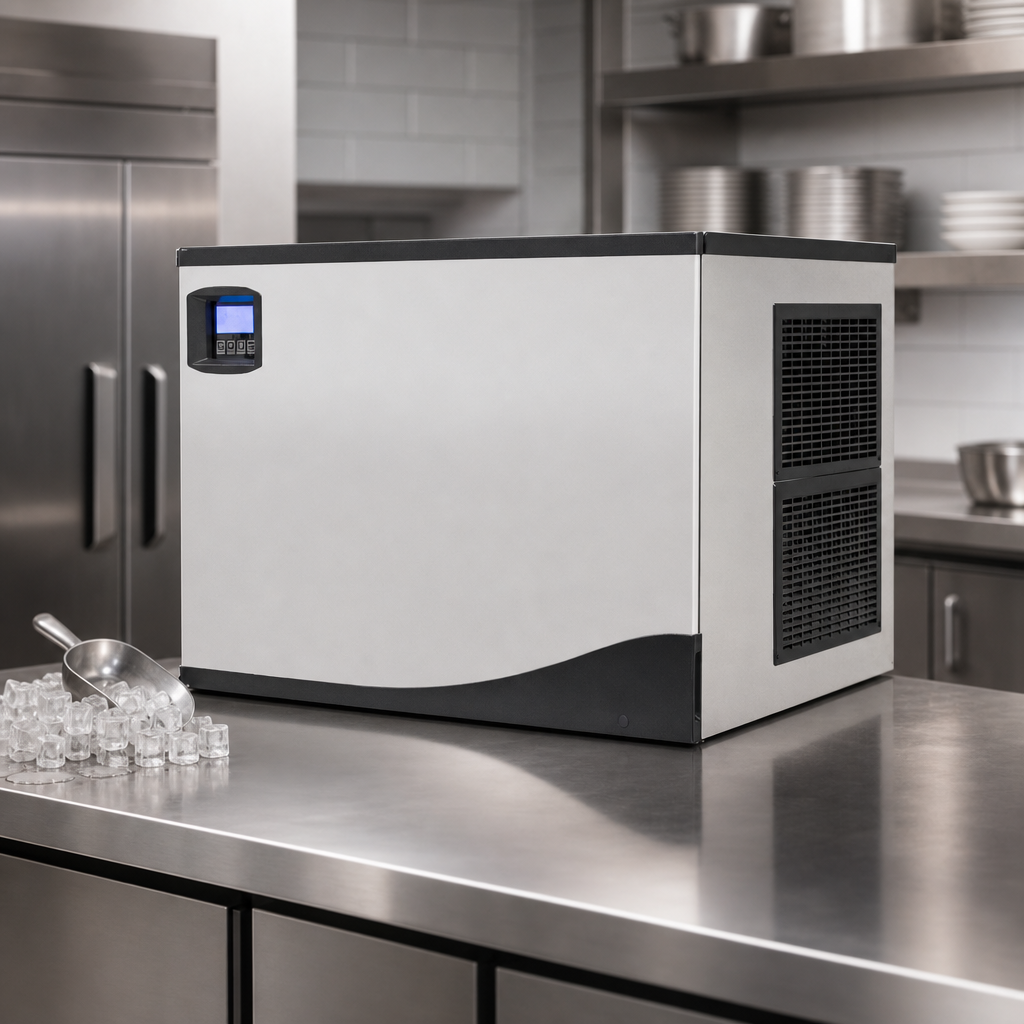

Air-Cooled, Self-Contained Refrigeration

Integrated refrigeration system simplifies installation and reduces equipment complexity.

Programmable Digital Controls

User-friendly controls and digital status display make operation easy to monitor.

Automatic Cleaning and Overflow Prevention

Built-in cleaning cycle and bin overflow protection support more reliable operation.

Hinged Front Panel

Front access panel opens for easier cleaning and routine service.

Stainless Steel Exterior With Black Trim

Durable commercial construction with a professional stainless steel finish.

Bin Compatibility and Stacking Option

Designed to work with compatible MIB470N and MIB580N bins and can be stacked with an optional adapter.

Electrical Requirements

Requires 230V/60Hz/1-phase hard-wired power connection.

Type Modular Ice Maker
Style Half Dice Cube
Refrigeration Type Self-Contained
Condenser Type Air-Cooled
Capacity 645 lb. Per 24 Hours
Controls Programmable Digital
Material Stainless Steel
Finish Black Trim
Voltage 230 Volts
Amps 8.0 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type Hard Wired
Refrigerant Type R-404a
Water Inlet Size 3/8 Inch FPT
Drain Connection Size 1/2 Inch
Water Connection Required
Drain Connection Required
Selling Unit Each
Units Per Case 1
Shipping Width 30 Inches
Shipping Depth 25 Inches
Shipping Height 21 Inches
Shipping Weight 165 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Warranty statement available from the manufacturer for USA/Canada.

Documents

PDF Cutsheet PDF Download PDF Brochure maxx_cold_ice PDF Download

Frequently Asked Questions

Approximately 645 lb. per day under standard 70°F air and 50°F water conditions.
It produces half-dice cube ice.
Yes. This model uses a self-contained refrigeration system with an air-cooled condenser.
It requires 230V, 60 Hz, 1-phase power and must be hard-wired.
The unit uses a 3/8 inch FPT water supply connection and requires a gravity drain line with a 1/2 inch drain connection.
The documentation lists compatibility with the MIB470N and MIB580N storage bins, sold separately.
