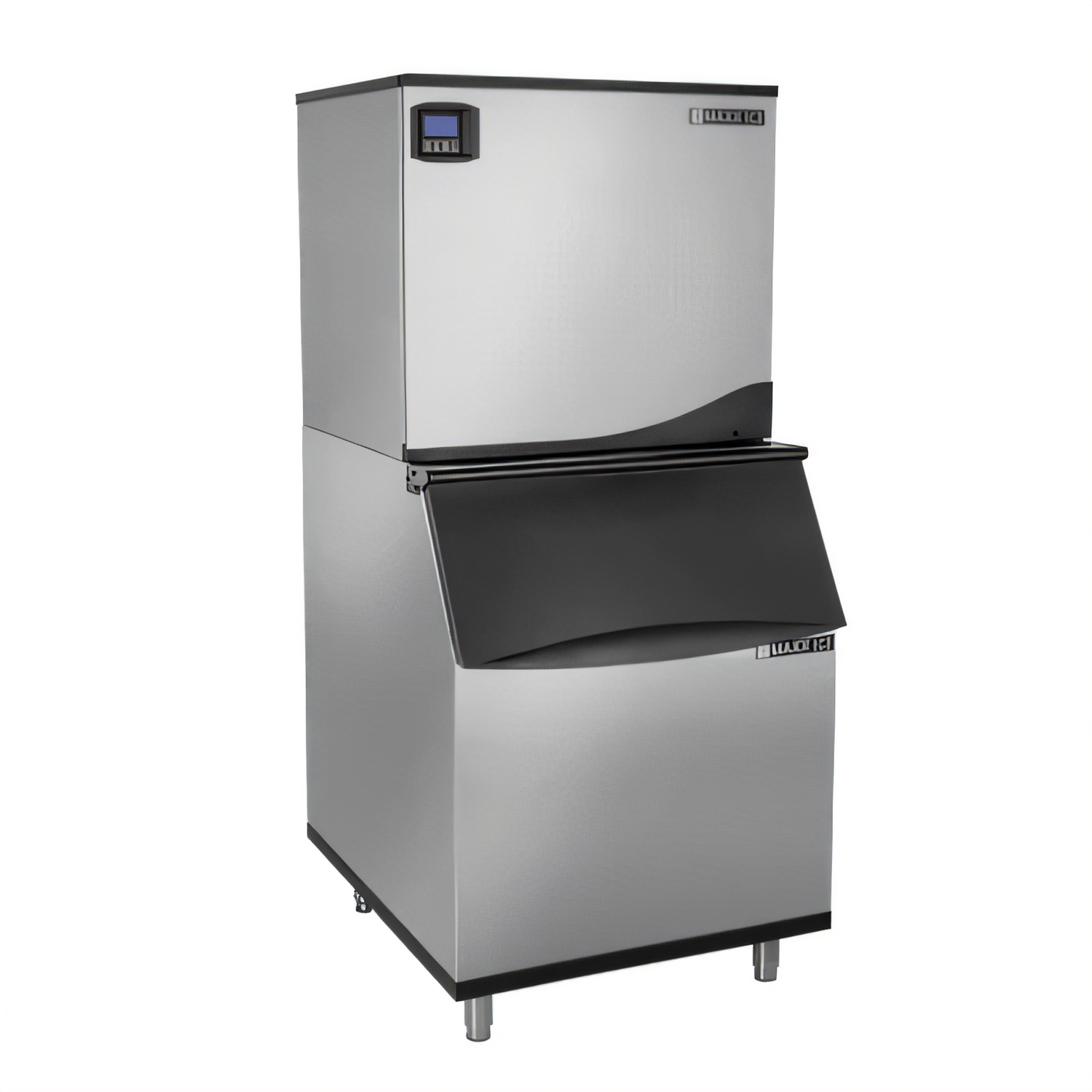

Maxx Ice Intelligent Series 30-Inch Half Dice Air-Cooled Modular Ice Machine with 470-Lb Storage Bin

Self-Contained Condenser, 645 Lb/Day, 230V/60Hz/1-Phase

Built for high-volume service, this 30-inch ice machine and bin combo delivers half-dice ice, automatic cleaning, and programmable digital control.

  • Produces approximately 645 lb of half-dice ice per 24 hours under standard test conditions.
  • Includes a 470-lb storage bin to keep ice available during peak demand.
  • Programmable digital controls and a digital display simplify daily operation.
  • Automatic cleaning cycle and bin overflow prevention help reduce maintenance and spills.
  • Air-cooled, self-contained design is built into a compact 30-inch footprint.
  • Requires 230V/60Hz/1-phase hard-wired power, plus water and drain connections.

Overall Dimensions:

30.0"W x 34.0"D x 62.4"H

Product Weight:

188.0 lb

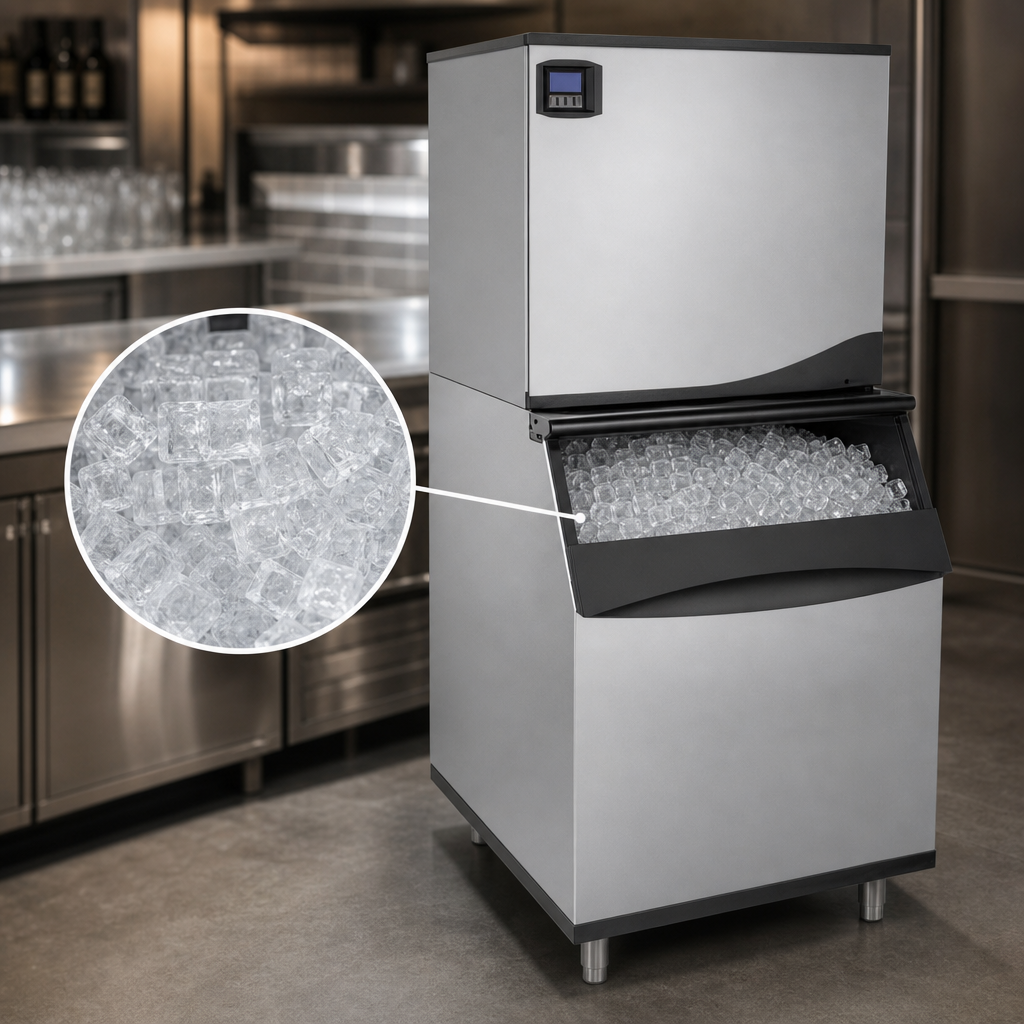

Half-Dice Cube Output

Produces half-dice ice cubes for beverage service and fast cooling.

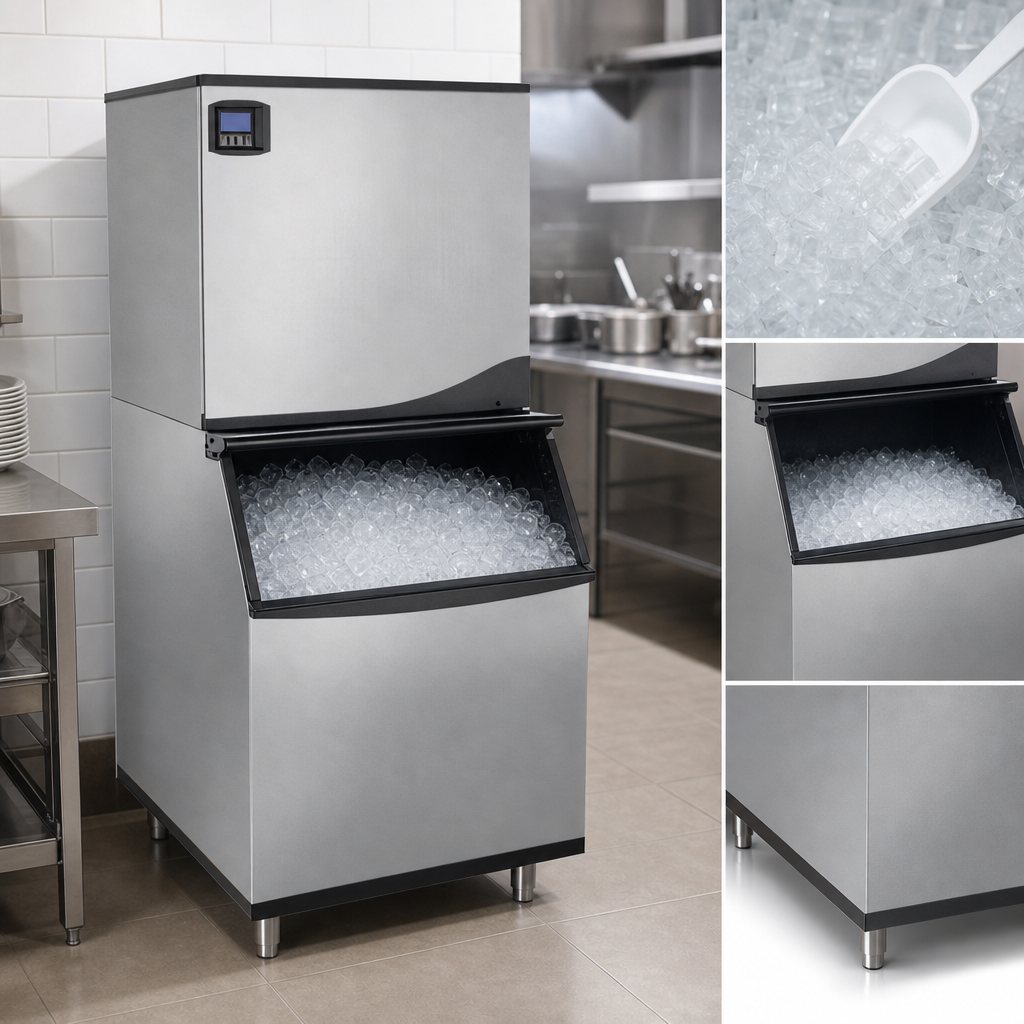

470-Lb Storage Bin

Includes a high-capacity storage bin for holding ice between harvests.

Approx. 645 Lb/Day Production

Delivers approximately 645 lb of ice per 24 hours under standard 70°F air / 50°F water conditions.

Programmable Digital Controls

User-friendly digital controls and status display make operation easy to monitor.

Automatic Cleaning and Overflow Prevention

Built-in cleaning cycle helps simplify maintenance, while overflow prevention helps reduce spills.

Air-Cooled, Self-Contained Condenser

Compact air-cooled design supports dependable modular ice production.

Stainless Steel Exterior with Black Trim

Durable stainless steel construction with black trim for a professional look.

Hinged Front Panel and Vertical Evaporator

Designed for easier access during cleaning and service.

Stackable Modular Design

Units can be stacked for increased ice production with an optional adapter.

Type Ice Machine with Storage Bin
Style Modular
Installation Type Floor Model
Cube Type Half Dice
Condenser Type Air-Cooled
Capacity 470 lbs
Daily Ice Production 645 lbs per 24 Hours
Voltage 230 Volts
Amps 8.0 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA L14-20
Material Stainless Steel
Finish Stainless Steel With Black Trim
Refrigerant Type R-404a
Water Inlet Size 3/8 Inch FPT
Drain Connection Size 1/2 Inch
Shipping Width 30 Inches
Shipping Depth 34 Inches
Shipping Height 63 Inches
Shipping Weight 188 lb.
Selling Unit Each
Units Per Case 1

Warranty & Protection

Contact manufacturer for warranty statement.

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It produces half-dice cube ice.
Approximately 645 lb per 24 hours under 70°F air and 50°F water test conditions.
The unit requires 230V / 60Hz / 1-phase power and hard-wired installation.
Yes. The documents list a 3/8" FPT water supply line connection and a 1/2" drain line connection, and a gravity drain line is required.
Yes, the manufacturer recommends using a water filter for optimal performance.
Yes. The units are stackable, but an optional adapter is required.
