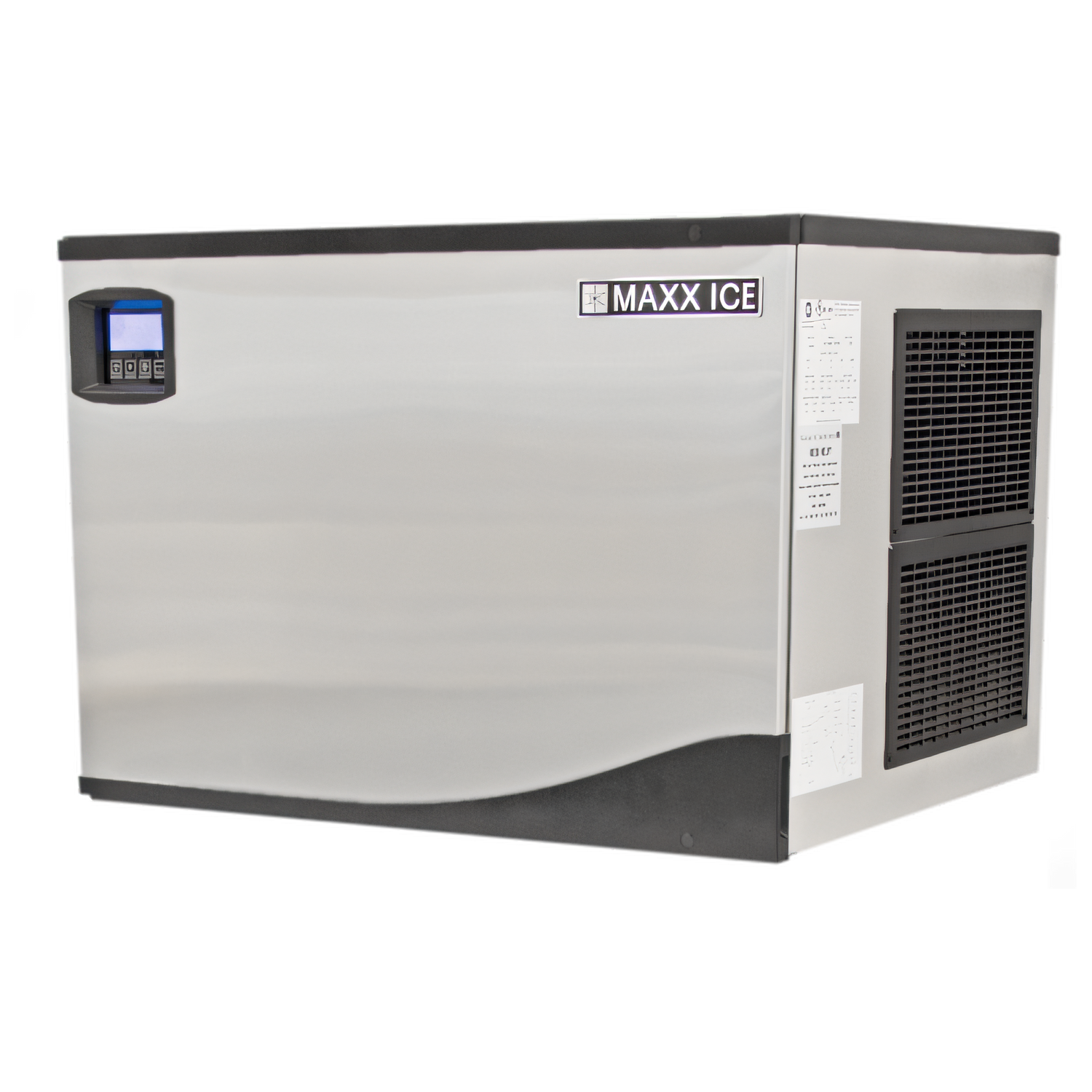

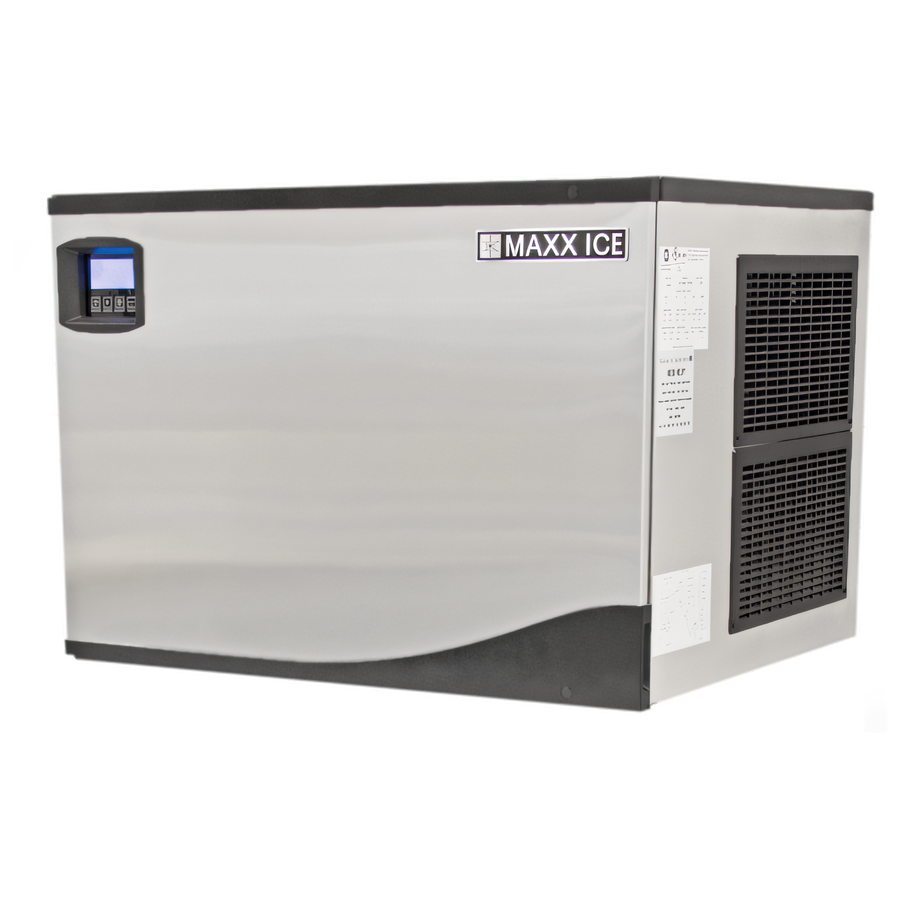

Maxx Ice MIM650N 30-Inch Modular Full-Dice Cube Ice Maker, Air-Cooled, 650 lb./Day

Self-Contained Refrigeration, Stainless Steel with Black Trim, 230V/60Hz/1-Phase

Built for high-volume ice service, this 30-inch modular head produces up to 650 lb. of full-dice ice per day with automatic cleaning and easy digital controls.

  • Produces up to 650 lb. of full-dice ice per 24 hours.
  • Air-cooled, self-contained modular design helps simplify installation.
  • Programmable digital controls and status display make operation easy.
  • Automatic cleaning cycle and overflow prevention reduce maintenance hassles.
  • Stainless steel exterior with black trim and hinged front panel for service access.
  • Hard-wired 230V/60Hz/1-phase electrical connection with NEMA L14-20.
  • Designed to work with compatible MIB470N and MIB580N storage bins; optional stacking adapter available.

Overall Dimensions:

30.0"W x 24.6"D x 21.0"H

Product Weight:

165.0 lb

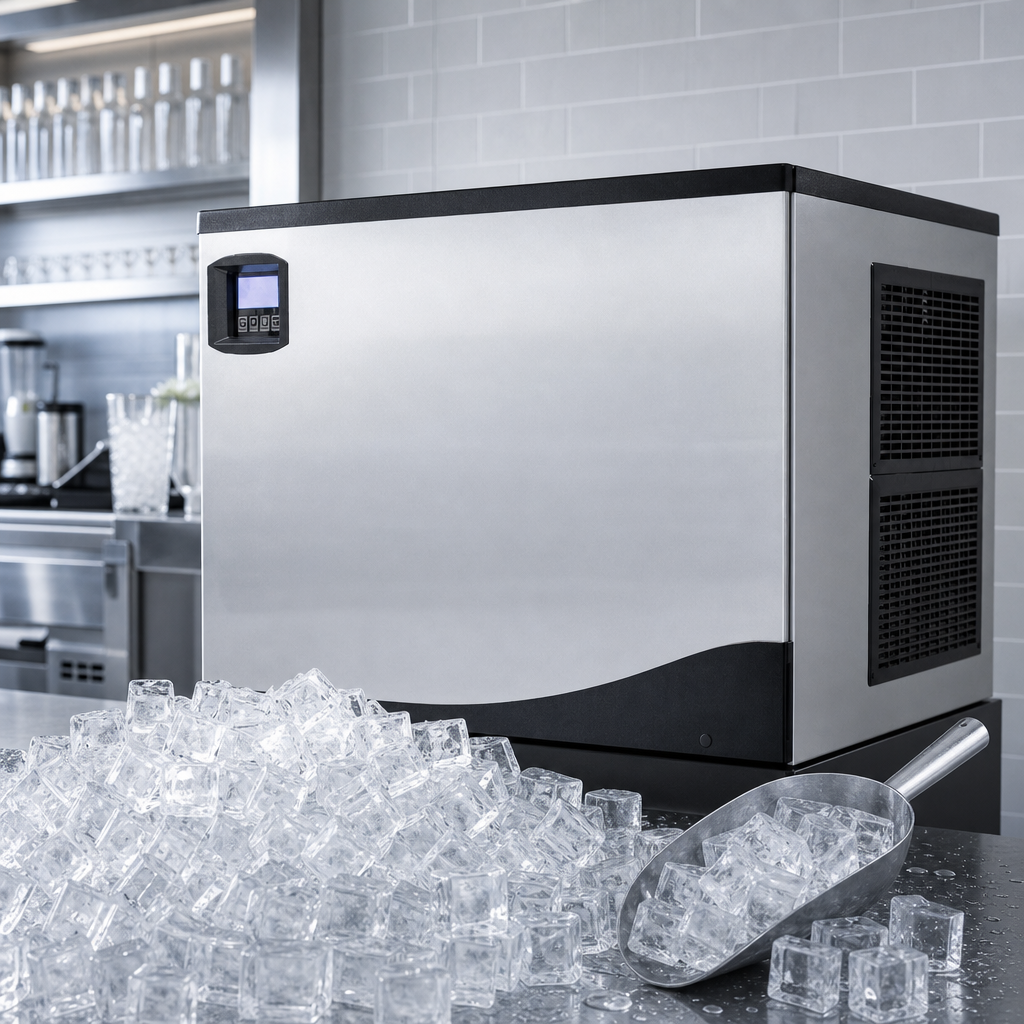

High Daily Ice Production

Produces approximately 650 lb. of full-dice cube ice per 24 hours under standard test conditions.

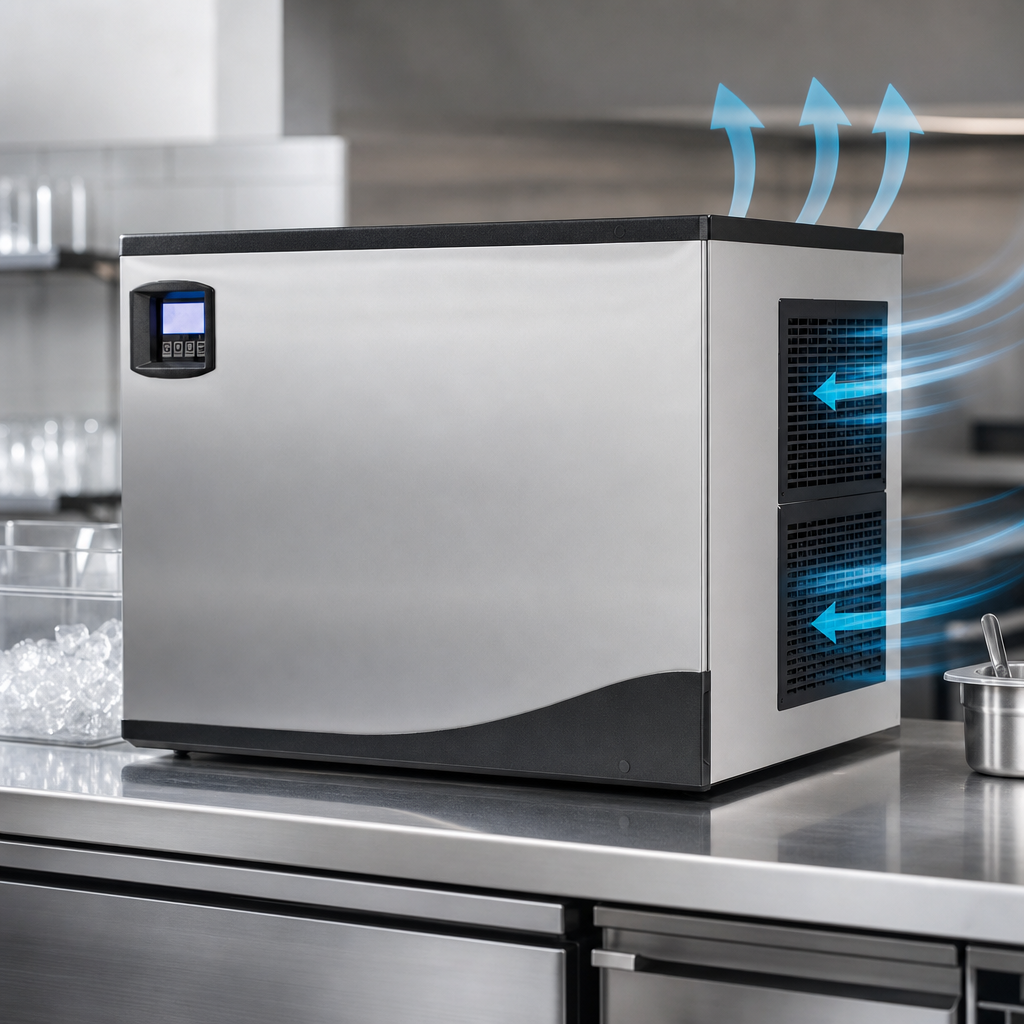

Air-Cooled, Self-Contained Refrigeration

Uses an air-cooled compressor with self-contained refrigeration for a simpler modular installation.

Programmable Digital Controls

User-friendly digital controls and status display help operators monitor and manage the machine easily.

Automatic Cleaning and Overflow Prevention

Built-in cleaning cycle and bin overflow prevention help reduce maintenance and protect operations.

Stainless Steel Exterior with Black Trim

Durable exterior construction offers a professional look and dependable commercial use.

Hinged Front Panel

Front panel opens for easier cleaning, servicing, and routine maintenance.

Vertical Evaporator

Vertical evaporator design supports reliable ice production and cube formation.

Stackable Design

Units can be stacked for increased ice production when used with the optional adapter.

Type Modular Ice Maker
Style Full Dice Cube
Controls Programmable Digital
Capacity 650 lb. per 24 Hours
Condenser Type Air-Cooled
Refrigeration Type Self-Contained Refrigeration
Material Stainless Steel
Finish Stainless Steel with Black Trim
Refrigerant Type R-404a
Voltage 230 Volts
Amps 8.0 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA L14-20
Water Inlet Size 3/8 Inch FPT
Water Connection Required
Drain Connection Size 1/2 Inch
Drain Connection Required
Shipping Width 30 Inches
Shipping Depth 25 Inches
Shipping Height 21 Inches
Shipping Weight 165 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Contact Maxx Ice for warranty statement in USA/Canada.

Documents

PDF Cutsheet PDF Download PDF Brochure maxx_cold_ice PDF Download

Frequently Asked Questions

It produces full-dice cube ice.
Approximately 650 lb. per 24 hours under standard test conditions.
It requires 230V / 60Hz / 1-phase power and must be hard-wired with a NEMA L14-20 connection.
Yes. A gravity drain line is required for installation.
The document identifies MIB470N and MIB580N storage bins as compatible, and they are sold separately.
Yes. The document recommends using a water filter for optimal performance.
