Maxximum

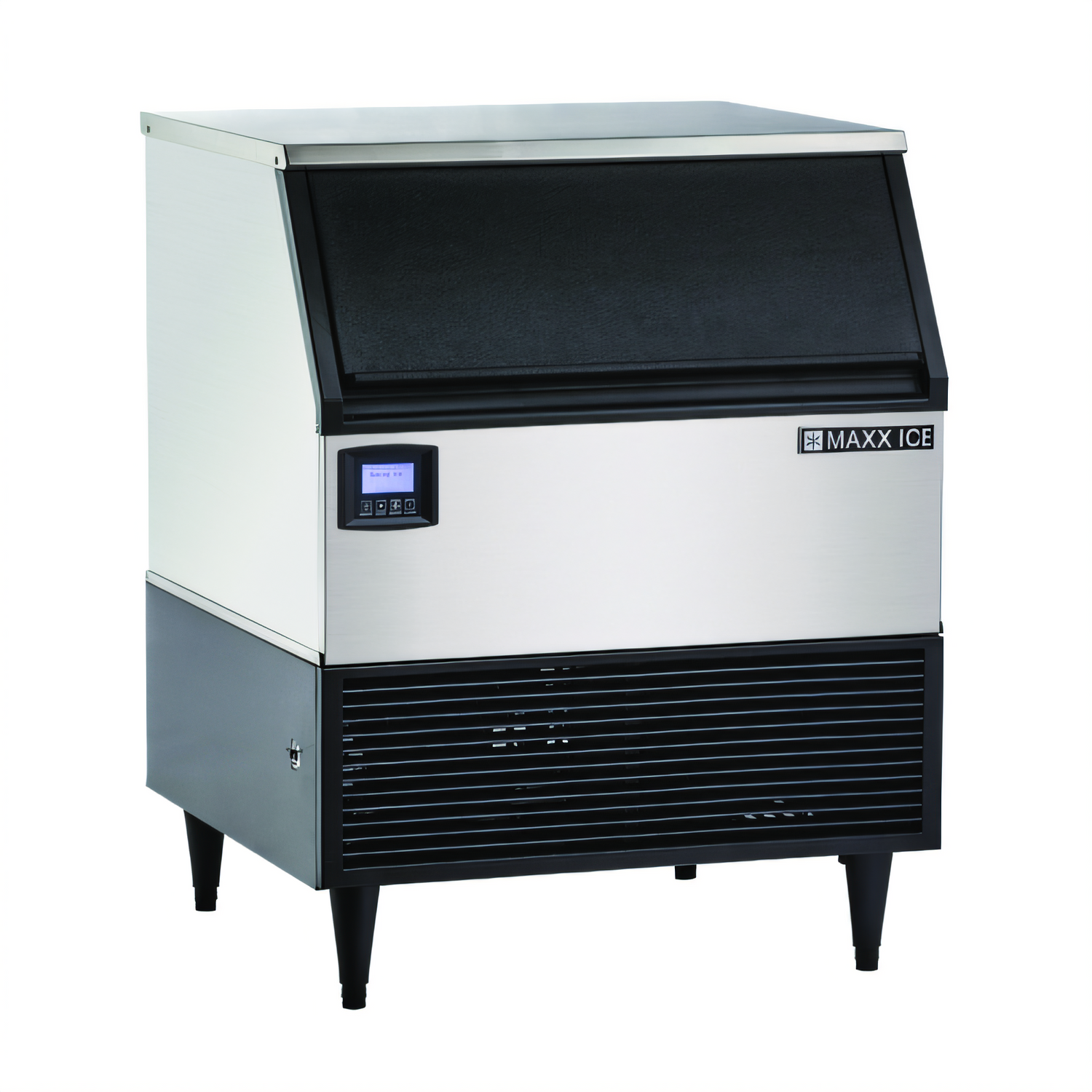

Maxx Ice Digital Undercounter Half Dice Ice Machine with Bin, Air-Cooled, 328 lb/Day, 100 lb Storage

SKU: MIM320NH
$3,899.99
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

Maxx Ice Digital Undercounter Half Dice Ice Machine with Bin, Air-Cooled, 328 lb/Day, 100 lb Storage

Stainless Steel with Black Trim, Self-Contained, 115V

Built for compact commercial spaces, this half dice ice machine delivers 328 lb per day with a 100 lb built-in bin and user-friendly digital controls.

  • Produces up to 328 lb of half dice ice per day, with 100 lb of built-in storage capacity.
  • Air-cooled, self-contained design with front-breathing construction supports built-in or freestanding placement.
  • Programmable digital controls, status display, automatic cleaning, and overflow prevention simplify operation.
  • Stainless steel exterior with black trim, internal blue LED light, and antimicrobial bin liner support sanitation and easy service.
  • Includes a 6" adjustable leveling leg setup and an ice scoop with internal scoop holder.
  • 115V operation with included NEMA 5-15P cord set; water filter recommended for optimal performance.

Overall Dimensions:

30.0"W x 28.0"D x 38.8"H

Product Weight:

164.0 lb

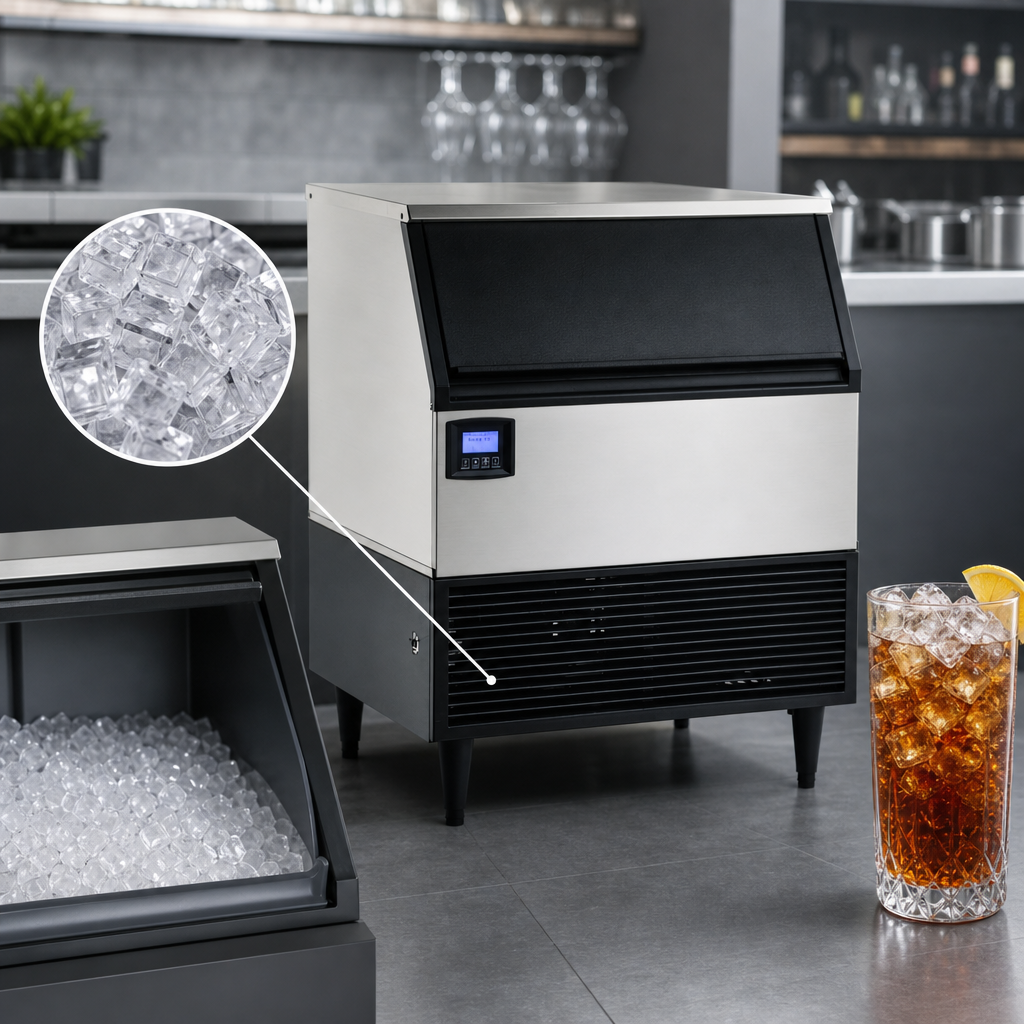

Half Dice Cube Production

Produces half dice cubes for beverage service and other commercial applications.

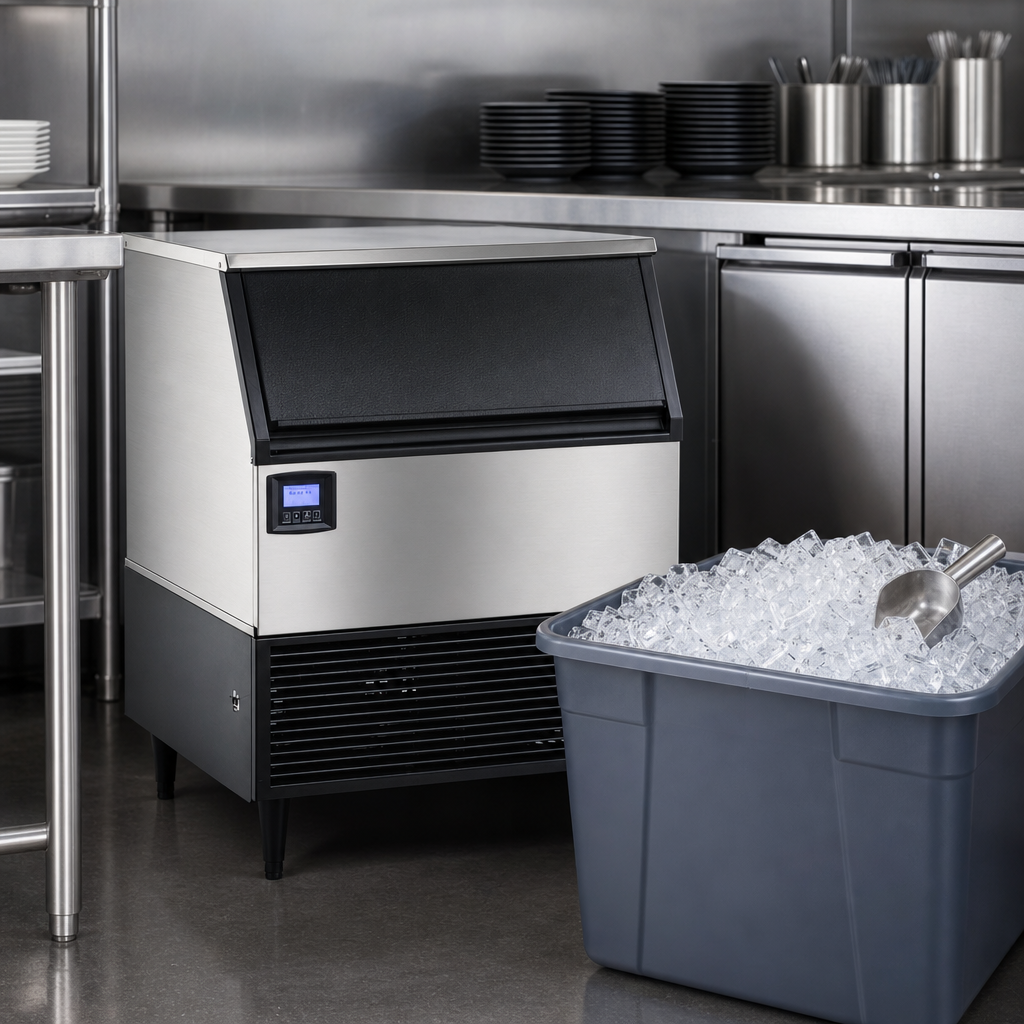

Daily Ice Output

Delivers up to 328 lb of ice per 24 hours under the documented test conditions.

100 lb Storage Bin

Integrated storage bin holds up to 100 lb of ice for convenient service.

Programmable Digital Controls

User-friendly digital controls and status display simplify operation and monitoring.

Automatic Cleaning and Overflow Prevention

Built-in cleaning cycle and overflow prevention help maintain sanitation and reduce mess.

Air-Cooled, Self-Contained Design

Air-cooled compressor and self-contained refrigeration simplify installation and service.

Front-Breathing Construction

Front-breathing design with vertical evaporator supports built-in placement and efficient airflow.

Stainless Steel Exterior with Black Trim

Durable exterior is easy to clean and service while providing a clean commercial appearance.

Internal Blue LED Light

Interior lighting improves visibility in the ice storage area.

Antimicrobial Bin Liner

Polyethylene storage bin liner includes an antimicrobial agent for improved sanitation.

6" Adjustable Leveling Legs

Adjustable legs help level the unit during installation.

Ice Scoop Holder Included

Includes an ice scoop with an internal scoop holder for convenient storage.

Type Ice Machine with Bin
Style Half Dice Cube
Installation Type Undercounter
Refrigeration Type Self-Contained
Condenser Type Air-Cooled
Capacity 100 lb
Daily Ice Production 328 lb per 24 Hours
Cube Size 0.875 Inch x 0.5 Inch x 0.875 Inch
Controls Programmable Digital
Material Stainless Steel
Finish Black and Stainless Steel
Voltage 115 Volts
Amps 8 Amps / 9 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 6 Feet
Water Inlet Size 3/8 Inch FPT
Drain Connection Size 1/2 Inch FPT
Water Connection Required
Drain Connection Required
Refrigerant Type R404A
Shipping Width 30 Inches
Shipping Depth 28 Inches
Shipping Height 39 Inches
Shipping Weight 164 lb
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Warranty available from Maxx Ice for USA/Canada; contact the company for the current statement.

Frequently Asked Questions

It produces half dice cubes. The document shows cube dimensions of 0.875" x 0.5" x 0.875".
Daily production is 328 lb under 70°F air / 50°F water conditions, and 244 lb under 90°F air / 70°F water conditions.
The built-in storage bin holds up to 100 lb of ice.
It operates on 115V / 60Hz / 1Ph, and a NEMA 5-15P cord set is included. A 230V / 50-60Hz / 1Ph option is also available.
Yes. A gravity drain line is required for installation.
Yes. The document recommends 2" of clearance from the wall to promote adequate cooling air circulation.
