Maxx Ice MIM320N Digital Undercounter Full Dice Ice Maker With 100 lb Bin

SKU: MIM320N
$3,899.99
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

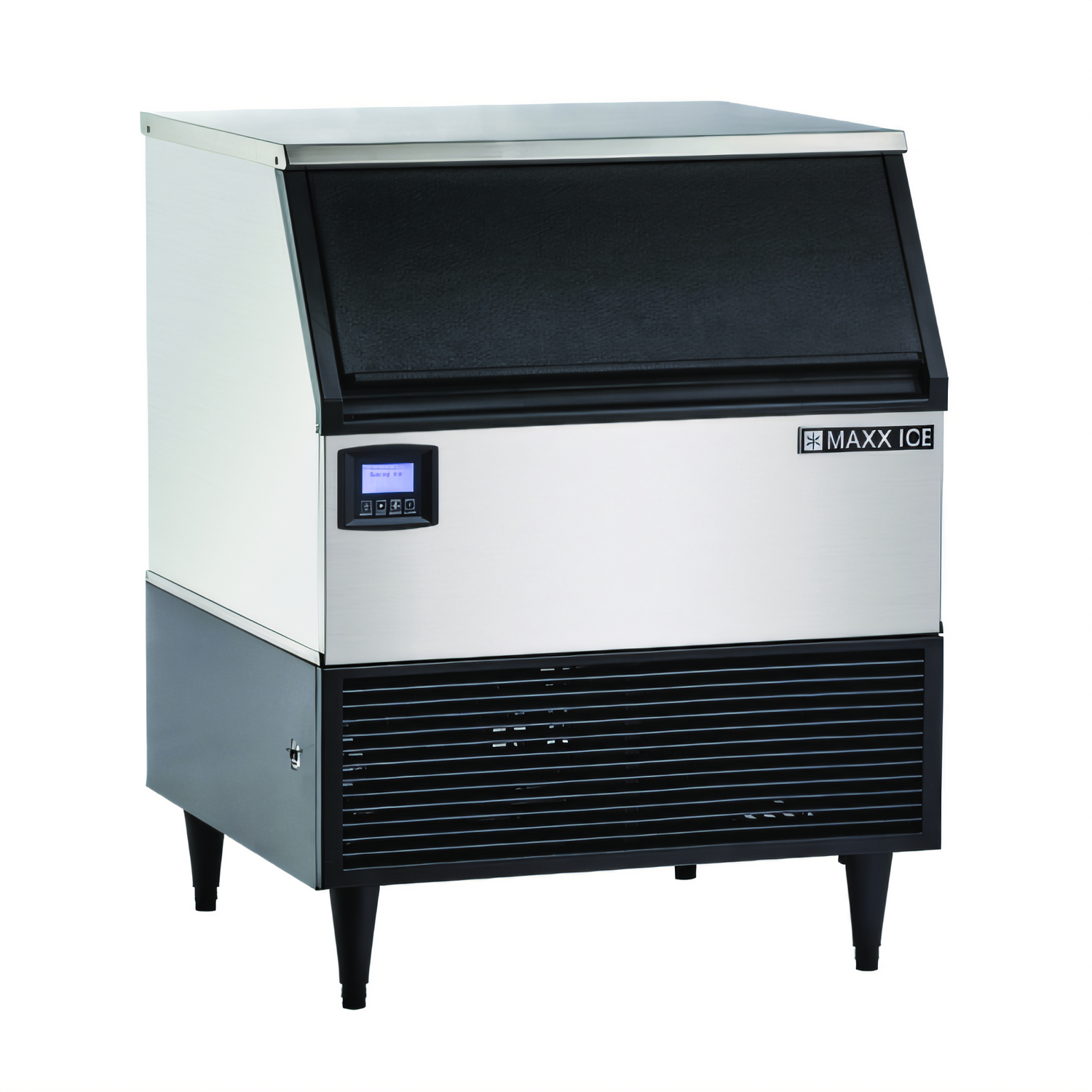

Maxx Ice MIM320N Digital Undercounter Full Dice Ice Maker With 100 lb Bin

Air-Cooled, Self-Contained, 328 lb/Day Production, Stainless Steel With Black Trim

Compact enough for undercounter placement, this self-contained ice maker delivers up to 328 lb of full-dice ice per day with 100 lb built-in storage.

  • Produces up to 328 lb of full-dice ice per 24 hours.
  • Built-in storage bin holds up to 100 lb of ice.
  • Air-cooled, self-contained design with front-breathing construction.
  • Programmable digital controls and status display simplify operation.
  • Automatic cleaning cycle and bin overflow prevention help maintain sanitation.
  • Stainless steel exterior with black trim is durable and easy to clean.
  • Includes an internal LED light, antimicrobial bin liner, and ice scoop.
  • 6" adjustable leveling legs help with installation and stability.

Overall Dimensions:

30.0"W x 28.0"D x 38.8"H

Product Weight:

164.0 lb

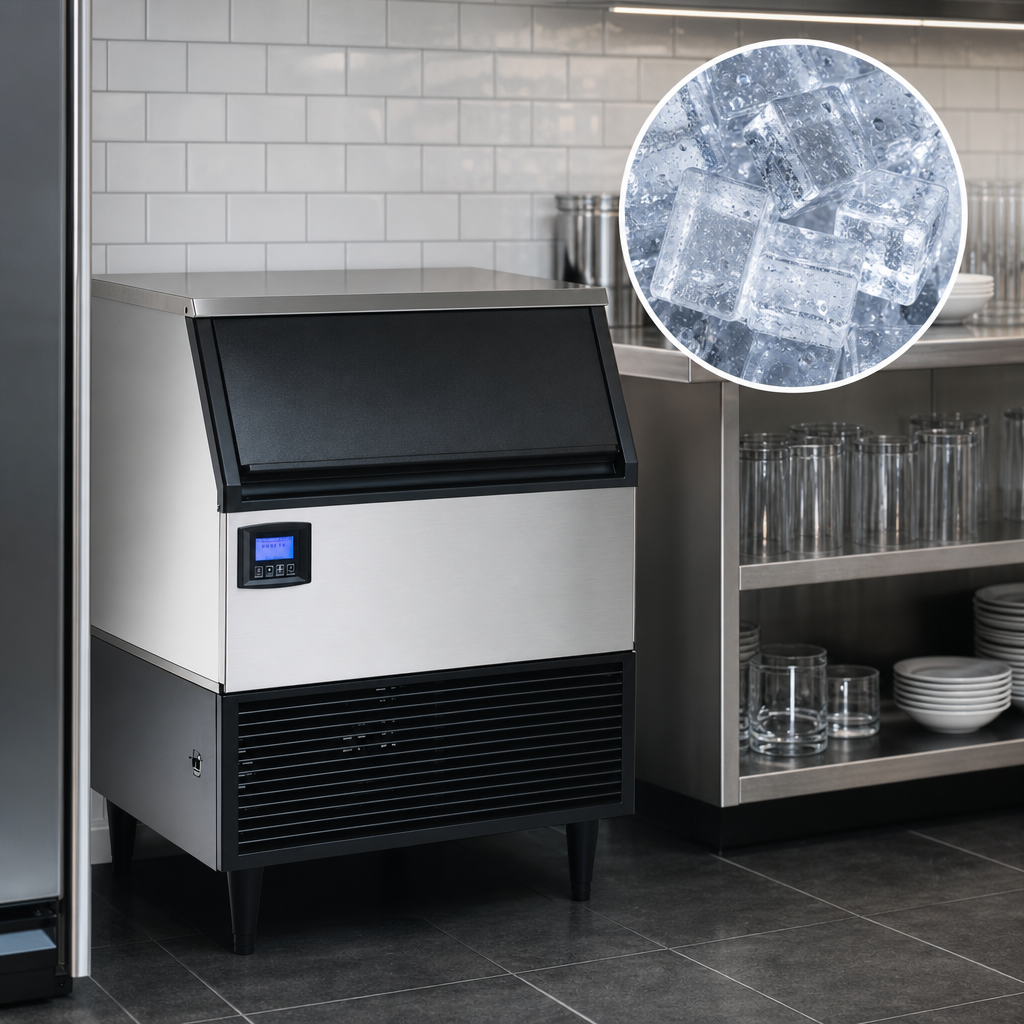

Full Dice Ice Production

Makes cube-style full-dice ice for beverage service and general foodservice use.

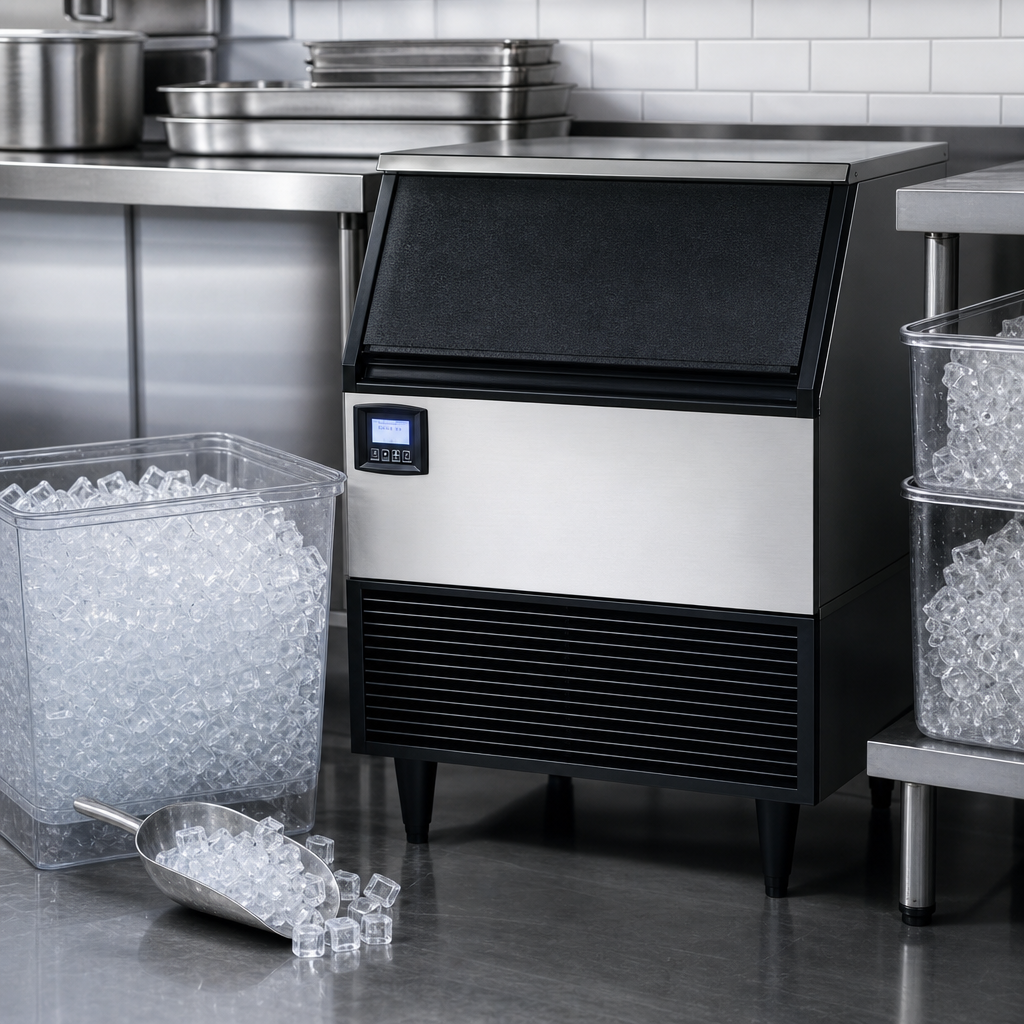

High Daily Output

Produces up to 328 lb of ice per day under standard test conditions.

100 lb Storage Bin

Integrated sanitary bin stores ice for convenient access during busy service periods.

Digital Controls and Display

User-friendly programmable controls and a digital screen show machine status.

Automatic Cleaning and Overflow Prevention

Built-in cleaning cycle and bin overflow prevention support easier maintenance and cleaner operation.

Air-Cooled, Self-Contained Design

Self-contained air-cooled system with front-breathing vertical evaporator supports flexible placement.

Stainless Steel Exterior With Black Trim

Durable, easy-to-clean exterior with a stainless steel body and black trim.

Sanitary Bin Features

Polyethylene storage bin liner includes an antimicrobial agent; unit also includes an internal blue LED light, ice scoop, and scoop holder.

Adjustable Leveling Legs

6" adjustable legs help level the unit during installation.

Type Ice Maker With Bin
Style Self-Contained
Installation Type Undercounter
Refrigeration Type Air-Cooled
Capacity 100 Pounds
Daily Ice Production 328 Pounds Per 24 Hours
Material Stainless Steel
Finish Black Trim
Voltage 115 Volts
Amps 8 Amps / 9 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 6 Feet
Refrigerant Type R404a
Water Inlet Size 3/8 Inch FPT
Drain Connection Size 1/2 Inch FPT
Water Connection Required
Drain Connection Required
Shipping Width 30 Inches
Shipping Depth 28 Inches
Shipping Height 39 Inches
Shipping Weight 164 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Contact Maxx Ice for warranty statement.

Frequently Asked Questions

It produces full-dice cube ice.
Up to 328 lb per 24 hours under the listed test conditions.
The storage bin holds up to 100 lb of ice.
Standard electrical requirements are 115V / 60Hz / 1-phase with a NEMA 5-15P cord set; 230V / 50-60Hz / 1-phase is available as an option.
Yes. The documentation states that a gravity drain line is required.
Yes. The installation notes recommend using a water filter for optimal performance.
