Master-Bilt QS Series 8' x 14' x 7'7" Indoor Walk-In Freezer with Floor and R290 Capsule Pak ECO Refrigeration

230V/60/1, -10°F

Built for dependable frozen storage, this indoor walk-in freezer combines a spacious 8' x 14' layout with self-contained R290 refrigeration and heavy-duty insulated panel construction.

  • Indoor walk-in freezer with a -10°F design temperature for frozen storage applications.
  • 8' x 14' footprint and 7'7" height deliver 675 cubic feet of storage capacity.
  • Includes the matching CPF175PC-S-4 Capsule Pak ECO ceiling-mount refrigeration system.
  • 4-inch foamed-in-place insulated panels help maintain efficient cold retention.
  • Coated-steel interior and exterior surfaces with a smooth aluminum floor support durability and cleaning.
  • Self-closing door includes a deadbolt locking handle, safety release, and LED light.
  • 230V/60/1 electrical service with cord-and-plug refrigeration simplifies installation.

Overall Dimensions:

96.0"W x 168.0"D x 91.0"H

Product Weight:

1990.0 lb

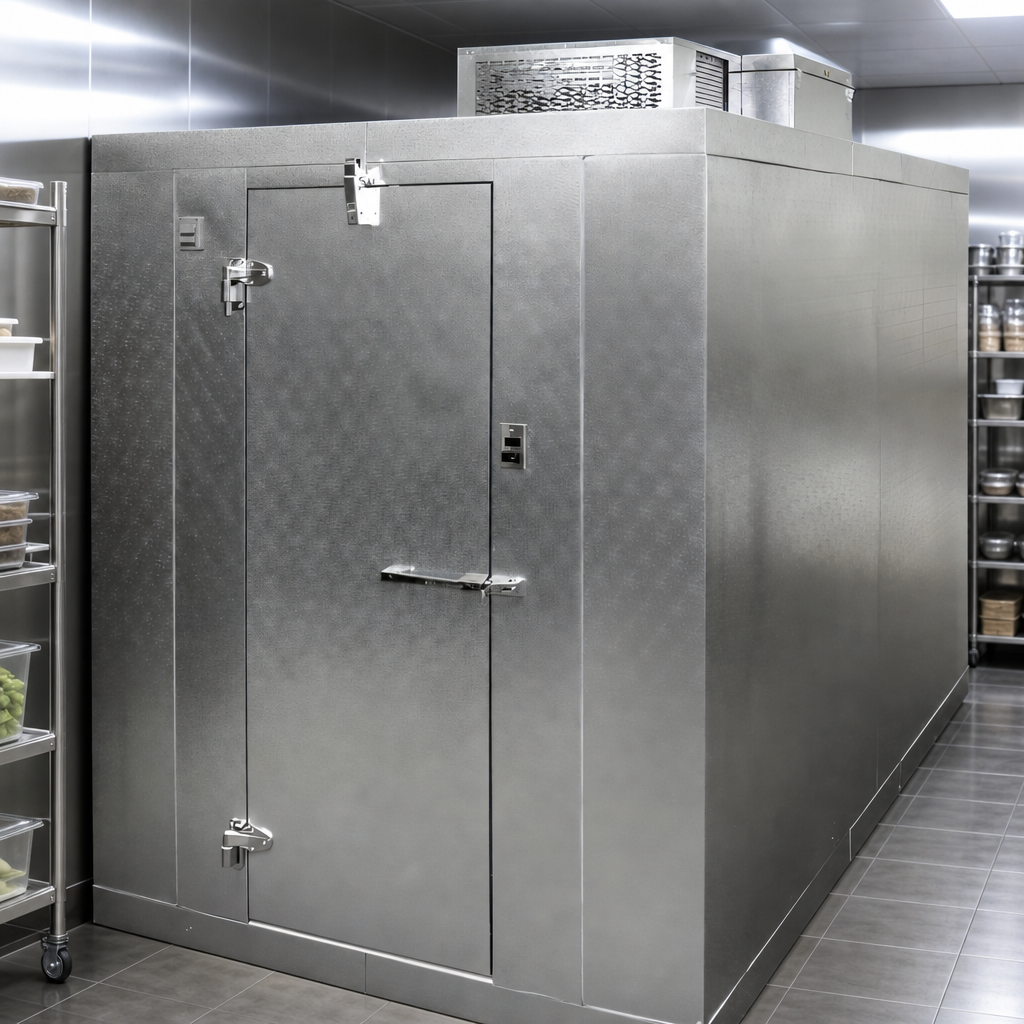

Indoor -10°F Freezer

Configured for indoor frozen storage with a -10°F operating temperature.

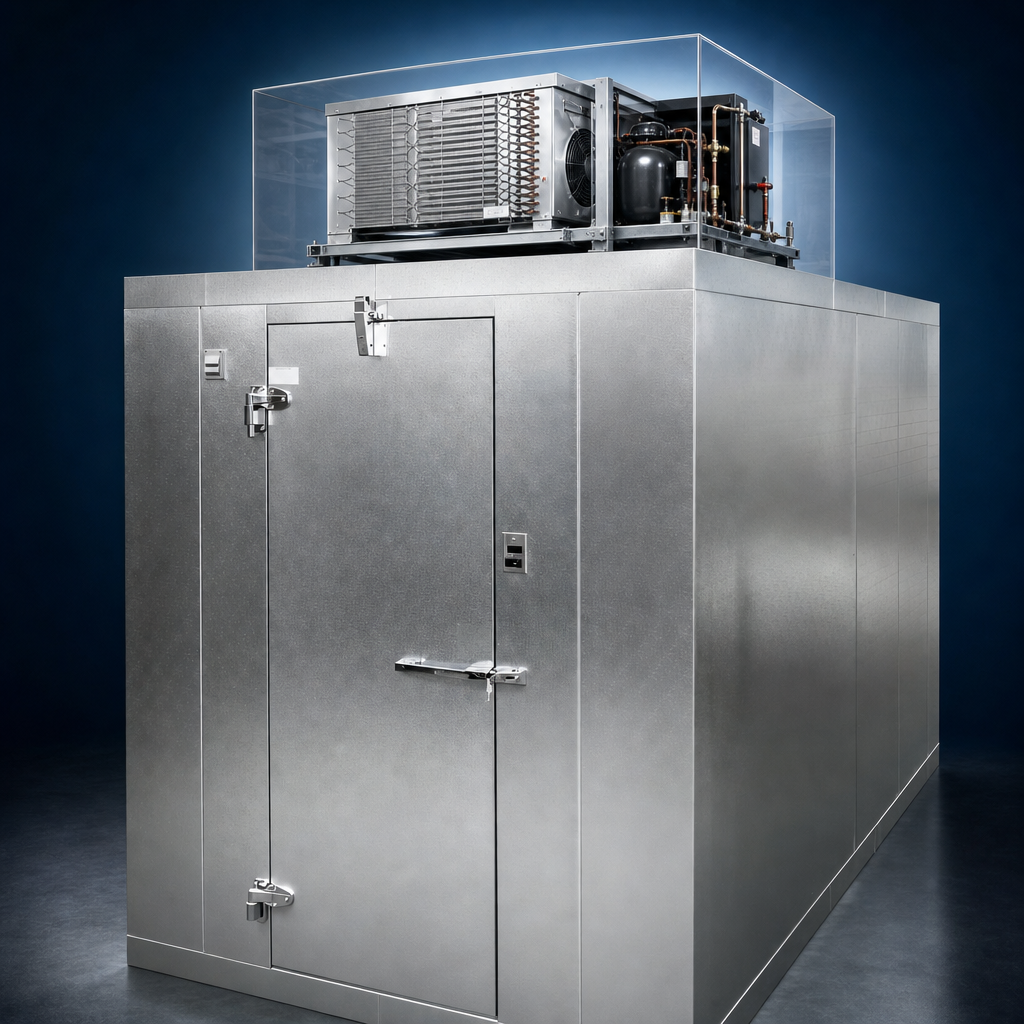

Self-Contained Capsule Pak ECO Refrigeration

Includes a factory-matched ceiling-mount refrigeration system with R290 refrigerant, assembled and ready for installation.

4-Inch Insulated Panel Construction

Modular panels are foamed-in-place with polyurethane insulation to help preserve temperature and improve energy efficiency.

Coated Steel Cabinet Surfaces

26-gauge stucco embossed coated steel is used on the interior and exterior surfaces, with a smooth aluminum interior floor on floor-equipped models.

Self-Closing Security Door

Door package includes cam-lift hinges, a spring-actuated closer, deadbolt locking handle, inside safety release, perimeter heater wire, and LED lighting.

LogiTemp Electronic Control

Digital controller and automatic defrost help simplify operation; indoor systems require no plumbing.

Warranty Coverage

Backed by a 15-year panel warranty and 18 months parts and labor.

Type Walk-In Freezer
Style QS Series
Installation Type Built-In
Capacity 675 Cubic Feet
Material Coated Steel
Interior Finish Aluminum
Finish Stucco Embossed Coated Steel
Refrigeration Type Self-Contained Ceiling Mount
Refrigerant Type R290
Temperature Range -10°F
Controls LogiTemp Electronic
Voltage 230 Volts
Amps 10.7 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 6-15P
Cord Length 9 Feet
BTU 6,350 BTUH
Country of Origin USA
Shipping Width 96 Inches
Shipping Depth 168 Inches
Shipping Height 91 Inches
Shipping Weight 1,990 lb.
Selling Unit Each
Units Per Case 1

Warranty & Protection

15-year panel warranty; 18 months parts and labor

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Warranty PDF Download PDF Brochure PDF Download PDF Installation manual PDF Download

Frequently Asked Questions

This model is an indoor walk-in freezer.
It is designed for a -10°F freezer application.
It includes the CPF175PC-S-4 Capsule Pak ECO ceiling-mount refrigeration system with R290 refrigerant.
Yes, this model is supplied with a floor and includes a smooth aluminum interior floor surface.
The refrigeration system is rated for 230V/60/1-phase power.
It comes with a 15-year panel warranty and 18 months parts and labor, with an optional 5-year compressor warranty available.
