Master-Bilt QS Series 8' x 12' Indoor Walk-In Freezer with Floor, 7'7" High, R290 Self-Contained Refrigeration

SKU: QSF77812-C
$19,656.45
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Refrigeration Commercial Refrigerators Master-Bilt Products New Arrivals Open-Air Coolers Restaurant Equipment

Master-Bilt QS Series 8' x 12' Indoor Walk-In Freezer with Floor, 7'7" High, R290 Self-Contained Refrigeration

Quick Ship, -10°F, 230V, Single-Phase

This quick-ship indoor walk-in freezer delivers dependable -10°F storage in an 8' x 12' footprint with a self-closing locking door and matched self-contained R290 refrigeration.

  • 8' x 12' footprint with 7'7" height and included floor for a 574 cu. ft. interior capacity.
  • Designed for indoor freezer applications at -10°F.
  • 4-inch thick insulated panels with 26-gauge coated steel interior and exterior surfaces.
  • Self-closing insulated door with deadbolt locking handle and inside safety release.
  • Includes a self-contained ceiling-mount Capsule Pak ECO refrigeration system using R290 refrigerant.
  • LogiTemp electronic controller, automatic defrost, and built-in lighting help simplify operation.

Overall Dimensions:

96.0"W x 144.0"D x 91.0"H

Product Weight:

1902.0 lb

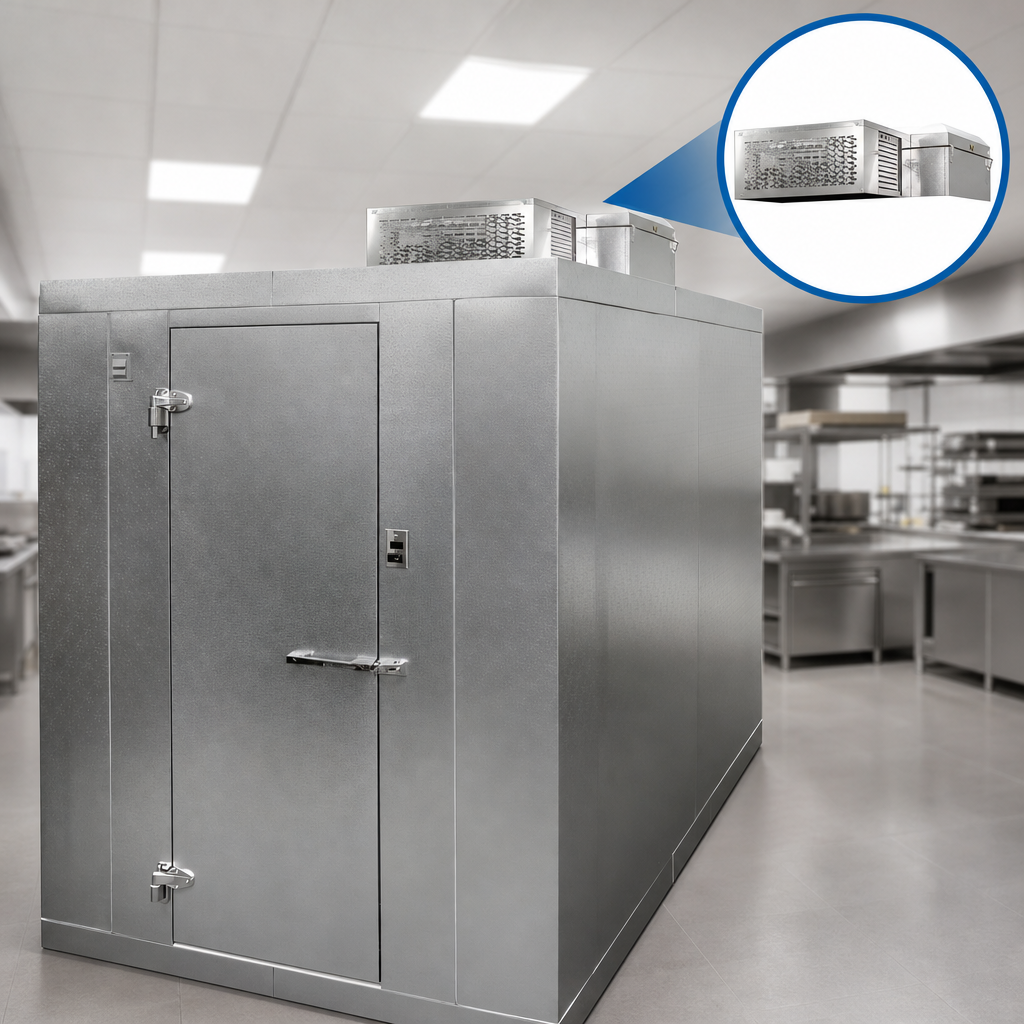

Self-Contained Capsule Pak ECO Refrigeration

Factory-assembled ceiling-mount refrigeration package is matched to the freezer and ready for installation.

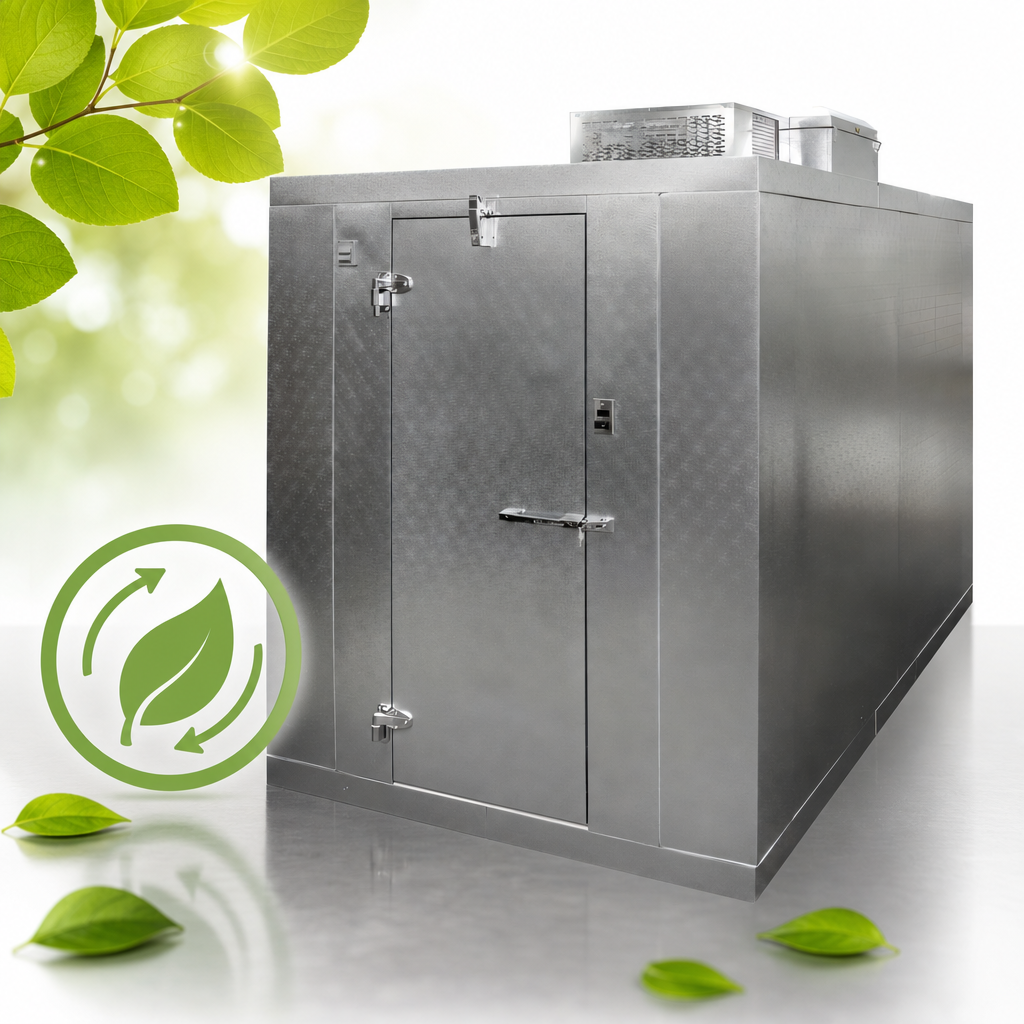

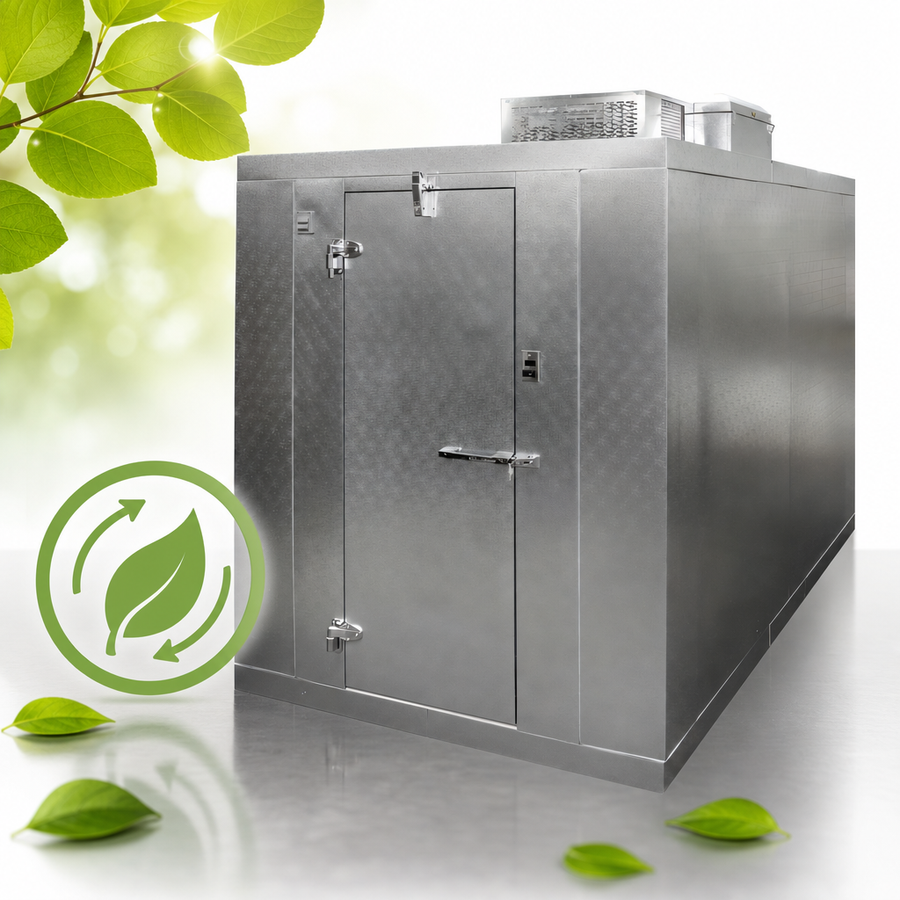

R290 Refrigerant

Uses eco-friendly R290 natural refrigerant in the refrigeration system.

4-Inch Insulated Panels

Foamed-in-place polyurethane panels provide strong thermal performance and long-term energy efficiency.

Coated Steel Panel Finish

Interior and exterior panels are built with 26-gauge corrosion-resistant embossed coated steel.

Self-Closing Security Door

Flush-mounted insulated door includes a deadbolt locking handle, inside safety release, and spring-actuated closer.

Floor-Equipped Construction

Supplied with a floor; floor models include a smooth aluminum interior floor surface.

Electronic Temperature Control

LogiTemp electronic controller supports precise freezer control and automatic defrost operation.

Built-In Lighting and Thermometer

Door frame includes a digital thermometer, LED light fixture, and switch for convenient visibility.

Type Walk-In Freezer
Style Indoor
Installation Type Floor Model
Capacity 574 Cubic Feet
Material Steel
Finish Coated Steel
Controls Electronic
Temperature Range -10°F
Refrigeration Type Self-Contained
Refrigerant Type R290
Voltage 230 Volts
Phase 1-Phase
Amps 10.7 Amps
Plug Type 6-15P
BTU 6,350 BTUH
Country of Origin USA
Selling Unit Each
Units Per Case 1

Warranty & Protection

15-year panel warranty; 18 months parts and labor

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Installation manual PDF Download PDF Brochure PDF Download PDF Warranty PDF Download

Frequently Asked Questions

This model is designed for -10°F freezer applications.
Yes. This configuration is supplied with a floor and includes a smooth aluminum interior floor surface.
It is matched with a CPF175PC-S-4 self-contained Capsule Pak ECO refrigeration system.
The system is listed at 230/60/1 with a 6-15P plug and 10.7 amps.
This specific model is an indoor walk-in freezer.
