Master-Bilt Products

Master-Bilt QS Series 8' x 10' Indoor Walk-In Freezer with Floor, 7'7" High, R290 Self-Contained Refrigeration

SKU: QSF77810-C
$18,379.65
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Refrigeration Commercial Refrigerators Master-Bilt Products Merchandising & Display Refrigeration New Arrivals Open-Air Coolers Refrigeration, Freezing & Ice Restaurant Equipment

Master-Bilt QS Series 8' x 10' Indoor Walk-In Freezer with Floor, 7'7" High, R290 Self-Contained Refrigeration

208-230V, 1-Phase, Self-Closing Locking Door

A durable indoor walk-in freezer package built for reliable low-temperature storage with 4-inch insulated coated-steel panels, a self-closing locking door, and a self-contained R290 Capsule Pak ECO system.

  • 8' x 10' indoor walk-in freezer with a 7'7" height and full floor for bulk frozen storage.
  • 473 cu. ft. capacity in a space-efficient single-room layout.
  • 26-gauge stucco embossed coated-steel panels with foamed-in-place polyurethane insulation.
  • Self-closing door includes a deadbolt locking handle, inside safety release, and magnetic gasket.
  • Self-contained Capsule Pak ECO refrigeration system uses R290 refrigerant and LogiTemp digital controls.
  • Indoor system design simplifies installation with no plumbing required on indoor units.

Overall Dimensions:

96.0"W x 120.0"D x 91.0"H

Product Weight:

1836.0 lb

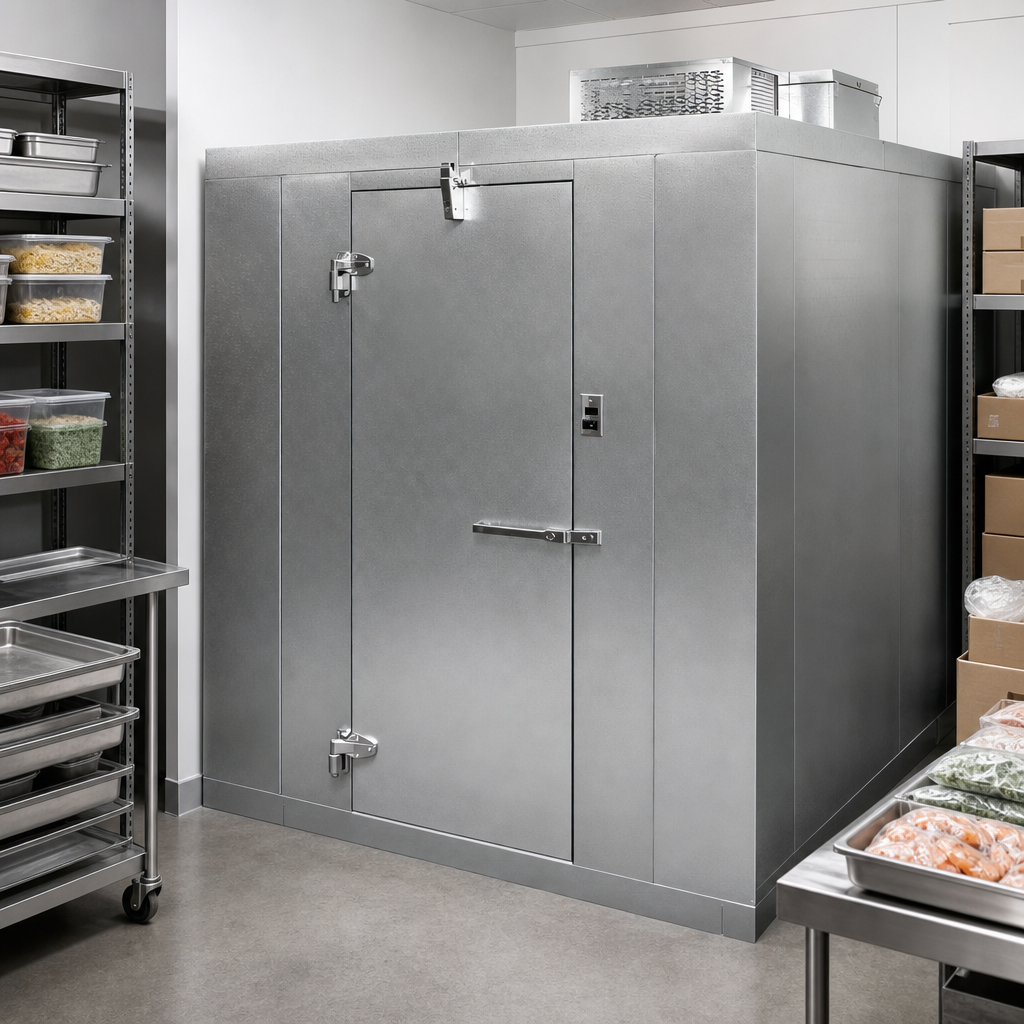

Indoor -10°F Freezer

Designed for indoor frozen storage applications at a -10°F operating temperature.

Indoor -10°F Freezer

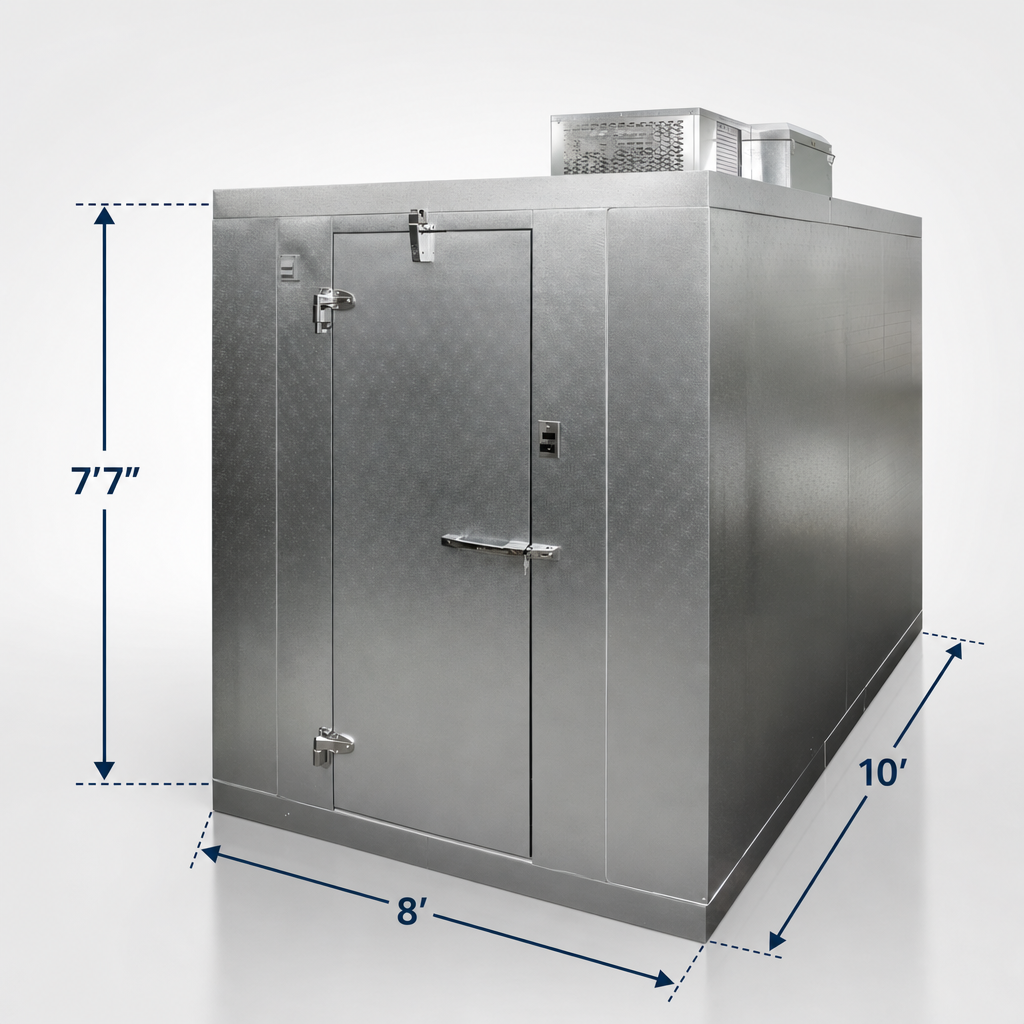

8' x 10' x 7'7" Size

Provides a 473 cu. ft. walk-in storage area with a full floor.

8' x 10' x 7'7

Insulated Coated-Steel Panels

26-gauge stucco embossed coated-steel interior and exterior panels are foamed in place with EPA-compliant polyurethane insulation.

Smooth Aluminum Floor

Floor-equipped models include a smooth aluminum interior floor surface.

Self-Closing Security Door

Flush-mounted infitting door includes a spring actuated closer, deadbolt locking handle, independent key/padlock feature, magnetic gasket, and inside safety release.

Capsule Pak ECO Refrigeration

Ceiling-mount self-contained refrigeration system with R290 refrigerant and air-cooled operation.

LogiTemp Digital Control

Electronic controller provides digital temperature control, easy setup, and automatic defrost functions.

Warranty Coverage

Includes a 15-year panel warranty and 18 months parts and labor warranty.

Type Freezer
Style Walk-In
Temperature Range -10°F
Capacity 473 Cubic Feet
Material Coated Steel
Interior Finish Aluminum
Finish Stucco Embossed Coated Steel
Refrigeration Type Self-Contained
Refrigerant Type R290
Controls Digital
Voltage 208-230 Volts
Amps 7.4 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type 6-15P
BTU 4,400 BTU
Shipping Width 96 Inches
Shipping Depth 120 Inches
Shipping Height 91 Inches
Shipping Weight 1,836 lb.
Country of Origin USA
Selling Unit Each
Units Per Case 1

Warranty & Protection

15-year panel warranty; 18 months parts and labor.

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Warranty PDF Download PDF Installation manual PDF Download PDF Brochure PDF Download

Frequently Asked Questions

This model is specified for indoor installation.
It is designed for -10°F freezer operation.
Yes. This configuration includes a floor with a smooth aluminum interior floor surface.
The product is paired with a self-contained Capsule Pak ECO refrigeration system using R290 refrigerant.
The door is self-closing and includes a deadbolt locking handle, inside safety release, magnetic gasket, and perimeter heater wire.
