Master-Bilt Products

Master-Bilt QS Series Indoor -10°F Walk-In Freezer, 6' x 8' x 7'7" H, With Floor, R290 Capsule Pak ECO Refrigeration

SKU: QSF7768-C
$15,268.40
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Refrigeration Commercial Refrigerators Master-Bilt Products Merchandising & Display Refrigeration New Arrivals Open-Air Coolers Refrigeration, Freezing & Ice Restaurant Equipment

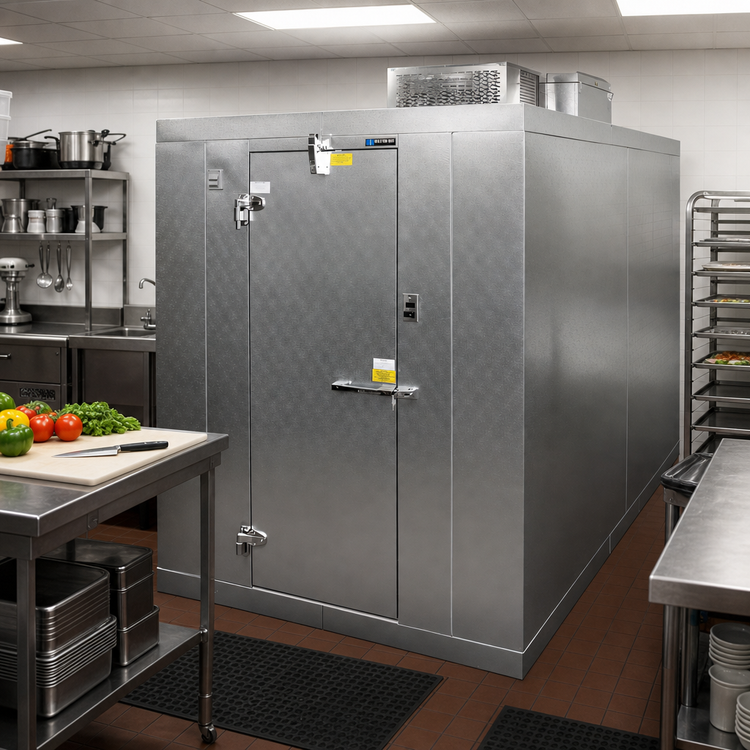

Master-Bilt QS Series Indoor -10°F Walk-In Freezer, 6' x 8' x 7'7" H, With Floor, R290 Capsule Pak ECO Refrigeration

Self-Contained, 115V Single-Phase, 270 Cu. Ft.

This compact indoor walk-in freezer pairs durable insulated panels with a factory-matched R290 self-contained refrigeration system for dependable -10°F frozen storage.

  • Indoor walk-in freezer designed for -10°F storage conditions.
  • 6' x 8' footprint with 7'7" height and factory-installed floor.
  • Self-contained Capsule Pak ECO refrigeration system simplifies installation.
  • 26-gauge coated steel panel construction is built for long-term durability.
  • Self-closing door includes a deadbolt locking handle for security.
  • LogiTemp electronic control and LED lighting improve day-to-day operation.
  • No plumbing is required for indoor installation.

Overall Dimensions:

72.0"W x 96.0"D x 91.0"H

Product Weight:

1420.0 lb

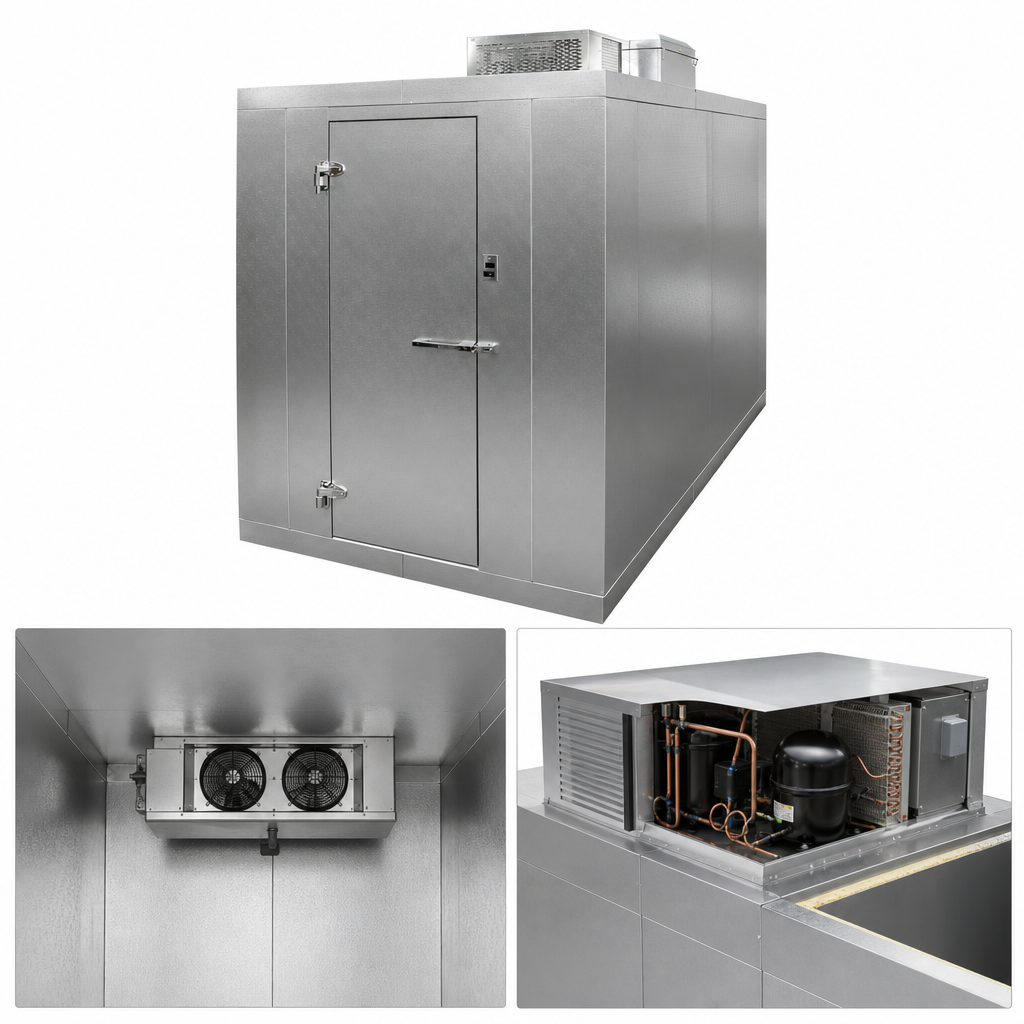

Self-Contained Capsule Pak ECO Refrigeration

Factory-matched ceiling-mount refrigeration system keeps the compressor and evaporator in one assembly for a simpler setup.

Self-Contained Capsule Pak ECO Refrigeration

R290 Refrigerant

Uses R290 natural refrigerant for freezer operation.

R290 Refrigerant

Indoor -10°F Freezer Design

Built for frozen storage applications with a -10°F design temperature.

7'7" High With Floor

The 6' x 8' walk-in includes a floor and provides 270 cubic feet of storage space.

26-Gauge Coated Steel Panels

Interior and exterior panels use 26-gauge corrosion-resistant coated steel for durability.

4-Inch Foamed-In-Place Insulation

Panels are 4 inches thick with polyurethane insulation to help maintain consistent temperatures.

Self-Closing Security Door

Door includes heavy-duty cam-lift hinges, a spring-actuated closer, deadbolt locking handle, and inside safety release.

Integrated Controls and Lighting

LogiTemp electronic controls, a digital thermometer/light switch, perimeter heater wire, and low-profile LED lighting support easy operation.

Type Walk-In Freezer
Style Indoor
Capacity 270 Cubic Feet
Material Coated Steel
Finish Stucco Embossed
Temperature Range -10°F
Controls LogiTemp Electronic
Refrigeration Type Self-Contained
Refrigerant Type R290
Water Connection Not Required
Drain Connection Not Required
Voltage 115 Volts
Amps 15.3 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-20P
BTU 3,600 BTUH
Country of Origin USA
Selling Unit Each
Units Per Case 1

Warranty & Protection

15-year panel warranty; 18 months parts and labor.

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Brochure PDF Download PDF Installation manual PDF Download PDF Warranty PDF Download

Frequently Asked Questions

This model is designed for -10°F freezer storage.
Yes. It uses the CPF100PC-S-0 self-contained Capsule Pak ECO refrigeration system.
Yes, this unit is supplied with a floor and includes a smooth aluminum interior floor surface.
The refrigeration system operates on 115/60/1 electrical service and uses a NEMA 5-20P plug.
No. Indoor Capsule Pak ECO units are designed for installation with no plumbing required.
Yes. The doors are available with right- or left-side hinges.
