Master-Bilt QS Series Outdoor Self-Contained -10°F Walk-In Freezer, 8' x 10', 7'7" H, With Floor, R290 Capsule Pak ECO, 208-230V/1-Ph

SKU: QODF77810-C
$19,475.95
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Refrigeration Commercial Refrigerators Master-Bilt Products New Arrivals Open-Air Coolers Restaurant Equipment

Master-Bilt QS Series Outdoor Self-Contained -10°F Walk-In Freezer, 8' x 10', 7'7" H, With Floor, R290 Capsule Pak ECO, 208-230V/1-Ph

Weather-protected membrane roof, self-closing locking door, and coated steel panel construction

Built for reliable outdoor frozen storage, this 8' x 10' QS Series walk-in freezer combines -10°F performance with a self-contained R290 system and weatherized construction.

  • Outdoor -10°F walk-in freezer with an 8' x 10' footprint and 7'7" height.
  • Matched CPF175PC-E-4 Capsule Pak ECO refrigeration system uses R290 refrigerant.
  • Weather protection kit includes a one-piece white membrane roof and flashing trim.
  • 4-inch foamed-in-place polyurethane panels use 26-gauge coated steel surfaces.
  • Supplied with a floor and a smooth aluminum interior floor surface.
  • Self-closing door includes a deadbolt locking handle, inside safety release, magnetic gasket, and LED light.
  • Made in USA and backed by a 15-year panel warranty plus 18 months parts and labor.

Overall Dimensions:

96.0"W x 120.0"D x 91.0"H

Product Weight:

1944.0 lb

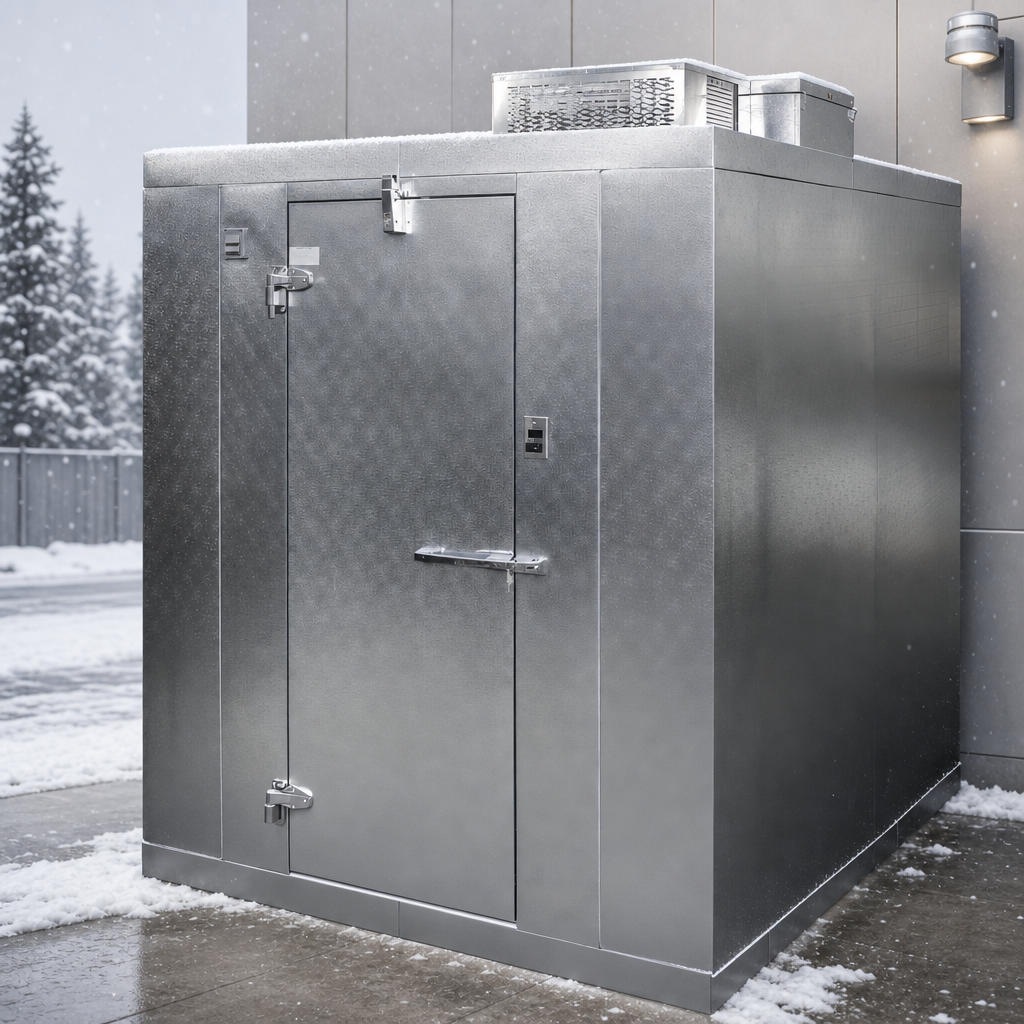

Outdoor -10°F Freezer

Designed for frozen storage applications at a -10°F operating temperature.

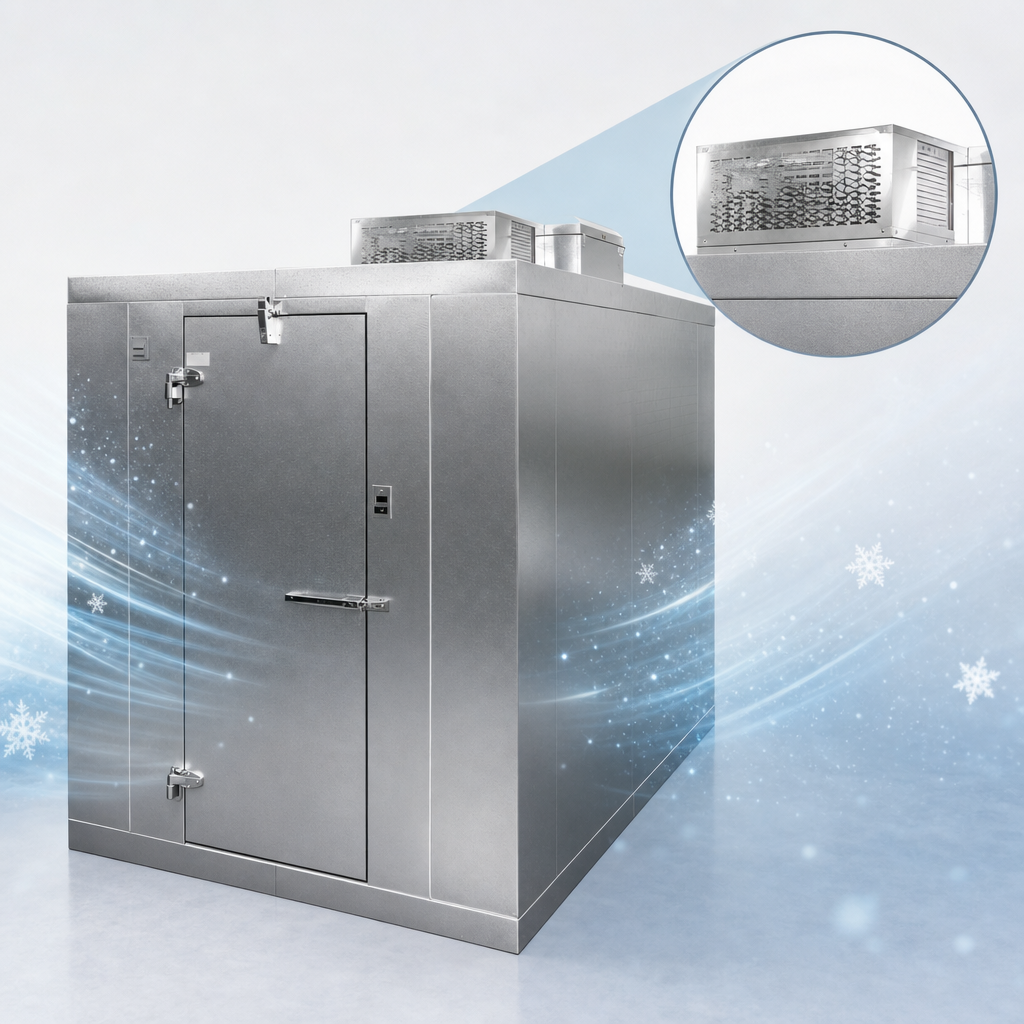

Matched R290 Refrigeration System

Configured with the CPF175PC-E-4 Capsule Pak ECO refrigeration system for ceiling-mount, self-contained operation.

Weather Protection Roof

Outdoor models include a one-piece white membrane roof with metal trim for weather protection.

Heavy-Duty Insulated Panels

Four-inch modular panels are foamed-in-place with polyurethane insulation and 26-gauge coated steel surfaces.

Floor Included

This model is supplied with a floor and a smooth aluminum interior floor surface.

Secure Self-Closing Door

Features a self-closing flush-mounted door with a deadbolt locking handle, inside safety release, magnetic gasket, and perimeter heater wire.

Electronic Monitoring and Lighting

LogiTemp electronic control, digital thermometer, and LED light help simplify temperature monitoring and use.

Type Walk-In Freezer
Style Outdoor
Installation Type Floor Model
Temperature Range -10°F
Capacity 473 Cubic Feet
Refrigeration Type Self-Contained
Refrigerant Type R290
Material Coated Steel
Interior Finish Coated Steel
Finish Coated Steel
Voltage 208-230 Volts
Hertz 60 Hz
Phase 1-Phase
Amps 10.7 Amps
Plug Type 6-15P
Cord Length 9 Feet
BTU 6,300 BTUH
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 96 Inches
Shipping Depth 120 Inches
Shipping Height 91 Inches
Shipping Weight 1,944 Pounds

Warranty & Protection

15-year panel warranty and 18 months parts and labor

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Installation manual PDF Download PDF Warranty PDF Download PDF Brochure PDF Download

Frequently Asked Questions

Yes. It is an outdoor QS Series model and includes a white membrane roof with flashing trim for weather protection.
This freezer is designed for -10°F applications.
Yes. It is matched with the CPF175PC-E-4 Capsule Pak ECO refrigeration system using R290 refrigerant.
Yes. This 77 Series model is supplied with a floor and a smooth aluminum interior floor surface.
The door is self-closing and includes a deadbolt locking handle, inside safety release, magnetic gasket, perimeter heater wire, and LED light.
