Master-Bilt QS Series Outdoor Walk-In Freezer, 6' x 6' x 7'7" H, With Floor, Self-Contained R290 Capsule Pak ECO Refrigeration

SKU: QODF7766-C
$14,682.73
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Refrigeration Commercial Refrigerators Master-Bilt Products New Arrivals Open-Air Coolers Restaurant Equipment

Master-Bilt QS Series Outdoor Walk-In Freezer, 6' x 6' x 7'7" H, With Floor, Self-Contained R290 Capsule Pak ECO Refrigeration

6' x 6' footprint, -10°F, 115V/60/1

Built for outdoor freezer storage, this compact walk-in combines heavy-duty insulated construction with a factory-matched self-contained refrigeration system.

  • Outdoor 6' x 6' walk-in freezer with 7'7" height and factory-installed floor
  • Matched -10°F Capsule Pak ECO refrigeration system with R290 refrigerant
  • 26-gauge stucco-embossed coated steel panels with 4-inch foamed-in-place insulation
  • Self-closing door with deadbolt locking handle, safety release, and LED light
  • White membrane roof and trim plus -20°F ambient controls for outdoor use
  • 115V/60/1-phase cord-and-plug connection for straightforward installation

Overall Dimensions:

72.0"W x 72.0"D x 91.0"H

Product Weight:

1288.0 lb

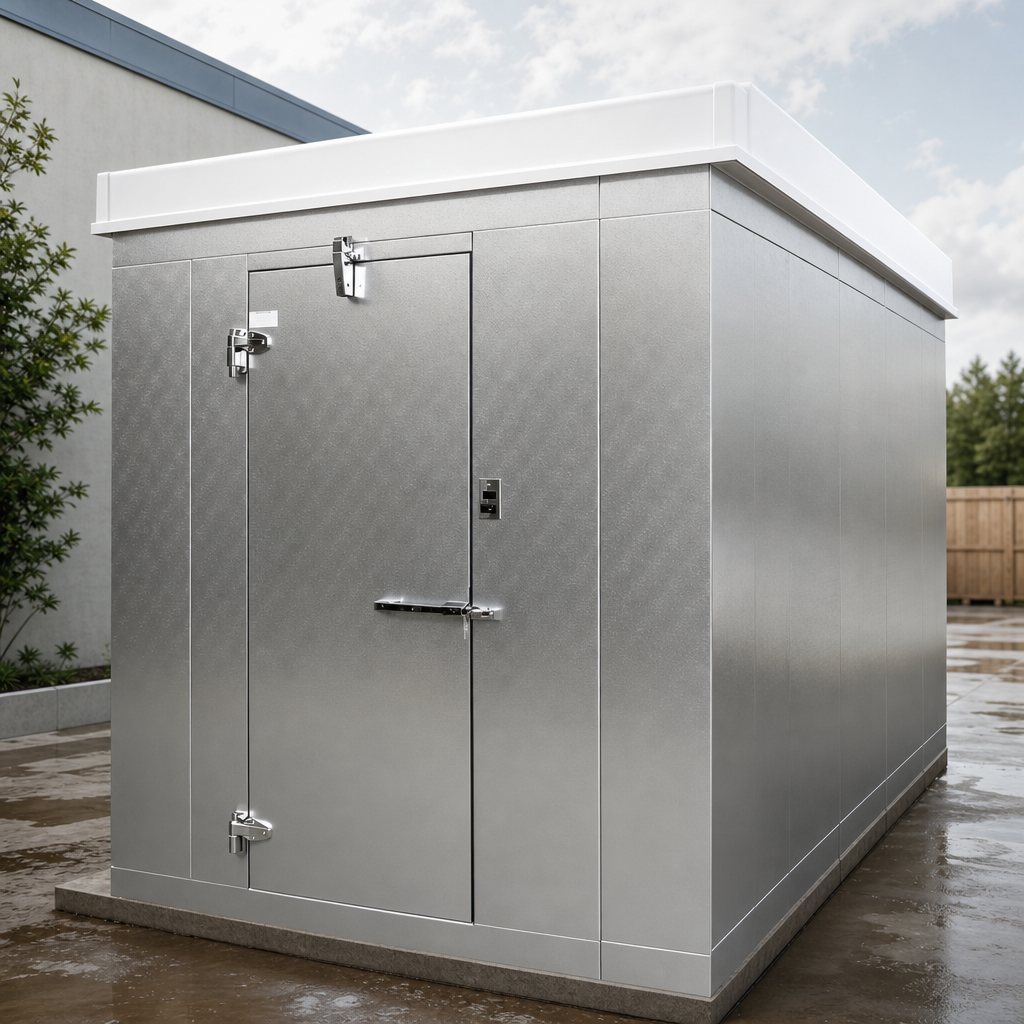

Outdoor Weather Package

Includes a one-piece white membrane roof and matching trim to protect outdoor installations.

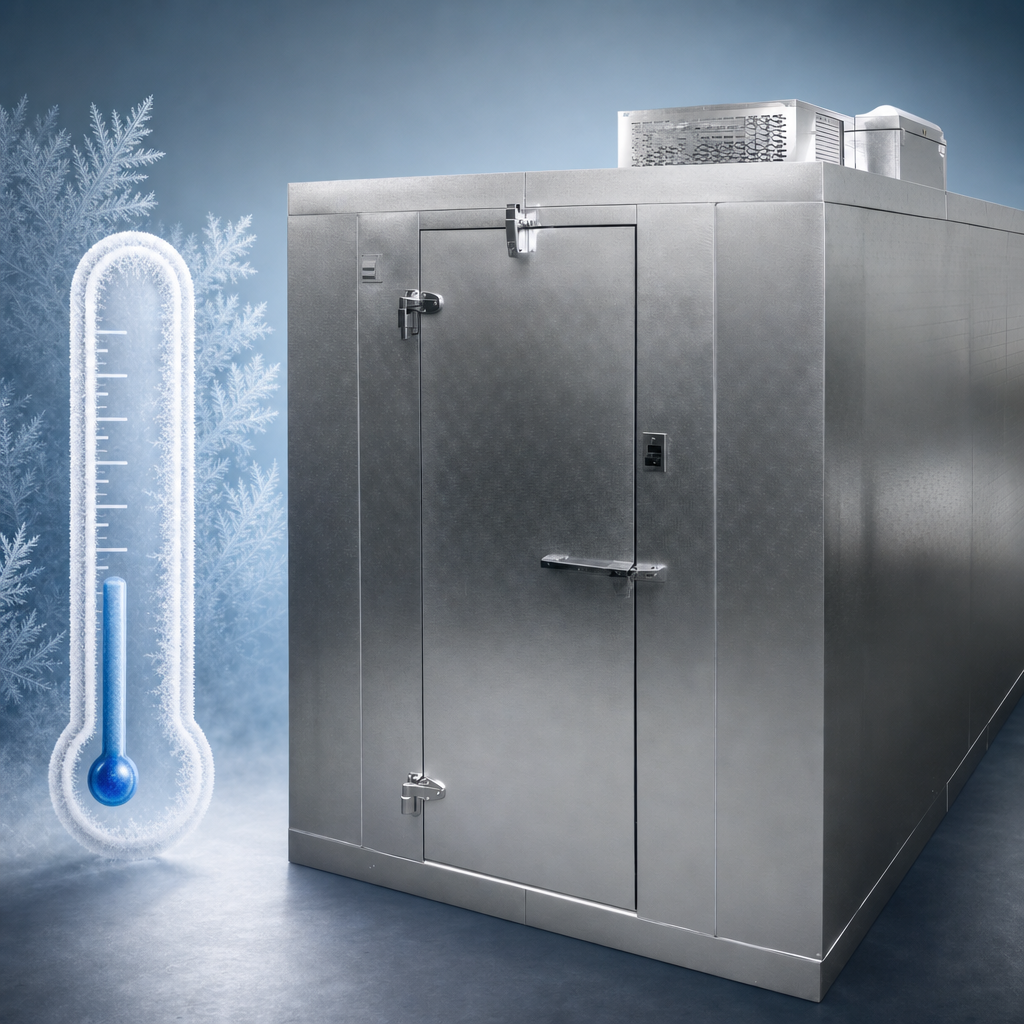

Matched -10°F Refrigeration

Supplied with the CPF100PC-E-0 Capsule Pak ECO system for freezer applications.

Insulated Panel Construction

4-inch foamed-in-place polyurethane panels help provide strong thermal performance.

Coated Steel Surfaces

26-gauge corrosion-resistant stucco embossed coated steel is used on the interior and exterior panels.

Smooth Aluminum Floor

Floor models include a smooth aluminum interior floor surface.

Self-Closing Security Door

Door includes a spring-actuated closer, deadbolt locking handle, independent key/padlock feature, and inside safety release.

Electronic LogiTemp Control

Digital controller setup includes readout, thermometer, light switch, and automatic defrost control.

Standard Door Opening

77 Series units use a standard 26-inch wide by 78-inch high door opening, with right- or left-hand hinge options.

Type Walk-In Freezer
Style Outdoor
Installation Type Floor Model
Refrigeration Type Self-Contained Ceiling Mount
Refrigerant Type R290
Temperature Range -10°F
Capacity 196 Cubic Feet
Material Coated Steel
Finish Stucco Embossed Coated Steel
Controls Electronic
Voltage 115 Volts
Amps 15.3 Amps
Phase 1-Phase
Plug Type 5-20P
Cord Length 9 Feet
BTU 3600 BTU
Shipping Width 72 Inches
Shipping Depth 72 Inches
Shipping Height 91 Inches
Shipping Weight 1288 lb.
Country of Origin USA
Selling Unit Each
Units Per Case 1

Warranty & Protection

15-year panel warranty; 18 months parts and labor.

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Brochure PDF Download PDF Warranty PDF Download PDF Installation manual PDF Download

Frequently Asked Questions

Yes. This 77 Series outdoor model is supplied with a floor and includes a smooth aluminum interior floor surface.
It is designed for -10°F freezer applications.
The matching refrigeration system is CPF100PC-E-0.
The standard door opening is 26 inches wide by 78 inches high, with right- or left-hand hinge options.
Yes. Outdoor QS Series models include a white membrane roof and trim, along with -20°F ambient controls.
