Master-Bilt QS Series Outdoor 6' x 12' x 7'7" H -10°F Walk-In Freezer with Floor and R290 Capsule Pak ECO Refrigeration

Self-Contained, 208-230V, 1-Phase

Built for outdoor service, this self-contained walk-in freezer pairs a factory floor with R290 refrigeration for dependable -10°F storage.

  • Outdoor 6' x 12' walk-in freezer with 7'7" height and factory-installed floor
  • Self-contained Capsule Pak ECO refrigeration system designed for -10°F operation
  • R290 refrigerant and LogiTemp digital control for efficient temperature management
  • 26-gauge coated steel panels with 4-inch foamed-in-place polyurethane insulation
  • Self-closing door with deadbolt locking handle, inside safety release, and heated threshold
  • White membrane roof and trim provide weather protection for outdoor installation
  • Made in USA with a 15-year panel warranty and 18 months parts & labor

Overall Dimensions:

72.0"W x 144.0"D x 91.0"H

Product Weight:

1907.0 lb

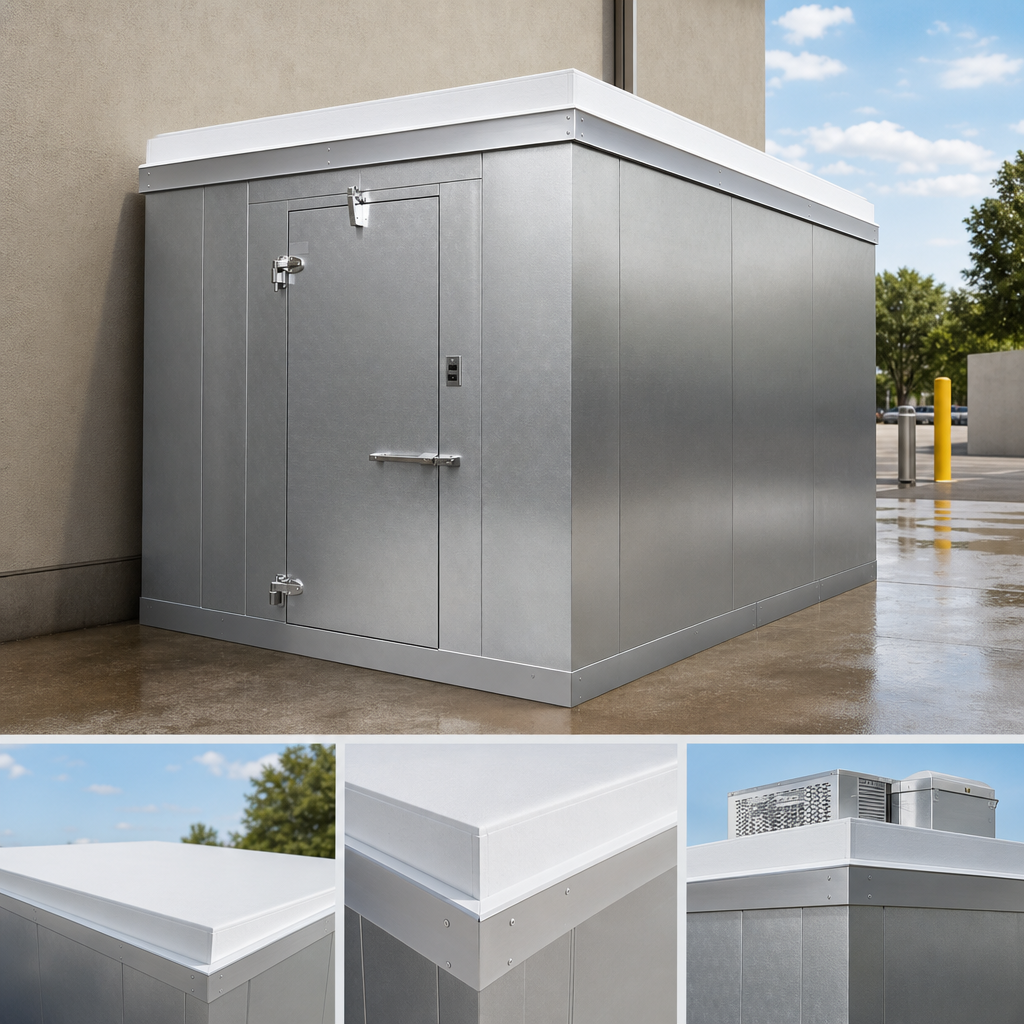

Outdoor Weather Protection Kit

Includes a one-piece white membrane roof and metal trim to help protect the walk-in when installed outdoors.

Outdoor Weather Protection Kit

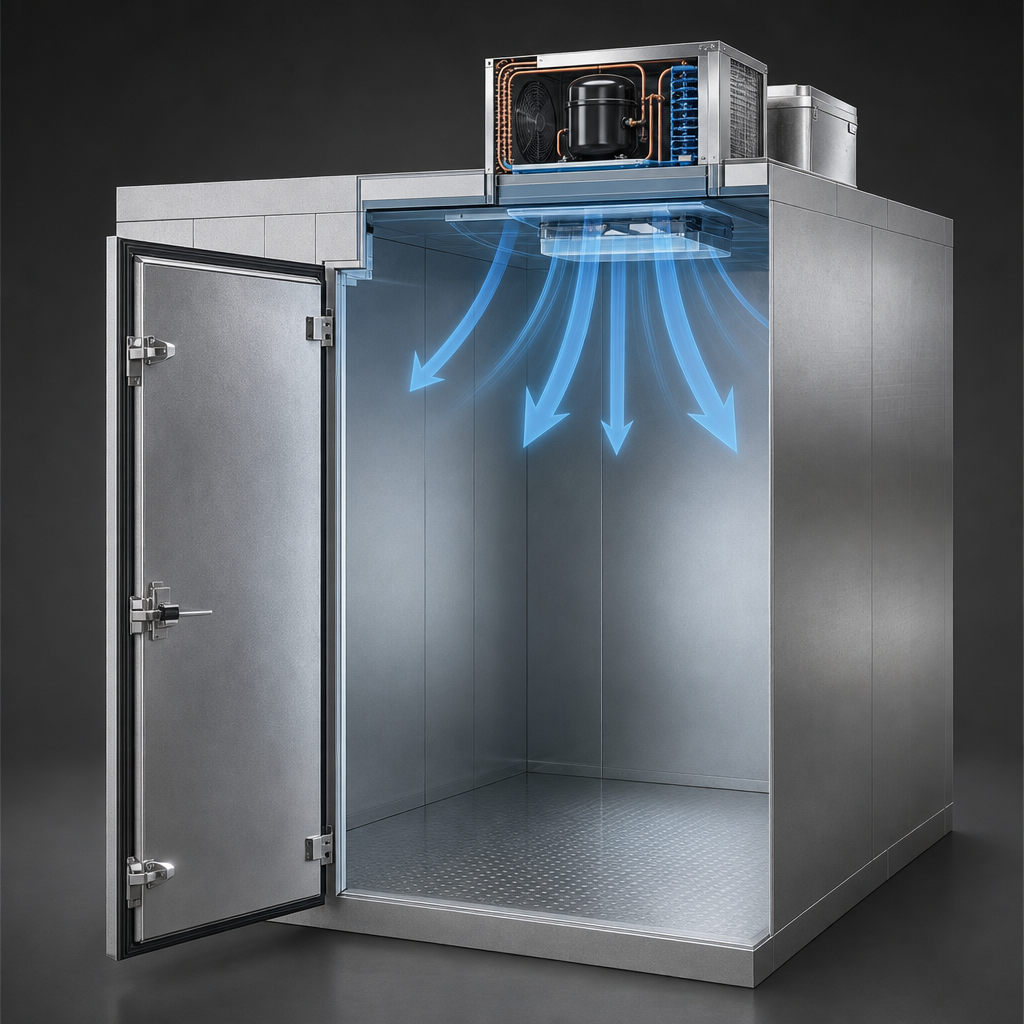

R290 Capsule Pak ECO Refrigeration

Self-contained, ceiling-mount refrigeration system is designed to support -10°F freezer operation.

R290 Capsule Pak ECO Refrigeration

4-Inch Insulated Panels

Foamed-in-place polyurethane insulation improves temperature retention and energy efficiency.

Coated Steel Construction

26-gauge stucco embossed coated steel is used on the interior and exterior panels for corrosion resistance.

Smooth Aluminum Floor

Floor models include a smooth aluminum interior floor surface.

Self-Closing Security Door

Door includes cam-lift hinges, a spring-actuated closer, a deadbolt locking handle, and inside safety release.

LogiTemp Electronic Control

Digital controller system with thermometer and light switch for easier operation and monitoring.

Low-Profile LED Door Light

High-output LED lighting is positioned above the door to reduce interference with shelving or product.

Type Walk-In Freezer
Style Outdoor
Installation Type Floor Model
Refrigeration Type Self-Contained
Refrigerant Type R290
Temperature Range -10°F
Capacity 418 Cubic Feet
BTU 6,300 BTU
Voltage 208-230 Volts
Hertz 60 Hz
Phase 1-Phase
Amps 10.7 Amps
Plug Type 6-15P
Controls Digital
Material Coated Steel
Interior Finish Aluminum
Finish Coated Steel
Country of Origin USA
Selling Unit Each
Units Per Case 1

Warranty & Protection

15-year panel warranty; 18 months parts and labor

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Installation manual PDF Download PDF Brochure PDF Download PDF Warranty PDF Download

Frequently Asked Questions

Yes. Outdoor QS Series models include a white membrane roof, metal trim, and -20°F ambient controls.
This freezer is designed for -10°F operation.
Yes. This configuration is supplied with a floor and a smooth aluminum interior floor surface.
It uses the CPF175PC-E-4 Capsule Pak ECO self-contained refrigeration system with R290 refrigerant.
The unit is specified for 208-230V, 60 Hz, single-phase power.
The walk-in includes a 15-year panel warranty and 18 months parts and labor; a 5-year compressor warranty is optional.
