Master-Bilt QS Series Outdoor Walk-In Freezer, 10' x 12', 7'7" High, With Floor, Self-Contained R290 Refrigeration

Outdoor, -10°F, 10' x 12' Footprint, With Floor

A rugged outdoor walk-in freezer with a self-contained R290 refrigeration system, built to hold a steady -10°F in a 731 cu. ft. storage space.

  • Outdoor 10' x 12' walk-in freezer with 7'7" height and 731 cu. ft. capacity.
  • Includes a self-contained, ceiling-mount CPF175PC-E-4 refrigeration system using R290 refrigerant.
  • 4-inch insulated panels and coated steel surfaces help maintain reliable frozen storage temperatures.
  • Floor is included, with a smooth aluminum interior floor surface on floor models.
  • Self-closing door includes a deadbolt locking handle, inside safety release, and adjustable cam-lift hinges.
  • Outdoor membrane roof, trim, and ambient controls are included for weather exposure.

Overall Dimensions:

120.0"W x 144.0"D x 91.0"H

Product Weight:

2571.0 lb

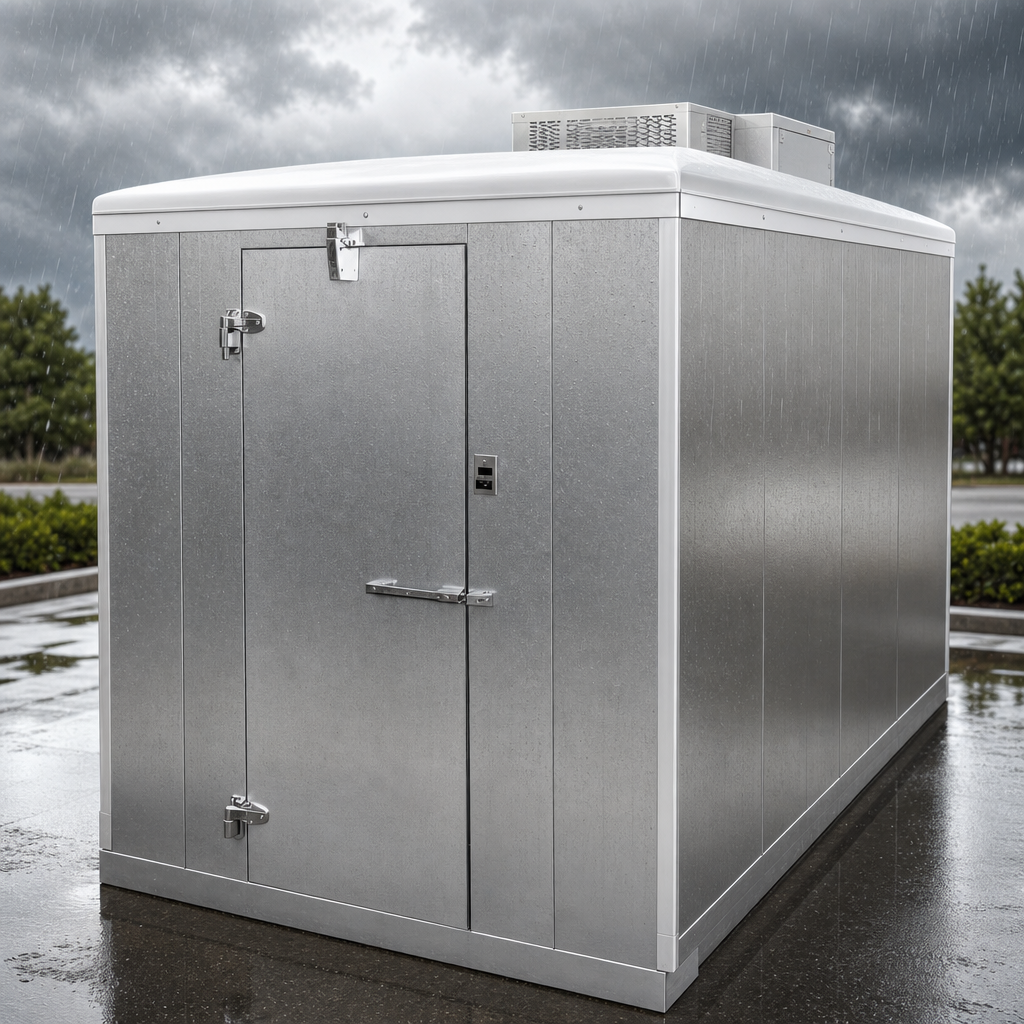

Outdoor Weather Protection Kit

Designed for outdoor installation with a one-piece white membrane roof and included flashing trim to protect the top and side transitions.

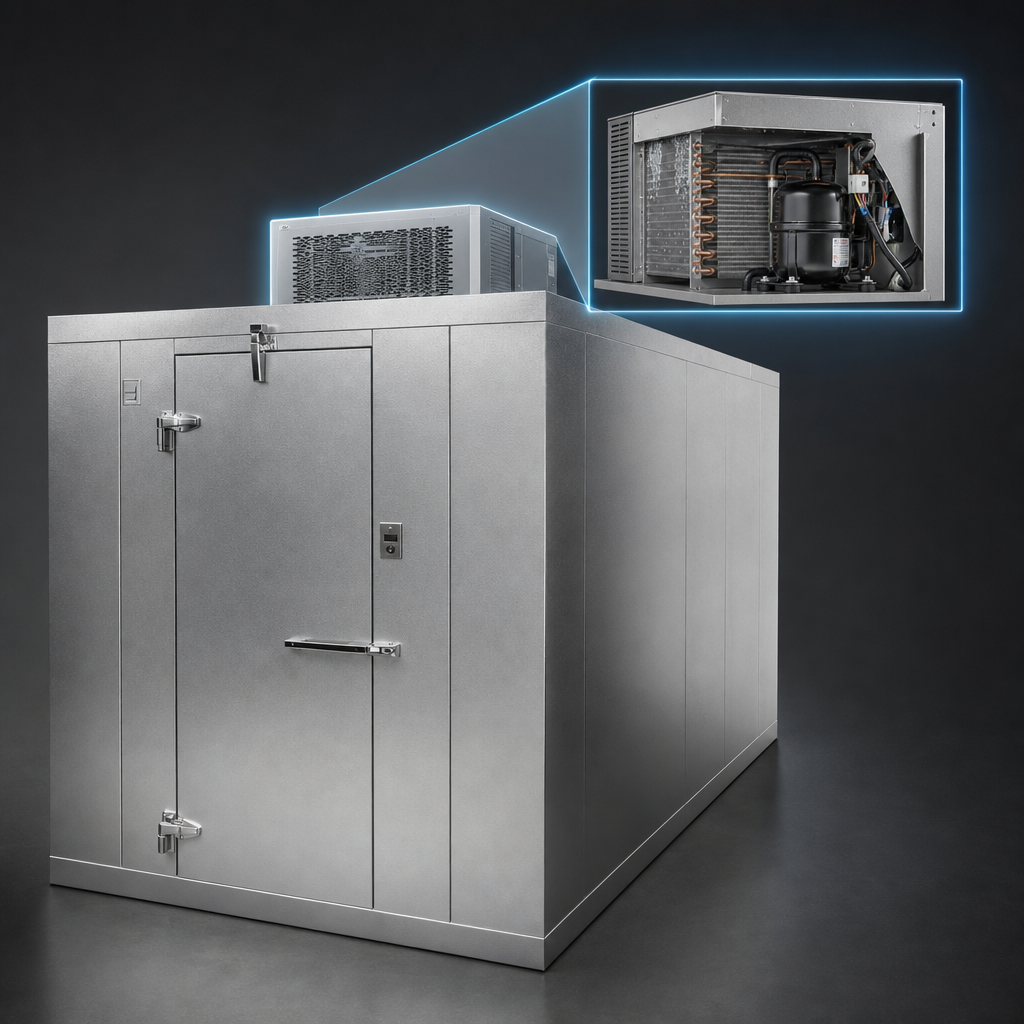

Self-Contained R290 Refrigeration

Supplied with a ceiling-mount Capsule Pak ECO refrigeration system that is factory assembled, wired, tested, and ready for the walk-in ceiling opening.

-10°F Freezer Operation

Built for freezer applications with a design temperature of -10°F.

Insulated Panel Construction

4-inch foamed-in-place polyurethane insulated panels with corrosion-resistant stucco embossed coated steel surfaces.

Self-Closing Security Door

Flush-mounted door includes heavy-duty cam-lift hinges, a spring actuated closer, a deadbolt locking handle, and inside safety release.

Floor Included

77 Series configuration includes a floor, with a smooth aluminum interior floor surface.

Electronic Controls And Lighting

Includes LogiTemp electronic control, a digital thermometer/light switch, and a high-output LED light positioned above the door.

Type Walk-In Freezer
Style Outdoor
Installation Type Built-In
Temperature Range -10°F
Capacity 731 Cubic Feet
Material Coated Steel
Finish Stucco Embossed Coated Steel
Refrigeration Type Self-Contained Ceiling Mount
Refrigerant Type R290
BTU 6,300 BTUH
Voltage 230 Volts
Amps 10.7 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type 6-15P
Cord Length 9 Feet
Country of Origin USA
Selling Unit Each
Units Per Case 1

Warranty & Protection

15-year panel warranty; 18 months parts & labor

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Warranty PDF Download PDF Installation manual PDF Download PDF Brochure PDF Download

Frequently Asked Questions

Yes. It is an outdoor model and includes a white membrane roof with trim for weather protection.
The matching refrigeration system specified for this model is the CPF175PC-E-4 Capsule Pak ECO outdoor system.
The 77 Series uses a standard 26-inch wide by 78-inch high door opening, with 30-inch and 36-inch widths also available.
Yes. The 77 Series is supplied with a floor, and the floor models include a smooth aluminum interior floor surface.
Master-Bilt lists a 15-year panel warranty and 18 months parts & labor, with an optional 5-year compressor warranty available.
