Key specifications
- Phase
- 1-Phase
- Dimensions
- 96.0"W × 144.0"D × 91.0"H
- Type
- Walk-In Cooler
- Style
- Outdoor
- Installation Type
- Floor Model
- Material
- Steel
Spec sheet

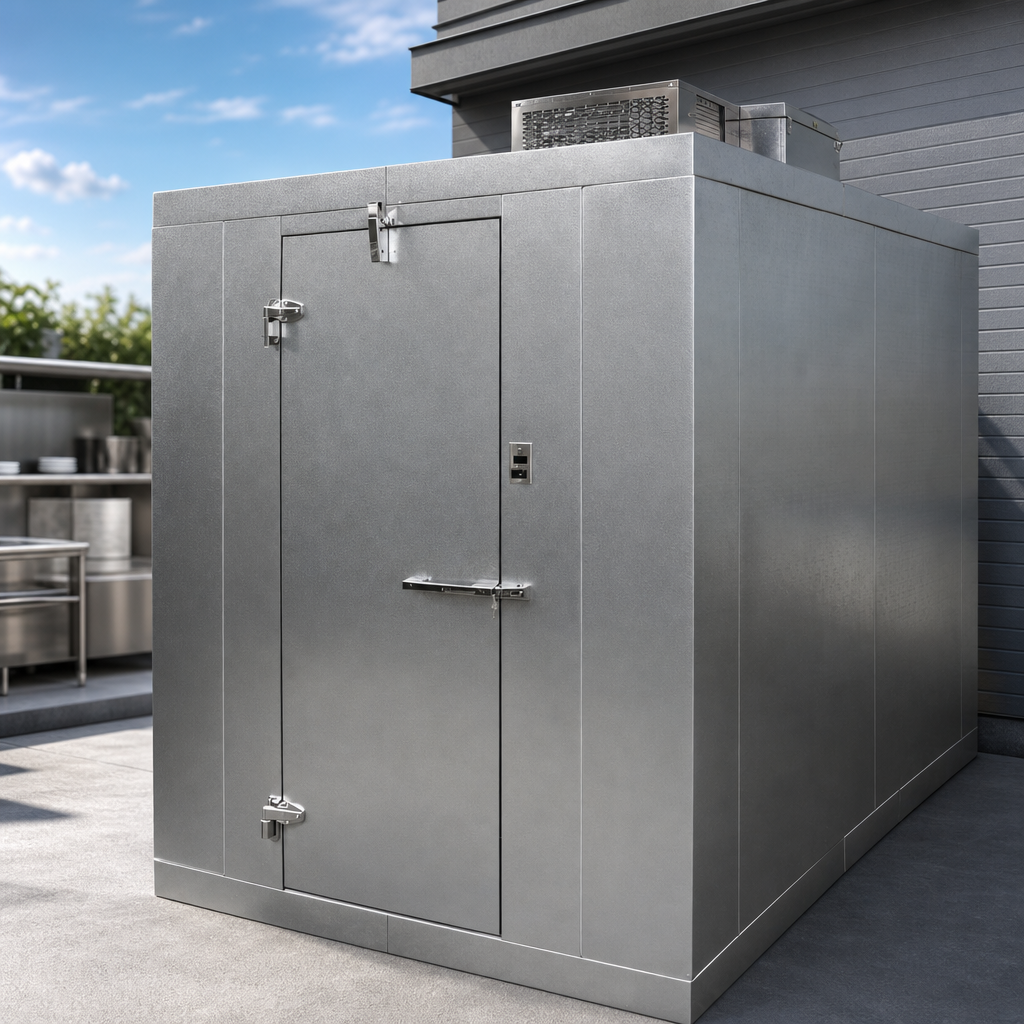

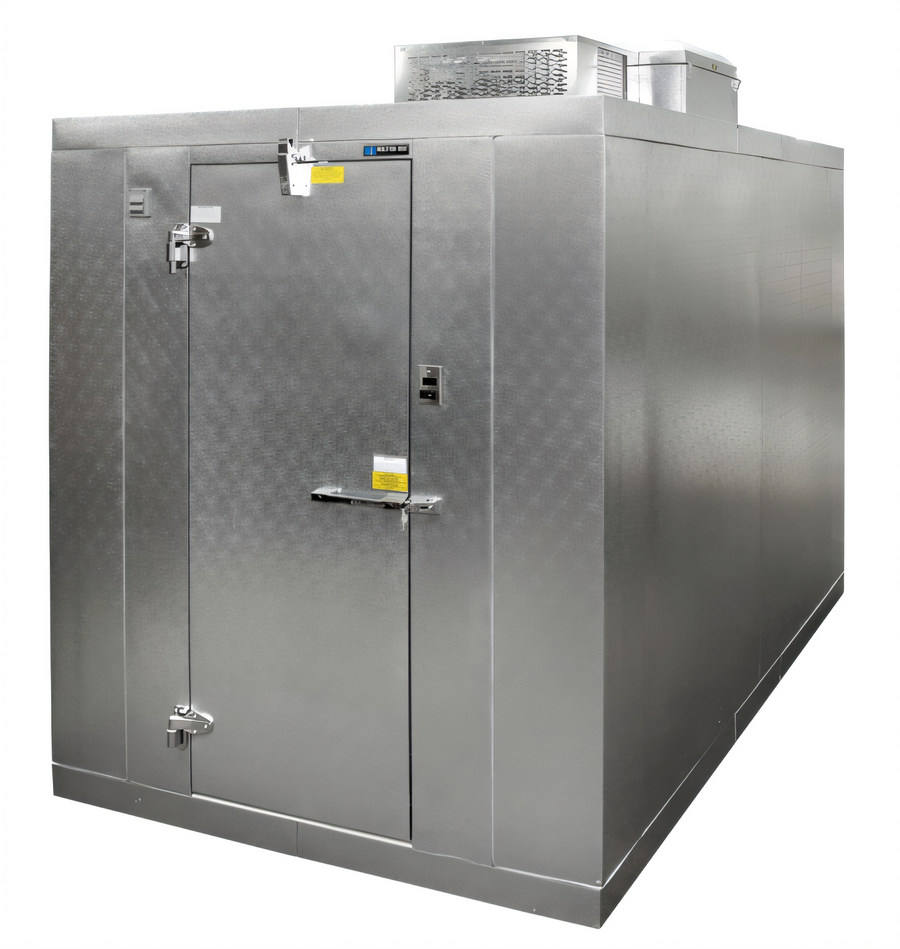

Master-Bilt QS Series QODB77812-C Outdoor Walk-In Cooler with Floor, 8' x 12' x 7'7" H, R290 Self-Contained Refrigeration
Questions before you buy?
Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.
Specifications
Description
The Master-Bilt QS Series QODB77812-C is an outdoor walk-in cooler measuring 8 ft wide by 12 ft deep by 7 ft 7 in high. It includes a floor and a CPB075PC-E-0 R290 Capsule Pak ECO self-contained refrigeration system.
- Configured for +35°F cooler operation with 115-volt, 60 Hz, single-phase electrical service.
- Panels use 26 gauge stucco embossed coated steel, with a smooth aluminum interior floor surface.
- The self-closing door includes a deadbolt locking handle.
- Outdoor construction includes a white membrane roof and trim.
Overall Dimensions:
96.0"W x 144.0"D x 91.0"HProduct Weight:
2104.0 lbSelf-Contained Refrigeration
The CPB075PC-E-0 Capsule Pak ECO system uses R290 refrigerant and is designed as a self-contained refrigeration system.

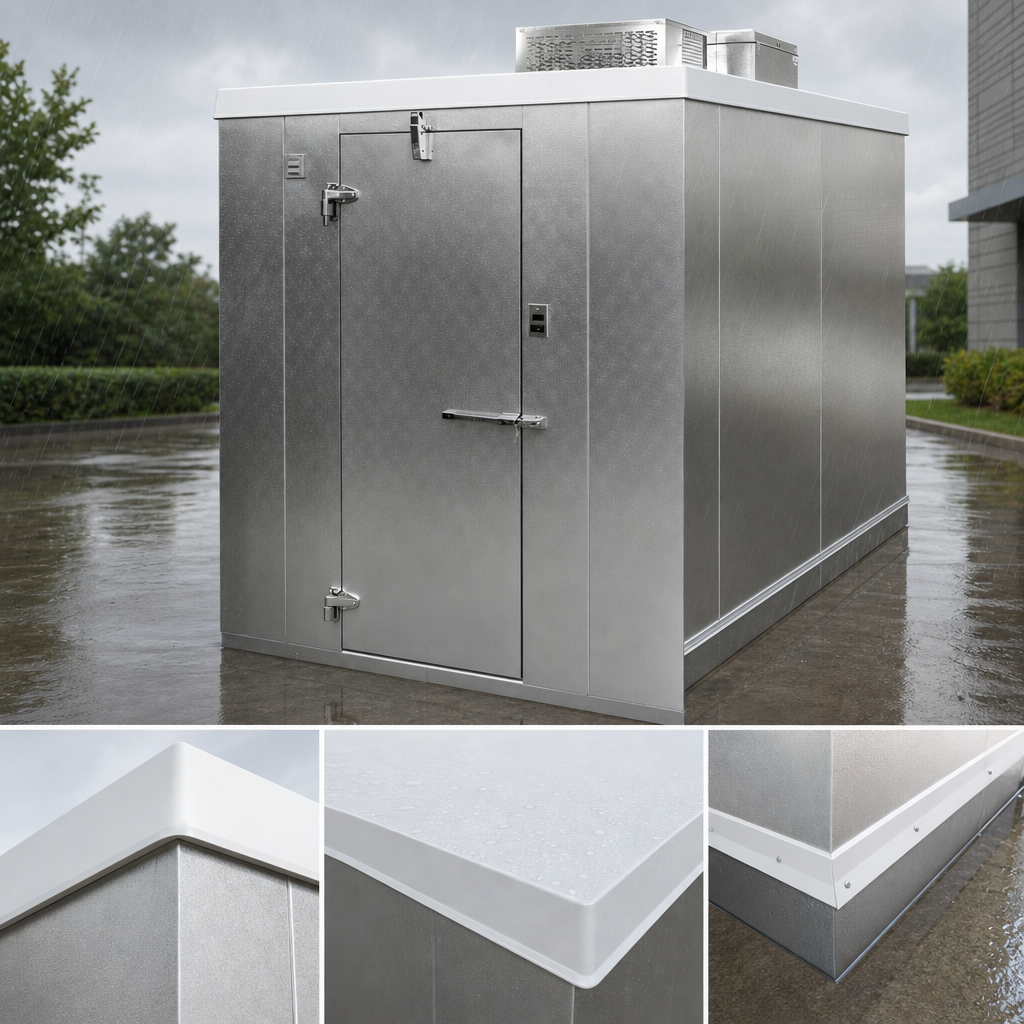

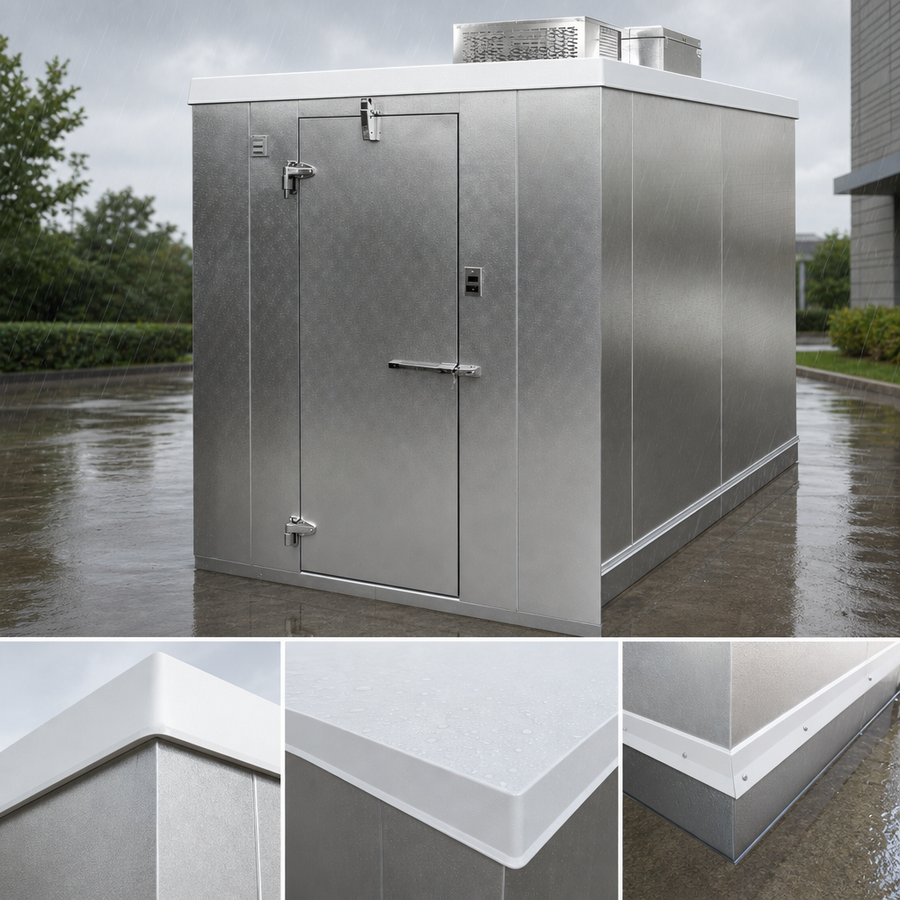

Outdoor Weather Protection
The outdoor model includes a white membrane roof and trim.
Insulated Panels
The walk-in uses 4 in thick panels with foamed-in-place HFO polyurethane insulation.
Coated Steel Panels
Panels use 26 gauge stucco embossed coated steel on the interior and exterior, except for the interior floor surface.
Floor Construction
The supplied floor has a smooth aluminum interior surface.
Door Security
The door is self-closing and includes a deadbolt locking handle with an inside safety release.
Electronic Controls
The refrigeration system uses a LogiTemp electronic controller.
Interior Lighting
A high-output low-profile LED light is positioned above the door.
