Master-Bilt Products  |  COLDIN-3  |  SKU: MSF-71AN

Master-Bilt Products MSF-71AN COLDIN-3 Chest Freezers

$1,514.30
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Cutsheet Owner's manual Warranty
Related Searches
Chest Freezers Ice Cream & Frozen Treat Freezers

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

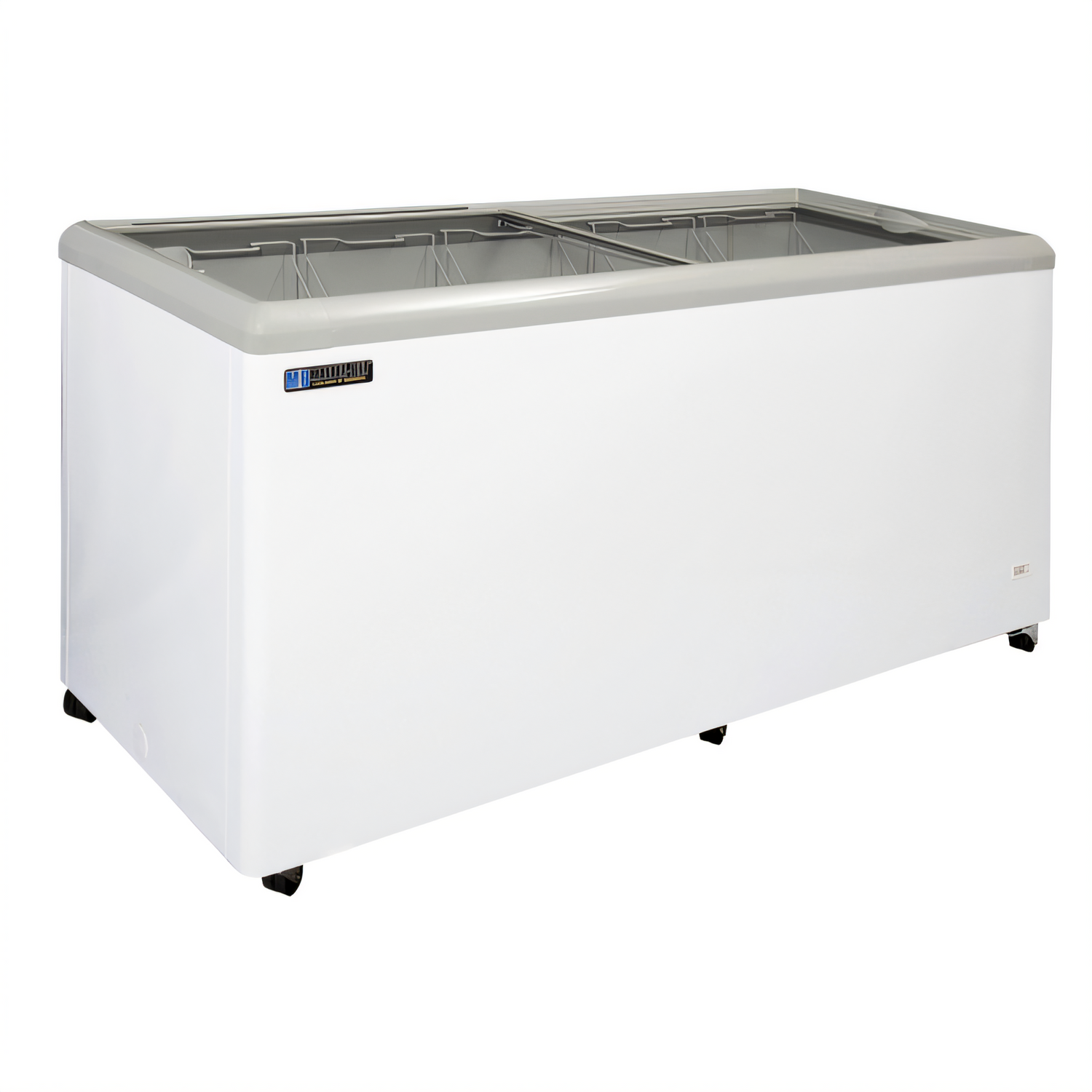

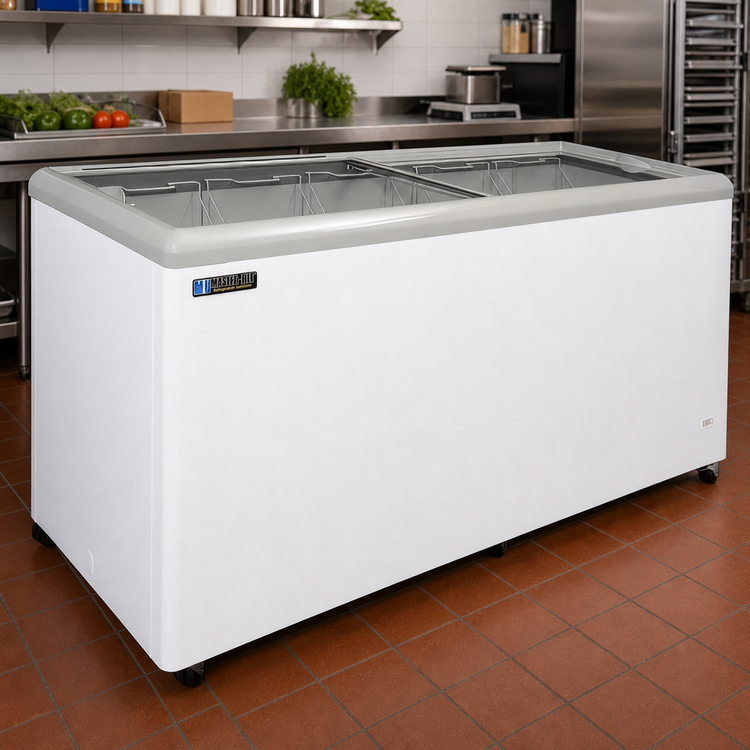

Master-Bilt COLDIN-3™ Flat-Lid Display Freezer

Model MSF-71AN • 20 cu. ft. • 115 V • R290 Hydrocarbon

Showcase and protect your frozen merchandise with the COLDIN-3™—Master-Bilt’s largest flat-lid display freezer. Five full-size baskets, high-clarity tempered glass lids and brilliant LED lighting turn product visibility into impulse sales, while a low-maintenance, self-contained refrigeration system keeps contents rock-solid between -18° and 10 °F (-27 ° to -12 °C).

Why You’ll Love It
  • 20.0 cu. ft. gross / 15.9 cu. ft. net capacity handles high-volume frozen foods or ice-cream programs.

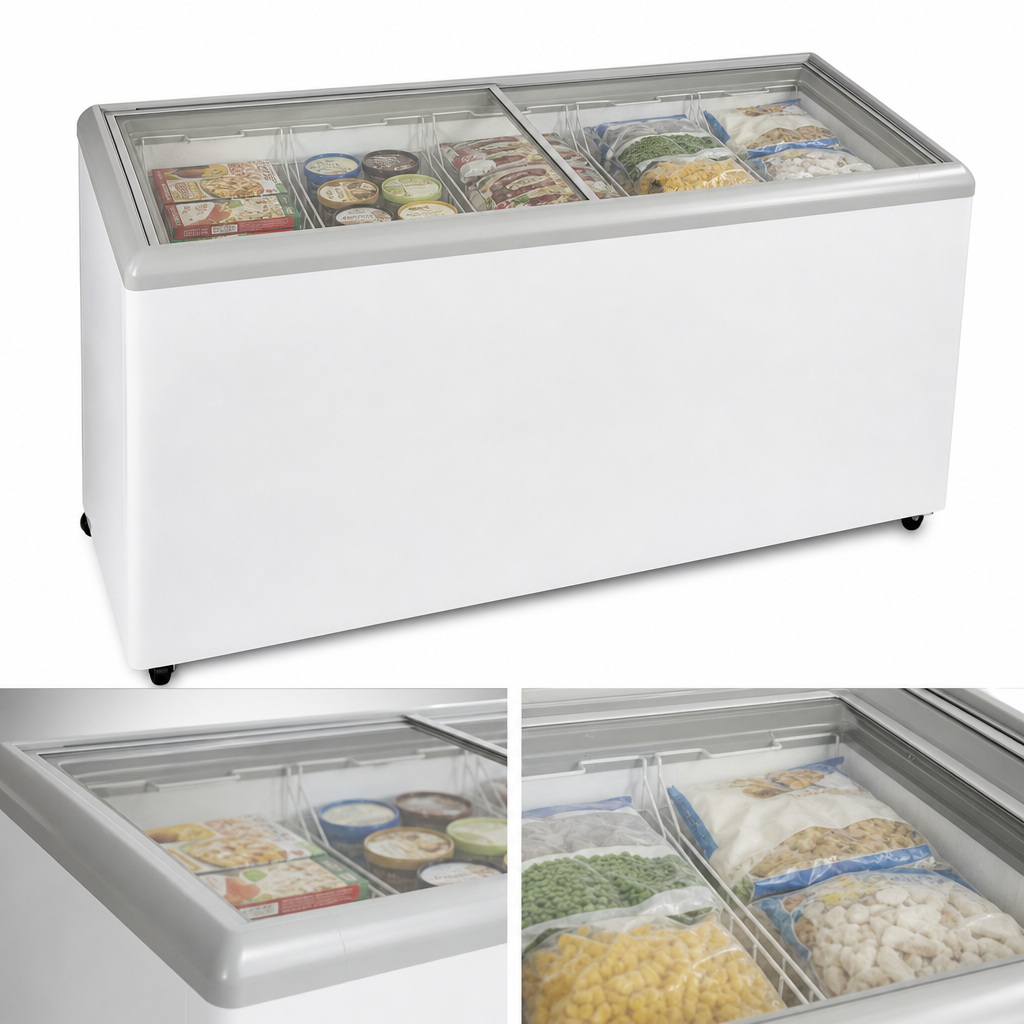

  • Flat, tempered-glass sliding lids with a slim, unobtrusive frame maximize product visibility on all sides.
  • (5) heavy-duty baskets with one horizontal & one vertical fixed divider in each basket—perfect for easy SKU separation.
  • Bright, energy-saving LED interior lighting with its own on/off switch.
  • External analog thermometer plus locking lids to monitor and secure inventory without lifting the glass.
  • White zinc-coated enamel steel exterior & powder-coated steel interior withstand demanding retail environments.
  • Built-in bottom drain speeds defrost and clean-up; removable rubber bumper guards protect the grille.
  • Heavy-duty 2 inch casters (2 locking) make relocation or floor cleaning effortless.
  • Eco-friendly R290 refrigerant, low 4.1 A draw and high-efficiency compressor keep operating costs in check.
  • cETLus & ETL-Sanitation listed and backed by a 1-year parts & labor warranty.
Technical Specs
Capacity 20.0 cu. ft. gross (566 L) / 15.9 cu. ft. net
Temperature Range -18 ° to 10 °F (-27 ° to -12 °C) adjustable
Overall Dimensions (H × W × D) 33 in × 70-7/8 in × 27-3/8 in (838 × 1799 × 694 mm)
Interior Dimensions (H × W × D) 25 in × 65-1/2 in × 21-1/2 in (635 × 1664 × 546 mm)
Baskets / Dividers (5) baskets, each with 1 vertical + 1 horizontal fixed divider
Compressor 2/3 HP, self-contained
Refrigerant R290 (Hydrocarbon, Low GWP)
Electrical 115 V / 60 Hz / 1-ph, 4.1 A, NEMA 5-15P, 6-½ ft. cord
Casters (4) × 2 in, front two locking
Crated Weight 330 lb (150 kg)
Certifications cETLus, ETL-Sanitation
Warranty 1 year parts & labor
Installation Tip: For optimal performance, place the COLDIN-3™ in a climate-controlled area not to exceed 75 °F ambient and 55 % relative humidity.
Need Accessories?

Replacement baskets and other accessories are available—contact us for details.

Features & Specs

Manufacturer

Master-Bilt Products

Brand_name

COLDIN-3

Certifications

cETLus, ETL-Sanitation

Height

33.0in

Width

70.88in

Depth

27.38in

Shipping Weight

330.0lbs

Capacity

15 - 20 cu ft capacity

Door Type

glass door(s)

Exterior Finish

all white exterior

Door Style

sliding

Width (side - side)

61 - 72"

Specifications

COLDIN-3™ Display Freezer, 20.0 gross cu. ft. (15.9 net cu. ft.), flat tempered glass sliding lids, (5) standard baskets with integrated dividers, external analog thermometer and lock, white zinc-coated enamel steel exterior, painted white steel interior with LED lighting, defrost water drain, temperature range -18° to 10°F (-27° to -12° C), self-contained refrigeration, heavy duty 2" casters, R290 Hydrocarbon refrigerant, 2/3 hp, 115v/60/1-ph, 4.1 amps, 6-1/2' cord, NEMA 5-15P, cETLus, ETL-Sanitation
