Master-Bilt 1-Section Ice Cream Hardening & Holding Cabinet, 20 x 3-Gallon Can Capacity, Self-Contained R290, 115V

SKU: IHC-27
$11,556.86
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Home Chef Master-Bilt Products New Arrivals Residential Glassware & Bar Residential Tabletop & Serving

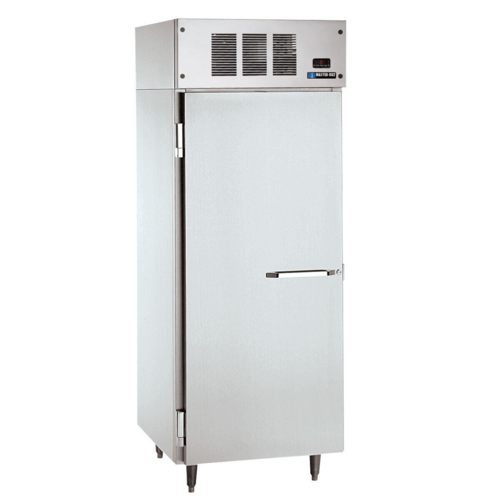

Master-Bilt 1-Section Ice Cream Hardening & Holding Cabinet, 20 x 3-Gallon Can Capacity, Self-Contained R290, 115V

Stainless Steel Exterior, Anodized Aluminum Interior, Adjustable Legs

Built to harden and hold ice cream efficiently, this self-contained cabinet combines durable stainless construction, high-capacity storage, and R290 refrigeration.

  • Designed for ice cream hardening and holding in a compact one-section cabinet.
  • Stores up to 20 three-gallon cans for high-capacity product storage.
  • 2-inch foamed-in-place outer door and insulated inner doors help maintain temperature.
  • Self-contained R290 refrigeration supports efficient, modern cooling performance.
  • Includes four heavy-duty welded wire cantilever shelves for organized storage.
  • Stainless steel exterior and anodized aluminum interior are built for long-lasting use.

Overall Dimensions:

31.0"W x 36.0"D x 82.0"H

Product Weight:

590.0 lb

Ice Cream Hardening & Holding Application

Purpose-built cabinet for hardening and holding ice cream products.

20 Can Storage Capacity

Accommodates up to twenty 3-gallon cans for high-volume storage.

Foamed-In-Place Outer Door

2-inch thick insulated outer door helps reduce heat transfer and maintain cabinet temperatures.

Insulated Inner Doors With Magnetic Catches

Two staggered-height inner doors improve access and help maintain a secure seal.

Heavy-Duty Cantilever Shelves

Four welded wire shelves with gray epoxy coating provide durable, organized storage.

Self-Contained R290 Refrigeration

Integrated refrigeration system uses R290 refrigerant for efficient cooling.

Durable Cabinet Construction

Stainless steel exterior and anodized aluminum interior are designed for commercial durability and easy cleaning.

Adjustable Legs

Allows the cabinet to be leveled during installation.

Type Ice Cream Hardening & Holding Cabinet
Style One-Section
Installation Type Floor Model
Capacity 20 3-Gallon Cans
Refrigeration Type Self-Contained
Refrigerant Type R290
Material Stainless Steel
Interior Finish Anodized Aluminum
Finish Stainless Steel
Horsepower 5/6 HP
Voltage 115 Volts
Amps 5.5 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Shipping Width 31 Inches
Shipping Depth 36 Inches
Shipping Height 82 Inches
Shipping Weight 590 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Brochure PDF Download

Frequently Asked Questions

It holds up to 20 three-gallon cans.
Yes, this cabinet uses self-contained refrigeration.
It uses R290 refrigerant.
It requires 115V, 60 Hz, single-phase power and comes with a NEMA 5-15P plug.
It has a stainless steel exterior and an anodized aluminum interior.
It includes four heavy-duty welded wire gray epoxy-coated cantilever shelves.
