Key specifications
- Amps
- 7.2 Amps
- Phase
- 1-Phase
- Dimensions
- 90.25"W × 27.5"D × 50.0"H
- Type
- Ice Cream Freezer
- Style
- Low-Glass
- Installation Type
- Floor Model
Spec sheet

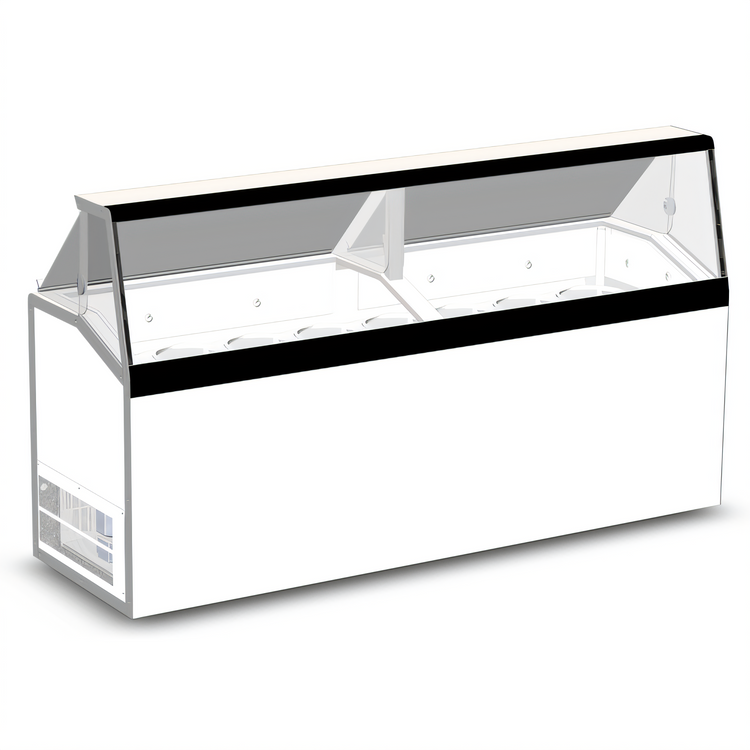

Master-Bilt DD-88L Low-Glass Ice Cream Dipping/Display Freezer, 16 Display and 12 Storage 3-Gallon Tubs, 115V
- Low Curved Glass
- Low Glass
- Straight Glass
Questions before you buy?
Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.
Specifications
Description
Master-Bilt DD-88L is a low-glass ice cream dipping and display freezer with capacity for 16 display and 12 storage 3-gallon tubs.
It features a painted galvanized steel interior and exterior, a stainless steel serving deck, glass view windows, and LED interior lighting with an independent switch. The specified temperature range is -5°F to 5°F.
- 115 Volts, 7.2 Amps, 60 Hz, single phase
- NEMA 5-15P plug with 10-foot cord
- R290 refrigerant and cold wall evaporator
- cULus and UL EPH Classified
Overall Dimensions:
90.25"W x 27.5"D x 50.0"HProduct Weight:

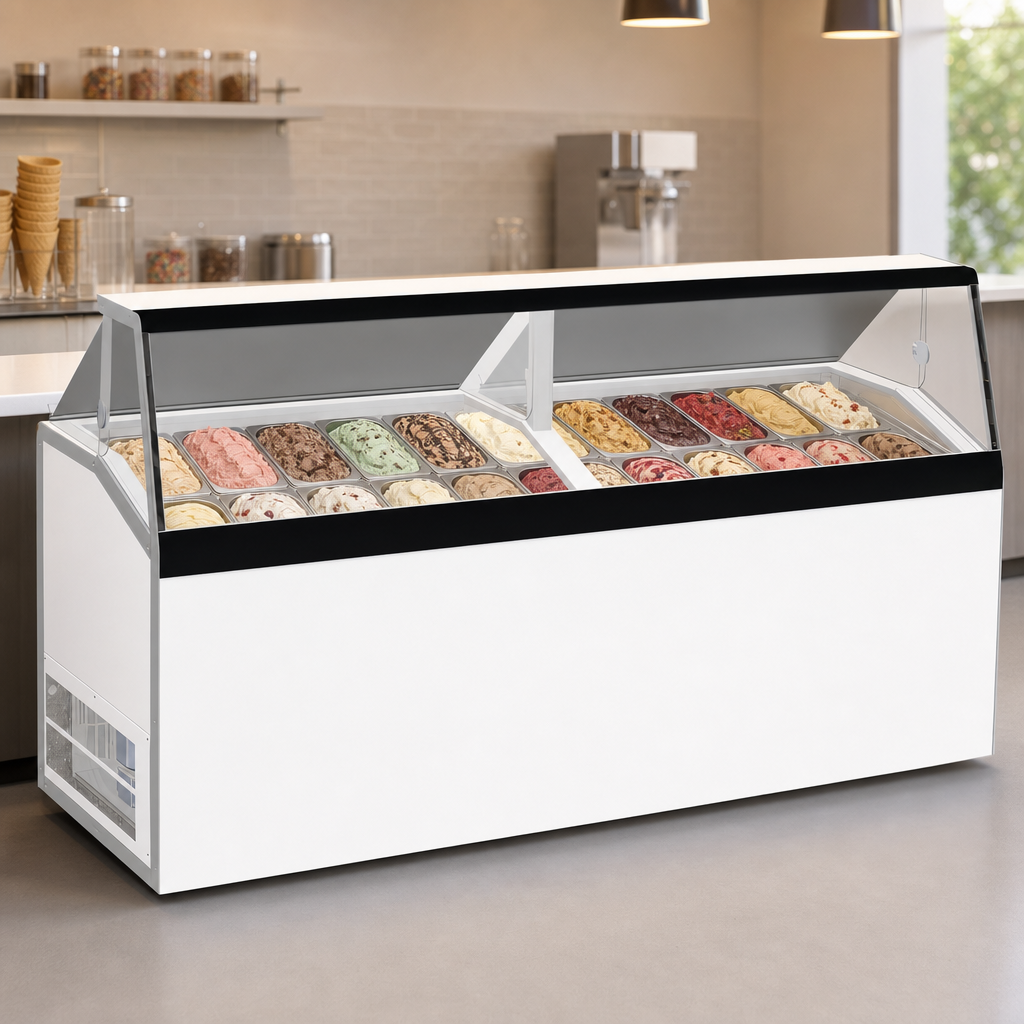

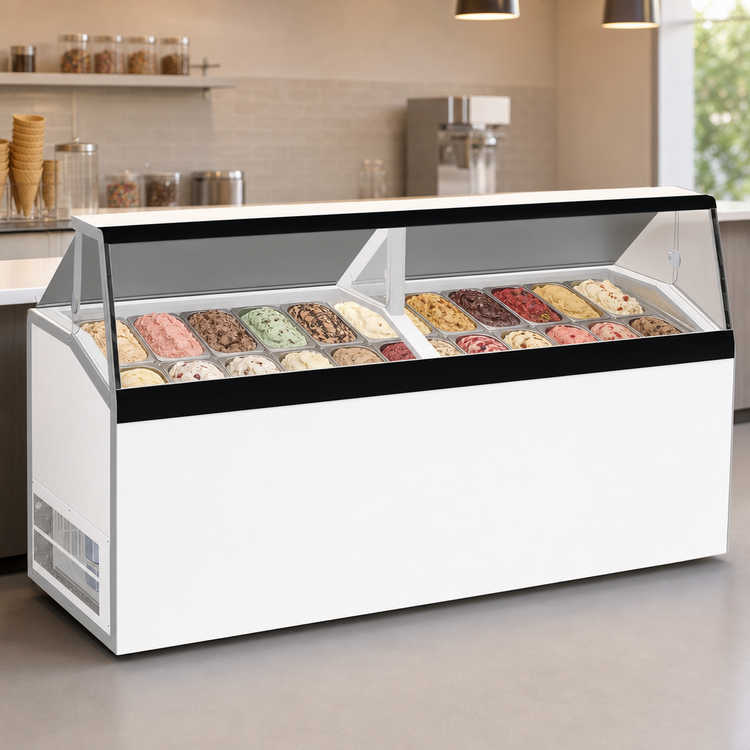

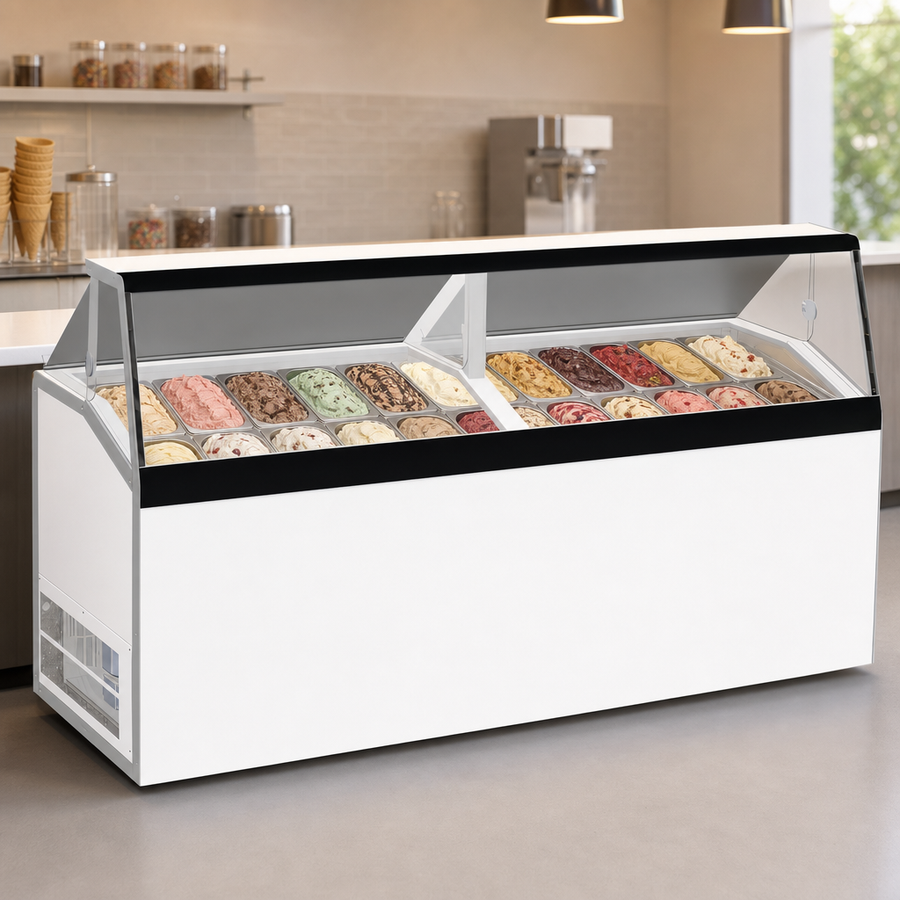

660.0 lbLow-Glass Display
The low-glass top and glass view windows support visibility for ice cream dipping and display.

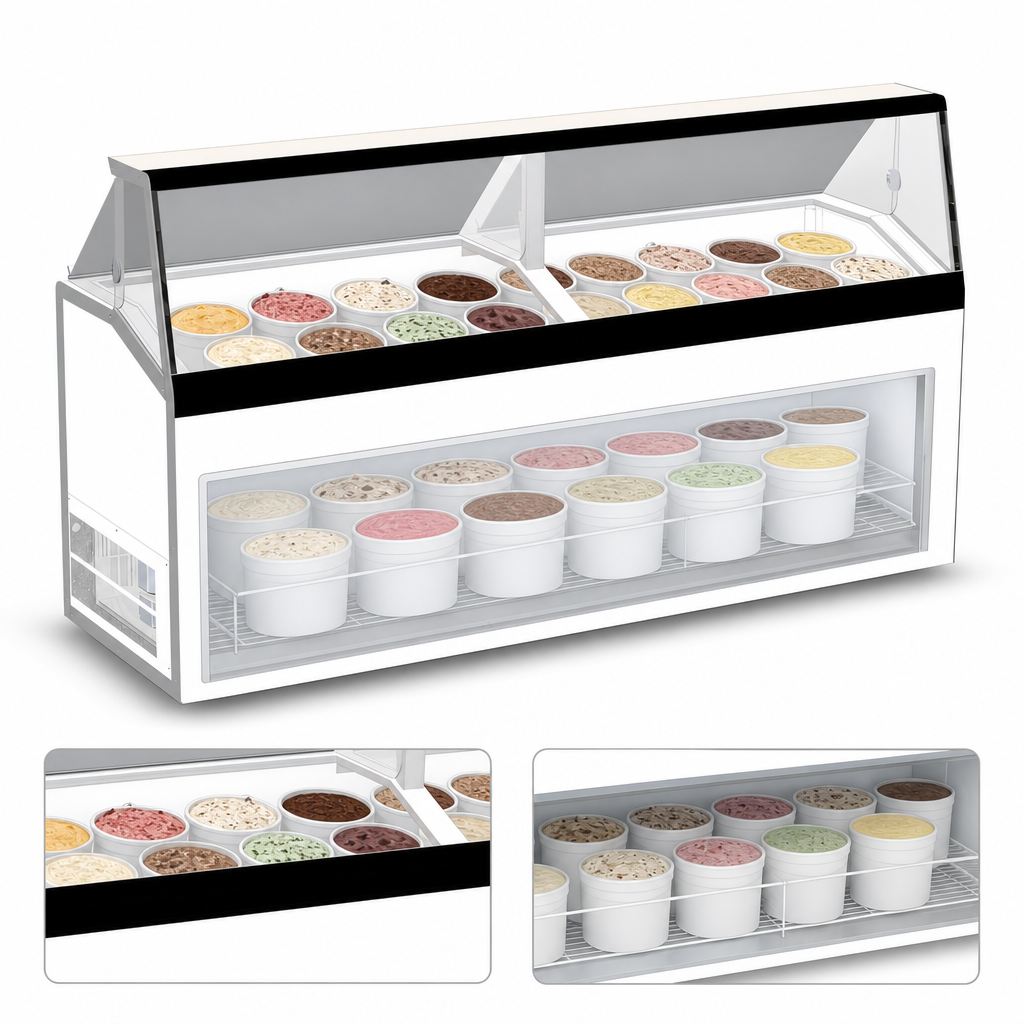

Tub Capacity
Provides 16 display and 12 storage positions for 3-gallon tubs.
Cabinet Construction
The interior and exterior use painted galvanized steel, with a stainless steel top and serving deck.
LED Interior Lighting
LED interior lighting is controlled by an independent on/off switch.
Temperature Control
The specified operating temperature range is -5°F to 5°F, maintained by a standard electronic controller.
Refrigeration System
Uses a cold wall evaporator and R290 refrigerant.
Electrical Connection
Operates at 115 Volts, 7.2 Amps, 60 Hz, single phase, with a NEMA 5-15P plug.
