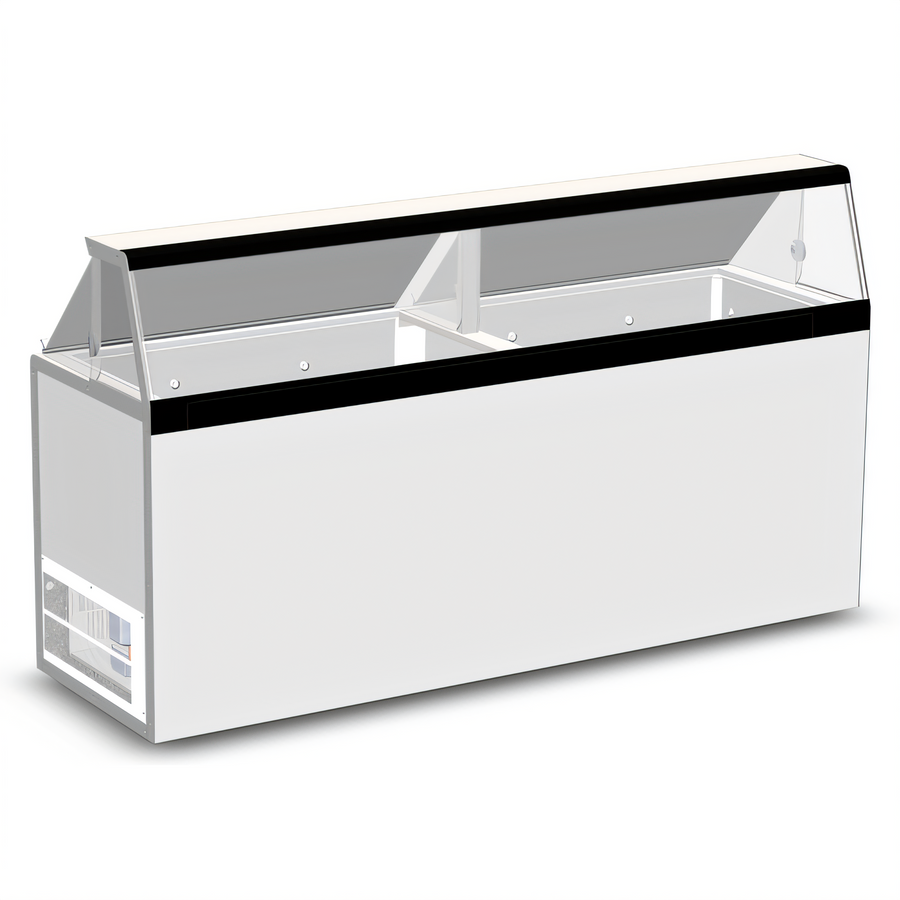

Master-Bilt DD-88 Standard Ice Cream Dipping/Display Cabinet with 16 Display and 12 Storage 3-Gallon Tubs

90.25 Inches Wide, 115V, 5/6 HP, R290

Display and store multiple flavors in a high-visibility freezer built for dependable frozen holding and easy daily service.

  • Holds up to 16 display tubs and 12 storage tubs using 3-gallon tubs.
  • Frameless tempered glass viewing windows and tempered glass ends maximize product visibility.
  • LED interior lighting with an independent switch helps showcase flavors.
  • Stainless steel serving deck and rounded rear heated top improve operator comfort.
  • R290 refrigeration and electronic temperature control help maintain 5°F to -5°F.
  • Leveling legs, a drain connection, and rear/side air discharge simplify setup and service.

Overall Dimensions:

90.25"W x 27.5"D x 50.0"H

Product Weight:

660.0 lb

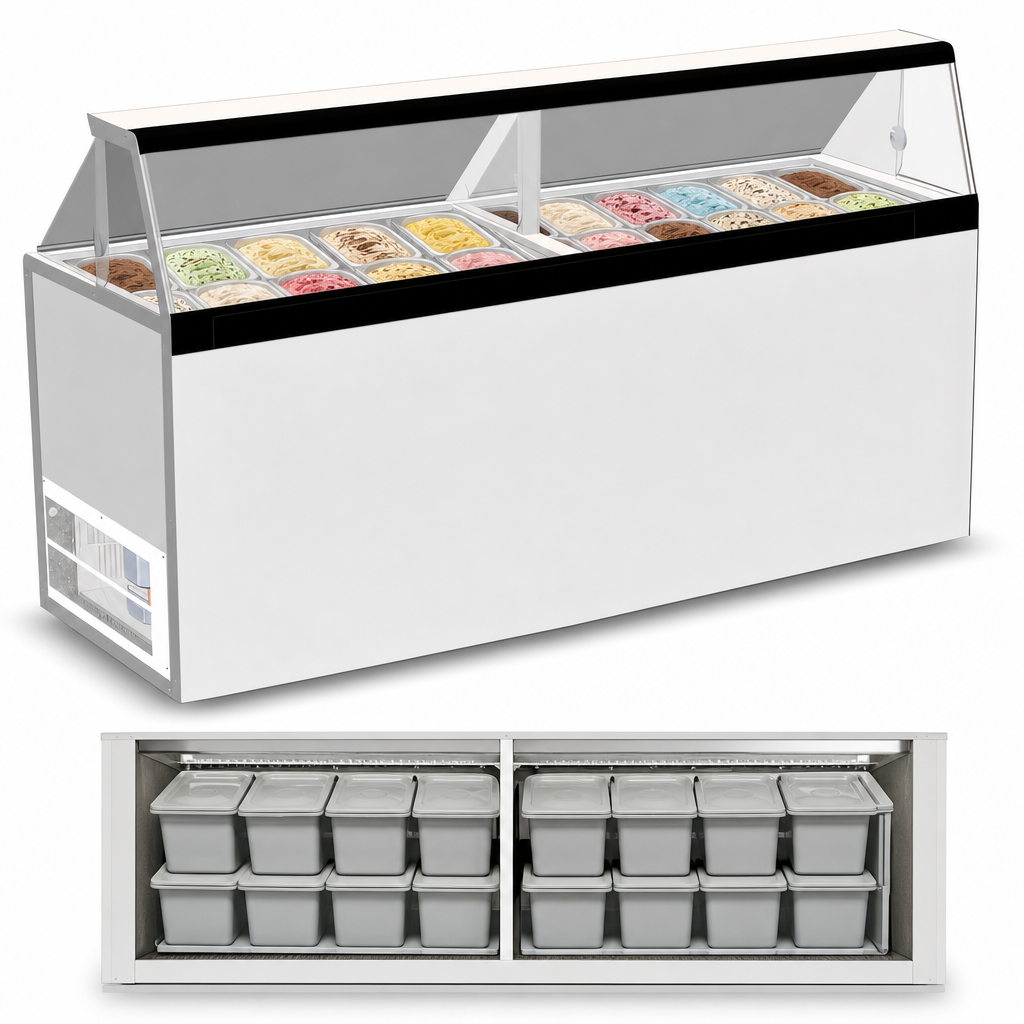

16 Display / 12 Storage Tub Capacity

Accommodates sixteen 3-gallon display tubs and twelve 3-gallon storage tubs.

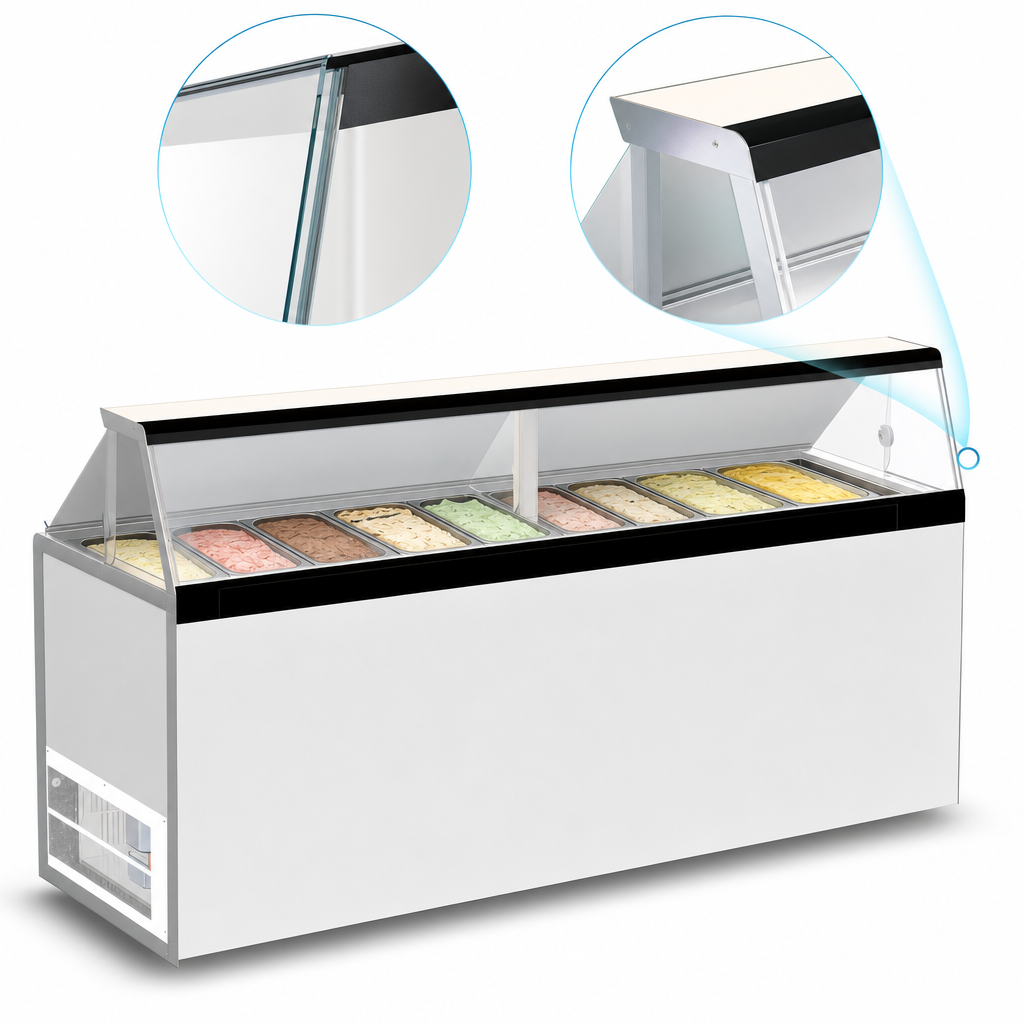

Frameless Tempered Glass Viewing Area

Double-pane tempered glass with aluminum trims improves visibility and cabinet stability.

LED Interior Lighting

Energy-efficient interior lighting with an independent on/off switch highlights product presentation.

Stainless Steel Serving Deck

A stainless steel serving deck and rounded rear heated top support durable, comfortable service.

Electronic Temperature Control

Standard electronic controller helps maintain consistent cabinet temperatures.

R290 Cold Wall Refrigeration

Eco-friendly R290 refrigerant and a cold wall evaporator support efficient frozen holding.

Easy-Service Airflow Design

Rear air intake with side and rear discharge eliminates the front grille and improves service access.

Leveling Legs And Cleanout Drain

Leveling legs help correct uneven floors, and the drain uses a standard garden hose connection.

Insulated Cabinet Construction

3-inch walls and a 2.5-inch floor with foamed-in-place urethane insulation improve energy efficiency.

Transparent Acrylic Lid Design

Hinged, high-tensile acrylic lids with full-length handles provide easy product access.

Type Ice Cream Dipping/Display Merchandiser
Style Standard
Installation Type Floor Model
Capacity 16 Display / 12 Storage 3-Gallon Tubs
Controls Electronic
Temperature Range 5 to -5 °F
Refrigeration Type Cold Wall
Refrigerant Type R290
Horsepower 5/6 HP
Voltage 115 Volts
Amps 7.2 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 10 Feet
Material Steel
Finish Painted Textured
Color White
Drain Connection Required
Drain Connection Size Standard Garden Hose Connection
Shipping Width 104 Inches
Shipping Depth 40 Inches
Shipping Height 60 Inches
Shipping Weight 660 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

2-year parts and labor, plus 3 additional years on the compressor part.

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Warranty PDF Download

Frequently Asked Questions

It holds 16 display tubs and 12 storage tubs, using 3-gallon tubs.
The cabinet operates from 5°F to -5°F.
It uses 115V/60/1-phase power, draws 7.2 amps, and comes with a NEMA 5-15P plug.
It uses R290 refrigerant.
Yes, it includes energy-efficient LED interior lighting with an independent on/off switch.
It includes a standard limited two-year parts and labor warranty, plus an additional three years of coverage on the compressor part.
