Key specifications
- Amps
- 7.2 Amps
- Phase
- 1-Phase
- Dimensions
- 69.25"W × 27.5"D × 50.0"H
- Type
- Ice Cream Freezer
- Style
- Dipping/Display
- Installation Type
- Floor Model
Spec sheet
Master-Bilt DD-66 Ice Cream Dipping/Display Freezer, Slanted Glass, 12 x 3-Gallon Display and 8 x 3-Gallon Storage Tubs
- Low Curved Glass
- Low Glass
- Straight Glass
Questions before you buy?
Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.
Specifications
Description
Master-Bilt DD-66 ice cream dipping/display freezer provides space for 12 3-gallon display tubs and 8 3-gallon storage tubs.
The cabinet features slanted glass display windows, LED interior lighting with an independent on/off switch, and a stainless steel serving deck. Its interior and exterior are constructed from painted galvanized steel.
- Temperature range of 5°F to -5°F
- 115-volt, single-phase electrical connection with NEMA 5-15P plug
- R290 refrigerant and cold wall evaporator
- Leveling legs and a garden hose drain connection
Overall Dimensions:
69.25"W x 27.5"D x 50.0"HProduct Weight:

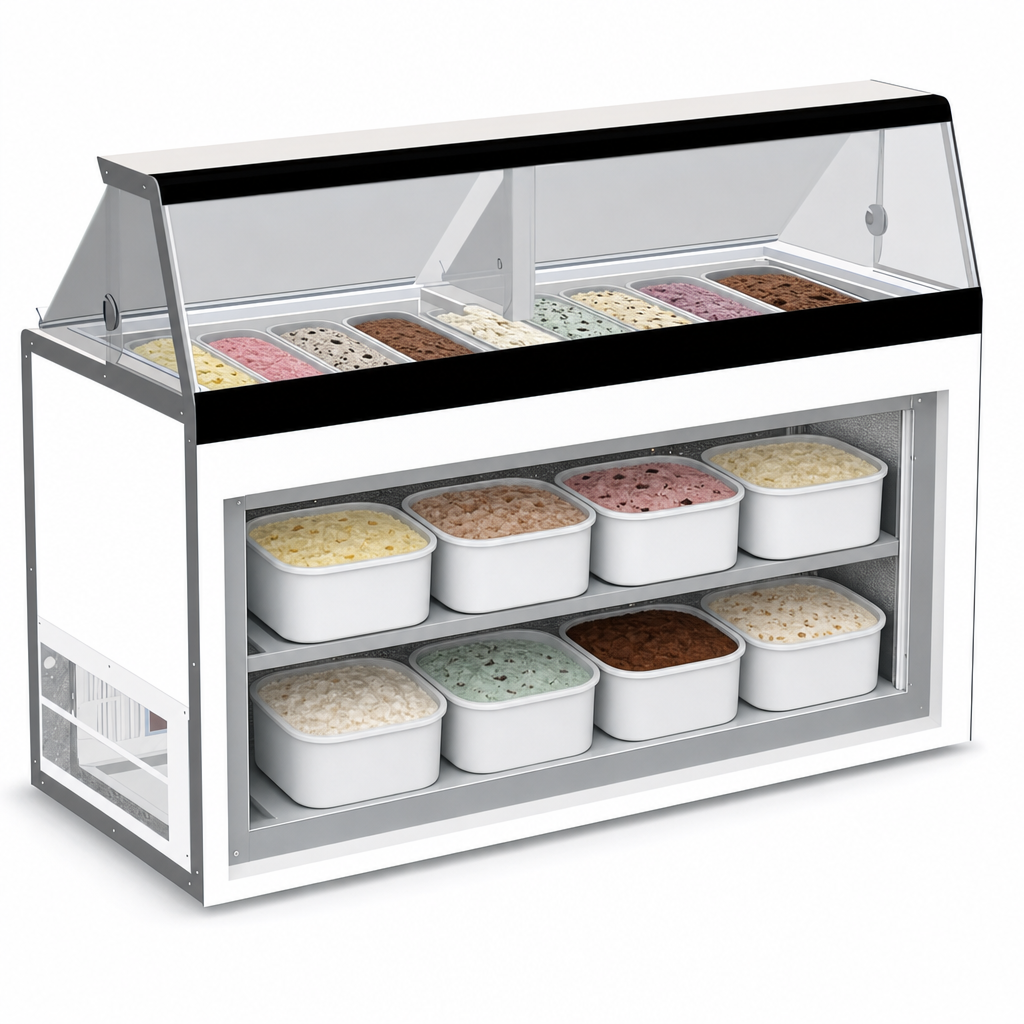

545.0 lbDisplay and Storage Capacity
Holds 12 3-gallon display tubs and 8 3-gallon storage tubs.

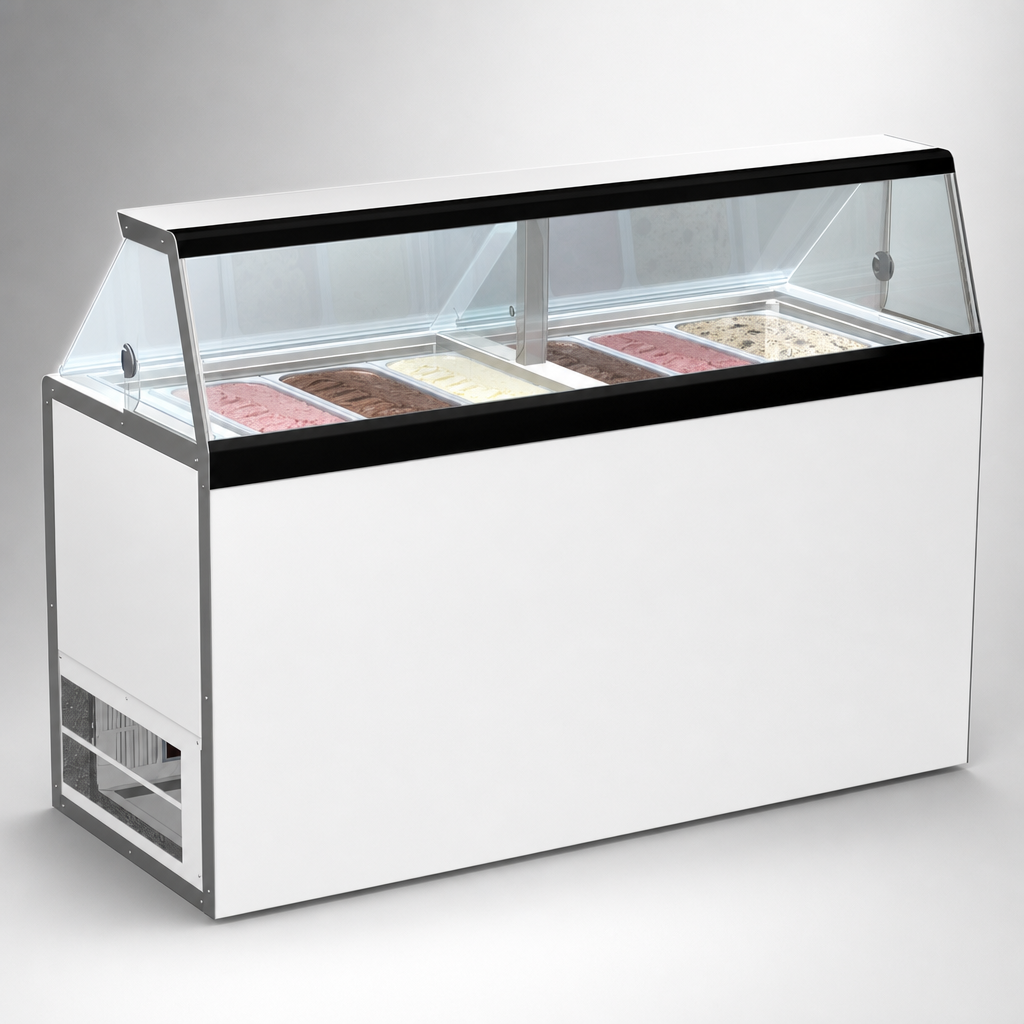

Slanted Glass Display
Slanted glass provides visibility of the display area; the series documentation specifies frameless double-pane tempered viewing glass and tempered glass ends.
LED Interior Lighting
LED interior lighting is controlled by an independent on/off switch.
Stainless Steel Serving Deck
Includes a 50-inch stainless steel serving deck.
Temperature Control
Maintains a temperature range of 5°F to -5°F with a standard electronic controller.
Refrigeration System
Uses R290 refrigerant with a cold wall evaporator and a 5/6 HP condensing unit.
Cabinet Construction
Painted galvanized steel interior and exterior with stainless steel top and serving deck.
Service Features
Includes leveling legs and a drain with a standard garden hose connection.
