Key specifications
- Amps
- 5.9 Amps
- Phase
- 1-Phase
- Dimensions
- 27.25"W × 27.5"D × 50.0"H
- Type
- Dipping Cabinet
- Style
- Low-Glass
- Installation Type
- Floor Model
Spec sheet
Master-Bilt DD-26L Low-Glass Ice Cream Dipping/Display Cabinet, 4 x 3-Gallon Tub Capacity, White, LED Lighting, 115V
- Low Curved Glass
- Low Glass
- Straight Glass
Questions before you buy?
Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.
Specifications
Description

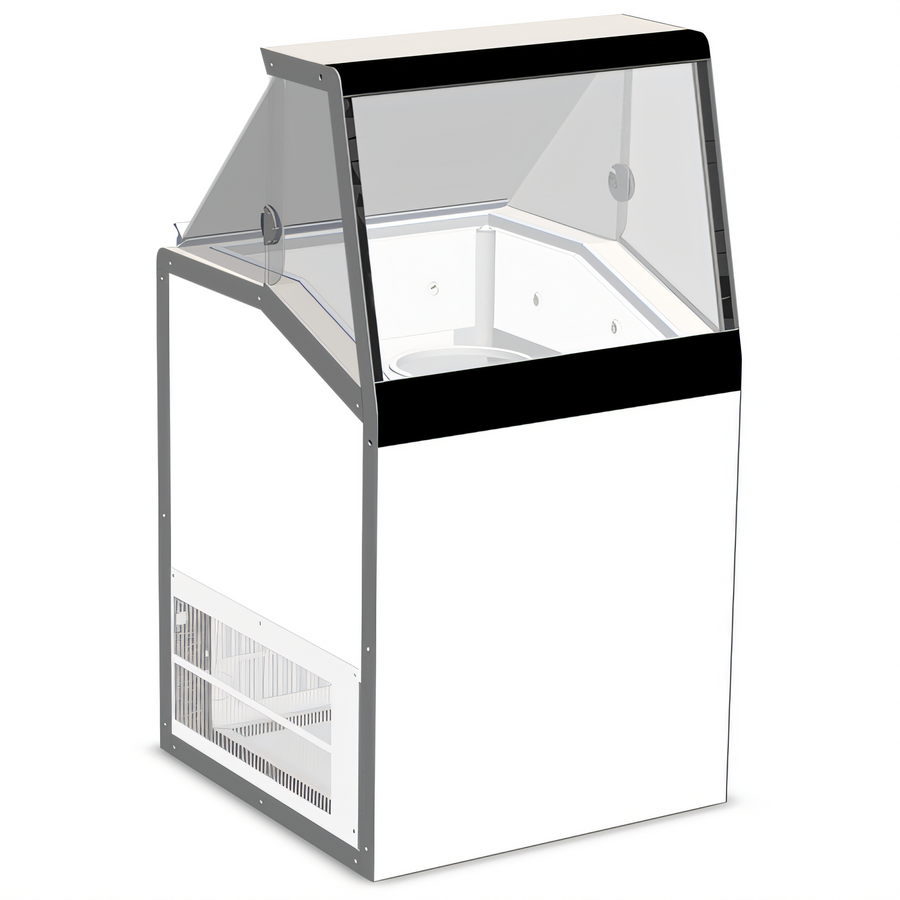

The Master-Bilt DD-26L is a low-glass ice cream dipping and display cabinet with capacity for four 3-gallon display tubs and no storage compartment.
- Painted galvanized steel interior and exterior with a stainless steel top and serving deck.
- Slanted, low-glass display design with tempered viewing glass.
- LED interior lighting with an independent on/off switch.
- Electronic temperature control with a 5°F to -5°F temperature range.
- R290 refrigerant, cold-wall evaporator, and a 3/5 HP condensing unit.
- Operates on 115 Volts, 60 Hz, single phase power with a NEMA 5-15P plug.
Overall Dimensions:
27.25"W x 27.5"D x 50.0"HProduct Weight:

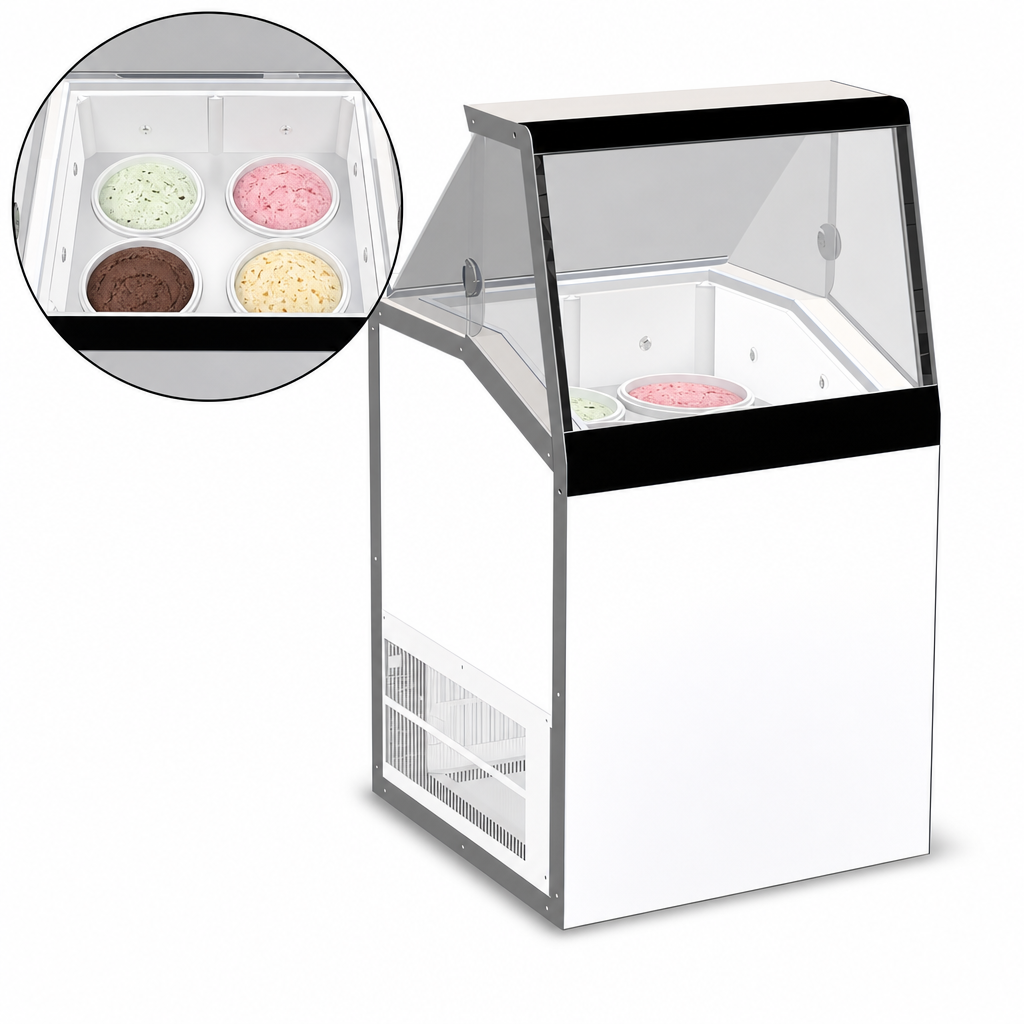

264.0 lbFour-Tub Display Capacity
Provides four display positions for 3-gallon tubs; the DD-26L has no storage compartment.

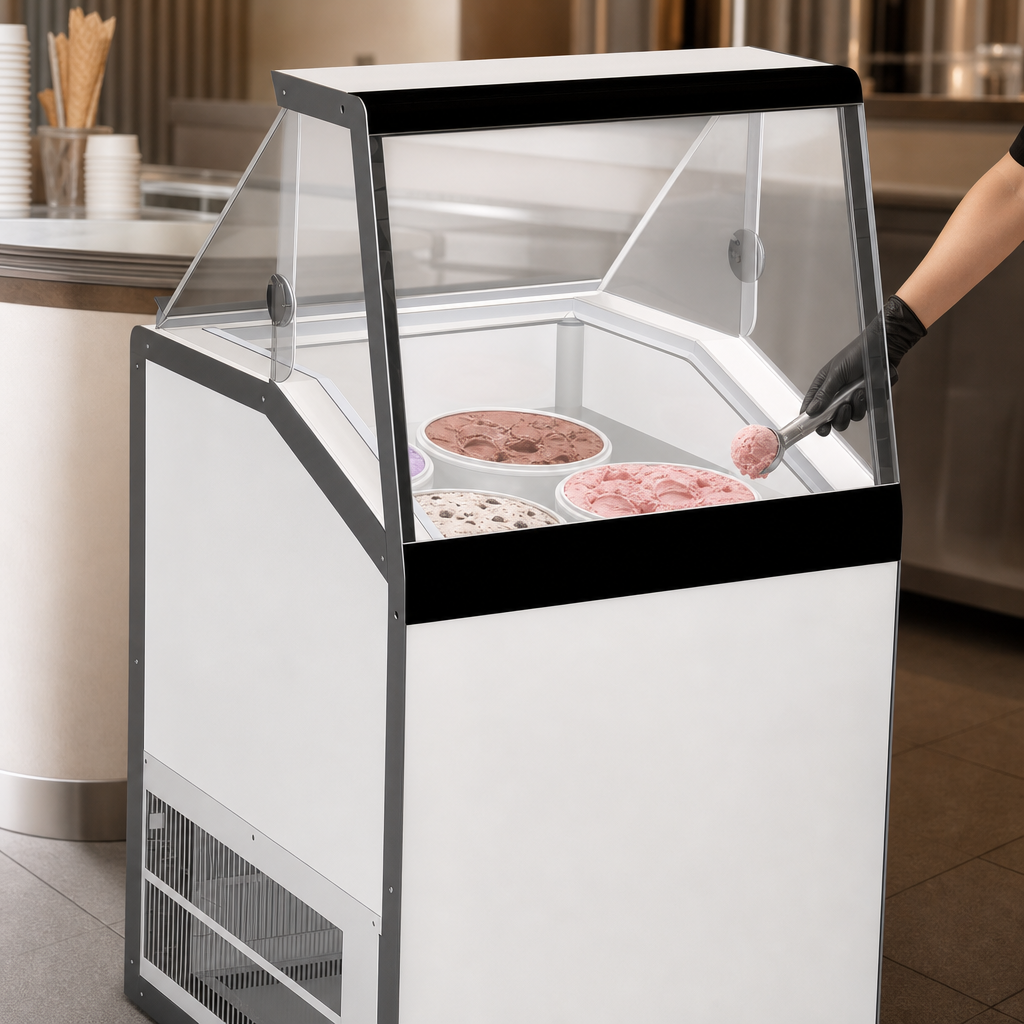

Low-Glass Display
Uses a slanted low-glass top with a frameless double-pane tempered glass viewing window and tempered glass ends.
LED Interior Lighting
Includes LED interior lighting controlled by an independent on/off switch.
Temperature Control
Uses a standard electronic controller to maintain a 5°F to -5°F temperature range.
Stainless Steel Serving Deck
Features a stainless steel top and attached stainless steel serving deck.
Refrigeration System
Uses R290 refrigerant, a cold-wall evaporator, and a 3/5 HP condensing unit.
Drain Connection
Includes a drain with a standard garden hose connection.
Electrical Connection
Operates on 115 Volts, 60 Hz, single phase power with a NEMA 5-15P plug and 10-foot cord.
