Key specifications
- Amps
- 3.2 Amps
- Phase
- 1-Phase
- Dimensions
- 54.0"W × 21.13"D × 34.13"H
- Type
- Ice Cream Freezer
- Style
- Chest
- Installation Type
- Floor Model
Spec sheet

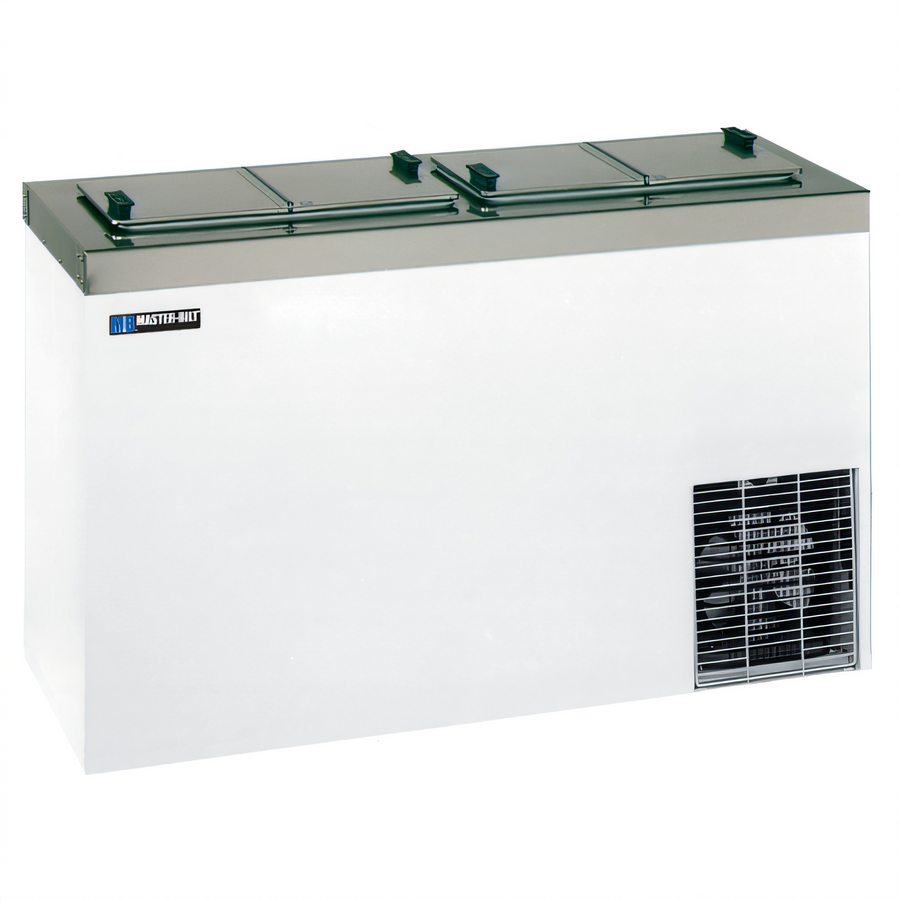

Master-Bilt DC-4S Chest Ice Cream Dipping & Storage Cabinet, 6-Dip/4-Storage 3-Gallon Tub Capacity, Self-Contained, 115V
- Stainless Steel
- White
- 2 Tub
- 6 Tub
Questions before you buy?
Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.
Specifications
Description
Master-Bilt DC-4S is an ice cream dipping and storage cabinet with capacity for six 3-gallon dipping tubs and four 3-gallon storage tubs.
It uses self-contained refrigeration with a cold-wall evaporator, R290 refrigerant, and a 10°F to -10°F temperature range. The cabinet includes a stainless steel top with an anti-condensate heater, flip lid, painted galvanized steel exterior, and galvanized steel interior.
Overall Dimensions:
54.0"W x 21.13"D x 34.13"HProduct Weight:

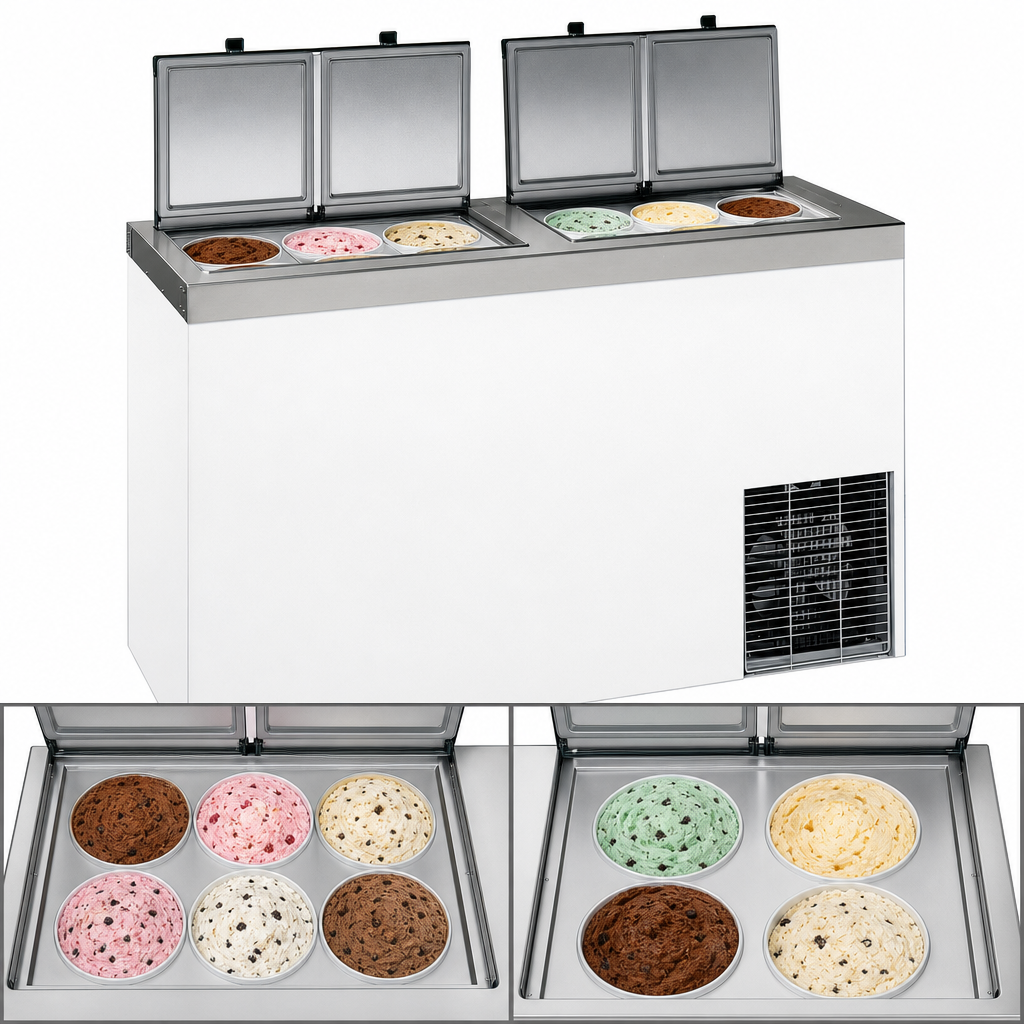

280.0 lbTub capacity
Provides space for six 3-gallon dipping tubs and four 3-gallon storage tubs.

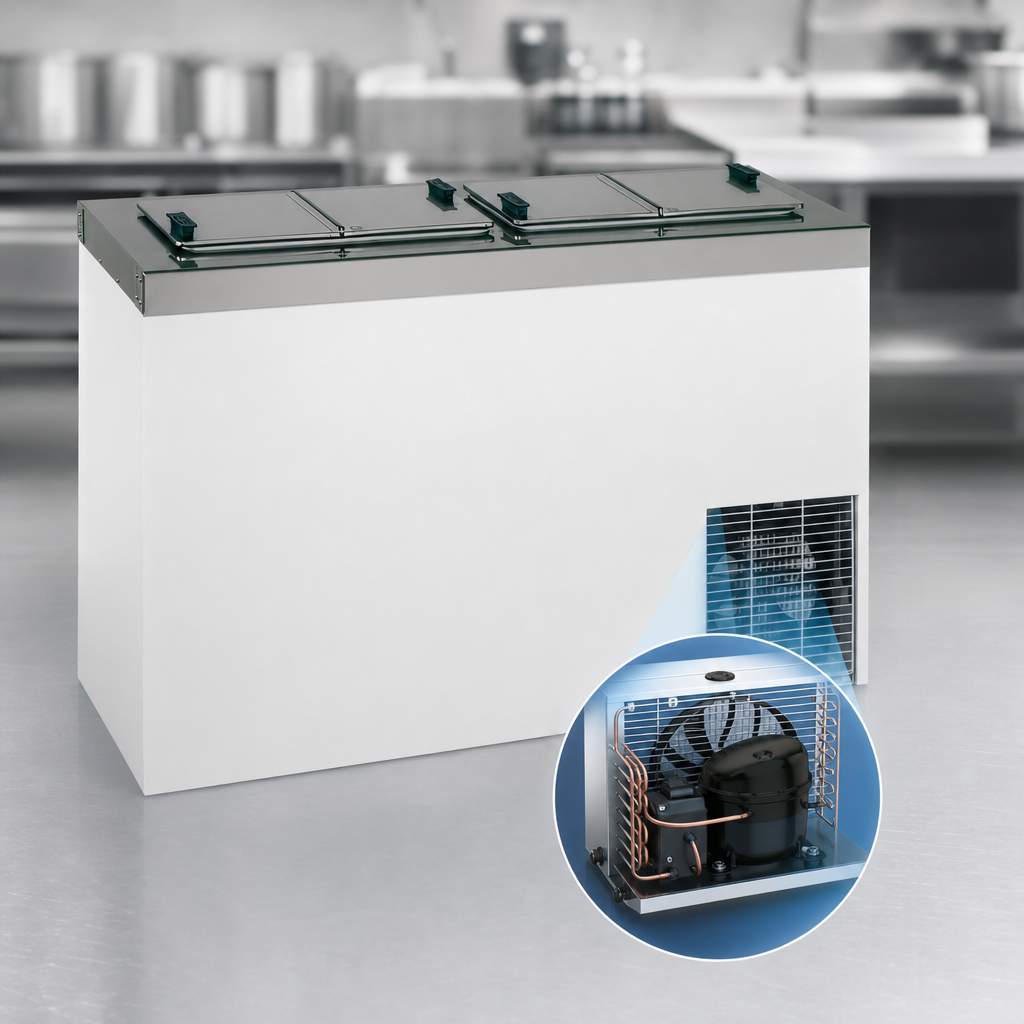

Self-contained refrigeration
Uses a self-contained refrigeration system with a cold-wall evaporator.
Temperature range
Operates from 10°F to -10°F.
Anti-condensate top
The stainless steel top includes an anti-condensate heater.
Cabinet construction
The exterior is painted galvanized steel and the interior is galvanized steel.
Flip lid
Includes a flip lid for access to the cabinet.
Electrical connection
Uses 115 V, 60 Hz, single-phase power at 3.2 amps through a NEMA 5-15P plug.
Refrigerant
Uses R290 refrigerant.
