Master-Bilt DC-4DSE Chest Ice Cream Dipping Cabinet, All-Stainless Exterior, 5 Dip / 2 Storage Tub Capacity

Self-contained R290 refrigeration, cold-wall evaporator, 115V plug-in

A compact, all-stainless dipping cabinet that keeps 5 serving tubs and 2 storage tubs cold and ready for fast ice cream service.

  • Holds 5 working tubs and stores 2 additional 3-gallon tubs.
  • Self-contained, factory-tested refrigeration uses R290 refrigerant and a cold-wall evaporator.
  • Stainless steel exterior and top with anti-condensate heat help manage moisture and wear.
  • Galvanized steel interior is built for durable cold storage.
  • Flip lids with handles and heavy-duty gaskets help preserve cabinet temperature.
  • Plug-in 115V operation with NEMA 5-15P plug and 9-foot cord simplifies installation.

Overall Dimensions:

30.63"W x 30.13"D x 34.13"H

Product Weight:

220.0 lb

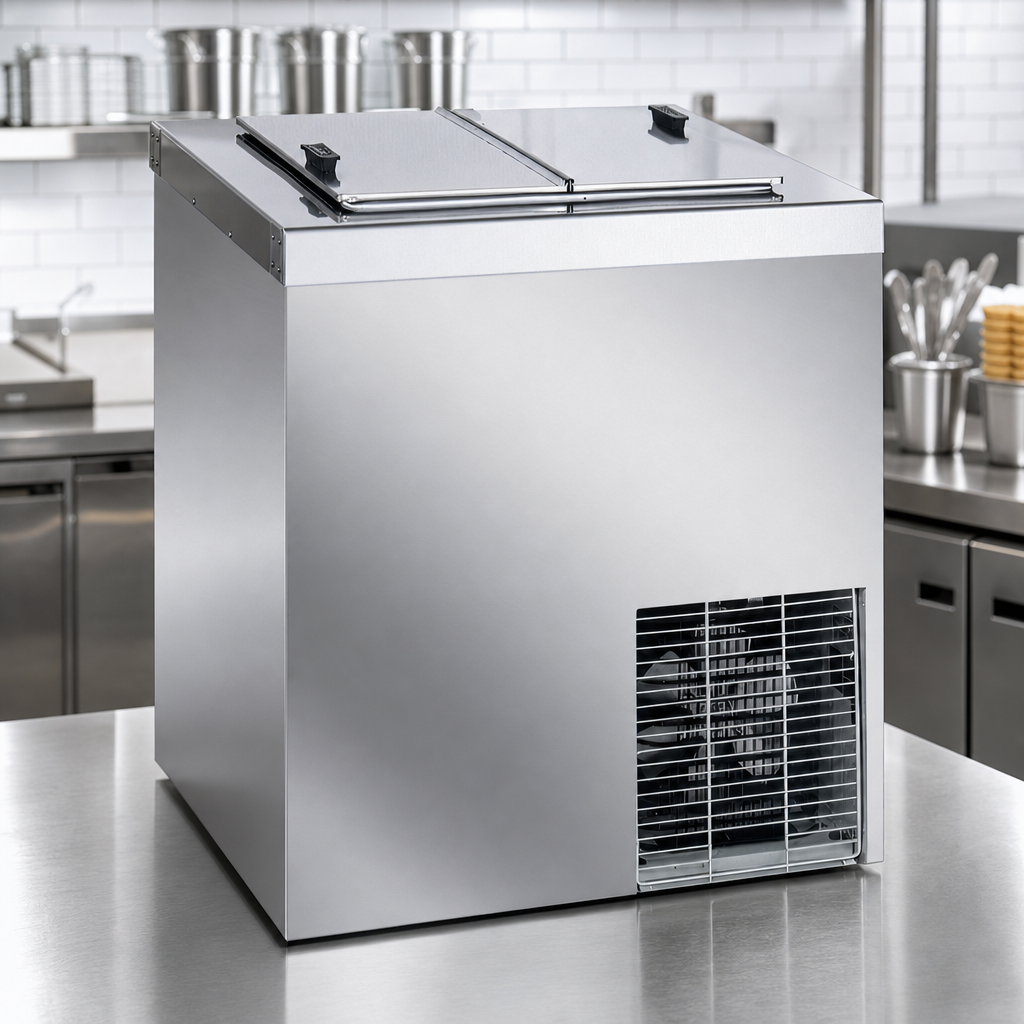

All-Stainless Exterior

Stainless steel exterior cabinet and top provide a durable, easy-to-clean presentation.

All-Stainless Exterior

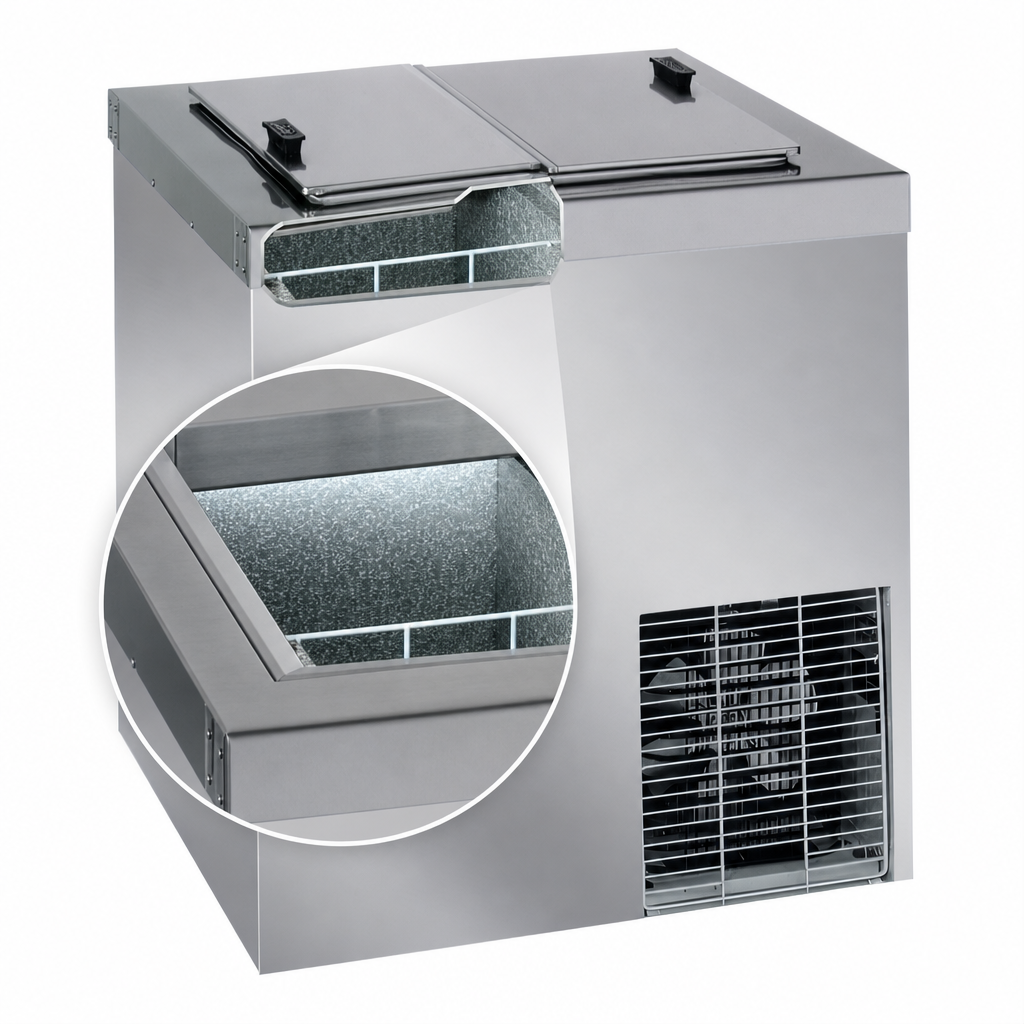

Galvanized Steel Interior

Galvanized steel interior liner is built for cold storage durability.

Galvanized Steel Interior

Cold-Wall Evaporator

Cold-wall evaporator supports even cooling for ice cream storage and dipping.

Anti-Condensate Heated Top

Stainless top with anti-condensate heater helps reduce moisture buildup on the work surface.

Flip Lids with Gasket

Hinged flip lids with handles and replaceable gaskets help retain cold air.

Self-Contained R290 Refrigeration

Factory-tested self-contained refrigeration system uses R290 refrigerant.

Leveling Legs

Standard leveling legs help correct for unlevel flooring.

Floor Drain with Hose Fitting

Built-in drain with garden hose fitting simplifies cleaning and maintenance.

Type Ice Cream Dipping Cabinet
Style Chest
Installation Type Floor Model
Refrigeration Type Self-Contained
Refrigerant Type R290
Finish All Stainless Steel
Material Stainless Steel
Interior Finish Galvanized Steel
Top Working Tub Capacity (5) 3 Gallon Tubs
Tub Storage Capacity (2) 3 Gallon Tubs
Temperature Range -10°F to 10°F
Horsepower 1/4 HP
Voltage 115 Volts
Amps 2.7 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 9 Feet
Shipping Width 31 Inches
Shipping Depth 31 Inches
Shipping Height 35 Inches
Shipping Weight 220 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

2-year parts and labor, plus 3-year compressor part coverage

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Lid lock installation manual PDF Download PDF Owner's manual PDF Download PDF Installation manual PDF Download PDF Warranty PDF Download

Frequently Asked Questions

It dips five 3-gallon tubs and stores two 3-gallon tubs.
The cabinet is designed to operate from -10°F to 10°F.
Yes. It uses a self-contained, factory-tested refrigeration system with a cold-wall evaporator and R290 refrigerant.
It operates on 115V/60/1-phase power, draws 2.7 amps, and includes a 9-foot cord with a NEMA 5-15P plug.
The cabinet has a stainless steel exterior and top with a galvanized steel interior.
Yes. It includes a standard limited two-year parts and labor warranty plus three years of compressor part coverage.
