Master-Bilt DC-4D Chest Ice Cream Dipping Cabinet Freezer, 5 Tub Dip / 2 Tub Storage, 115V
Master-Bilt DC-4D Chest Ice Cream Dipping Cabinet Freezer, 5 Tub Dip / 2 Tub Storage, 115V
Self-Contained, Cold-Wall, R290, Flip-Lid Design
Keep ice cream service-ready with a chest-style dipping cabinet that stores five display tubs, holds two additional tubs, and maintains a 10°F to -10°F temperature range.
- Holds five 3-gallon display tubs and stores two additional 3-gallon tubs.
- Self-contained refrigeration system uses R290 refrigerant and a cold-wall evaporator.
- Maintains product at 10°F to -10°F for consistent dipping performance.
- Seamless stainless steel top includes anti-condensate heaters to help reduce moisture buildup.
- Painted galvanized steel exterior with galvanized steel interior and foamed-in-place insulation.
- 115V, 60Hz, 1-phase operation with a 9-foot cord and NEMA 5-15P plug.
Overall Dimensions:
30.63"W x 30.13"D x 34.13"HProduct Weight:

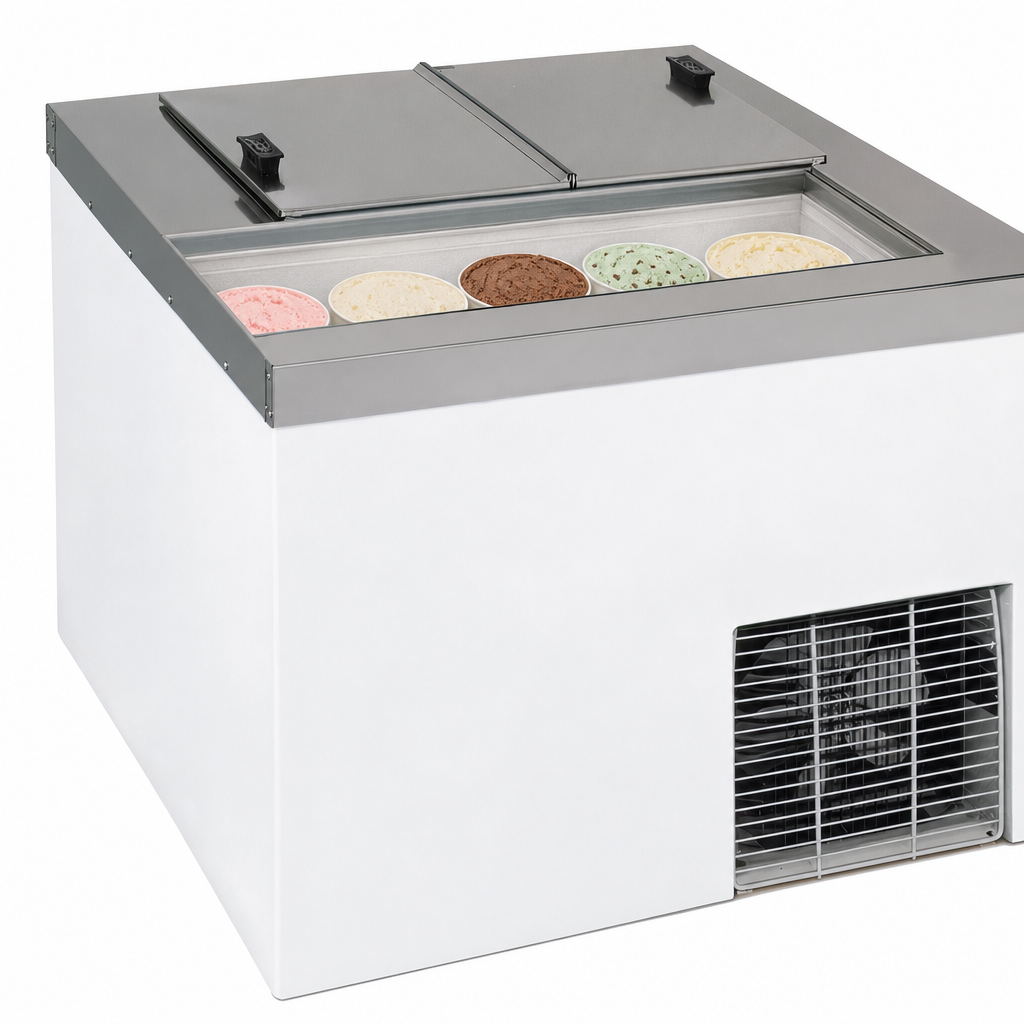

220.0 lbFive Tub Display Capacity
Designed to dip up to five 3-gallon tubs in the top working area.

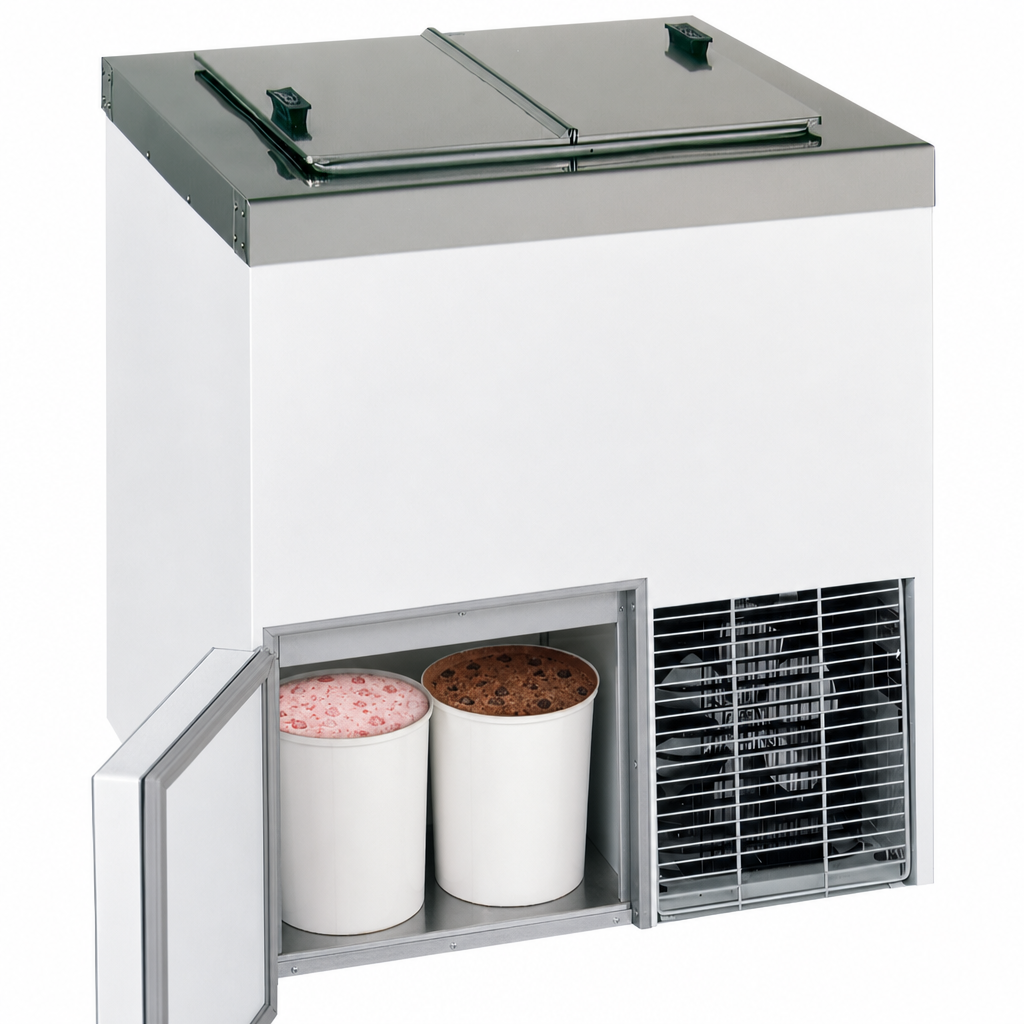

Two Tub Storage Capacity
Provides below-display storage for two additional 3-gallon tubs.
Self-Contained R290 Refrigeration
Factory-tested self-contained refrigeration system uses R290 refrigerant for dependable cooling.
Cold-Wall Evaporator
Cold-wall evaporator helps maintain even cabinet temperatures for ice cream storage and dipping.
Temperature Range
Operates from 10°F to -10°F to help keep product at the proper serving consistency.
Stainless Steel Top with Anti-Condensate Heaters
Seamless stainless steel top is equipped with anti-condensate heaters to help reduce sweating on the cabinet surface.
Painted Galvanized Steel Construction
Cabinet exterior is painted galvanized steel with a galvanized steel interior and inner liner.
Hinged Flip Lids with Handles
Stainless steel lids are hinged, include handles, and use heavy-duty replaceable gaskets.
Foamed-In-Place Urethane Insulation
2-1/4-inch foamed-in-place zero-ODP urethane insulation helps retain cold temperatures.
Leveling Legs and Floor Drain
Standard leveling legs help correct for uneven flooring, and the cabinet includes a floor drain with garden hose fitting.
115V Cord-and-Plug Connection
Ships with a 9-foot flexible 3-wire cord and NEMA 5-15P plug for standard electrical hookup.
Certifications & Compliance
Warranty & Protection
2-year parts and labor plus 3 additional years on compressor part
