Key specifications
- Amps
- 2.1 Amps
- Phase
- 1-Phase
- Dimensions
- 31.88"W × 21.13"D × 34.13"H
- Type
- Dipping Cabinet
- Style
- Conventional
- Installation Type
- Floor Model
Spec sheet

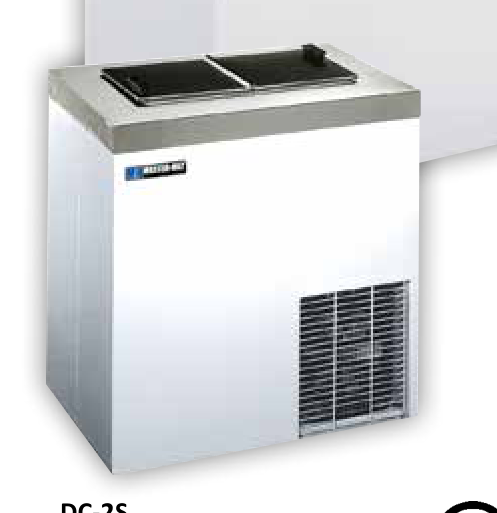

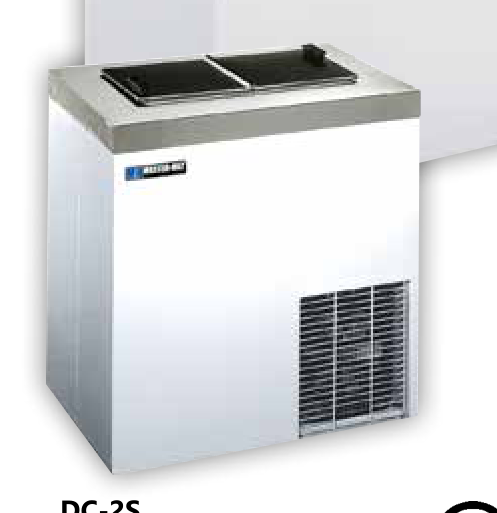

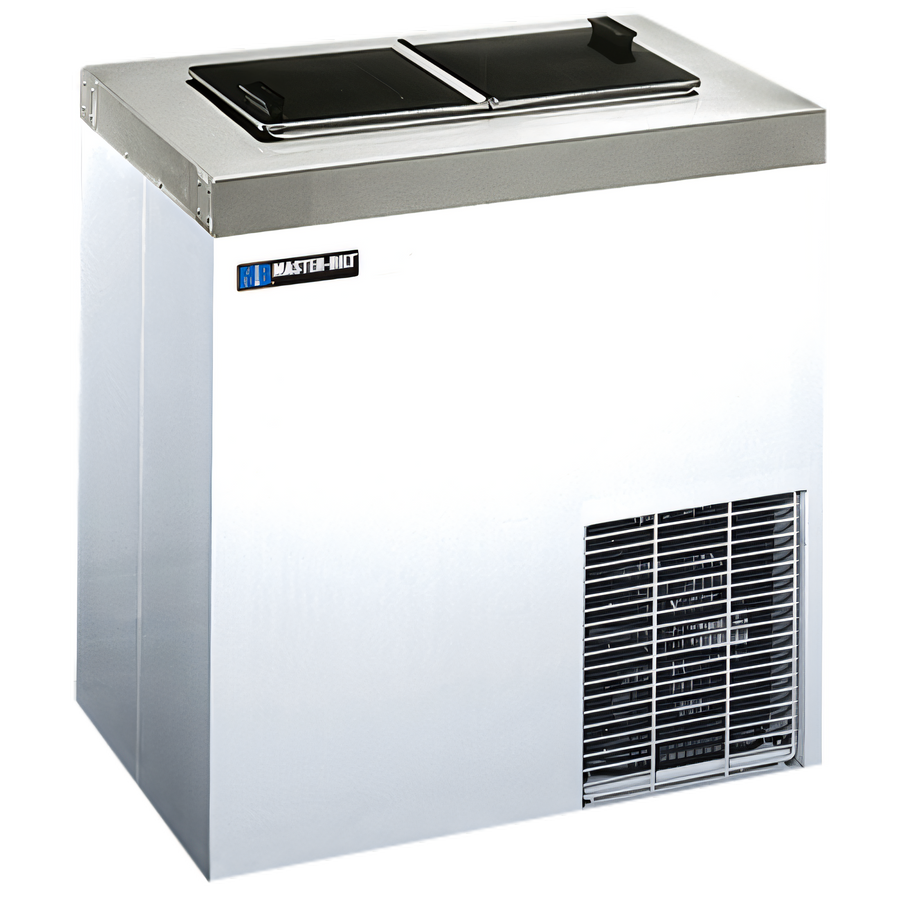

Master-Bilt DC-2S Conventional Chest Ice Cream Dipping Cabinet, 3 Display/1 Storage 3-Gallon Tub Capacity, Self-Contained, 115V
- White
- Stainless Steel
- 2 Tub
- 6 Tub
Questions before you buy?
Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.
Specifications
Description
The Master-Bilt DC-2S conventional dipping cabinet provides space for three 3-gallon display tubs and one 3-gallon storage tub.
It features self-contained refrigeration with a cold-wall evaporator, a painted galvanized steel exterior, galvanized steel interior, a stainless steel top with an anti-condensate heater, and a flip lid. The cabinet operates from 10°F to -10°F on a 115V connection.
- Dimensions: 31.88 in. wide x 21.13 in. deep x 34.13 in. high
- Electrical: 115 Volts, 60 Hz, 1-Phase, 2.1 Amps, NEMA 5-15P plug
Overall Dimensions:
31.88"W x 21.13"D x 34.13"HProduct Weight:
220.0 lbDisplay and Storage Capacity
Accommodates three 3-gallon display tubs and one 3-gallon storage tub.

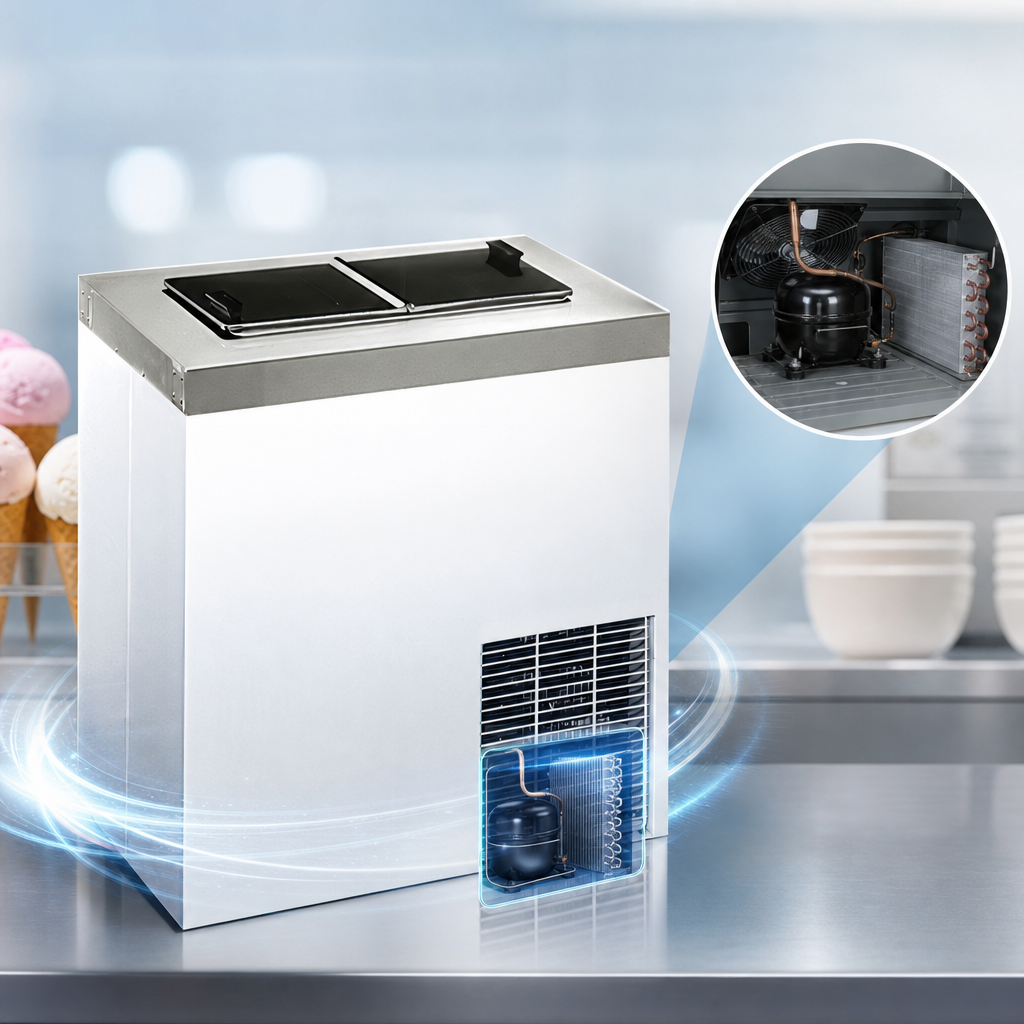

Self-Contained Refrigeration

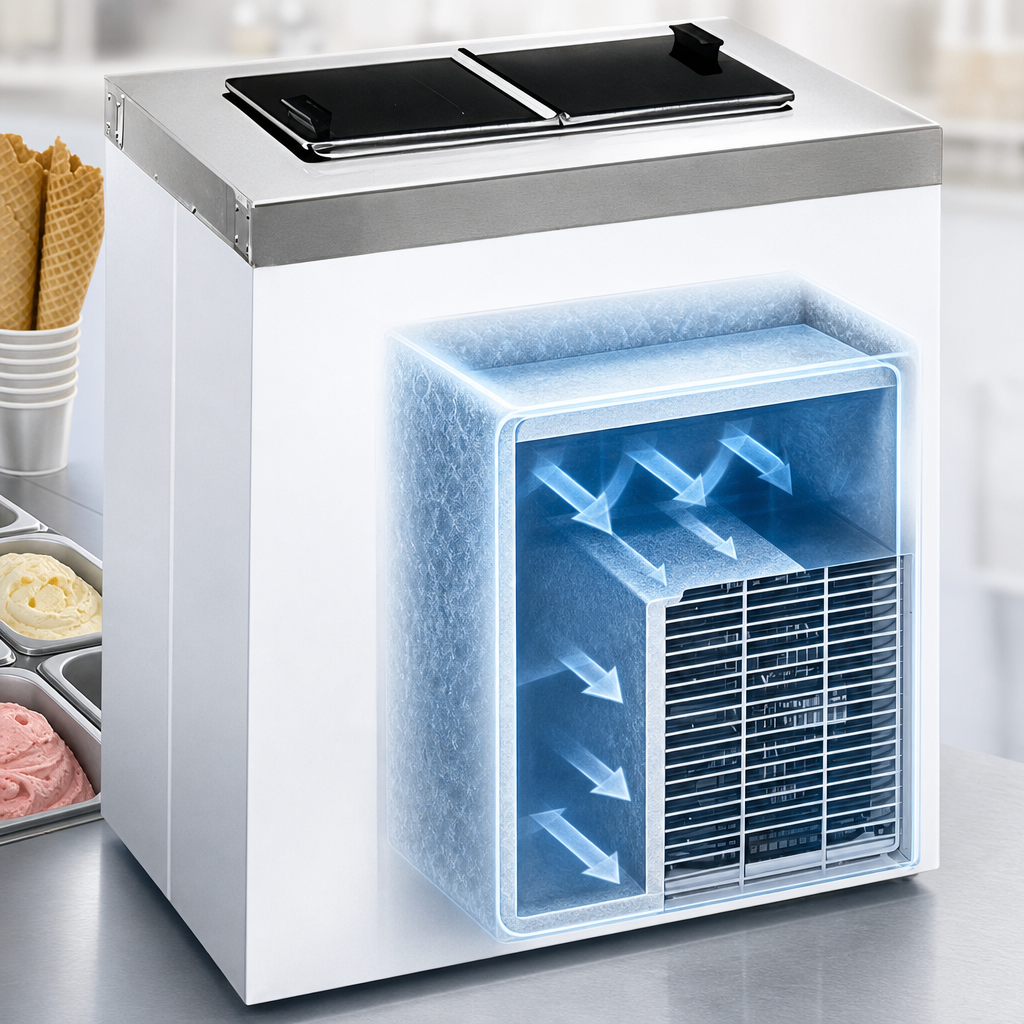

Uses a self-contained refrigeration system with a cold-wall evaporator.
Temperature Range
Maintains a stated temperature range of 10°F to -10°F.
Cabinet Construction
Features a painted galvanized steel exterior and galvanized steel interior.
Stainless Steel Top
Includes a stainless steel top with an anti-condensate heater.
Flip Lid
Equipped with a flip lid.
Electrical Connection
Operates at 115 Volts, 60 Hz, 1-Phase, and 2.1 Amps with a NEMA 5-15P plug and 9-foot cord.
