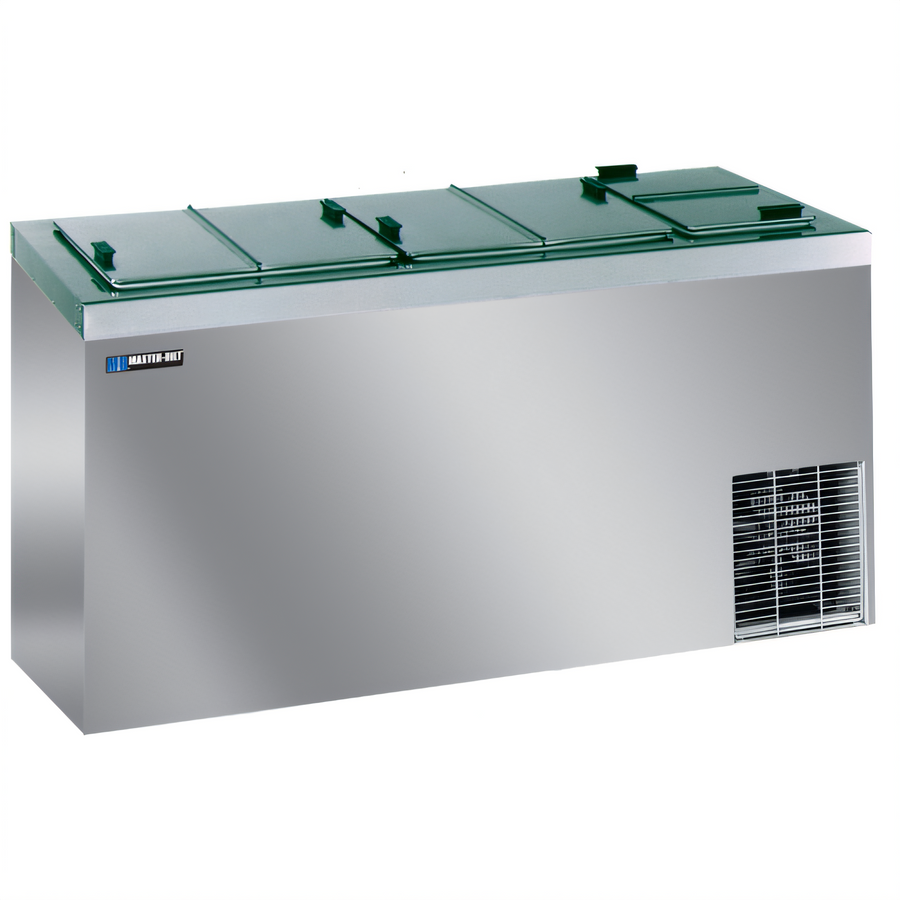

Master-Bilt DC-10DSE Chest-Style Ice Cream Dipping Cabinet, All-Stainless Exterior, 14-Dip / 11-Storage 3-Gallon Tub Capacity

Self-Contained R290 Refrigeration, 115 Volts, 1/3 HP, 10°F to -10°F

Built for high-volume ice cream service, this chest-style dipping cabinet combines 14-tub dipping capacity, 11-tub storage, and an all-stainless exterior with reliable self-contained refrigeration.

  • Dips 14 and stores 11 3-gallon tubs for efficient ice cream service.
  • All-stainless exterior and galvanized steel interior balance durability with easy cleaning.
  • Self-contained cold-wall refrigeration uses R290 refrigerant.
  • Maintains a 10°F to -10°F temperature range for frozen product.
  • Stainless steel top with anti-condensate heater and flip lids helps reduce condensation.
  • 115V operation with a 9-foot cord and NEMA 5-15P plug simplifies installation.

Overall Dimensions:

66.63"W x 30.13"D x 34.13"H

Product Weight:

430.0 lb

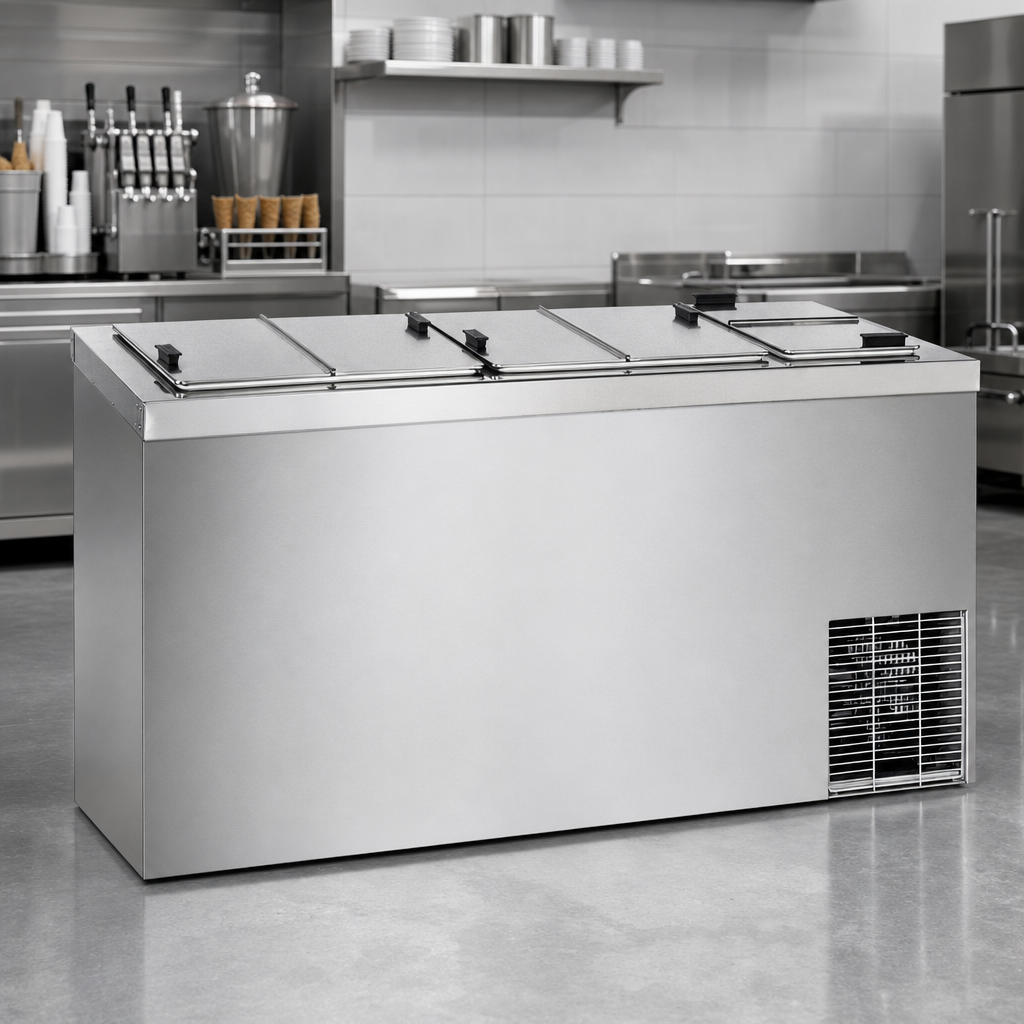

All-Stainless Exterior

The SE configuration adds a stainless steel exterior cabinet for durability and easier cleaning.

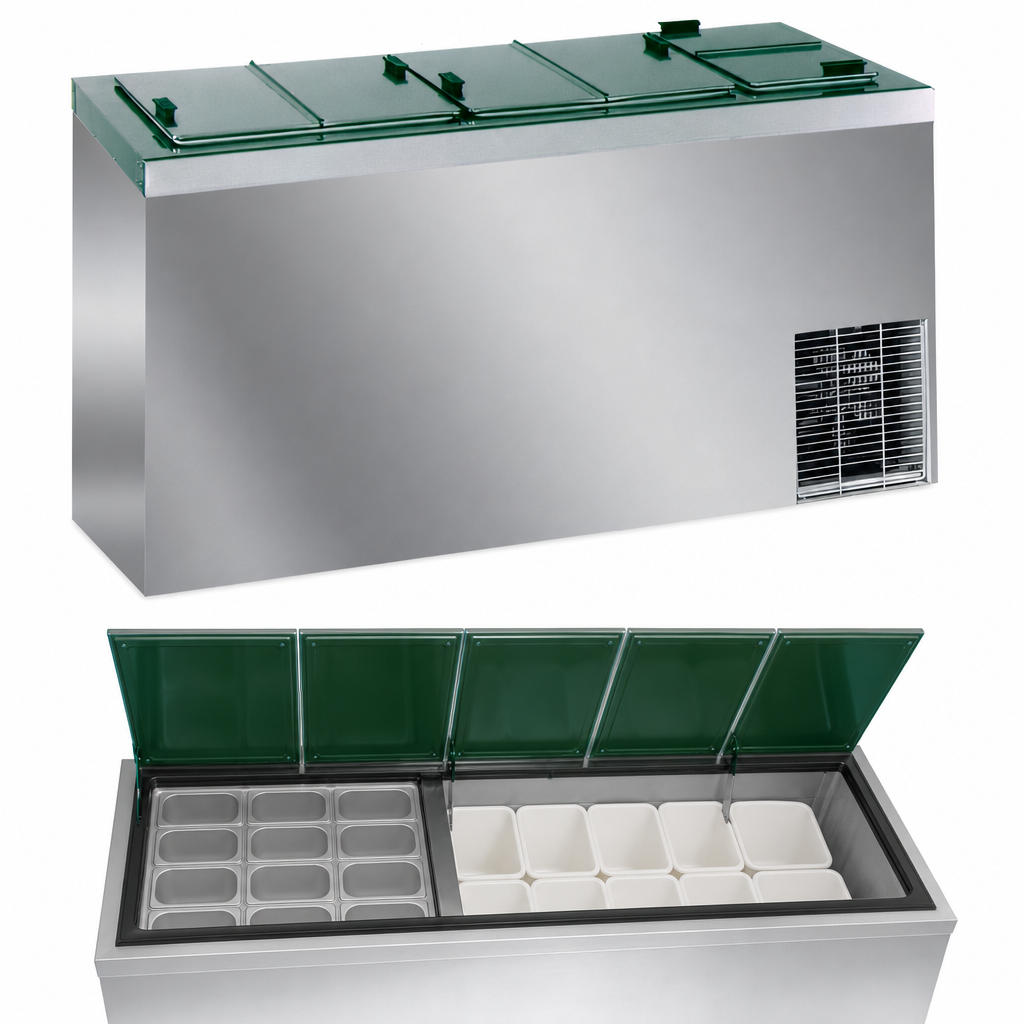

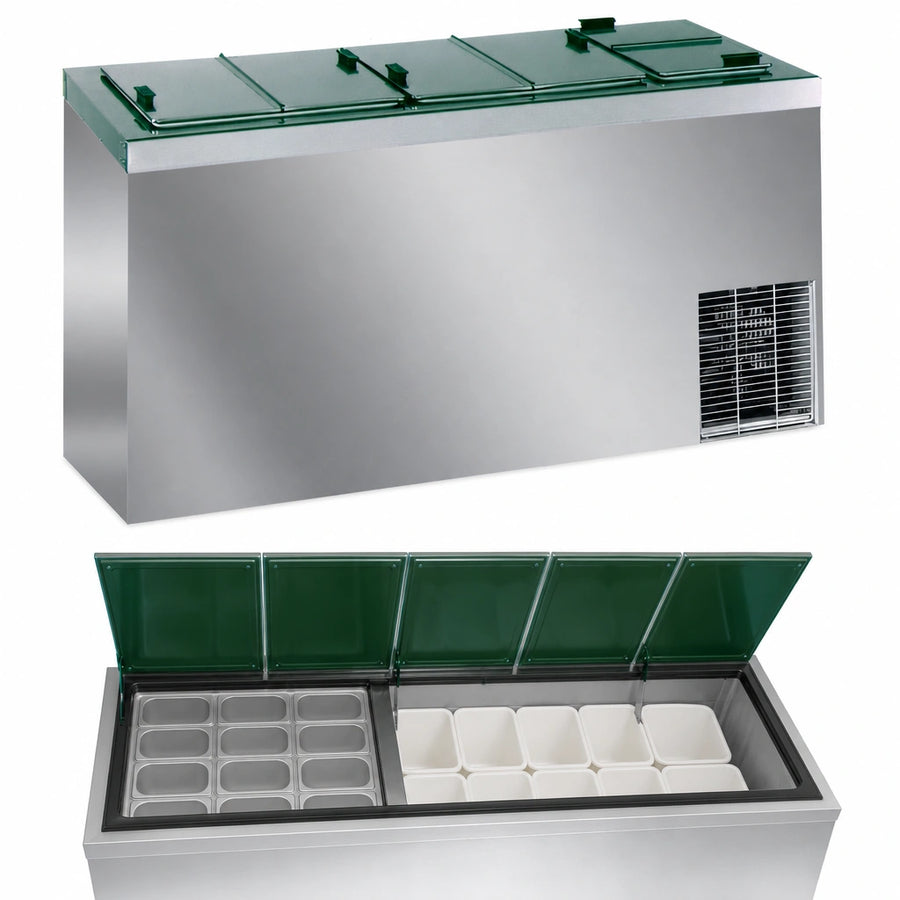

14-Dip / 11-Storage Tub Layout

Designed to dip 14 and store 11 3-gallon tubs.

Galvanized Steel Interior

A galvanized steel interior supports durable day-to-day use.

Stainless Steel Top with Anti-Condensate Heater

The seamless stainless top includes anti-condensate heating to help reduce moisture buildup.

Flip Lids with Handles

Hinged stainless lids with heavy-duty replaceable gaskets help retain cold air and improve access.

Cold-Wall, Self-Contained R290 Refrigeration

Factory-tested self-contained refrigeration with a cold-wall evaporator supports dependable cooling.

Leveling Legs and Floor Drain

Standard leveling legs help on uneven floors, and the floor drain with garden hose fitting simplifies cleanup.

Type Ice Cream Dipping Cabinet
Style Chest
Installation Type Floor Model
Refrigeration Type Self-Contained
Refrigerant Type R290
Material Stainless Steel
Finish All-Stainless Exterior
Interior Finish Galvanized Steel
Top Working Tub Capacity 14 3-Gallon Tubs
Tub Storage Capacity 11 3-Gallon Tubs
Temperature Range 10°F to -10°F
Horsepower 1/3 HP
Voltage 115 Volts
Amps 5.4 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 9 Feet
Shipping Width 67 Inches
Shipping Depth 31 Inches
Shipping Height 35 Inches
Shipping Weight 430 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

2-year parts and labor, plus 3-year compressor part coverage.

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Installation manual PDF Download PDF Owner's manual PDF Download PDF Warranty PDF Download PDF Lid lock installation manual PDF Download

Frequently Asked Questions

It dips 14 3-gallon tubs and stores 11 additional 3-gallon tubs.
The cabinet maintains a temperature range of 10°F to -10°F.
It operates on 115 Volts, 60 Hz, single-phase power and draws 5.4 amps. It includes a 9-foot cord with a NEMA 5-15P plug.
It uses a self-contained, factory-tested refrigeration system with a cold-wall evaporator and R290 refrigerant.
The cabinet includes a standard limited two-year parts and labor warranty, plus an additional three years of compressor part coverage.
Optional accessories listed in the documentation include lid locks, casters, additional lids, load level shelves, and a dipper well.
