Master-Bilt Products

Master-Bilt Products BEL-5-30SC Endless Configurable Glass Door Merchandisers

SKU: BEL-5-30SC
$26,426.15
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Freezers Commercial Refrigeration Display Refrigeration Food Merchandisers Glass Door Freezers Glass Door Merchandisers Glass Door Merchandisers Master-Bilt Products New Arrivals Restaurant Equipment

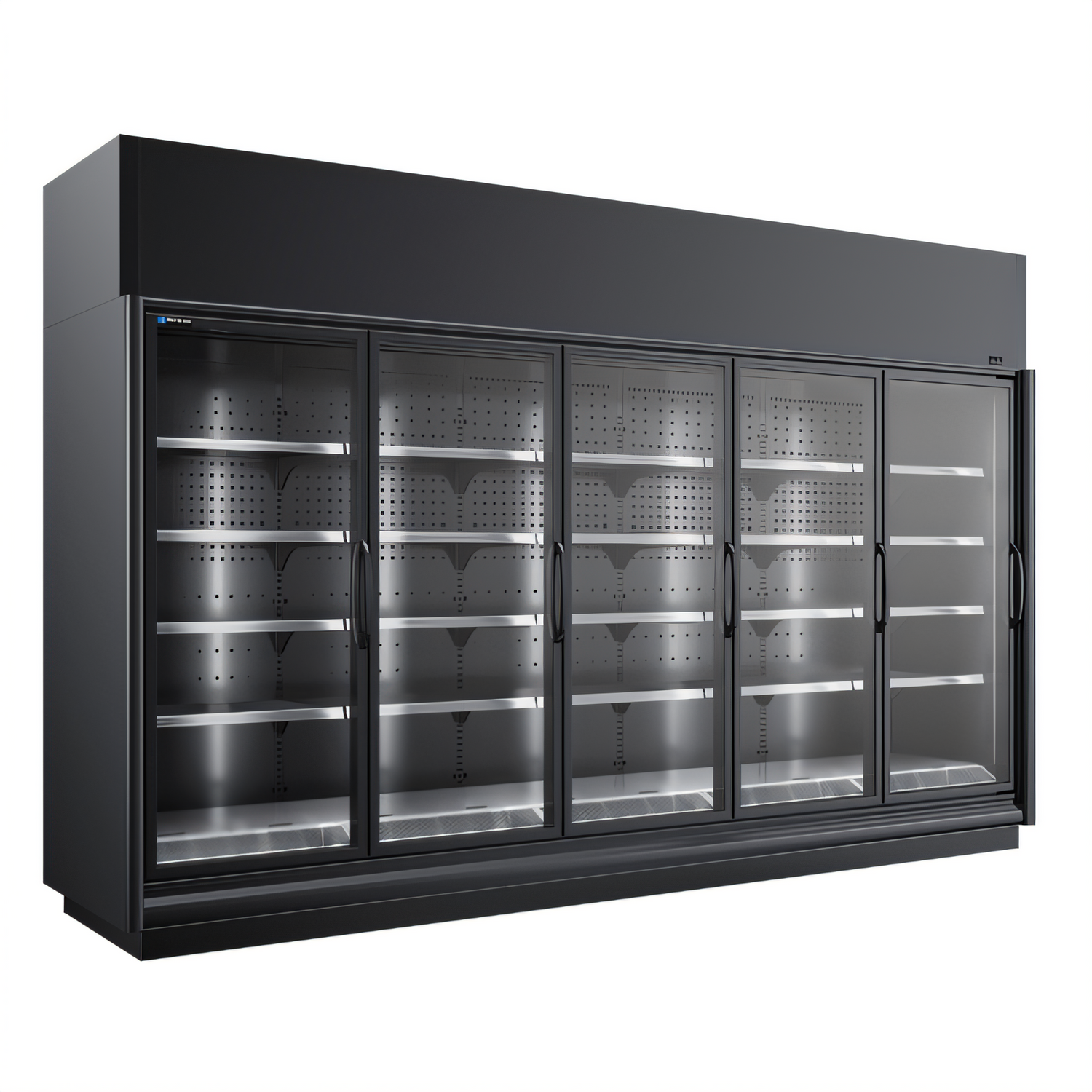

Endless 5-Door Low-Temperature Merchandiser – Self-Contained

Model BEL-5-30SC • 153.31″ W × 40.38″ D × 81.88″ H*

Built for high-volume frozen food sales, the Master-Bilt Endless BEL-5-30SC delivers maximum product visibility, powerful low-temperature performance and the flexibility to grow with your store layout.

Why You’ll Love It

  • Huge merchandising zone – five 30″ wide doors with the industry’s tallest interior case height put 100 % of the 133.7 cu. ft. pack-out right in shoppers’ sight lines.
  • 25 heavy-duty shelves (135 lb rating each) with price-tag molding and product stops keep inventory organized and safe.
  • Energy-saving design – front air screen, EC fan motors and full-length LED lighting reduce runtime and utility costs.
  • Factory-installed semi-self-contained refrigeration ships ready to hard-wire; only the main power hook-up is required.
  • Quiet operation – bottom-mounted MSLD020EB-ENC condensing unit is wrapped in sound-dampening fiberglass matting.
  • Modular “Endless” concept lets you join additional Endless coolers or freezers for a seamless wall-to-wall line-up.
  • Made in the USA and certified cULus & UL EPH Classified for NSF-7 food-safe performance.

Built to Perform in Retail Spaces

  • 2 ½″ foamed-in-place walls & zero-ODP insulation (R-factor 20.0).
  • Painted, textured galvanized-steel interior & exterior for long-term durability.
  • Cam-locked back, top and bottom panels add structural rigidity.
  • Self-closing Thermoseal® glass doors with adjustable torsion hinges; optional factory anti-fog film available.
  • Field-installed 24-ga. steel shroud (ships loose) adds 20″ to overall height and conceals refrigeration components.
  • Narrow 40⅜″ depth and shallow bumpers minimize floor-space intrusion.
  • Designed to fit through a standard 80″ doorway once skid runner is removed.

Technical Specifications

Exterior dimensions 153.31″ W × 40.38″ D × 81.88″ H*
Height with top shroud 101.88″ (add 20″)
Temperature range 0 °F to −15 °F (−18 °C to −26 °C)
Interior capacity 133.7 cu. ft. • 69.7 sq. ft. product facing
Shelves / lights 25 cantilever shelves • 6 LED light strips
Refrigerant R-404A or eco-friendly R-449A (factory charge)
Condensing unit MSLD020EB-ENC – 8,045 BTU/h at −20 °F SST / 80 °F ambient
Electrical (hard-wire) 208-230 V / 1 ph / 60 Hz • MCA 28.6 A • MOP 40 A
Defrost Electric – 15.2 A
Listings cULus, UL EPH Classified, ANSI/NSF-7
Warranty 2-yr parts & labor • 5-yr compressor (factory)

Perfect For

  • Supermarkets, c-stores & club stores
  • Ice-cream & frozen dessert merchandising
  • Bulk frozen entrées, meat & seafood displays
Special Order: BEL-5-30SC units are built to order. Please contact the factory for current lead times and to specify end panels, partitions and anti-fog options.

* Height shown does not include the 20″ steel top shroud supplied loose with the unit.
Ends are sold separately; a 2 ½″ insulated partition is required between cooler and freezer modules in multi-case line-ups.

Overall Dimensions:

153.31"W x 40.38"D x 81.88"H

Product Weight:

2113.0 lb
Manufacturer Master-Bilt Products
Brand name Endless Configurable
Certifications ["cULus", "UL EPH Classified", "Made in USA"]
Height 81.88in
Width 153.31in
Depth 40.38in
Shipping Weight 2113.0lbs
Refrigeration self-contained, top mounted
Size 5 section
Doors hinged
Capacity 86 cu. ft. (and up)
Exterior Finish black
Specifications Endless Low-Temperature Merchandiser, self-contained, 153.31" W, (5) 30" W hinged glass door sections (ends are not included), (25) shelves with tag molding, LED lighting, painted textured galvanized steel interior & exterior, add 20 inches to height for top shroud (shipped loose), bottom mount coil, MSLD020EB-ENC condensing unit, cULus, UL EPH Classified, Made in USA (SPECIAL ORDER - Contact factory for availability)

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Brochure-endless PDF Download
