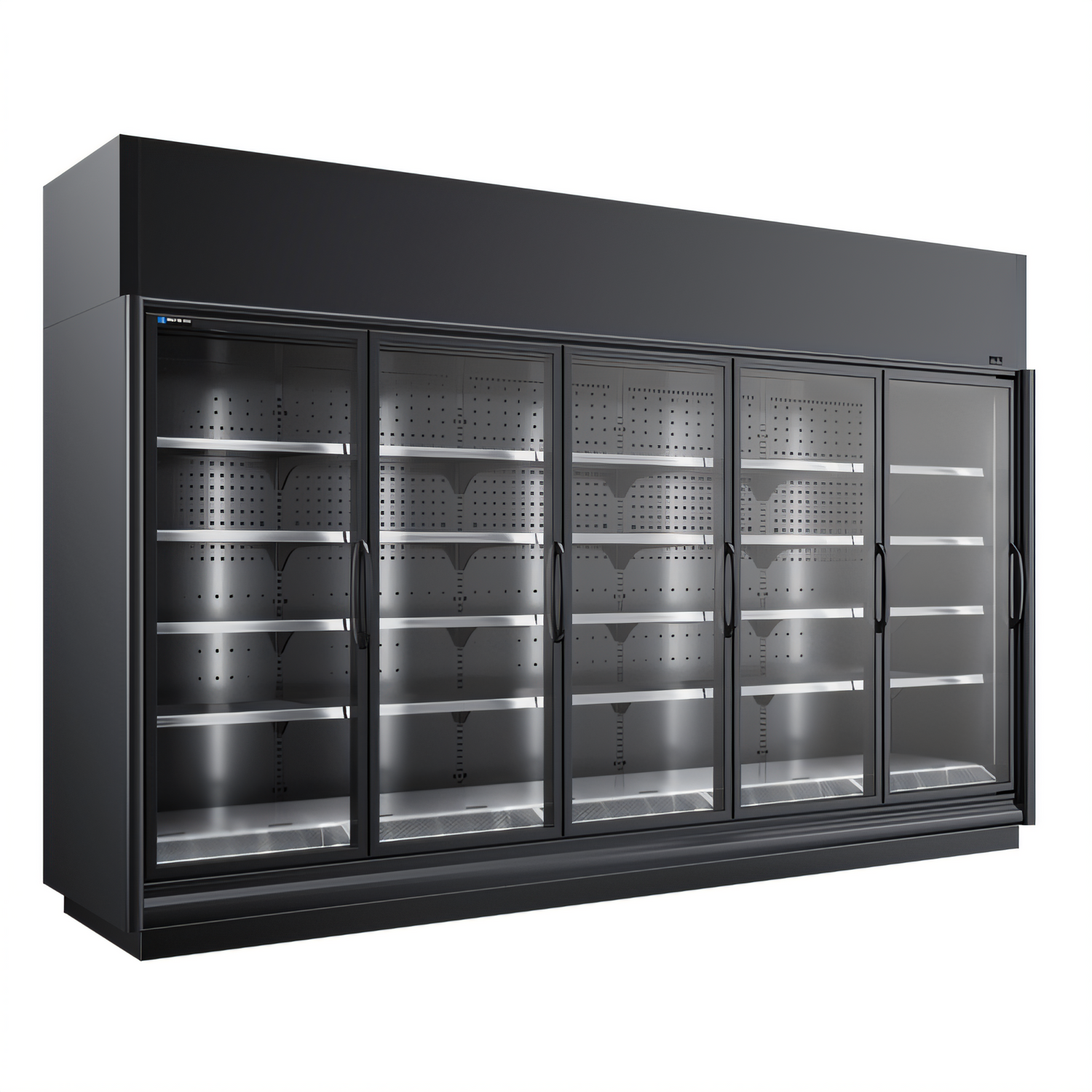

Endless Complete 5-Door Low-Temperature Merchandiser
Model BEL-5-30CP • Master-Bilt Made in USAThe BEL-5-30CP “Endless Complete” merchandiser is Master-Bilt’s turnkey freezer solution for high-volume retail, convenience and grocery applications. A self-contained refrigeration package, deep 23-inch shelves and the industry’s tallest glass doors combine to put 133.7 cu ft of frozen product front and center while keeping installation fast and fuss-free.
Key advantages
- Five 30"-wide field-reversible glass doors with self-closing, adjustable torsion hinges.
- 25 cantilever shelves (135 lb rating each) with price-tag molding – deepest standard shelf in the class at 23".
- High-output LED lighting (6 light strips) for even, shadow-free merchandising.
- Front air curtain design reduces frost build-up and lowers energy use.
- Bottom-mounted MSLD020EB-ENC condensing unit ships with the case for quick hook-up.
- Low-temperature performance: 0 ° to –15 °F (–18 ° to –26 °C) with electric defrost.
- Energy-saving EC evaporator fan motors—up to 65 % more efficient than standard motors.
- All black, textured galvanized steel interior & exterior for a modern, unified look.
- cULus & UL EPH Classified for sanitation in commercial foodservice.
- Zero-ODP, 2.5" foamed-in-place insulation (R-factor 20.0) using eco-friendly R-449A/R-404A refrigerant.
Quick-fit construction
- Narrow 40-3/8" depth and shallow front bumper minimize sales-floor intrusion.
- Cabinet height fits through a standard 80" doorway (remove skid runner).
- Field-installed 24 ga steel shroud (ships loose) adds 20" to height once in place, fully concealing refrigeration components.
- Cam-lock panel design and factory pre-wiring – only a single main power connection required.
- Product stops keep inventory from falling behind shelves.
Specification snapshot
| Overall width | 158 5/16" (402 cm) |
|---|---|
| Overall depth | 40 3/8" (103 cm) |
| Cabinet height | 81 7/8" (208 cm) – add 20" (51 cm) for shroud |
| Pack-out capacity | 133.7 cu ft (3,785 L) |
| Visible product facing | 69.7 sq ft (6.48 m²) |
| Refrigerant | R-449A (eco-friendly) or R-404A |
| Condensing unit | MSLD020EB-ENC, 8,045 BTU @ –20 °F SST |
| Electrical | 208-230 V / 60 Hz / 1 ph, 4-wire MCA 28.6 A • MOP 40 A |
| Defrost | Electric, 15.2 A heater load |
| Shelf configuration | 25 × 23" deep adjustable cantilever |
| Listings | cULus, UL EPH Classified, ANSI/NSF 7 |
| Origin | Made in the USA |
Ideal applications
- Ice cream & frozen dessert aisles
- Frozen entrée, pizza or appetizer lines
- Bulk frozen meat or seafood programs
- Seasonal or promotional freezer endcaps
Please contact the factory or your sales representative for current lead time and availability.
Cabinet performance rated in a 75 °F / 55 % RH ambient store environment. Hard-wire installation by a qualified electrician is required.
