Master-Bilt Products BEL-5-30 Endless Configurable Glass Door Merchandisers
Master-Bilt Products BEL-5-30 Endless Configurable Glass Door Merchandisers is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Master-Bilt Products BEL-5-30 Endless Configurable Glass Door Merch...
Description

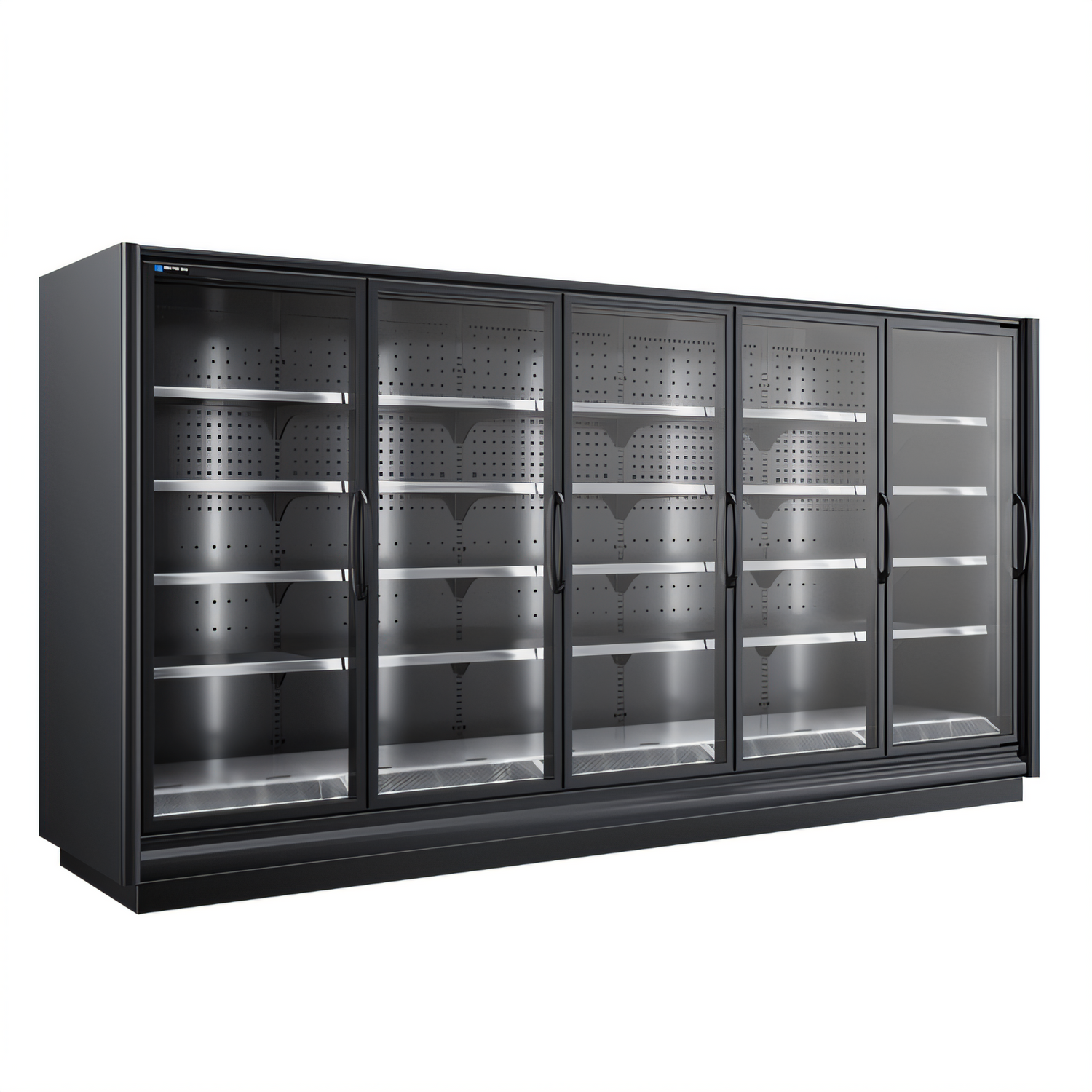

Endless Low-Temperature Remote Merchandiser – 5 Door (BEL-5-30)
153-5/16" W x 81-7/8" H x 40-3/8" D • Remote Freezer Case • Made in USAGive frozen foods the spotlight they deserve with Master-Bilt’s largest Endless low-temperature module. The BEL-5-30 delivers nearly 70 ft² of product facing and a spacious 133.7 ft³ pack-out area – all kept at a rock-solid 0 to -15 °F. Its energy-saving front air curtain, high-efficiency EC fans and brilliant LED lighting keep merchandise cold, clear and ready to sell.
Why You’ll Love It
- Massive capacity: five 30" hinged glass doors & 25 deep 23" shelves (135 lb rating each).
- Energy smart: EC fan motors use up to 65 % less energy than shaded-pole motors.
- Front air curtain: blocks warm air during door openings, cutting frost and defrost cycles.
- Remote refrigeration: keeps heat & noise off the sales floor and simplifies service access.
- LED illumination: evenly lights every shelf to eliminate dark spots and boost impulse buys.
- Built to last: cam-locked, 2-1/2" thick galvanized steel panels with zero-ODP insulation (R-factor 20.0).
- User-friendly doors: self-closing, field-adjustable torsion hinges with standard black frames.
- Food-safe & compliant: cULus listed, UL EPH Classified, ANSI/NSF 7 and DEKRA certified.
- Eco-friendly refrigerant: ready for R-448A / R-449A systems.
- Made in the USA with a 2-year parts & labor warranty on the cabinet.
At-A-Glance Specs
| Model | BEL-5-30 (Remote, Low Temp) |
|---|---|
| Temperature Range | 0 °F to -15 °F (-18 °C to -26 °C) |
| Overall Dimensions | 153-5/16" W × 40-3/8" D × 81-7/8" H |
| Doors | 5 hinged, 30" wide each (self-closing) |
| Shelves | 25 solid cantilever shelves with tag molding, 23" deep |
| Pack-Out / Facing | 133.7 ft³ • 69.7 ft² |
| Lighting | 6 LED light strips (one per door mullion) |
| Electrical (case only) | 120/208-230 V, 60 Hz, 1 Ø, 4-wire • MCA 27.5 A • MOP 30 A |
| Refrigeration | Remote connection, bottom-mount coil, electric defrost |
| Interior / Exterior Finish | Painted textured galvanized steel – black |
| Ship Weight* | Approx. 1,955 lb / 889 kg |
*Includes standard ends; final weight varies with chosen condensing unit.
Built for Endless Line-Ups
Use this 5-door freezer as a stand-alone showpiece or gang multiple Endless modules together for a custom run of mixed-temperature coolers and freezers. Pre-wired joining kits and partitions make installation fast and seamless.
Questions? Need a custom line-up or turnkey refrigeration package? Contact our team – we’re ready to help design the perfect frozen display for your store.
