Endless Configurable 4-Door Low-Temperature Merchandiser

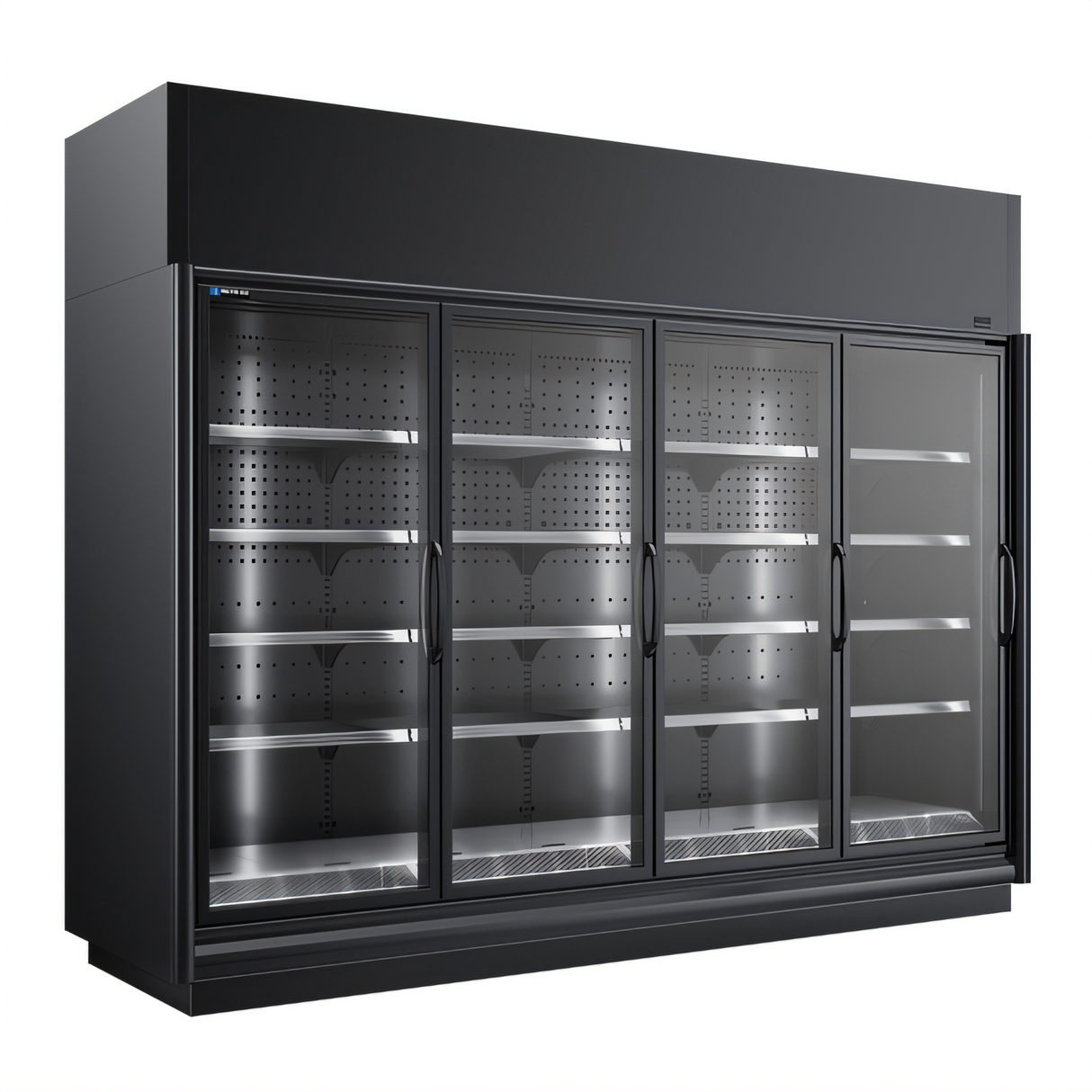

Master-Bilt Model BEL-4-30SC  |  122.9" Self-Contained Freezer Case

Give your frozen line-up the presentation it deserves with Master-Bilt’s Endless Series. Four full-view glass doors, deep 23" shelves, and brilliant LED lighting create an expansive 55.9 ft² of product facing—perfect for driving impulse sales of ice cream, entrées, novelties, and more. A factory-matched bottom-mounted condensing unit ships with the case for faster on-site installation while maintaining the clean, modular look that makes Endless merchandisers a favorite of supermarkets and c-stores alike.

Key Advantages

  • Low-temperature performance: 0°F to -15°F (-18° – -26°C) for rock-solid product integrity.
  • Largest glass door height in its class for maximum visibility.
  • Five 23" deep, 135 lb-rated cantilever shelves per door—no tools required for repositioning.
  • Energy-saving front air curtain minimises frost build-up and reduces defrost cycles.
  • Factory-supplied MSLD017EB-ENC condensing unit with eco-friendly R-449A refrigerant & heavy-duty copper coil.
  • High-output, cool-white LED lighting on every shelf level—no dark zones.
  • Self-closing 30" glass doors with adjustable torsion hinges and low-E Thermoseal® glazing.
  • Durable painted, textured galvanized steel interior & exterior with zero-ODP foam insulation.
  • Electronic controller with digital temperature read-out and programmable defrost.
  • Made in the USA and cULus & UL EPH Classified for NSF 7 sanitation.

Technical Specifications

Exterior Dimensions 122 7⁄8" W × 40 3⁄8" D × 81 7⁄8" H
(add 20" for included top shroud – ships loose)
Doors / Shelves 4 hinged glass doors / 20 adjustable shelves with tag molding
Usable Pack-Out 107.1 cu ft
Visible Merchandising Area 55.9 ft²
Temperature Range 0°F to -15°F (-18° – -26°C)
Refrigeration System Semi-self-contained, bottom mount
Condensing unit: MSLD017EB-ENC, 6,733 BTU/hr @ -20°F SST, 80°F ambient
Electrical 208-230V / 1Ph / 60Hz  |  26.2 MCA  |  35 A max fuse
Energy Consumption 33.97 kWh/day (MDEC)
Interior Lighting 5 LED light strips
Crated Weight 1,941 lb (includes condensing unit)
Certifications cULus, UL EPH Classified (NSF 7), Made in USA
Warranty 2-year parts & labor on cabinet & condensing unit • 5-year compressor (parts)
Special Order Item: Ends, bumpers, and line-up partitions are not included and must be specified separately. Lead times vary—please contact the factory or your sales representative for current availability.

Cabinet performance rated in a 75°F / 55% RH environment. Specifications subject to change without notice.

Overall Dimensions:

122.88"W x 40.38"D x 81.88"H

Product Weight:

1941.0 lb
Manufacturer Master-Bilt Products
Brand name Endless Configurable
Certifications ["cULus", "UL EPH Classified", "Made in USA"]
Height 81.88in
Width 122.88in
Depth 40.38in
Shipping Weight 1941.0lbs
Capacity 86 cu. ft. (and up)
Size 4 section
Refrigeration self-contained, top mounted
Exterior Finish black
Doors hinged
Specifications Endless Low-Temperature Merchandiser, self-contained, 122.88" W, (4) 30" W hinged glass door sections (ends are not included), (20) shelves with tag molding, LED lighting, painted textured galvanized steel interior & exterior, add 20 inches to height for top shroud (shipped loose), bottom mount coil, MSLD017EB-ENC condensing unit, cULus, UL EPH Classified, Made in USA (SPECIAL ORDER - Contact factory for availability)
