Master-Bilt Products BEL-4-30CP Endless Complete Glass Door Merchandisers
Master-Bilt Products BEL-4-30CP Endless Complete Glass Door Merchandisers is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Master-Bilt Products BEL-4-30CP Endless Complete Glass Door Merchan...
Description

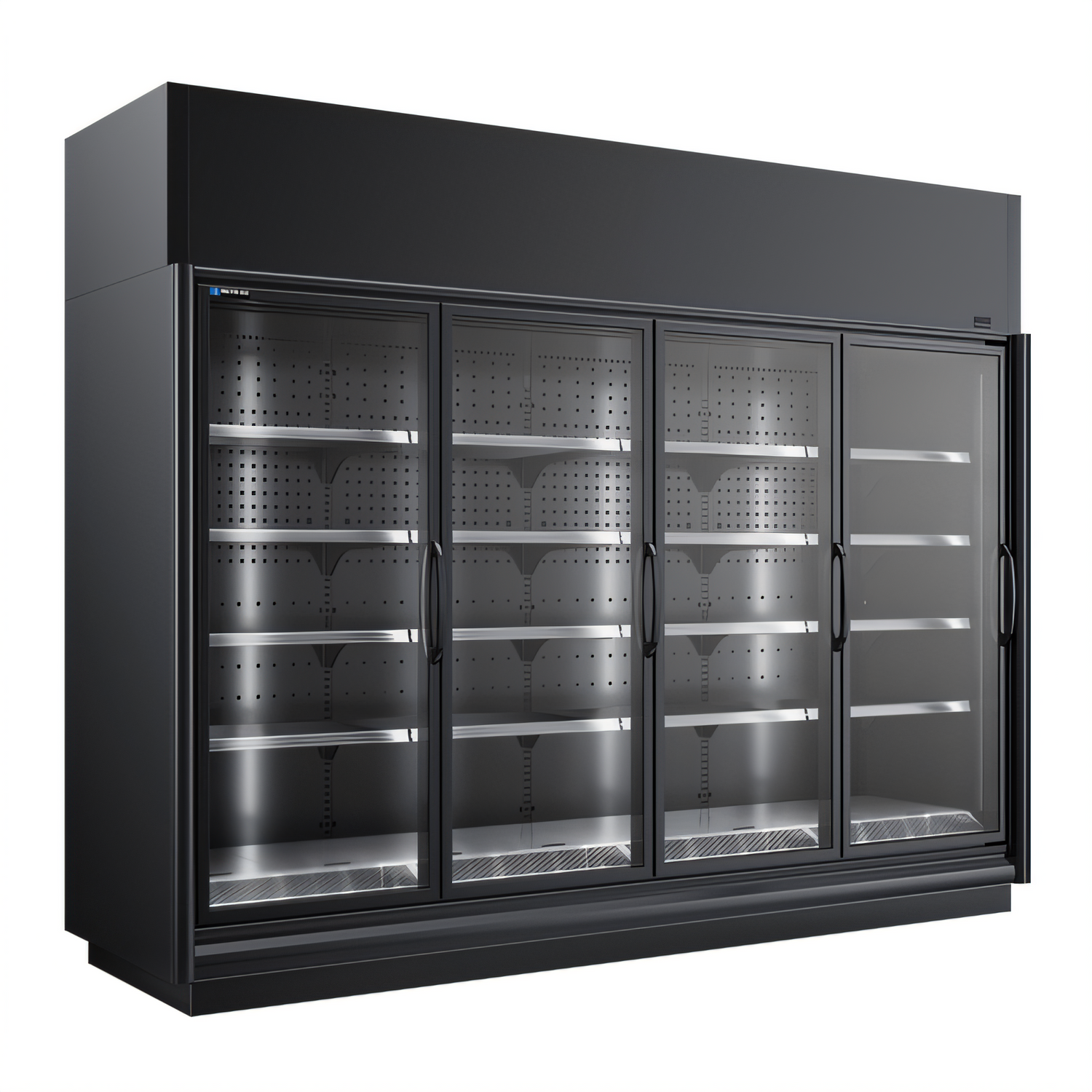

Endless Complete 4-Door Low-Temperature Merchandiser Freezer
Master-Bilt model BEL-4-30CP with MSLD017EB-ENC self-contained refrigerationGive shoppers a crystal-clear view of frozen favorites while keeping products at a rock-solid 0 – -15°F. The Endless Complete (CP) series ships truly complete—condensing unit, shroud, bumpers and ends are all in the crate—so installers can roll it in, hook it up and start selling.
Why You’ll Love It
- Self-contained, bottom-mounted MSLD017EB-ENC condensing unit (6,733 BTUH at -20°F SST).
- (4) field-reversible 30" glass doors with self-closing torsion hinges.
- (20) 23" deep cantilever shelves—135 lb capacity each—with price-tag molding.
- Full-length LED lighting and the industry’s tallest door glass for maximum product exposure.
- Front air curtain design cuts defrost cycles and lowers energy costs.
- EC fan motors generate up to 65 % less heat than standard motors.
- Zero-ODP, 2½" foamed-in-place insulation for an R-factor of 20.
- Durable black, textured galvanized steel interior & exterior—Made in the USA.
- cULus & UL EPH Classified for sanitation.
Ideal For
- Supermarkets & c-stores
- Ice-cream novelties & frozen entrées
- End-caps or inline freezer runs—add additional Endless sections as you grow
Specifications
| Configuration | 4 hinged glass doors / 5 shelves per door |
|---|---|
| Temp. range | 0 °F to -15 °F (-18 °C to -26 °C) – electronic controller |
| Exterior width | 127-7/8" (3250 mm) – includes mounted ends |
| Exterior depth | 40-3/8" (1 026 mm) |
| Exterior height | 81-7/8" (2 080 mm) Add 20" for top shroud (ships loose) |
| Pack-out capacity | 107.1 cu ft / 55.9 ft² facing |
| Refrigerant | R-404A or eco-friendly R-449A |
| Electrical | 208-230 V / 60 Hz / 1-ph, hard-wire connection MCA 26.2 A | MOCP 35 A |
| Crated weight | 1 941 lb (882 kg) |
| Certifications | cULus, UL EPH Classified, ANSI/NSF 7 |
| Warranty | 2 yr parts & labor on cabinet & condensing unit — 5 yr compressor part |
Ships Complete With
- Plug-ready condensing unit (pre-charged, factory run-tested)
- 20" tall black steel shroud
- Full-width bumper assembly
- Left- & right-hand finished end panels
Designed for optimum performance in a 75 °F, 55 % RH air-conditioned environment. Installation and start-up must be performed by a qualified refrigeration technician.
