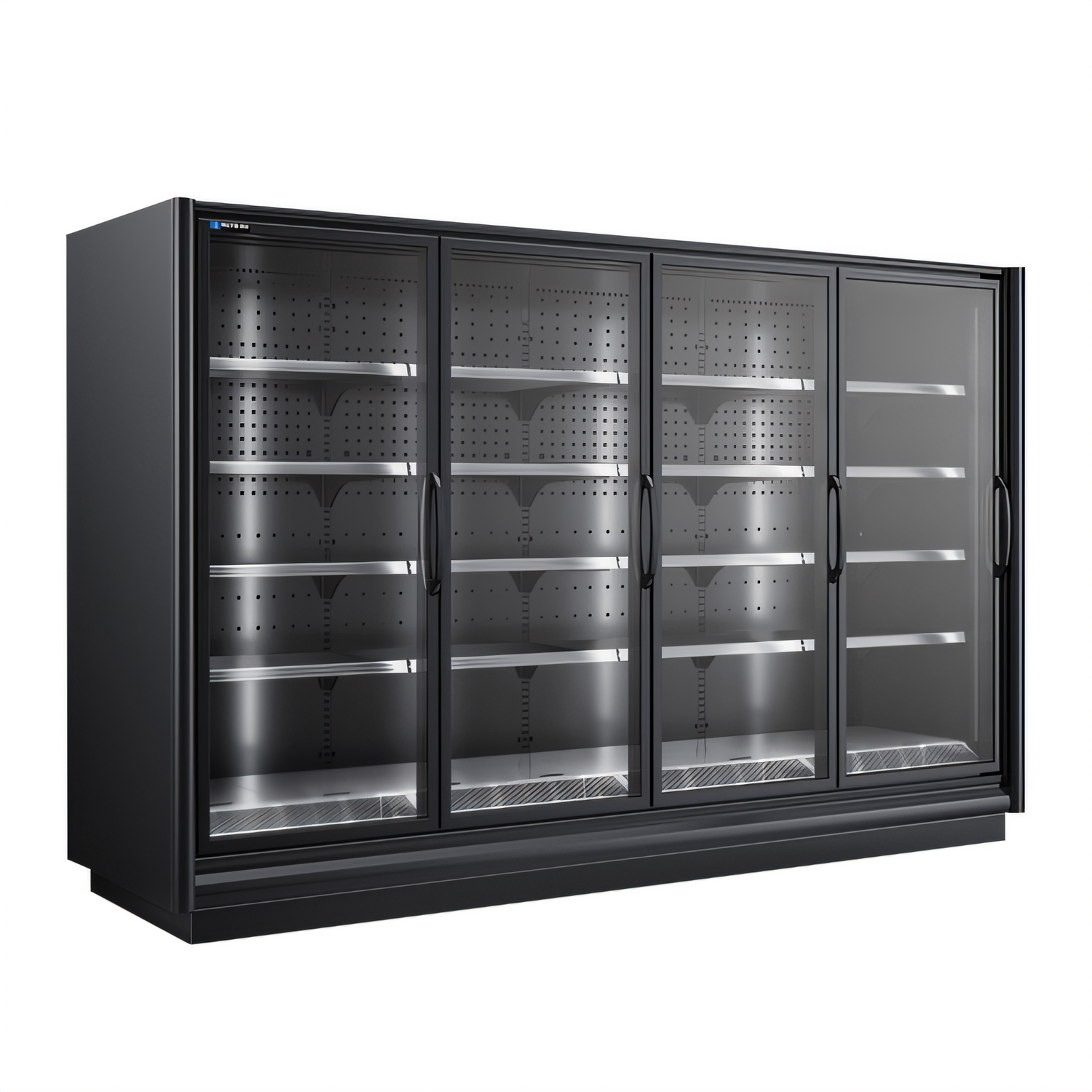

Master-Bilt BEL-4-30 Endless Low-Temperature Glass Door Merchandiser — Remote, 4-Door, 122.88"
High-capacity frozen display module that lets you build the exact line-up you needShowcase more frozen products in less floor space. The BEL-4-30 combines Master-Bilt’s proven Endless merchandiser platform with four full-height glass doors, energy-saving LED lighting and the industry’s deepest adjustable shelves. Built for connection to a remote refrigeration system, this low-temperature module keeps product at 0 to -15 °F while cutting energy costs and simplifying aisle design.
Why you’ll love it
- Low-temp freezer case holds 0 to -15 °F (-18 to -26 °C)
- Four 30" hinged Thermoseal® glass doors with self-closing, adjustable torsion hinges
- Twenty 23" deep cantilever shelves (5 per door) — each rated for 135 lb and supplied with price-tag molding
- Front air screen minimizes frost build-up and reduces defrost cycles for lower operating costs
- High-efficiency EC fan motors use up to 65 % less energy than shaded-pole motors
- Bright, evenly distributed LED lighting on every shelf level eliminates dark spots
- 2 ½" foamed-in-place walls (R-factor 20.0) and cam-locked panels for superior insulation and rigidity
- Durable painted, textured galvanized steel interior & exterior • Made in the USA
- Remote-ready refrigeration: bottom-mounted copper-tube evaporator coil with pre-installed expansion valve
- Certified cULus and UL EPH Classified for safety and sanitation
Technical specifications
| Model | BEL-4-30 (Endless Low-Temp Module) |
|---|---|
| Overall width | 122 ⅞" / 312 cm (ends sold separately) |
| Overall depth | 40 ⅜" / 103 cm (incl. handles & rear stand-offs) |
| Overall height | 81 ⅞" with skid runner • 79 ¾" without |
| Doors | 4 hinged glass, black frames, self-closing |
| Shelf count / size | 20 adjustable shelves • 23" deep |
| Merchandising volume | 107.1 ft³ pack-out • 55.9 ft² visible facing |
| Temperature range | 0 to -15 °F (-18 to -26 °C) |
| Refrigerant | R-448A / R-449A (remote system – condensing unit not included) |
| Electrical | 120/208-230 V, 60 Hz, 1-phase, 4-wire hard-wire • MCA 22.1 A • MOP 25 A |
| Interior lighting | 5 integrated LED fixtures |
| Crated weight | 1,785 lb / 811 kg (without ends or condensing unit) |
| Warranty | 2-year parts & labor on cabinet |
Planning a larger run? Endless modules ship with factory joining kits so you can connect multiple coolers and freezers for a seamless presentation. Mixed-temperature line-ups simply require the correct insulated partition between cases.
Perfect for
- Supermarkets & grocery chains
- Convenience stores & fuel centers
- Specialty frozen-food retailers
- Warehouse clubs & distributors
Special Order: The BEL-4-30 is built to order. Remote condensing unit, case ends and partitions
are sold separately. Please contact the factory for current lead-time, configuration assistance and pricing.
Master-Bilt Products
Master-Bilt Products BEL-4-30 Endless Configurable Glass Door Merchandisers
SKU: BEL-4-30
$15,782.35
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Master-Bilt BEL-4-30 Endless Configurable Glass Door Merchandiser — heavy-duty, low-temperature remote merchandiser ideal for supermarkets and convenience stores. This 122.88" wide unit includes four 30" hinged glass door sections, 20 adjustable shelves with tag molding, energy-efficient LED lighting, and textured galvanized steel interior/exterior with bottom-mount coil. cULus and UL EPH classified, made in the USA. Special order — contact factory for availability.
Manufacturer
Master-Bilt Products
Brand name
Endless Configurable
Certifications
cULus, UL EPH Classified, Made in USA
Height
81.88in
Width
122.88in
Depth
40.38in
Shipping Weight
1785.0lbs
Capacity
86 cu. ft. (and up)
Size
4 section
Exterior Finish
black
Refrigeration
remote (refrigeration not included)
Doors
hinged
Specifications
Endless Low-Temperature Merchandiser, remote, 122.88" W, (4) 30" W hinged glass door sections (ends are not included), (20) shelves with tag molding, LED lighting, painted textured galvanized steel interior & exterior, bottom mount coil, cULus, UL EPH Classified, Made in USA (SPECIAL ORDER - Contact factory for availability)
