Master-Bilt Products BEL-3-30CP Endless Complete Glass Door Merchandisers

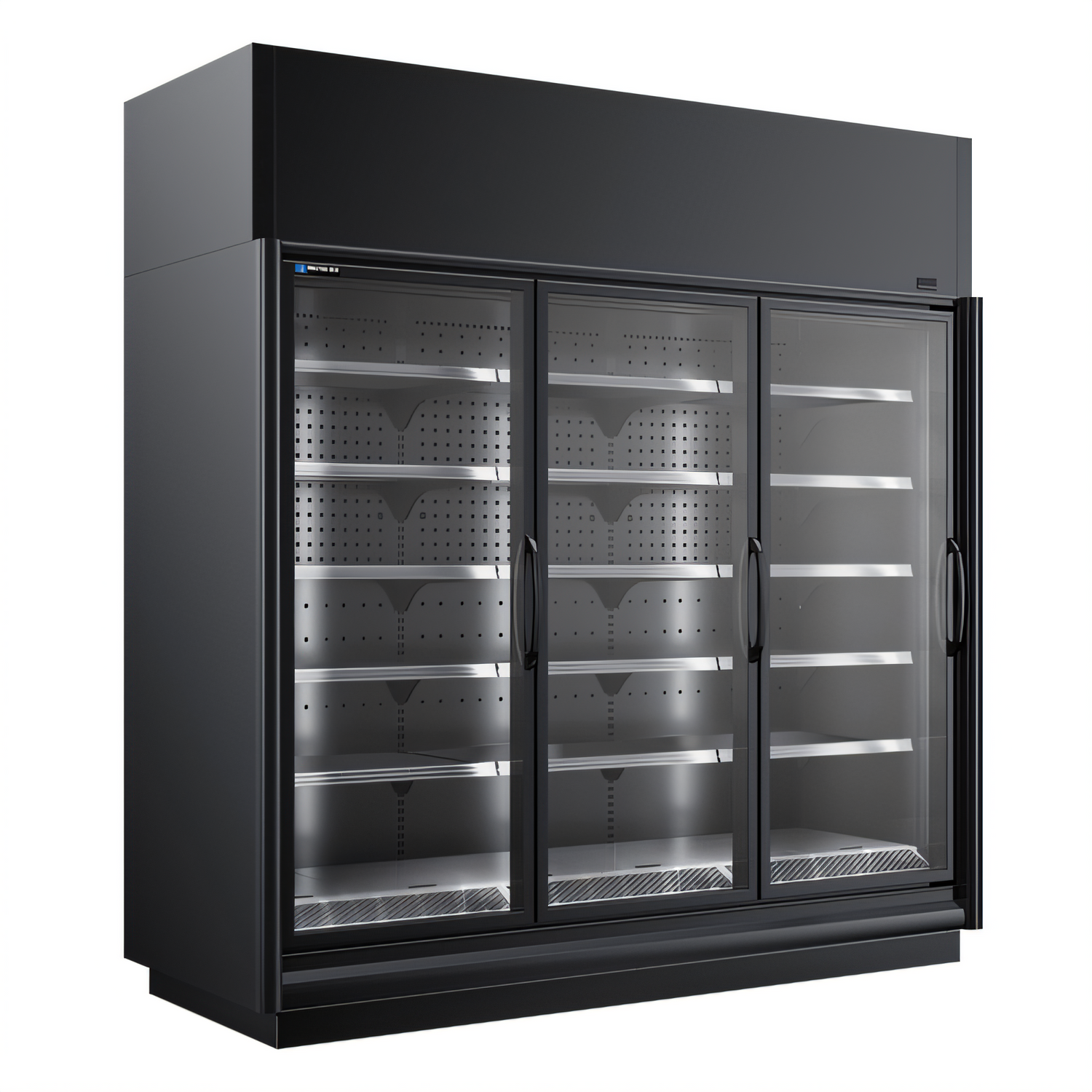

Master-Bilt Endless Complete 3-Door Low-Temperature Merchandiser
Model BEL-3-30CP | 97.44 in W Self-Contained Freezer DisplayBuilt for demanding retail aisles, the Endless Complete gives frozen foods unbeatable visibility while keeping installation simple—everything you need ships in one crate.
Top Reasons It Outsells the Rest
- Ships as a complete package—condensing unit, top shroud and bumper included for rapid field set-up
- Front air curtain blocks warm, humid air for fewer defrost cycles and lower energy bills
- Largest glass-door opening & tallest interior in its class—100 % of product lies in the customer’s sightline
- 15 cantilever shelves, 23 in deep, rated 135 lb each and fitted with price-tag molding
- Even, natural LED illumination from four high-output strips—no dark spots
- Field-reversible 30 in Thermoseal® glass doors with self-closing, adjustable torsion hinges
- Black textured galvanized steel inside & out resists scratches and complements any décor
- Energy-saving EC fan motors plus low-GWP R-449A refrigerant option
- Digital electronic controller with temperature display and automatic electric defrost
Engineered for Performance
- 0 °F to –15 °F operating range—perfect for ice cream, frozen entrées & novelties
- Heavy-duty bottom-mounted evaporator coil with copper tubing
- Cam-locked, 2.5 in thick insulated panels for long-term rigidity and efficiency (R-factor 20)
- Fiberglass-wrapped condensing unit keeps noise on the sales floor to a minimum
- Designed to roll through a standard 80 in doorway; removable skid runner included
What’s Included
- Endless Complete freezer cabinet with left & right end panels installed
- MSLD012EB-ENC low-temperature condensing unit (ships loose)
- 20 in steel top shroud (ships loose) to conceal refrigeration package
- Full-width bumper assembly
- 15 cantilever shelves with product stops & tag molding
Quick Specs
| Door configuration | Three 30 in hinged glass doors, field-reversible |
|---|---|
| Overall width* | 97-7/16 in (97.44 in) |
| Overall depth | 40-3/8 in |
| Overall height* | 81-7/8 in; add 20 in with shroud |
| Pack-out capacity | 80.6 cu ft |
| Product facing | 42.0 sq ft |
| Shelf count / size | 15 × 23 in deep cantilever shelves |
| Interior lighting | 4 LED strips |
| Temperature range | 0 °F to –15 °F (–18 °C to –26 °C) |
| Refrigerant | R-404A or eco-friendly R-449A |
| Condensing unit | MSLD012EB-ENC, 4,672 BTU @ –20 °F SST |
| Electrical | 208-230 V / 1-ph / 60 Hz, 18.3 MCA, 25 A max OCP |
| Certifications | cULus, UL EPH Classified (NSF 7) |
| Country of origin | Made in USA |
| Warranty | 2 yr parts & labor on cabinet & condensing unit; 5 yr compressor (part) |
*Width includes end panels. Cabinet ships on a removable skid runner. Installed height with shroud is approximately 102 in.
Overall Dimensions:
97.44"W x 40.38"D x 81.88"HProduct Weight:
1425.0 lbCertifications & Compliance
