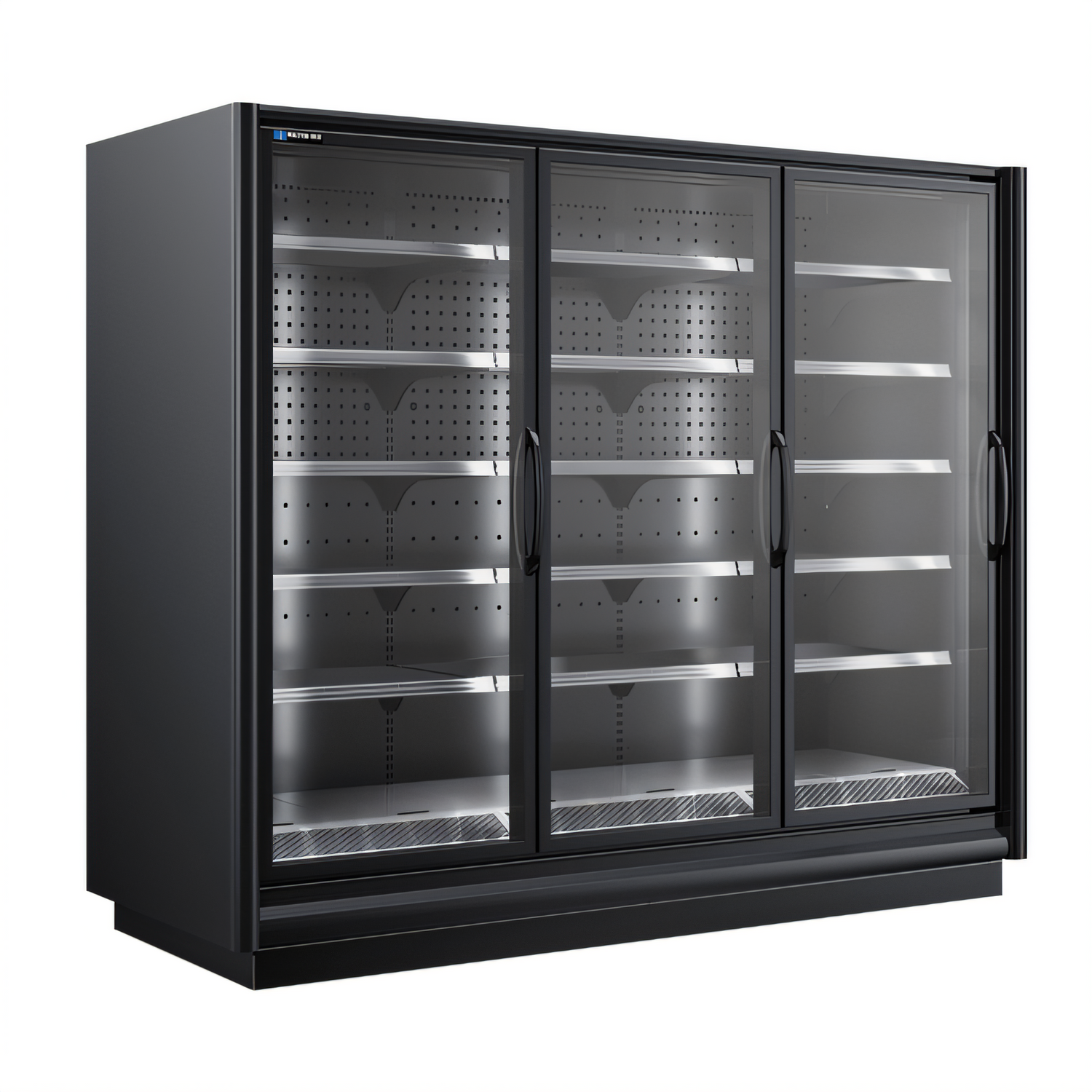

Master-Bilt “Endless” 3-Door Low-Temperature Merchandiser
Model BEL-3-30 • Remote refrigeration • 92.44 in WGive customers a crystal-clear view of frozen foods while you enjoy the flexibility of Master-Bilt’s modular “Endless” line-ups. This 3-door, low-temperature merchandiser pairs superior product visibility with rugged, energy-efficient construction—ready to be installed as a stand-alone case or joined with additional Endless modules to build the exact run your store needs.
Why You’ll Love It
- Low-temp performance: holds 0° to -15 °F (-18 ° to -26 °C) with electric defrost.
- Remote refrigeration keeps heat & noise off the sales floor—perfect for large line-ups.
- (3) 30" self-closing Thermoseal® glass doors with full-height view & black frames.
- 15 solid cantilever shelves (23" deep) rated 135 lb each & fitted with price-tag molding.
- High-output LED lighting (4 light strips) eliminates dark spots and saves energy.
- Front air curtain blocks warm air, reducing frost build-up and cutting energy use.
- EC fan motors up to 65 % more efficient than conventional motors.
- 2 -½" foamed-in-place insulation (R-factor 20) with zero ODP blowing agent.
- Cam-locked steel panels fit through a standard 80" doorway for easy set-in.
- Made in the USA and cULus / UL EPH Classified for NSF 7 compliance.
At-a-Glance Specs
| Configuration | Remote low-temperature merchandiser (condensing unit sold separately) |
|---|---|
| Doors | (3) 30" hinged, self-closing glass doors |
| Shelves | 15 solid cantilever shelves, 23" D, with tag molding |
| Pack-Out Capacity | 80.6 cu ft • 42.0 sq ft product facing |
| Exterior Dimensions* | 92.44" W × 40.38" D × 81.88" H (79.75" H without skid) |
| Temperature Range | 0° to -15 °F (-18° to -26 °C) |
| Refrigerant | R-449A (expansion valve factory-installed) |
| Electrical | 120/208-230 V, 60 Hz, 1-phase, hard-wired (MCA 16.8 A, MOP 20 A) |
| Listings | cULus, UL EPH Classified, ANSI/NSF 7 |
| Warranty | 2-year parts & labor on cabinet (optional 4-yr compressor extension) |
*Add 2-½" to overall width for each end or insulated partition.
Installation Notes
- Bottom-mounted coil with quick-connect refrigerant lines exits left side of case.
- Drain line (1" PVC slip) is pre-piped to case base for easy hook-up to floor drain or optional condensate pump.
- Designed for optimal performance in 75 °F / 55 % RH air-conditioned environments.
- Recommended low-temp condensing unit for 3-door line-ups: MSLD020E* (-20 °F SST, 110 °F ambient) – consult factory for exact sizing.
