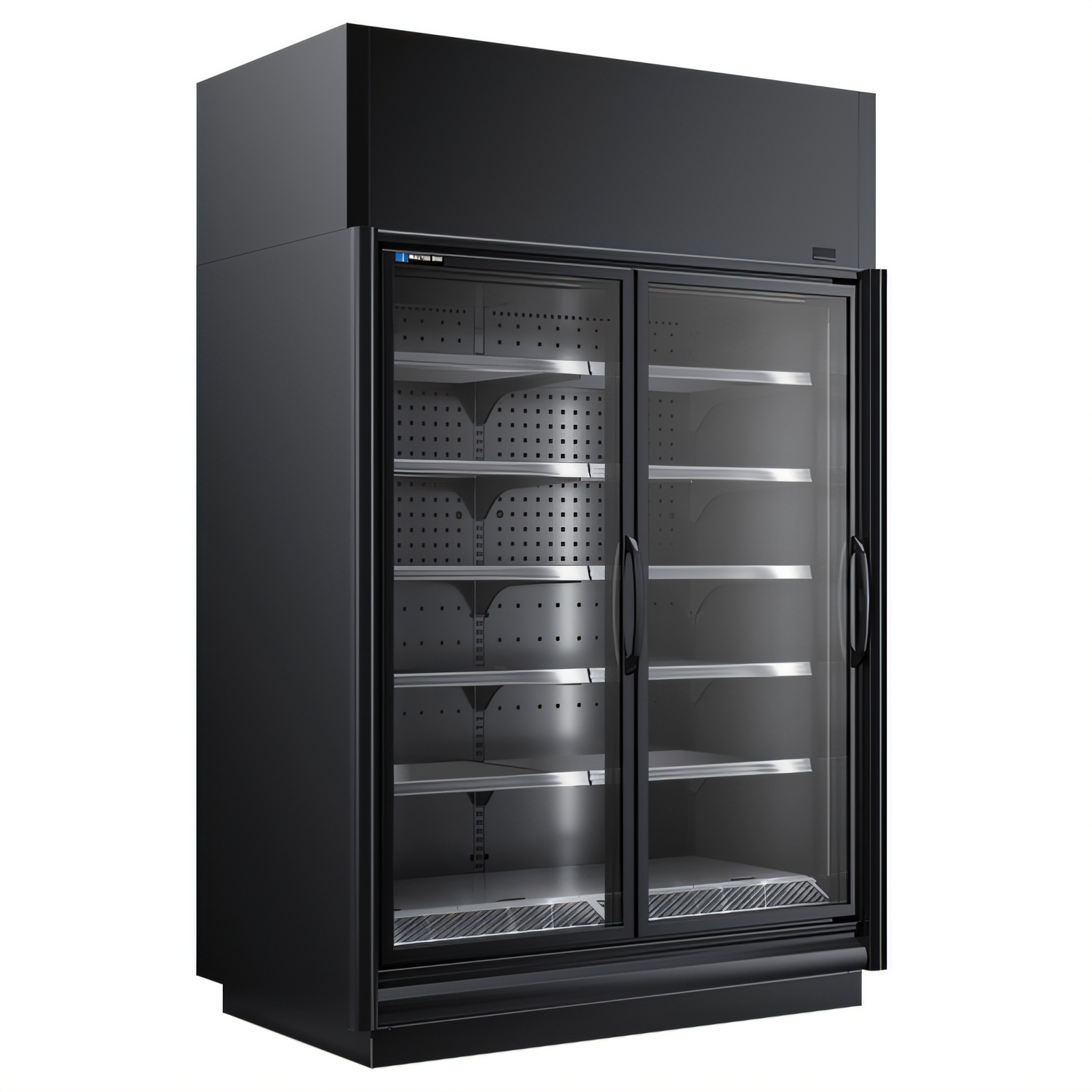

Master-Bilt Endless BEL-2-30SC Low-Temperature Merchandiser — 62" Wide

Self-Contained • Bottom-Mount • 2 Hinged Glass Doors

Give your frozen lineup the attention it deserves with Master-Bilt’s Endless BEL-2-30SC. This 62" semi-self-contained merchandiser pairs industry-leading product visibility with rock-solid low-temperature performance, all in a footprint that fits through a standard 80" doorway.

Key Features

  • Low-temperature holding between 0° & -15 °F (-18° to -26 °C) for ice cream and frozen entrées.
  • Two 30" Thermoseal® heated glass doors with self-closing, adjustable torsion hinges.
  • Front air curtain minimizes warm air infiltration, reducing frost and energy use.
  • Ten adjustable 23"-deep cantilever shelves (5 per door) rated 135 lb each and equipped with price-tag molding.
  • Bright, energy-saving LED canopy and shelf lighting showcases every product.
  • Field-installed 20" steel top shroud (included) conceals refrigeration components.
  • Cam-locked panels and 2-½" foamed-in-place insulation (R-factor 20) maximize structural strength and efficiency.
  • MSLD010EB-ENC bottom-mounted condensing unit ships loose for quick hook-up; sound-insulated for quiet operation.
  • Electronic controller with digital temperature display and automatic electric defrost.
  • Made in the USA and listed cULus & UL EPH for NSF 7 food-service compliance.

Specifications

Exterior width 62"  |  1581 mm
Exterior depth 40-3/8"  |  1026 mm (incl. handles & rear stand-offs)
Exterior height 81-7/8" / 2080 mm (cabinet) + 20" / 508 mm shroud
Doors 2 hinged, 30" wide heated glass
Shelves 10 adjustable, 23" deep
Pack-out capacity 54.1 cu ft
Visible merchandising area 28.2 sq ft
Interior lighting 3 LED fixtures
Refrigerant R-449A (eco-friendly, low GWP)
Condensing unit MSLD010EB-ENC • 3,125 BTUH @ -20 °F SST, 80 °F ambient
Electrical 208-230 V / 60 Hz / 1-φ • 20 A circuit
Compressor RLA 6.1 A • Defrost 6.1 A • Anti-sweat 3.3 A
Energy usage 19.97 kWh / 24 hr (MDEC)
Approvals cULus, UL EPH, ANSI/NSF 7
Origin New Albany, Mississippi USA
Warranty 2 yrs parts & labor • 5 yrs compressor

Perfect For

  • Grocery and convenience store frozen aisles
  • Grab-and-go markets and micro-marts
  • Ice-cream parlors & specialty dessert shops
  • Cafeterias, commissaries and institutional kitchens
Special Order: This model is built-to-order. Contact us for current lead times and to add required cabinet ends or partitions.

Ends, bumpers and joining kits are sold separately. Allow an additional 1" clearance on overall length when connecting multiple cases.

Overall Dimensions:

62.0"W x 40.38"D x 81.88"H

Product Weight:

1185.0 lb
Manufacturer Master-Bilt Products
Brand name Endless Configurable
Certifications ["cULus", "UL EPH Classified", "Made in USA"]
Height 81.88in
Width 62.0in
Depth 40.38in
Shipping Weight 1185.0lbs
Size 2 section
Refrigeration self-contained, top mounted
Exterior Finish black
Doors hinged
Capacity 54 - 85 cu. ft.
Specifications Endless Low-Temperature Merchandiser, self-contained, 62" W, (2) 30" W hinged glass door sections (ends are not included), (10) shelves with tag molding, LED lighting, painted textured galvanized steel interior & exterior, add 20 inches to height for top shroud (shipped loose), bottom mount coil, MSLD010EB-ENC condensing unit, cULus, UL EPH Classified, Made in USA (SPECIAL ORDER - Contact factory for availability)
